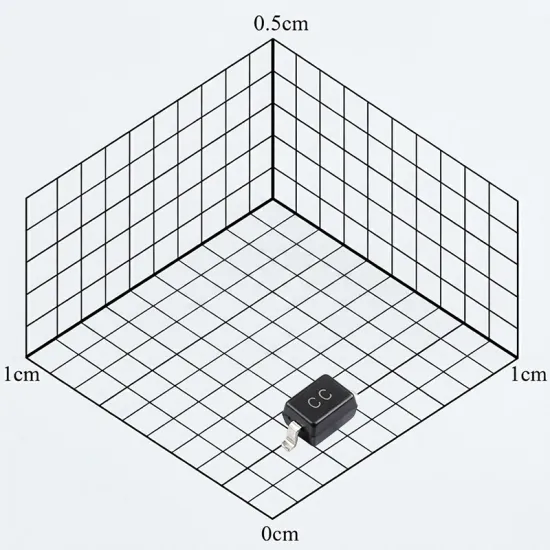

PESD03V32D-LC
This ESD suppressor meets IEC 61000-4-2 ±30kV and EFT 40A, protecting one data/power line with low clamping voltage.
- Reverse cutoff voltage (Vrwm) ：3.3V
- Clamping voltage ：16V
- Peak pulse power (Ppp) ：350W@8/20us
- Breakdown voltage (VBR) ：6V
- Reverse current (Ir)：200nA
- Product Package ：SOD-323
- Packaging Method ：Tape & Reel
- Product Gross weight ：0.027(g)
USD 0.0561
26000
