Product Description

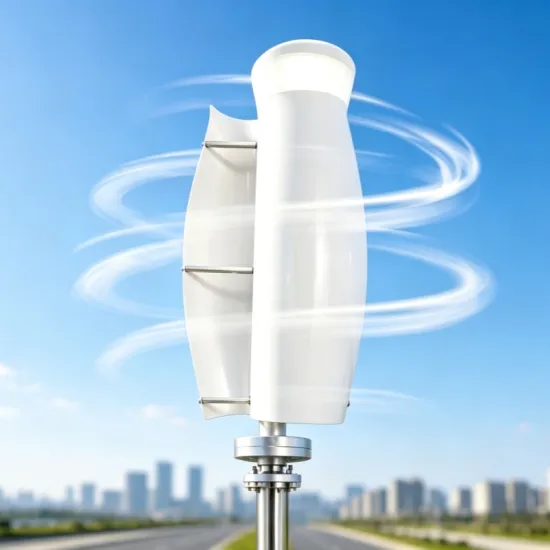

The tulip vertical axis wind turbine adopts a special tulip-shaped structure to improve airflow utilization. It works efficiently under low wind speed, operates quietly, and features a compact appearance suitable for urban installation. It supplies stable renewable power for residential, commercial and industrial projects.
The matched mounting pole is built from high-strength steel with anti-corrosion coating. It provides solid, long-lasting support for small and medium wind turbines for outdoor use. Suitable for off-grid and wind-solar combined systems.
Product parameters
Rated Power | 100w | 200W | 600W | 1000W |
Rated Wind Speed | 11m/s | 11.5m/s | 11m/s | 12m/s |
Rated Voltage | 12/24V | 24/48V | ||
Start-up Wind Speed | ≤2m/s | |||
Rotor Diameter | 0.38m | 0.52m | 1m | |
Overall Height | 0.85m | 1.25m | 2.015m | |
Safe Wind Speed | 25 m/s | |||
Braking Method | Electromagnetic unloading | |||
Connection Method | Flange connection | |||
Generator | Three-phase AC magnetic levitation generator | |||
Blade Material | ABS | Reinforced fiberglass | ||
Number of Blades | 2 | |||
Operating Temperature | -20℃-60℃ | |||
Design Life | 25years | |||
Insulation Class | F | |||
Protection Rating | IP54 | |||
Weight | 7KG | 18.5KG | 50KG | |
Recommended Mounting Pole Specifications
Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |

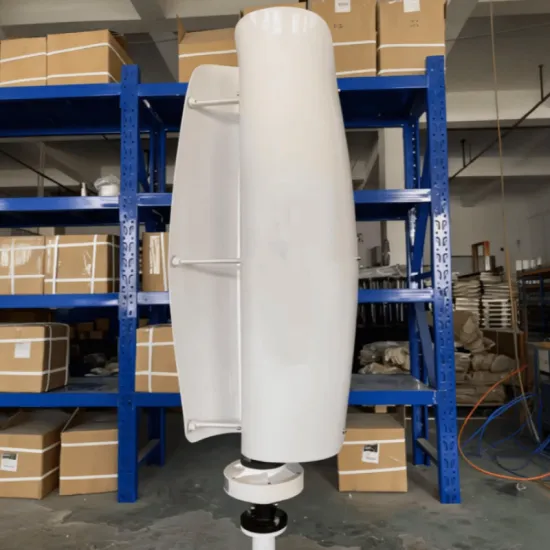

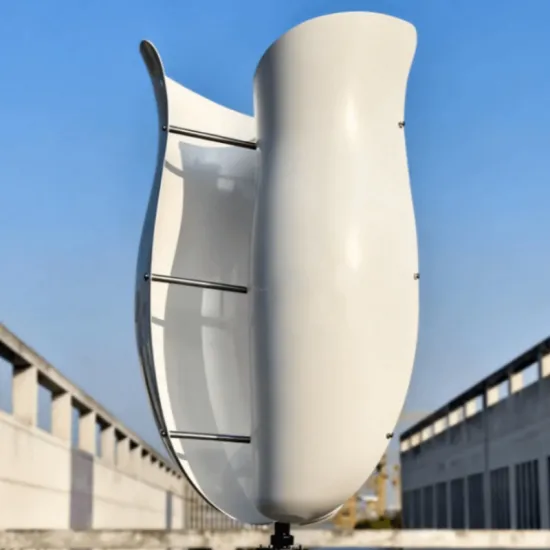

Product Display

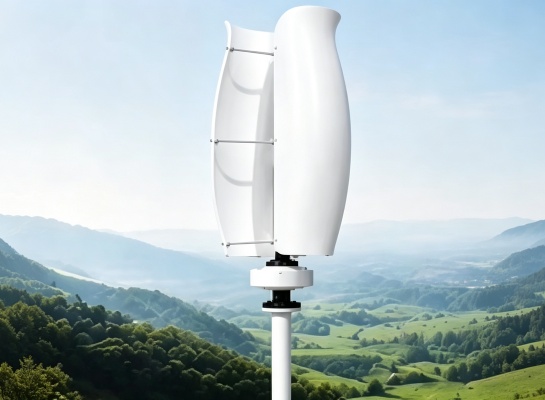

Low-wind startup, 360° automatic wind-following
Supports startup at low wind speed. With 360° automatic wind tracking, it captures wind from all directions and operates stably under turbulent, complex wind conditions.
Low-Noise Operation
Aerodynamically optimized blades and maglev generator reduce vibration and noise. It runs at low decibels without noise disturbance, ideal for parks, residential communities and scenic spots.

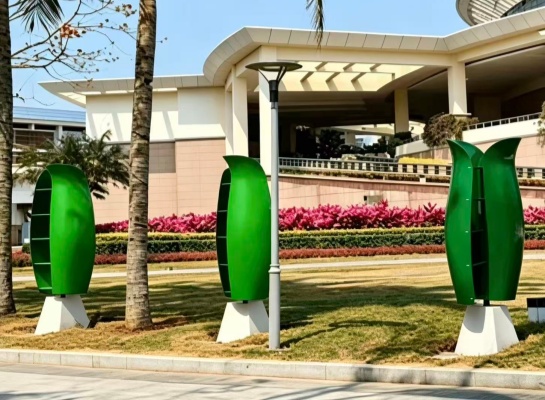

Attractive Appearance & Wide Application
Elegant streamlined design with customizable colors. Widely used in parks, scenic areas, residential communities and various landscape power projects.
Customized Solutions
We offer tailored solutions to match your unique project demands.Whether you need adjustments on power rating, pole configuration or system combination, our engineering team can design the proper setup for your site conditions.Feel free to share your project parameters, and we will recommend the most suitable configuration.

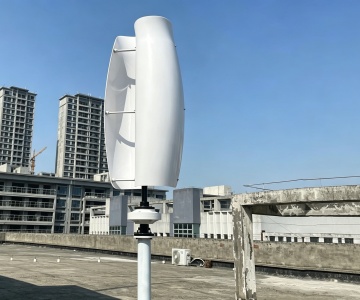

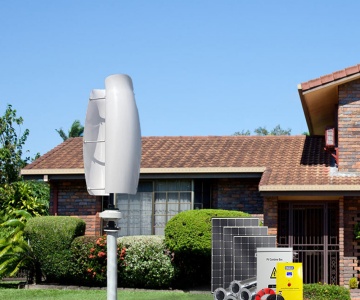

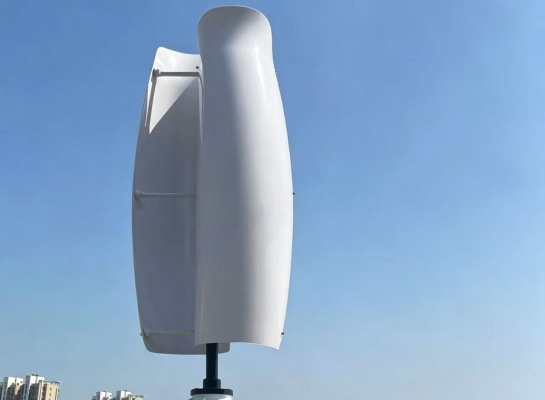

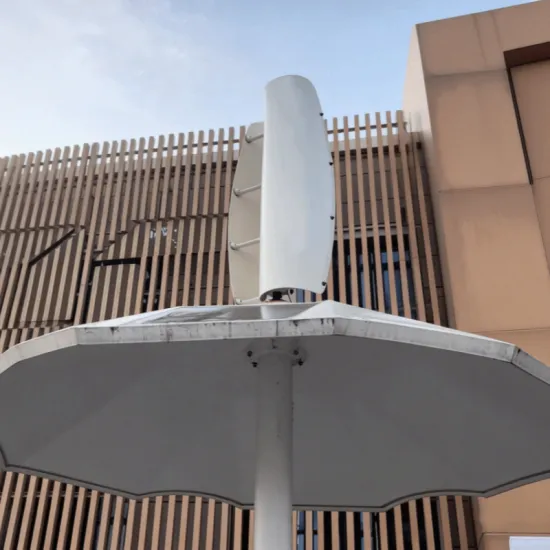

Application Cases
The tulip-shaped wind turbine suits residential homes, urban rooftops, off-grid sites and environmental monitoring projects. It supplies quiet and dependable renewable power, performing efficiently even in low-wind environments.
Package & Shipment
1. Products are packed in reinforced export cartons with internal cushioning to ensure safe delivery during long-distance transportation.
2. Flexible shipping options available. Share your delivery address and requirements, and we will provide the optimal logistics plan and pricing
