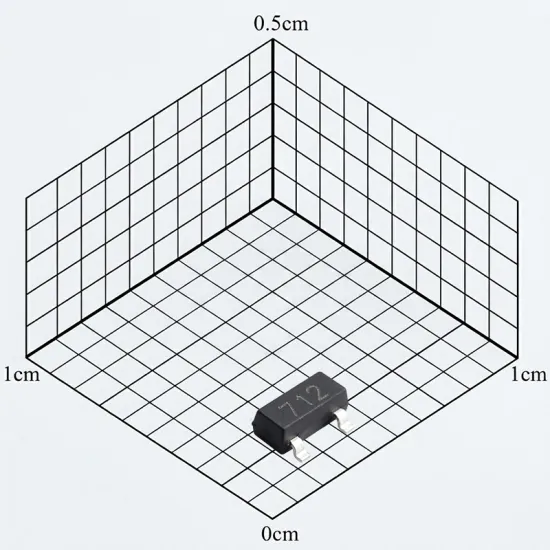

SM712-02HTG
This ESD suppressor meets IEC 61000-4-2 ±30kV, EFT 40A, and lightning 17A, with nA leakage and low clamping voltage.
- Reverse cutoff voltage (Vrwm) ：12V; 7V
- Clamping voltage ：26V;12V
- Peak pulse current (Ipp) ：17A@8/20us
- Peak pulse power (Ppp) ：450W@8/20us
- Breakdown voltage (VBR) ：13.3V; 7.5V
- Reverse current (Ir)：2uA
- Product Package ：SOT-23
- Packaging Method ：Tape & Reel
- Product Gross weight ：0.035(g)
USD 0.0583
26000
Supplier Information
Email：[email protected]
Tel：15670610275
