Product Description

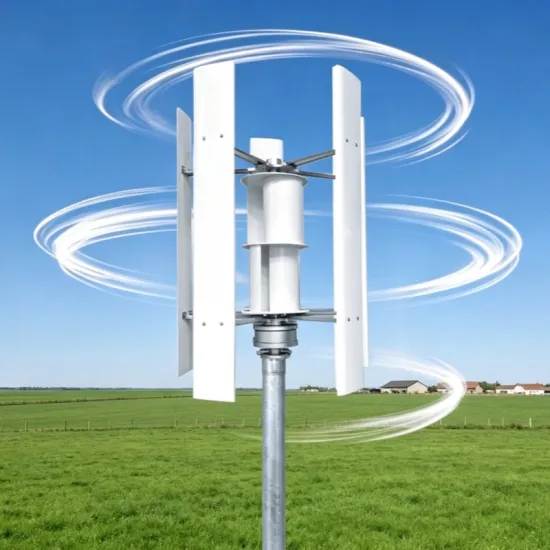

The VH Series VAWT (Vertical Axis Wind Turbine) offers a compact, efficient renewable energy solution, available in power ratings from 100W to 5KW and voltage options ranging from 12V to 380V.It suits off‑grid sites including farms and remote rural areas, and can connect with solar panels and battery storage to build stable wind-solar hybrid power systems.Thanks to its vertical axis design, low start-up wind speed and steady performance under winds from all directions, this unit works well for rural off-grid power and small clean energy projects.
Key Advantages
1. Compact Vertical Axis Design
H-type vertical axis wind turbine. It harvests wind from all directions with no yaw mechanism, maintaining stable operation under variable wind conditions.
2. Low Start-Up Wind Speed
Power generation begins at a wind speed of 2.5 m/s. Suitable for household and small-scale renewable energy projects.
3. Quiet Operation
Low noise output permits installation close to dwellings, cabins, campsites and outdoor living areas.
Product parameters
Rated power | 100W | 200W | 300W | 500W | 600W | 800W | 1000W | 2000W | 5000W |
Maximum power | 150W | 250W | 350W | 550W | 650W | 850W | 1500W | 2500W | 6000W |
Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V | 24V/48V | 24V/48V/96V/220V/380V | 24V/48V/96V/220V/380V |
Start-up wind speed | 2.5m/s | ||||||||
Rated wind speed | 13m/s | ||||||||
Survival wind speed | 40m/s | 40m/s | 40m/s | 40m/s | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s |
Number of blades | 3 pieces | 3 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces |
Body material | Aluminium alloy | ||||||||
Generator | Three phase AC permanent magnet generator/maglev generator | ||||||||
Control system | Electromagnetic brake | ||||||||
Yaw mode | Automatic windward angle | ||||||||
Lubrication mode | Self lubrication | ||||||||
Tower form | Guyed tower/independent tower | ||||||||
Working temperature | -40℃-80℃ | ||||||||
Model Selection Guide
100W–500W: Lighting, monitoring, and small off-grid devices.
500W–1KW: Homes, farms, and hybrid wind-solar systems.
1KW–2KW: Commercial and independent power applications.
3KW–5KW: Large off-grid projects and industrial solutions.
Choose the optimal model according to load requirements, battery voltage, and local wind conditions.

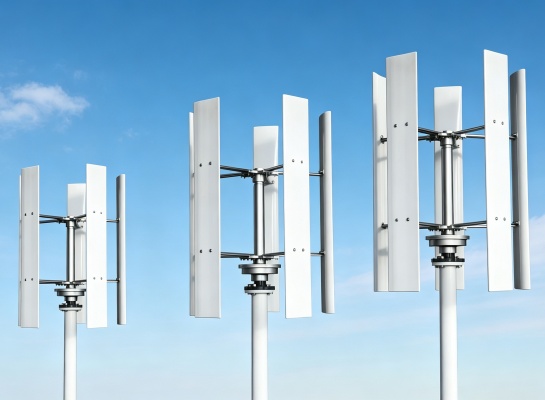

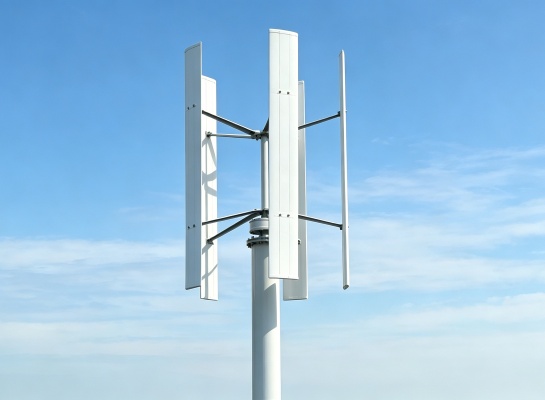

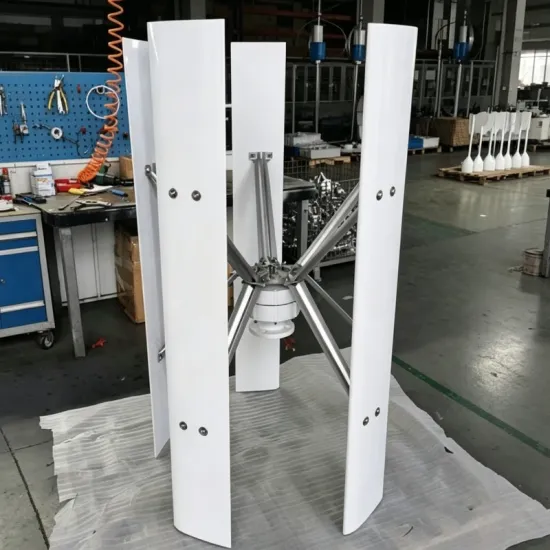

Product View
Flexible Power Options
Power ranges from 100W to 5KW with multiple voltage selections, to match your custom off-grid power solutions of different scales.
Durable Outdoor Construction
Aluminum alloy casing and carbon steel frame deliver corrosion resistance and waterproof performance for long outdoor service life, with minimal maintenance required.

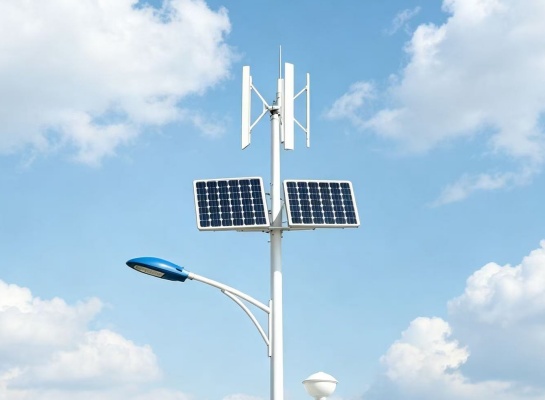

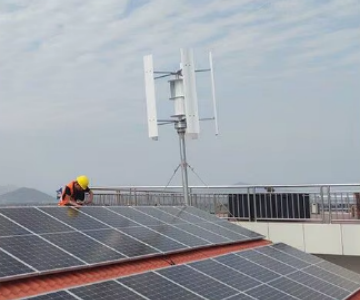

Easy Solar Integration
Easily combined with solar panels and battery storage.Build hybrid off-grid wind-solar systems to generate power day and night.

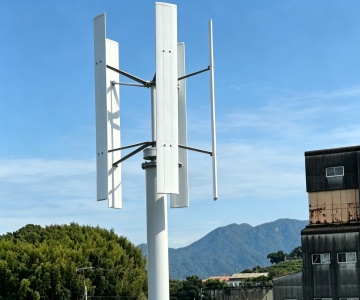

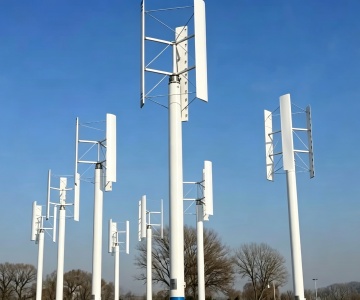

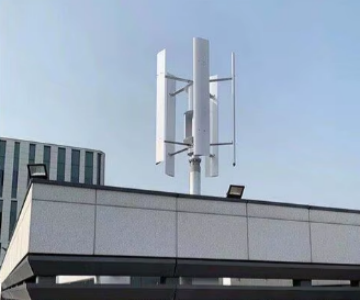

Application Cases
VH series wind turbines fit off-grid homes, container houses and modular buildings. Paired with solar panels and battery storage, they power lighting and basic appliances with reliable wind-solar hybrid energy.

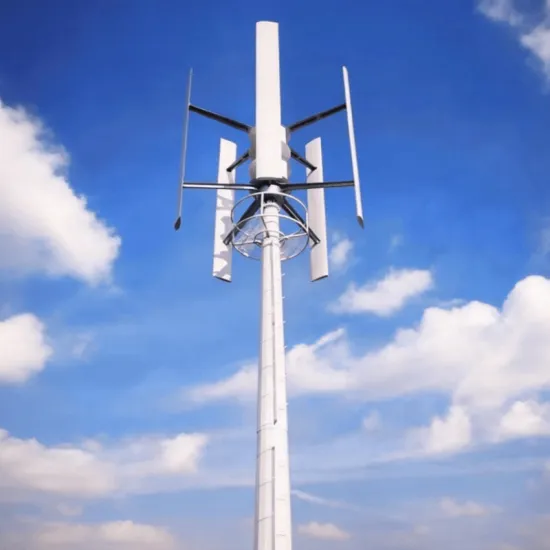

Tower & Mounting Solution

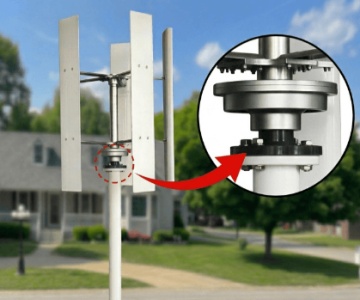

① Installation System
Designed with a standard flange mounting system, the turbine can be securely bolted to poles or tower structures, ensuring superior stability and durability in various environments. Insertion mounting is available as a custom option for selected low-power applications.

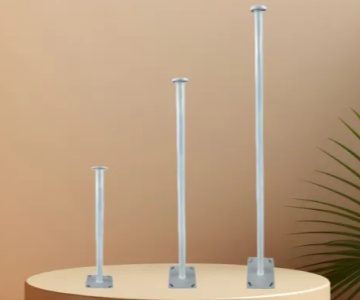

② Recommended Pole Configuration
Power Range | Recommended Pole Diameter | Suggested Height |
100W - 500W | 50mm | 3 - 6m |
500W - 1000W | 60mm | 6 - 10m |
1000W - 2000W | 89mm | 8 - 12m |
③ Supporting System & Customized Solutions
We offer matching poles, guy wire kits, and complete installation solutions. Customized wind-solar-storage systems are available upon request.
