Product Description

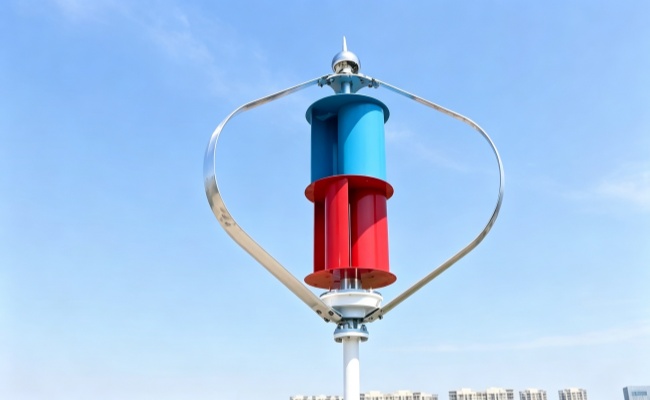

The Q-type vertical axis wind turbine starts up quickly and runs steadily even in low wind. Its vertical-axis design catches wind from all directions. It operates quietly with minimal vibration. The modular, weatherproof build guarantees durable eco-friendly outdoor operation.The mounting pole is constructed from high-strength corrosion-resistant steel for solid stable support, perfectly suited for long-term use in residential, off-grid and wind-solar hybrid power systems.
Product Features

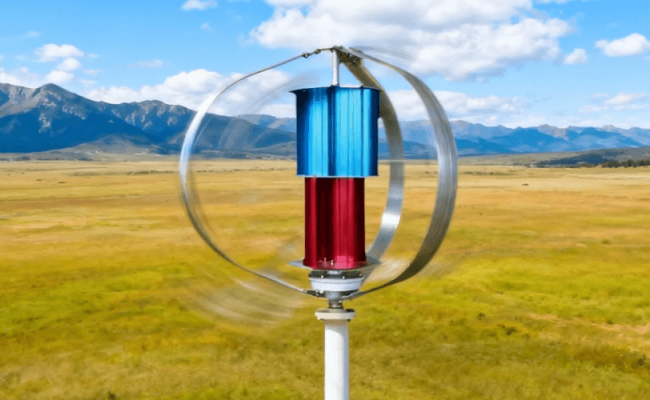

Light breeze startup & 360° all-direction wind capture
Works in gentle wind and catches wind from any angle with no adjustment needed.
Low noise operation
Runs quietly with minimal vibration and will not disturb you and your neighbors.
Application Cases

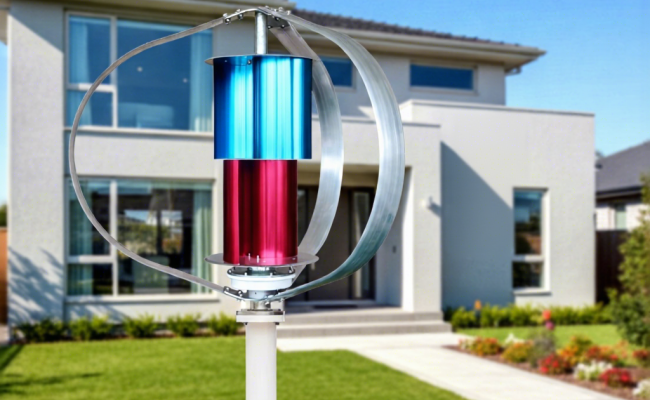

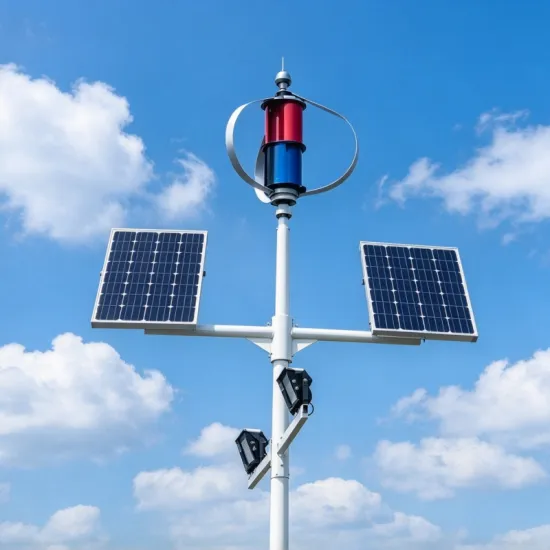

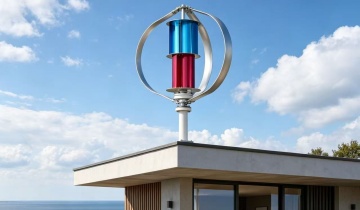

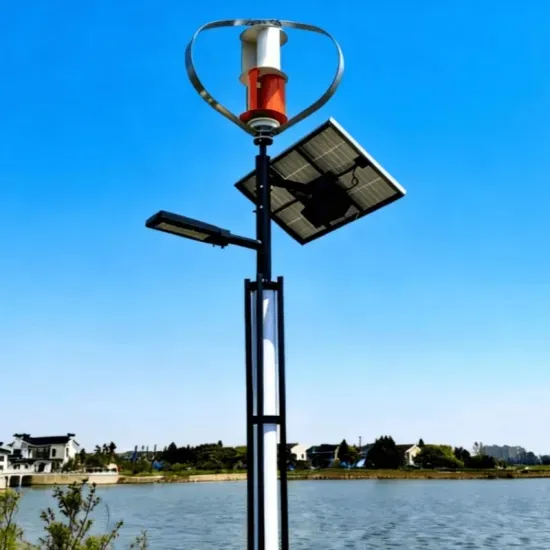

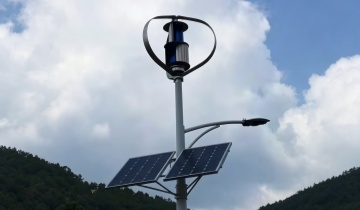

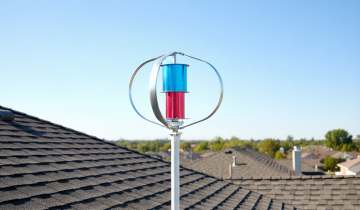

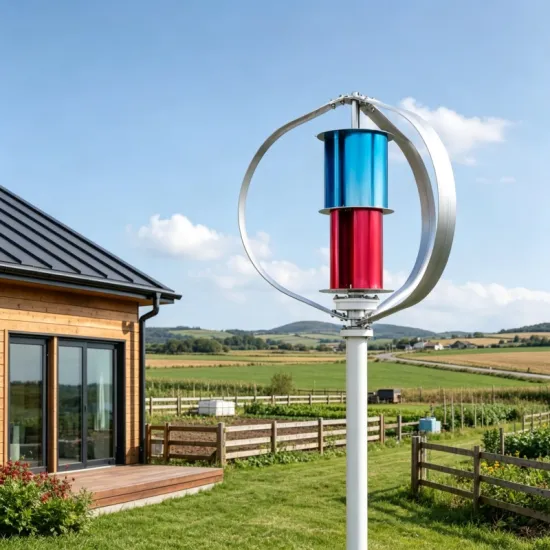

This Q-type vertical axis wind turbine is compact, quiet and works with wind coming from any direction. It starts up even in low wind. You can install it at your rural home or backyard for backup power for lights and small appliances. It also fits off-grid cabins, container homes, campsites and farms to power cameras and garden lights. Pair it with solar panels to build wind-solar hybrid systems for street lighting.
Technical Parameter
Rated Power | 100W | 200W | 300W |
Maximum Power | 130W | 220W | 310W |
Rated Voltage | 12V / 24V | ||
Start-up Wind Speed | 1.5m/s | ||
Rated Wind Speed | 10m/s | 11.5m/s | 13m/s |
Safe Wind Speed | 45m/s | ||
Net Weight of Main Unit | 12kg | 12.5kg | 13kg |

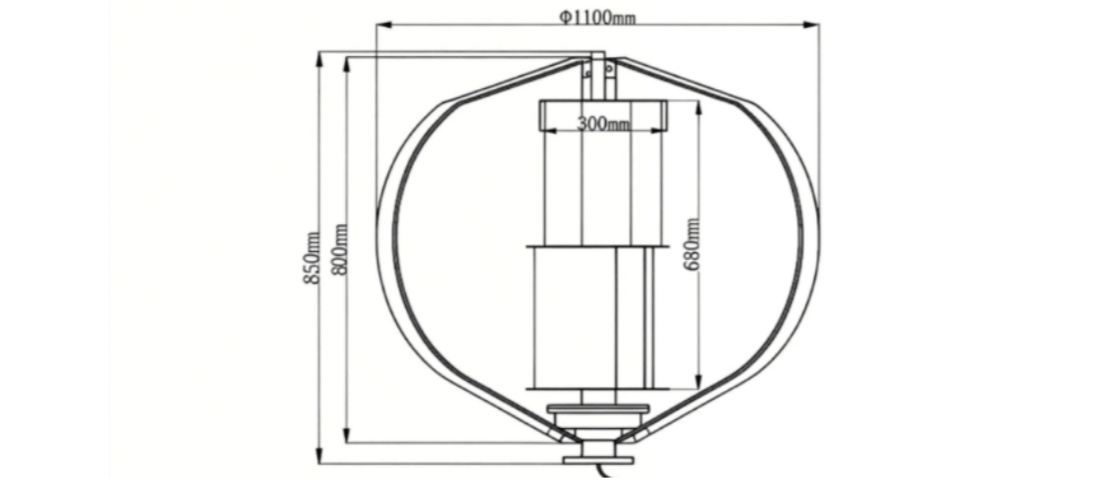

Rotor Diameter | 1.1m | ||
Number of Blades | 6 pieces | ||
Blade Material | Aluminum alloy | ||
Generator | Three-phase AC permanent magnet generator/permanent magnet levitation generator | ||
Braking Method | Automatic wind-seeking | ||
Operating Temperature | -40℃~80℃ | ||
How to Choose the Right Wind Turbine Kit?
Your Application | Recommended Model | Complete Kit | Recommended Pole Height | Typical Installation |
Small off-grid devices, sensors, monitoring systems, garden lighting | 100W–300W Wind Turbine | 100W/200W/300W turbine + suitable pole | 3m–6m | Remote monitoring, IoT devices, landscape lighting, small power supply |
Street lights, security systems, small residential backup power | 500W–1KW Wind Turbine | 1KW turbine + 6m pole | 6m–9m | Solar-wind hybrid street lights, farms, cabins, communication equipment |
Homes, farms, small commercial applications | 2KW–3KW Wind Turbine | 3KW turbine + 9m pole | 9m–12m | Household energy supply, agricultural facilities, small off-grid systems |
Large homes, remote areas, high-power applications | 5KW Wind Turbine | 5KW turbine + 12m pole | 12m–18m | Villas, farms, remote communities, industrial backup power |
High energy demand projects | 10KW Wind Turbine | 10KW turbine + tower structure | 18m–24m | Large off-grid systems, commercial and industrial applications |
Pole Selection Guide
Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
300W–500W | 3m–6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W–1KW | 6m–9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2KW–3KW | 9m–12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5KW | 12m–18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10KW | 18m–24m | 140–219mm | 5.0–6.0mm | Tower structure required |
Note: The above recommendations are for reference only. Actual selection should be based on local wind conditions, installation environment, and power requirements.
