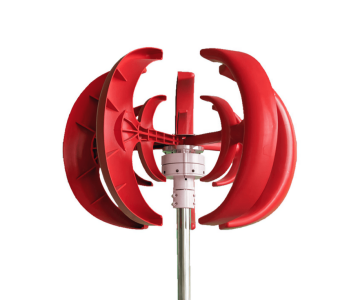

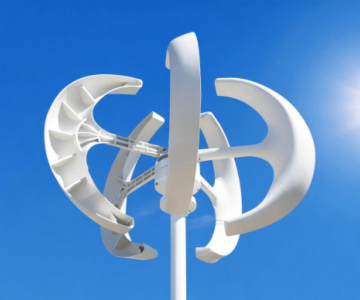

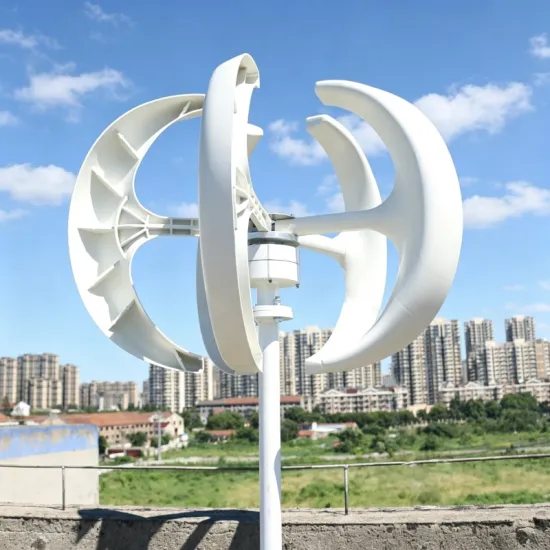

Product Description

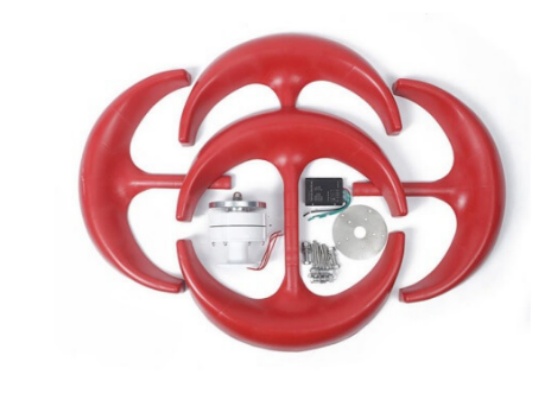

This VT series wind turbine generator delivers low start-up wind speed and reliable continuous operation. Its vertical-axis design automatically adapts to shifting wind directions and needs no manual alignment. It comes complete with motor assembly and lighting accessories, supporting power supply for lighting, battery storage and small appliances. Simple installation and low maintenance reduce on-site workload, making it a practical choice for residential distributed wind and off-grid outdoor power applications.
Key Advantages
1. Low-noise operation, ideal for home and outdoor use;
2. Starts generating in light winds, high efficiency;
3. Aerodynamic design for maximum wind energy utilization;
4. Aluminum alloy and carbon steel body with triple-layer protection against corrosion and leakage;
5. Automatic wind tracking ensures stable power supply;
6. Waterproof and dustproof, suitable for residential and outdoor installation.
Product parameters
Model | VT300 | VT400 | VT500 | VT600 | VT800 | VT1000 |
Rated power | 300W | 400W | 450W | 600W | 800W | 1000W |
Max power | 350W | 350W | 500W | 650W | 850W | 1050W |
Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V |
Start-up wind speed | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | 1.3m/s |
Rated wind speed | 12m/s | |||||
Survival wind speed | 45m/s | |||||
Net weight of main engine | 12kg | |||||
Number of blades | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 3 pieces |
Blades material | nylon fiber | |||||
Body material | nylon fiber | |||||
Generator | three phase AC permanent magnet generator / maglev generator | |||||
Control System | electromagnetic brake | |||||
Yaw Mode | automatic windward angle | |||||
Lubrication mode | self lubrication | |||||
Working temperature | -40℃-80℃ | |||||
Key Benefits for Your Energy Projects
Easy Installation & Reduced Project Cost
Compact vertical axis structure simplifies installation, reduces construction requirements, and saves labor and transportation costs.

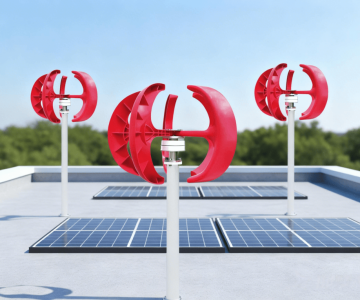

Perfect Integration with Solar Energy Systems
Designed for solar-wind hybrid systems, ensuring stable power supply by complementing solar generation during low sunlight periods such as cloudy days or nighttime.
Low Maintenance & Long-Term Reliability
Simple structure and durable components minimize maintenance requirements and ensure reliable long-term operation.

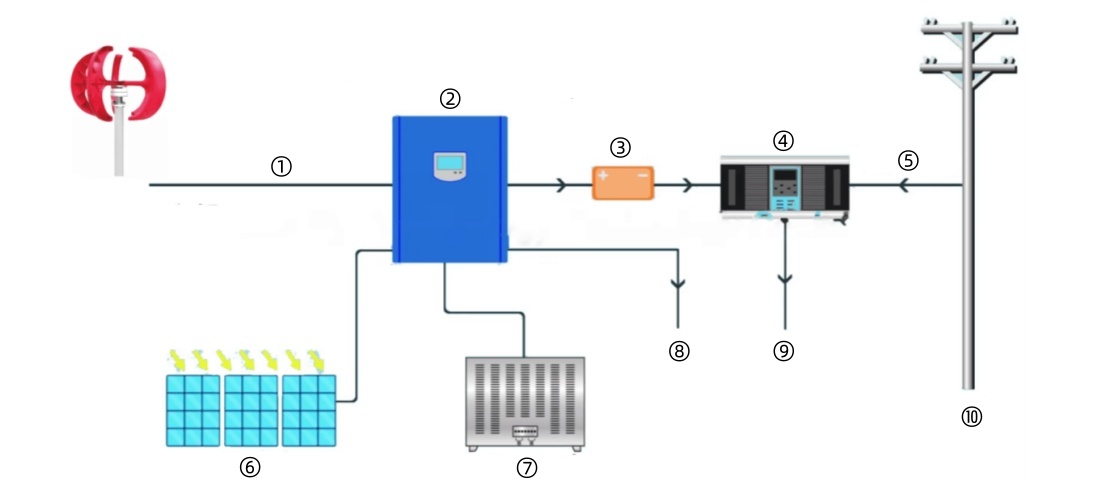

System Working Principle
①Wind Turbine ②Wind Solar Hybrid Controller ③Batttery
④Off-Grid Inverter ⑤AC Bypass ⑥Solar
⑦Dump Load ⑧DC Loads ⑨AC Loads
⑩Grid

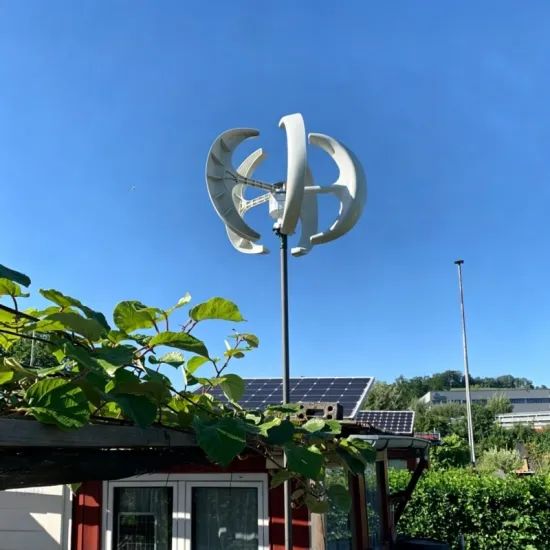

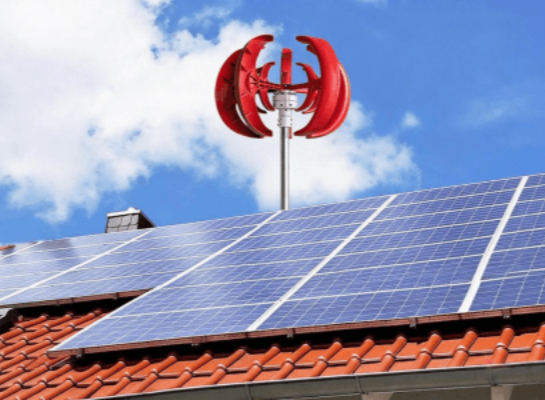

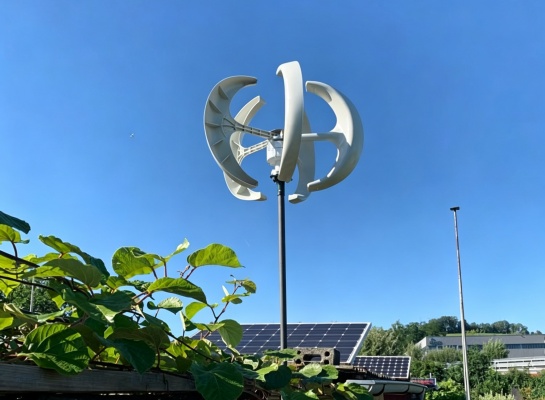

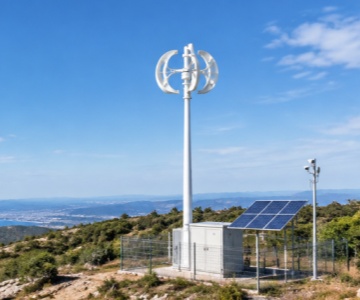

Application Cases

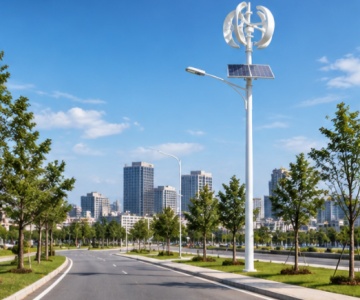

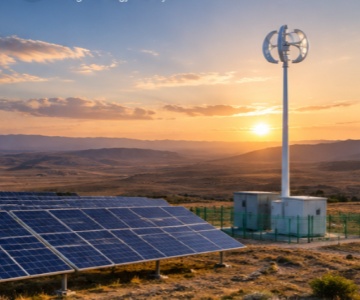

Suitable for a wide range of applications, including remote monitoring stations, solar-wind hybrid street lighting, residential energy systems, agricultural facilities, and off-grid power projects.
Tower & Mounting Solution

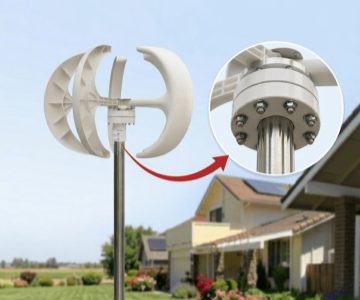

① Installation System
Designed with a standard flange mounting system, the turbine can be securely bolted to poles or tower structures, ensuring superior stability and durability in various environments. Insertion mounting is available as a custom option for selected low-power applications.
② Recommended Pole Configuration
Power Range | Recommended Pole Diameter | Suggested Height |
100W - 500W | 50mm | 3 - 6m |
500W - 1000W | 60mm | 6 - 10m |
1000W - 2000W | 89mm | 8 - 12m |
③ Supporting System & Customized Solutions
We offer matching poles, guy wire kits, and complete installation solutions. Customized wind-solar-storage systems are available upon request.
