Product Description

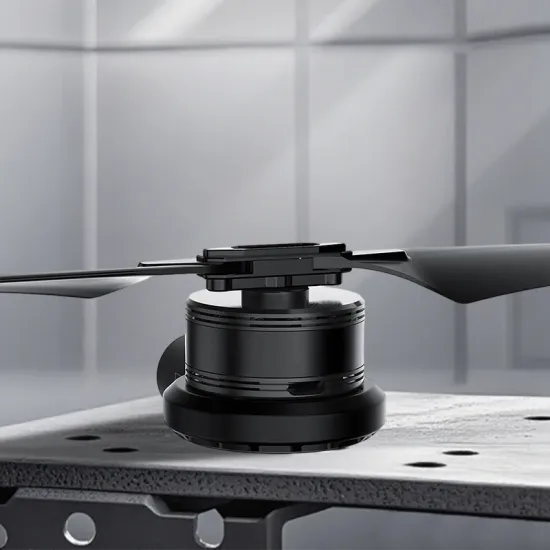

Heavy-Duty Integrated Power System for
Industrial Security Inspection Drones
Full IPX7 Waterproof | Stable High Thrust | Compatible with LiDAR & Thermal Camera | Complete Engineering Test Data
Customized for industrial security and inspection drones for harsh outdoor scenarios including power line inspection, PV station monitoring, forest fire prevention, urban security and offshore wind farm patrols. It solves common industry pain points such as insufficient thrust, rainy/dust environment failures, shaking under heavy load, lack of standard test data and difficult structural matching. Provides plug-and-play, data-supported and fully adaptable integrated power solutions to reduce R&D, testing and after-sales costs for drone OEMs and integrators.
Core Advantages： Stable heavy payload capacity, full waterproof & dustproof performance, long-duration stable output, professional engineering compatibility design

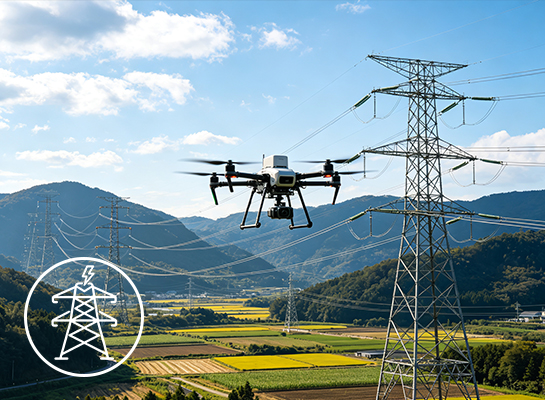

High-voltage Transmission Line Inspection

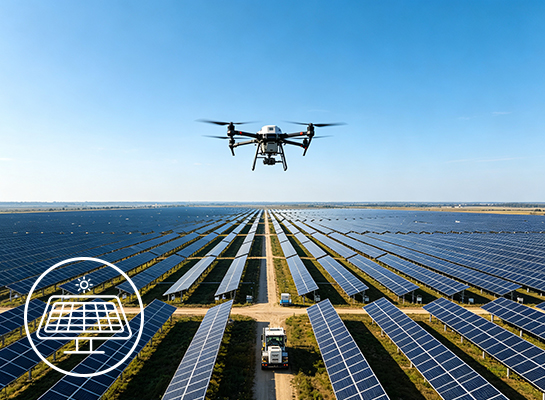

Panoramic Inspection of Large-scale PV Power Stations
Mountain Forest Fire Prevention Patrol

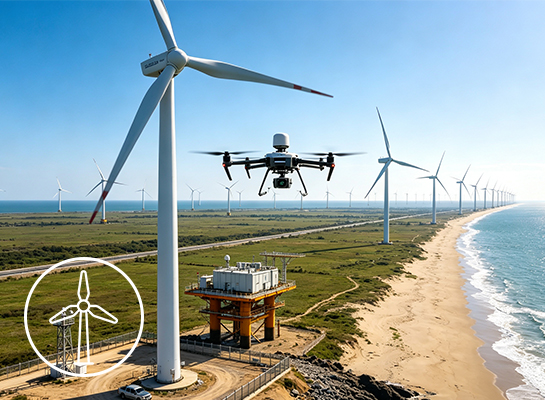

Coastal Wind Farm Security Inspection
Functional Features

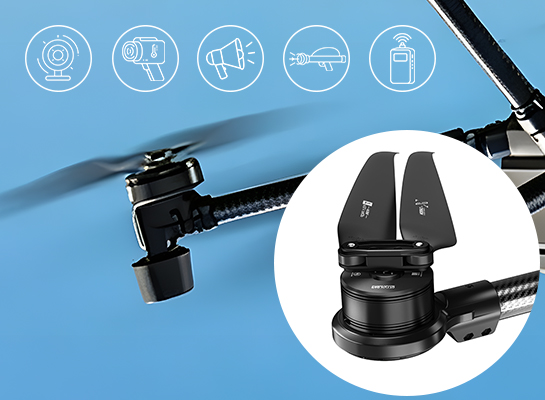

High Thrust & Heavy Payload Design for
Full Inspection Devices
The high-power integrated power system delivers stable high thrust and supports long-distance, heavy-payload missions with LiDAR, thermal cameras, loudspeakers, throwers, gas detectors and other inspection equipment.
Full IPX7 Waterproof & Dustproof
for Harsh Outdoor Conditions
The sealed power system meets IPX7 waterproof and dustproof standards, ensuring reliable operation in rain, dust, high humidity and coastal salt-spray environments while reducing motor stalling, short circuits and equipment damage.
Complete Engineering Data to
Lower R&D Costs
Thrust, torque, power consumption, endurance and wind resistance test data are available, together with installation drawings and structural parameters to help engineers speed up airframe design, payload matching and performance calibration.

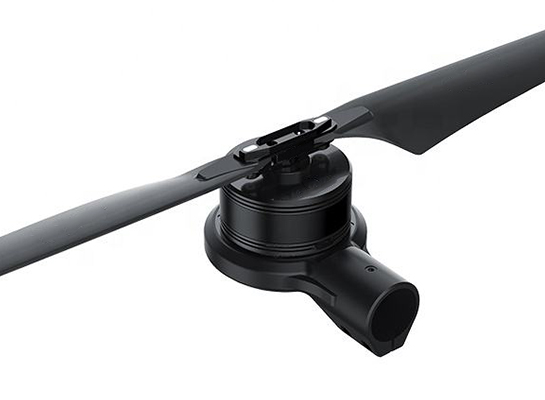

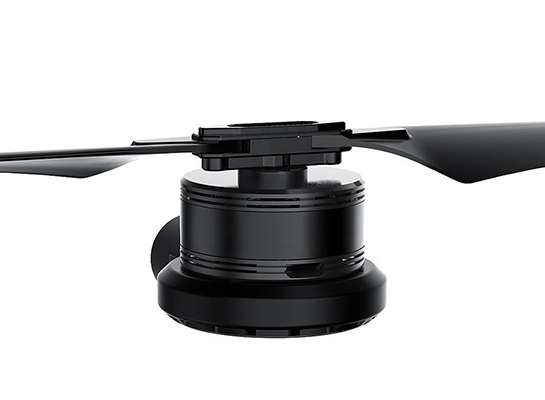

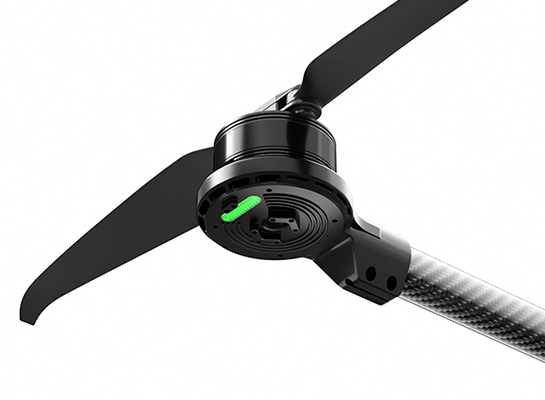

Integrated Design, Easy Installation,
High Compatibility & Low Maintenance

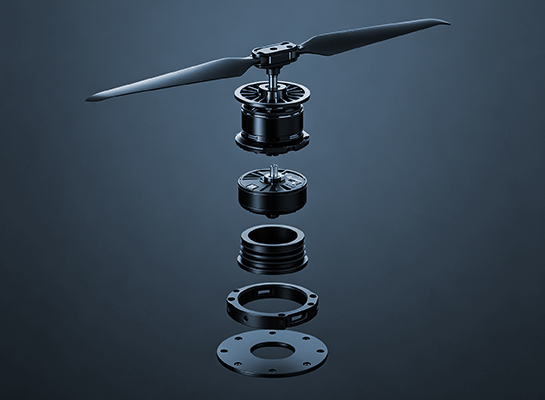

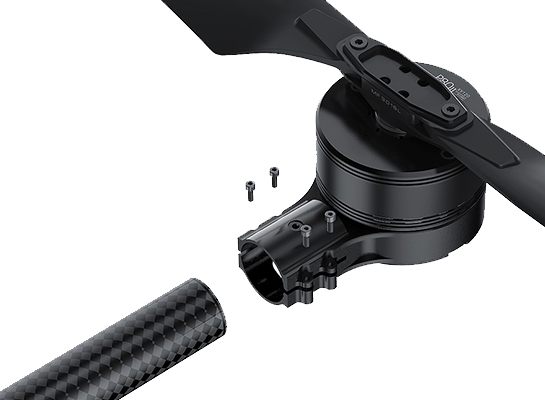

The motor, FOC ESC and folding propeller are integrated and pre-assembled. Compatible with 25/30/35/40mm carbon fiber arms, the kit enables direct installation, faster setup and lower long-term maintenance costs.
Product Display
Application
Core Application Scenarios
Power Inspection：
Daily defect detection, troubleshooting and patrol for high-voltage lines, substations and power distribution equipment
New Energy Inspection：
Appearance inspection, hidden danger detection and operation monitoring for large PV power stations and onshore/offshore wind turbines
Forest Fire Prevention：
Mountain forest fire patrol, hidden danger inspection and regular forest security monitoring
Urban Emergency Security：
Urban full-area patrol, emergency material delivery, on-site broadcasting and emergency event monitoring
Maritime Inspection：
Regular inspection for coastal platforms, waterways and ports under high humidity and salt spray environment
Product parameters

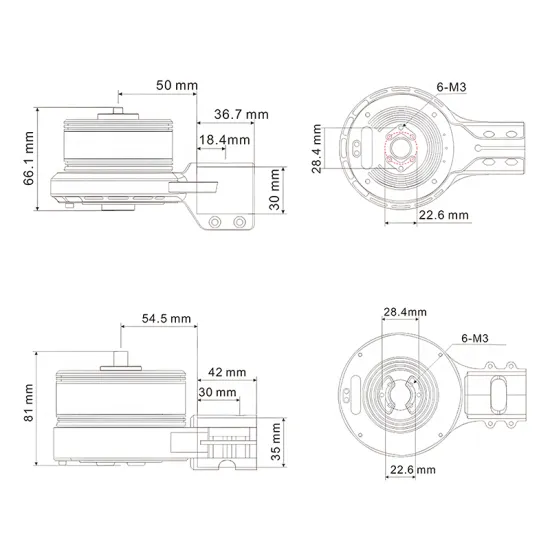

P60-X Engineering drawing
Basic Parameters | |||
Product Model | E60-SKV170 | Exposed wire length | 600mm |
Arm size | 130*86.2*78.5mm | Arm weight (including wire) | 570g |
Number of slot poles | 24N28P | Shaft diameter | IN:6mm |
No load current (24V) | 1.2A | Rated working voltage (Lipo) | 6-12S |
Inter phase internal resistance | 80mΩ | IP rating | / |
Maximum current (180S) | 38A | Electric tuning recommendation | FLAME 60A 12S |
Maximum power (180S) | 1800W | Recommended propellers | MF2211 |
Test parameters | ||||||||||
Model | Propeller | Throttle point (%) | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Torque (N.m) | Tensile force (g) | Power efficiency (g/W) | Motor temperature (℃) |
E60-SKV170(FLAME 60A 12S ) | MF2211 | 40% | 47.87 | 7.44 | 356 | 3340 | 0.82 | 3085 | 8.67 | 74 (ambient temperature: 25) |
45% | 47.8 | 9.3 | 445 | 3608 | 0.97 | 3613 | 8.13 | |||
50% | 47.76 | 11.4 | 544 | 3869 | 1.1 | 4143 | 7.61 | |||
55% | 47.69 | 13.85 | 660 | 4128 | 1.25 | 4713 | 7.14 | |||
60% | 47.65 | 16.02 | 763 | 4339 | 1.37 | 5198 | 6.81 | |||
65% | 47.57 | 18.75 | 892 | 4590 | 1.52 | 5765 | 6.46 | |||
70% | 47.49 | 21.79 | 1035 | 4801 | 1.68 | 6382 | 6.17 | |||
75% | 47.38 | 25.07 | 1188 | 5025 | 1.84 | 6991 | 5.89 | |||
80% | 47.28 | 28.5 | 1348 | 5238 | 1.99 | 7600 | 5.64 | |||
85% | 47.16 | 32.44 | 1530 | 5460 | 2.16 | 8248 | 5.39 | |||
90% | 47.07 | 36.24 | 1706 | 5662 | 2.31 | 8838 | 5.18 | |||
95% | 46.94 | 40.16 | 1885 | 5857 | 2.46 | 9424 | 5 | |||
100% | 46.75 | 47.32 | 2212 | 6152 | 2.7 | 10353 | 4.68 | |||
Attention: The motor temperature is the casing temperature of the motor running at 100% throttle for 10 minutes. (This data was obtained through testing on our company's independent platform and is only for selection reference. The final interpretation rights belong to our company.) | ||||||||||
P80-X Engineering drawing
Basic Parameters | |||
Product Model | P80-XKV100 | Exposed wire length | 600mm |
Arm size | 144*95.2*84.6mm | Arm weight (including wire) | 950g |
Number of slot poles | 36N42P | Shaft diameter | IN:15mm |
No load current (24V) | 1.6A | Rated working voltage (Lipo) | 12S |
Inter phase internal resistance | 51mΩ | IP rating | / |
Maximum current (180S) | 60A | Electric tuning recommendation | ALPHA 80A 12S |
Maximum power (180S) | 2200W | Recommended propellers | MF3016 |
Product Model | P80-XKV120 | Exposed wire length | 600mm |
Arm size | 144*95.2*84.6mm | Arm weight (including wire) | 950g |
Number of slot poles | 36N42P | Shaft diameter | IN:15mm |
No load current (24V) | 2A | Rated working voltage (Lipo) | 12S |
Inter phase internal resistance | 41mΩ | IP rating | / |
Maximum current (180S) | 70A | Electric tuning recommendation | ALPHA 80A 12S |
Maximum power (180S) | 2800W | Recommended propellers | MF3016 |
Test parameters | ||||||||||
Model | Propeller | Throttle point (%) | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Torque (N.m) | Tensile force (g) | Power efficiency (g/W) | Motor temperature (℃) |
P80-X KV100(Alpha 80A 12S ) | MF3016 | 40% | 47.86 | 6.06 | 290 | 1934 | 1.13 | 3194 | 11.01 | 74 (ambient temperature: 25) |
45% | 47.79 | 7.98 | 382 | 2140 | 1.38 | 3908 | 10.24 | |||
50% | 47.75 | 10.31 | 492 | 2342 | 1.66 | 4739 | 9.63 | |||
55% | 47.66 | 13.02 | 621 | 2540 | 1.95 | 5613 | 9.04 | |||
60% | 47.58 | 16.17 | 769 | 2737 | 2.27 | 6535 | 8.49 | |||
65% | 47.49 | 19.62 | 932 | 2926 | 2.59 | 7462 | 8.01 | |||
70% | 47.38 | 23.49 | 1113 | 3108 | 2.93 | 8430 | 7.57 | |||
75% | 47.26 | 27.79 | 1313 | 3288 | 3.27 | 9421 | 7.17 | |||
80% | 47.12 | 32.34 | 1524 | 3458 | 3.62 | 10420 | 6.84 | |||
85% | 47.01 | 37.21 | 1749 | 3621 | 3.96 | 11409 | 6.52 | |||
90% | 46.82 | 42.43 | 1987 | 3782 | 4.3 | 12446 | 6.27 | |||
95% | 46.74 | 46.42 | 2170 | 3897 | 4.54 | 13157 | 6.06 | |||
100% | 46.71 | 47.8 | 2233 | 3935 | 4.62 | 13419 | 6.01 | |||
P80-X KV120(Alpha 80A 12S )) | MF3016 | 40% | 47.87 | 7.29 | 349 | 2060 | 1.28 | 3646 | 10.45 | 74 Environmental temperature： 25) |
45% | 47.82 | 9.65 | 461 | 2274 | 1.56 | 4445 | 9.63 | |||
50% | 47.74 | 12.47 | 595 | 2490 | 1.88 | 5368 | 9.02 | |||
55% | 47.64 | 15.8 | 753 | 2704 | 2.21 | 6360 | 8.45 | |||
60% | 47.54 | 19.63 | 933 | 2907 | 2.55 | 7380 | 7.91 | |||
65% | 47.43 | 23.81 | 1129 | 3107 | 2.91 | 8408 | 7.45 | |||
70% | 47.27 | 28.62 | 1353 | 3306 | 3.29 | 9508 | 7.03 | |||
75% | 47.12 | 33.8 | 1592 | 3494 | 3.67 | 10624 | 6.67 | |||
80% | 46.97 | 39.38 | 1850 | 3675 | 4.03 | 11773 | 6.36 | |||
85% | 46.8 | 45.57 | 2132 | 3855 | 4.43 | 12936 | 6.07 | |||
90% | 46.61 | 51.95 | 2422 | 4023 | 4.81 | 13965 | 5.77 | |||
95% | 46.42 | 58.67 | 2723 | 4188 | 5.17 | 15102 | 5.55 | |||
100% | 46.36 | 60.71 | 2815 | 4236 | 5.27 | 15388 | 5.47 | |||
Attention: The motor temperature is the casing temperature of the motor running at 100% throttle for 10 minutes. (This data was obtained through testing on our company's independent platform and is only for selection reference. The final interpretation rights belong to our company.) | ||||||||||
Power system matching table | |||||||
Robotic arm | Adapt to pipe diameter | Motor | KV | Default ESC | Default paddle | Optional Paddle | Customizable electric tuning |
501-X | 25mm/30mm | MN501-S | KV240 | ALPHA 60A 12S V1.2 | MF1503 | P15*5, FA15.2*5 | FLAME 60A 12S |
KV300 | ALPHA 40A 6S | MF2009 | P20*6, FA20.2*6.6 | ALPHA 60A 12S V1.2, | |||
KV360 | MF1806 | P18*6.1, FA18.2*5.9 | AIR 40A | ||||
505-X | MN505-S | KV320 | ALPHA 60A 6S | MF2211 | P22*6.6, FA22.2*7.2 | FLAME 60A 12S | |
KV380 | MF1806 | P18*6.1, FA18.2*5.9 | |||||
601-X | MN601-S | KV170 | ALPHA 60A 12S V1.2 | MF2009 | P20*6, FA20.2*6.6 | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | P20*6, FA20.2*6.6 | |||||
605-X | MN605-S | KV170 | ALPHA 60A 12S V1.2 | MF2211 | P22*6.6, FA22.2*7.2 | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | ||||||
701-X | MN701-S | KV135 | ALPHA 80A 12S | MF2614 | P24*7.2-10mm Hole, | / | |
Round | G24*7.8, FA24.2*7.9 | ||||||
705-X | MN705-S | KV125 | ALPHA 80A 12S | MF2614 | G26*8.5, FA26.2*8.5 | / | |
Round | |||||||
U8Ⅱ-X | U8Ⅱ | KV85 | ALPHA 60A 12S V1.2 | MF2815 | G28*9.2, FA28.2*9.2 | FLAME 60A 12S | |
KV100 | |||||||
KV150 | ALPHA 60A 6S | ||||||
KV190 | |||||||
6007Ⅱ-X | 25mm/28mm | 6007Ⅱ | KV160 | ALPHA 60A 12S V1.2 | MF2211 | FA22.2*7.2, | FLAME 60A 12S |
KV320 | ALPHA 60A 6S | NS22*6.6, P22*6.6 | |||||
P60-X | 25mm/30mm | P60 | KV170 | FLAME 60A 12S | MF2211 | P22*6.6, G22*7.2 | / |
P80-X | 30mm/35mm | P80 | KV100/KV120 | ALPHA 80A 12S | MF3016 | P30*10, G30*10.5 | FLAME 80A 12S, |
FLAME 100A 14S | |||||||
X-501 | 25mm/30mm | MN501-S | KV240 | ALPHA 60A 12S V1.2 | P15*5 | / | FLAME 60A 12S |
KV300 | ALPHA 40A 6S | P20*6 | / | ALPHA 60A 6S, | |||
KV360 | P18*6.1 | / | AIR 40A | ||||
X-505 | MN505-S | KV320 | ALPHA 60A 6S | P22*6.6 | / | FLAME 60A 12S | |
KV380 | P18*6.1 | / | |||||
X-601 | MN601-S | KV170 | ALPHA 60A 12S V1.2 | P20*6 | / | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | / | |||||
X-605 | MN605-S | KV170 | ALPHA 60A 12S V1.2 | P22*6.6 | / | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | / | |||||
X-U8Ⅱ | U8Ⅱ | KV85 | ALPHA 60A 12S V1.2 | G28*9.2 | / | FLAME 60A 12S | |
KV100 | / | ||||||
KV150 | ALPHA 60A 6S | / | |||||
KV190 | / | ||||||
X-701 | 30mm/35mm | MN701-S | KV135 | ALPHA 80A 12S | P24*7.2 | G24*7.8 | / |
Round | -10mmHole | ||||||
X-705 | MN705-S | KV125 | ALPHA 80A 12S | G26*8.5 | / | / | |
Round | |||||||
* Buy in pairs | |||||||
