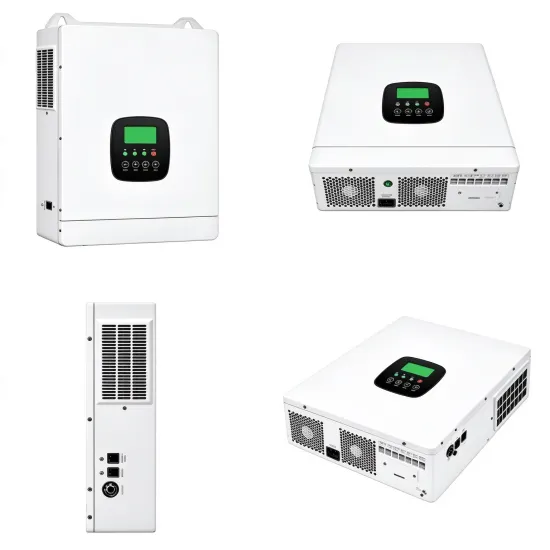

Product Description

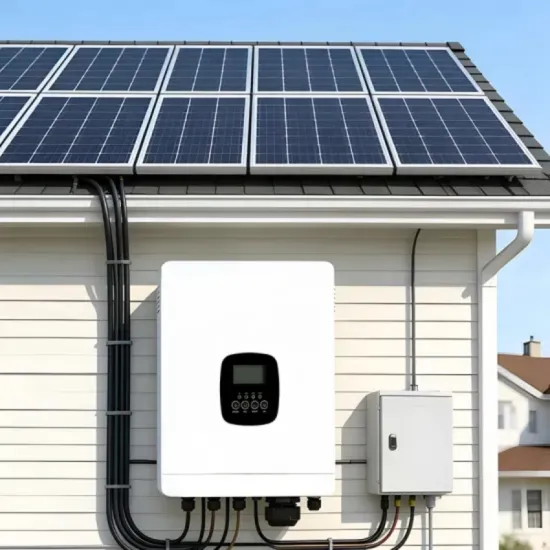

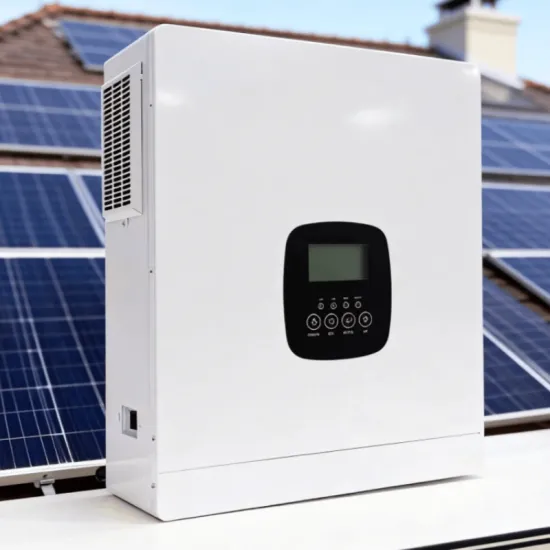

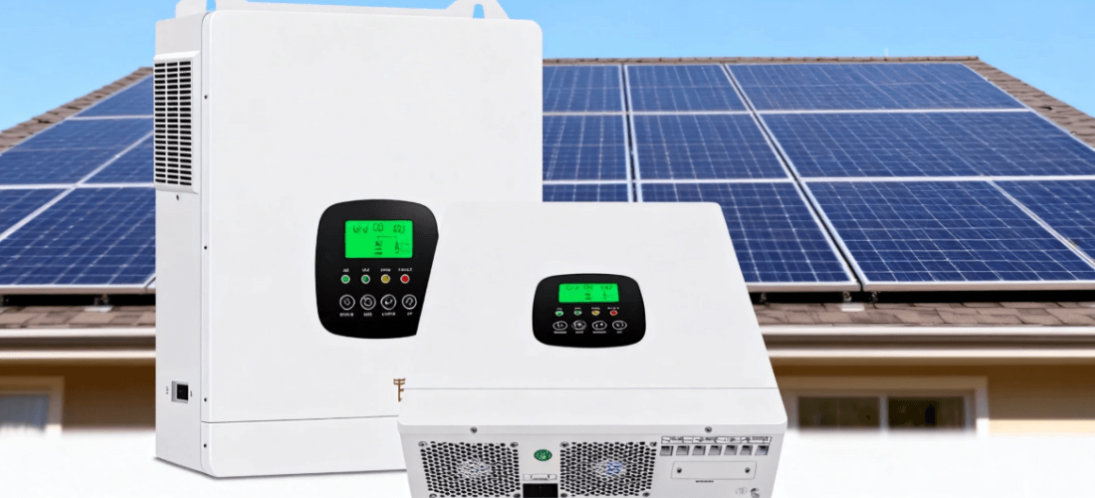

This integrated unit combines MPPT solar charging, pure sine wave inversion and AC input/charging in one compact device. It reduces separate component counts, lowers bill of materials and procurement complexity, and simplifies on-site installation work. It reliably manages energy flow between solar panels, batteries and backup power sources to maintain consistent, stable power output for off-grid and backup power projects.
Key Advantages
1. Cost-effective all-in-one solution
The all-in-one design integrates the inverter and MPPT charge controller, reducing component procurement and system matching costs for your project.
2. Simplified installation and wiring
Reduced external wiring lowers on-site installation hours and minimizes the risk of wiring mistakes during commissioning.
3. Stable performance in off-grid environments
Delivers consistent AC output under fluctuating renewable input and changing load conditions for remote off-grid sites.
4. Flexible system expansion
Modular architecture supports battery bank expansion or unit parallel connection to match growing project load requirements.
5. Suitable for both entry-level and mid-range users
Balanced feature set meets the power needs of small residential projects as well as medium commercial deployments.
6. Ensure operational safety
Built-in comprehensive protection mechanisms include battery low-voltage alarm & protection, anti-islanding protection, overload protection, output short-circuit protection and temperature protection to prevent equipment damage and potential hazards.
Product parameters
Rated Power | 1300W | 2300W | 4300W | 6300W | 8300W | 10300W | 12300W |
Output Waveform | Pure Sine Wave | ||||||
Output Voltage | 230V | 230V | 230V | 230V | 230V | 230V | 230V |
Battery Voltage | DC 12V | DC 24V | DC 24V | DC 48V | DC 48V | DC 48V | DC 48V |
AC Input Voltage | AC 230V | AC 230V | AC 230V | AC 230V | AC 230V | AC 230V | AC 230V |
AC Charging Current | 50A | 50A | 100A | 80A | 100A | 120A | 150A |
PV Input Voltage | 30-300V | 40-500V | 40-450V | 80-450V | 80-450V | 80-450V | 80-450V |
PV Input Power | 2000W | 3000W | 5000W | 7000W | 4500W*2 | 6000W*2 | 6000W*2 |
PV Charging Current | 80A | 80A | 150A | 120A | 150A | 180A | 200A |
Dimensions(mm) | 285*250*91 | 375*297*102 | 390*320*112 | 515*365*117 | 535*462*117 | 630*540*130 | |
Weight(kg) | 5 | 5.5 | 8 | 9.5 | 15 | 17 | 25 |
Noise | ≤55dB | ||||||
Operating Temperature | -10℃~50℃ | ||||||
Project Selection Guide
Model | Battery Voltage | Application Scenarios |
1300W | DC 12V | Small off-grid homes, cabins, monitoring systems, small boats and simple robotic equipment. |
2300W | DC 24V | Medium-small residences, small offices, yachts, compact gaming rooms, remote base stations and small robotic workstations. |
4300W | DC 24V | Large houses, small shops, medium yachts, mid-size gaming rooms, remote work camps and multi-robot power supply. |
6300W | DC 48V | Medium commercial offices, medium vessels, gaming rooms, edge data nodes, robot clusters and remote project sites. |
8300W | DC 48V | Large offices, commercial vessels, medium data nodes, multi-unit robot deployments and commercial off-grid projects. |
10300W | DC 48V | Small & medium data centers, large vessels, large gaming rooms, robot workstation clusters and medium commercial energy storage. |
12300W | DC 48V | Medium data centers, large commercial vessels, high-power robot clusters and large commercial off-grid & backup power projects. |
Flexible System Configurations for Different Project Needs

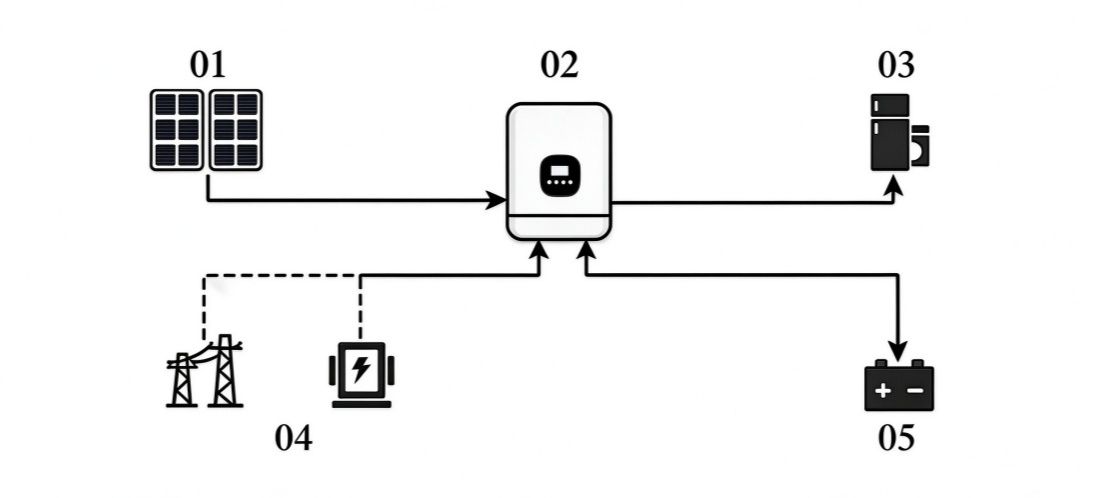

1. Off-Grid System (Standalone Power Supply)
01 Solar Panels
02 Inverter
03 AC Loads
04 Power Grid or Generator
05 Battery

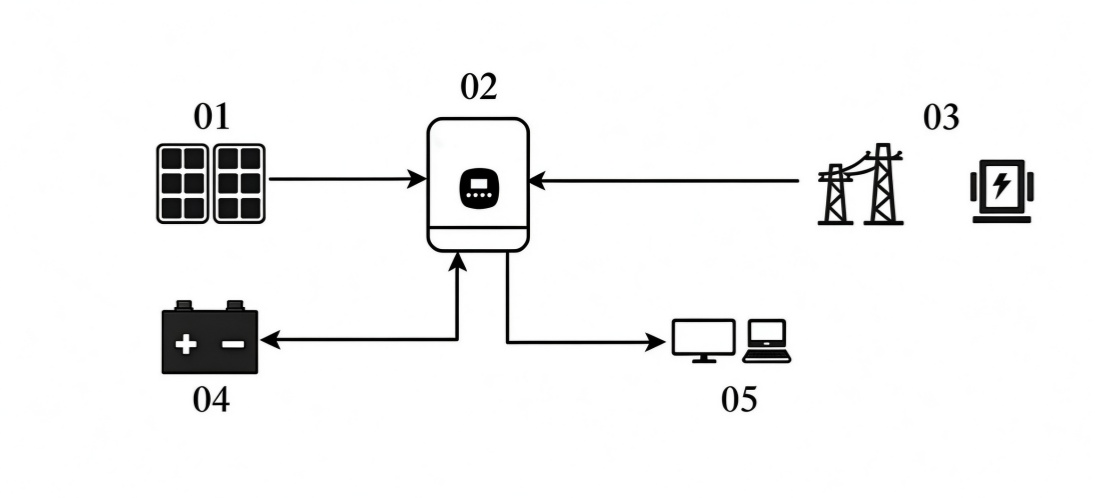

2. Hybrid System (Solar + Battery + Grid / Generator Backup)
01 Solar Panels
02 Inverter
03 Power Grid or Generator
04 Battery
05 AC Load

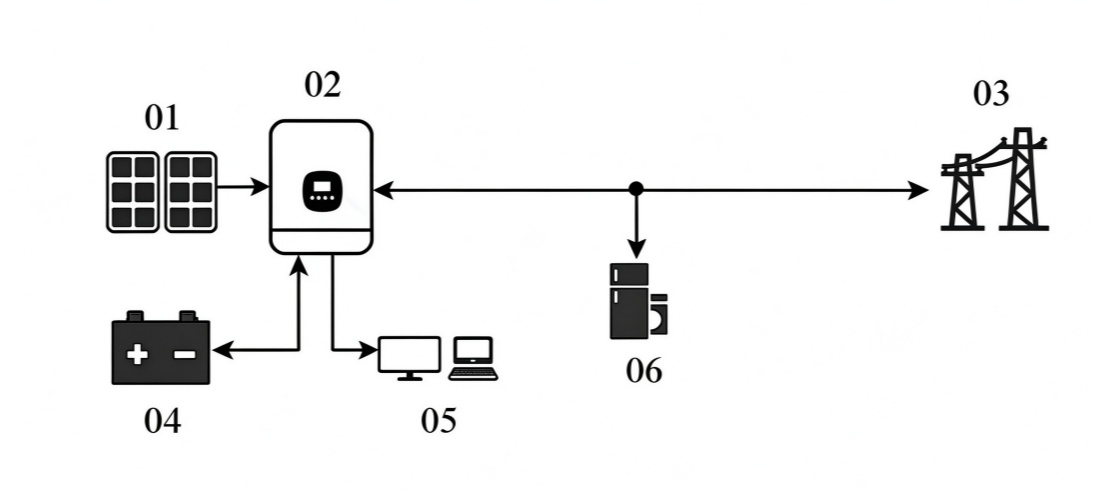

3. Grid-Tied System (Utility Grid Connection)
01 Solar Panels
02 Inverter
03 Power Grid
04 Battery
05 AC Loads
06 AC Loads
Application Cases
The inverter provides consistent power for diverse projects including residential buildings, offices, gaming rooms, marine vessels, data centers and robotic deployments.Ideal for off-grid, marine, remote power and robotic systems where reliable, sustainable energy is essential. Paired with wind turbines and battery storage, this solution delivers stable power for lighting, refrigeration, communication hardware, robotic equipment and other loads.
