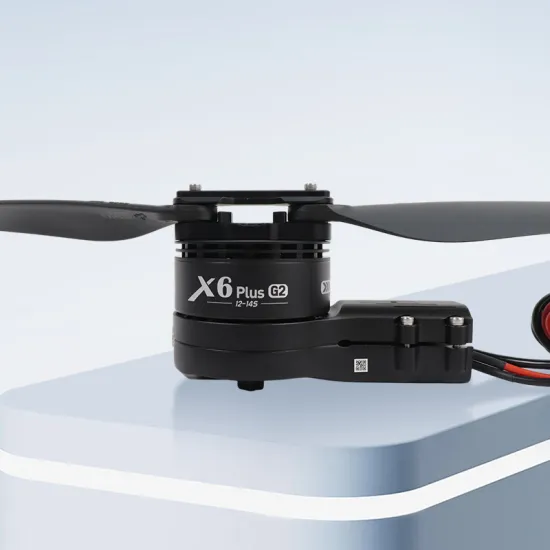

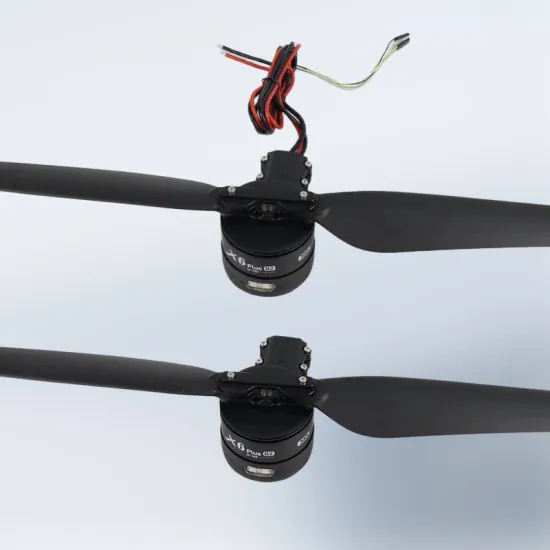

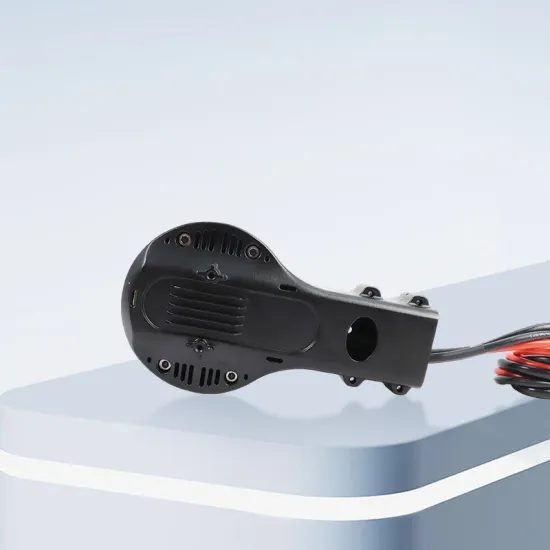

X6 Plus G2

The Next Generation of Integrated Drone Propulsion

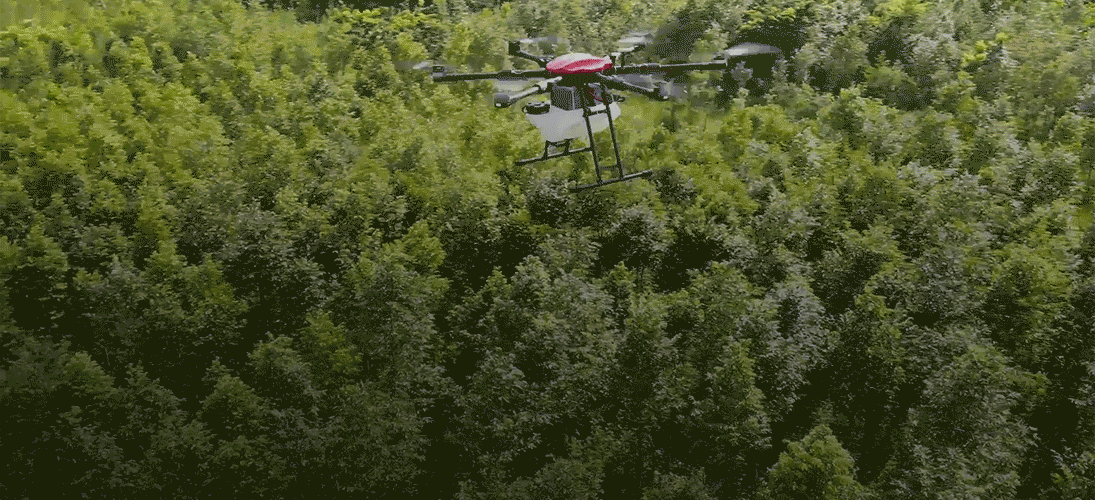

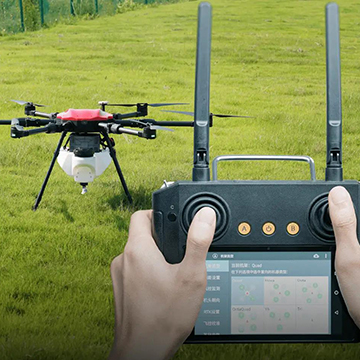

Suitable for Various Scenarios, Including Agriculture, Education and Training,

Logistics, Firefighting, Surveying, and Inspection

Classic Continued, Fully Upgraded

Using the time tested X6 Plus platform,

the updated X6 Plus G2 takes the proven reliability and

incorporates new industrial application technology to meet

the growing demands of todays ever changing markets.

Rated Thrust per Axis

4~6kg

Specially Designed for

Small-to-Mid UAVs

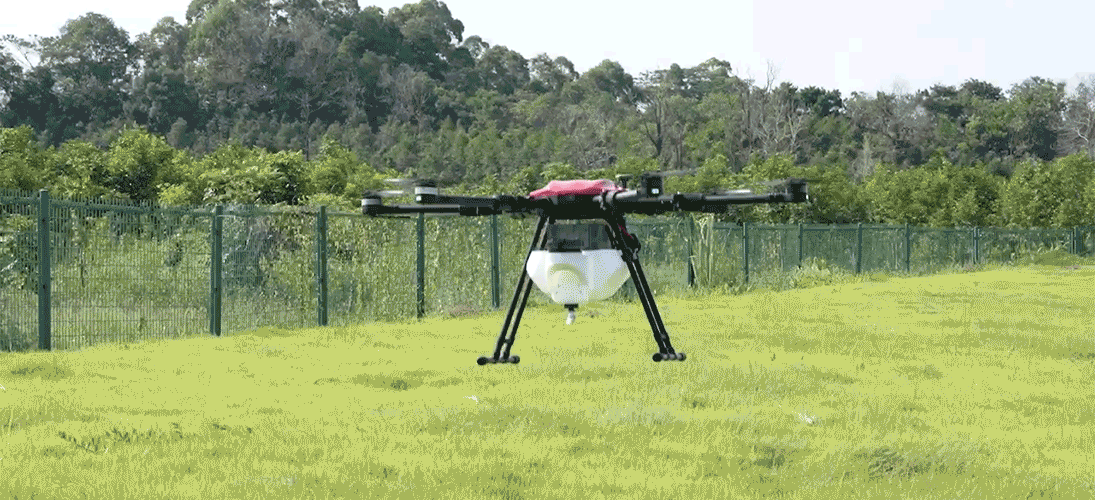

5L agricultural quadcopters,

10L agricultural hexacopters,

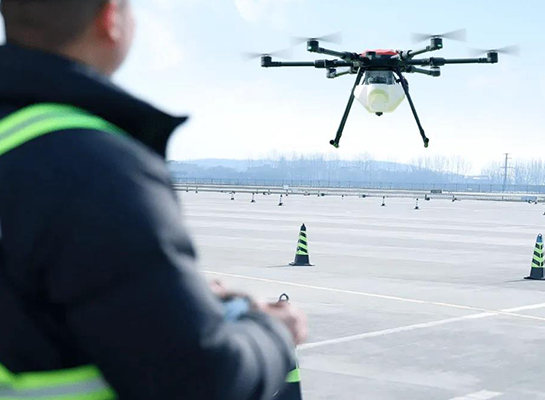

and CAAC Class IlI

training drone(<25kg)

Comprehensive

Functional Upgrade with

Improved Operation

Higher Efficiency

Enhanced Stability

Sustainable Reliability

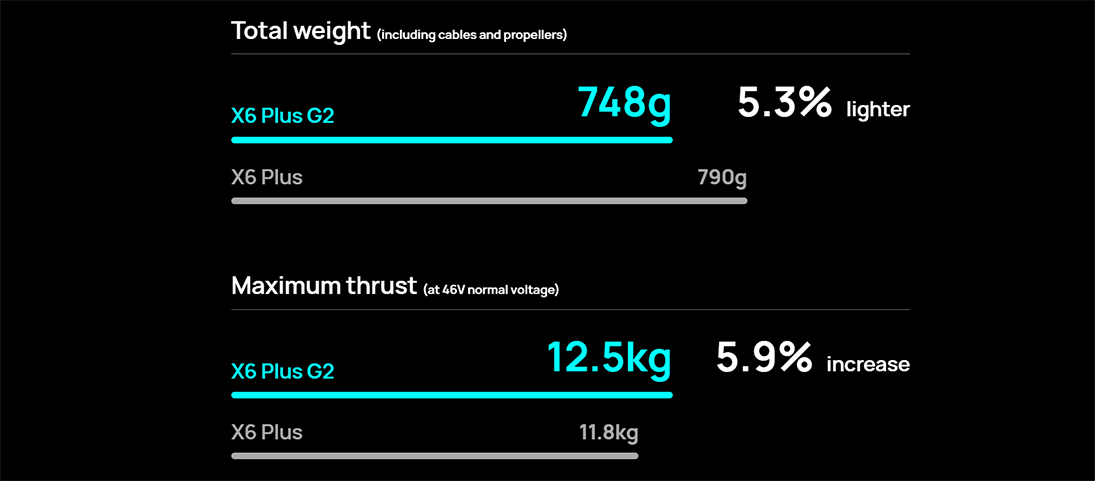

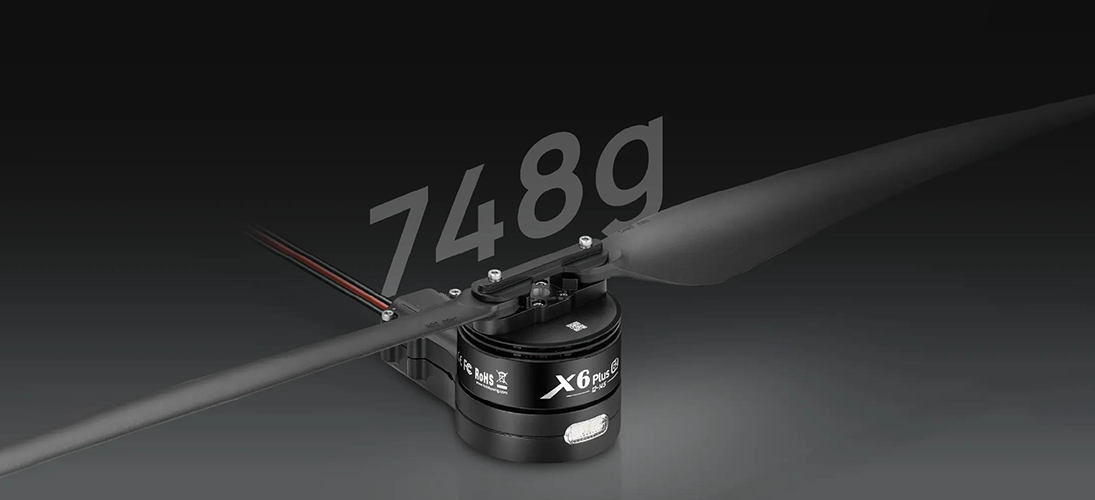

Lighter Weight, Improved Thrust

Brand-new Structure for Efficient Heat Dissipation

Featuring a dual layer centrifugal fan casing with integrated air vents,

the X6 Plus G2 ensures debris will not build up,

while airflow and heat dissipation is improved.

Lower temps ensure improved overall performance.

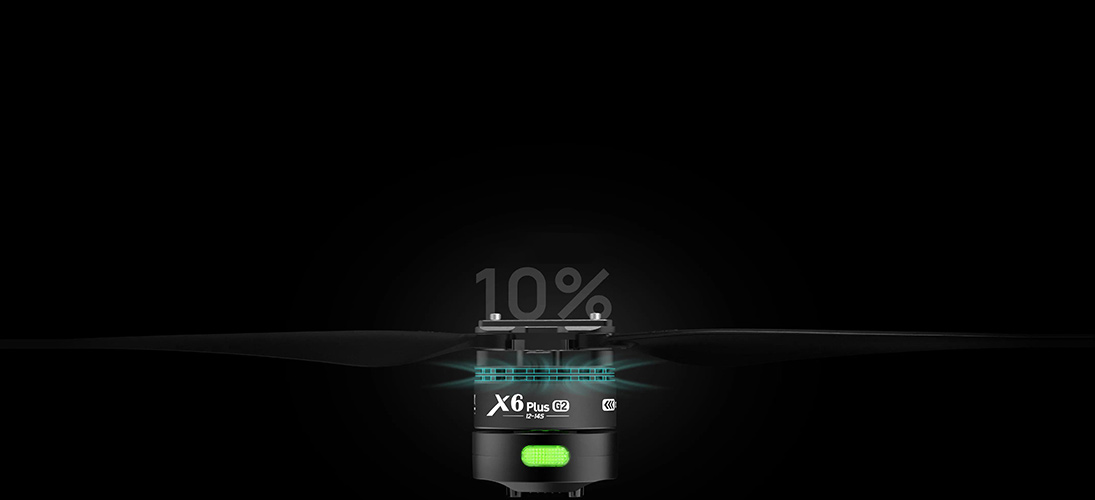

Heat Dissipation Efficiency

Has Improved By

Seamless Upgrade,

Perfect Compatibility

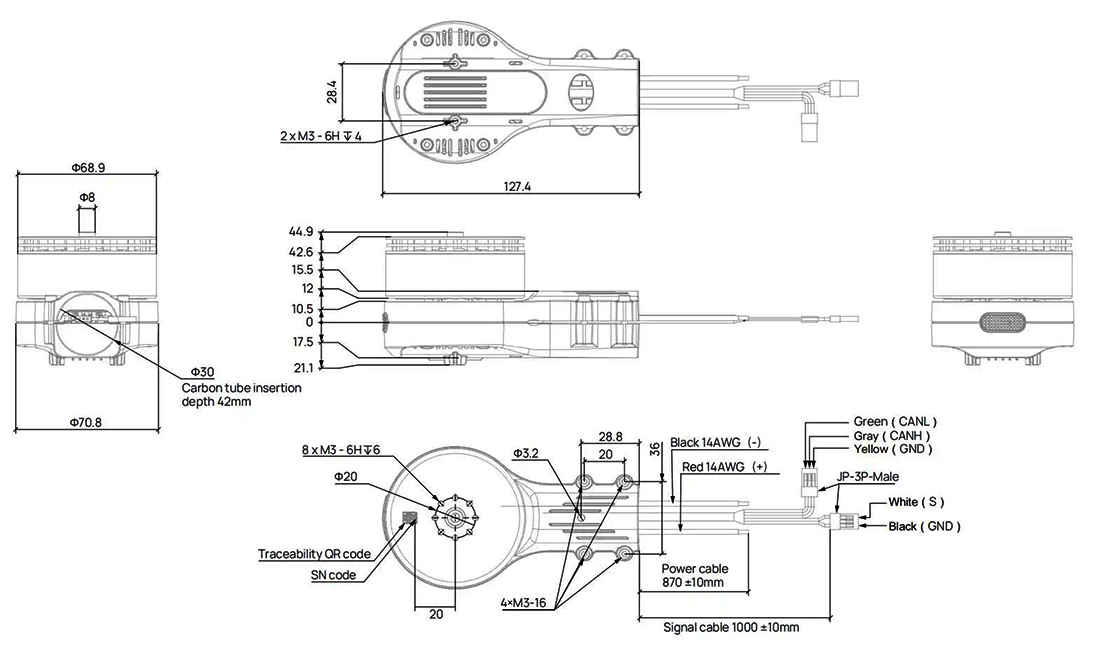

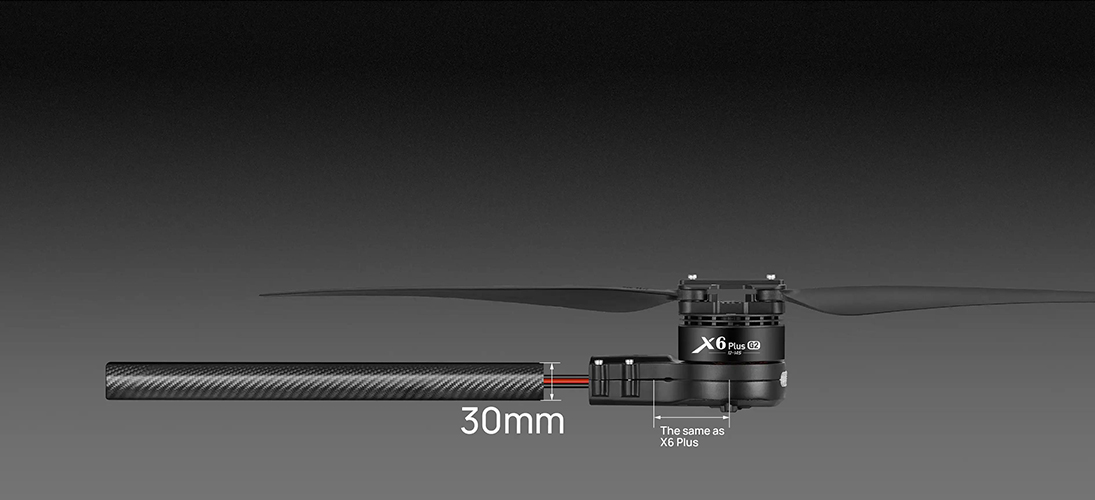

X6 Plus G2 retains the same 30mm tube diameter and the

design distance from the tube clamp mounting face to motor center,

ensuring consistent motor-to-motor distance without modifying the entire structure.

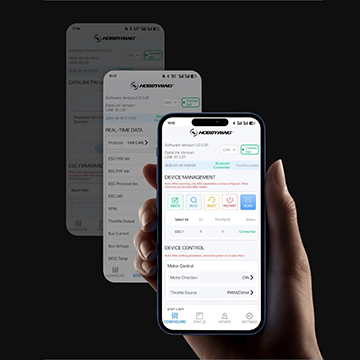

X6 Plus G2 supports CAN interface,

which enables real-time data exchange

with the flight controller system,

allowing users to monitor critical

flight parameters

(speed, throttle, current, voltage, temperature)

to assist users in rapid data analysis &

response and enhanced flight safety.

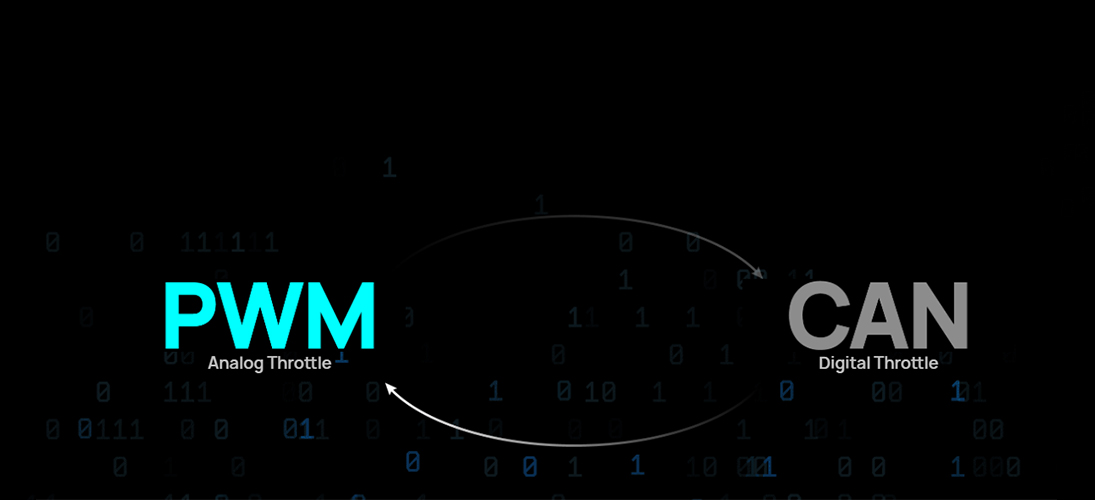

X6 Plus G2 inherits the dual throttle control solution that

integrates CAN bus digital signals and PWM analog signals,

significantly improving real-time responsiveness and anti-interference performance,

ensuring precise throttle control for enhanced reliability.

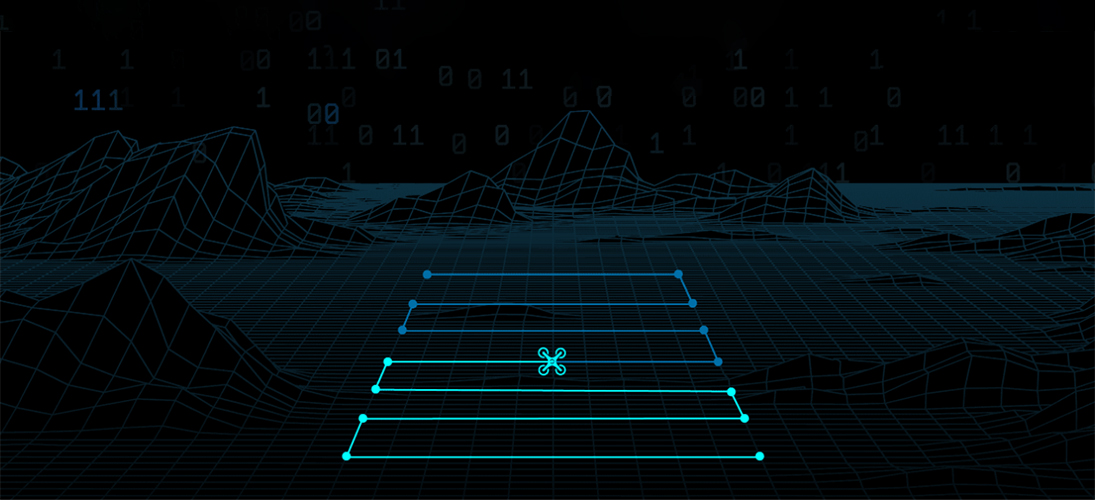

High-speed dynamic response, even under standalone GPS operation without RTK,

it can maintain stable position holding,

further enhancing flight safety and route precision.

 Note: The system is reserved for customized DShot

digital throttle and corresponding protocol compatibility,

effectively meeting the demand for FPV adapting to larger drone frame,

and enabling rapid building of the FPV propulsion system.

The product supports DroneCAN and HWCAN (default) protocols.

It also enables intercommunication with multiple mainstream flight controller systems,

such as ArduPilot open source ecosystem, VK, BOYING, Jiyi,

and ACFLY to build an intelligent flight ecosystem through CAN communication.

Independent Black Box

X6 Plus G2 adds a log function that records

dynamic ESC data for up to 24 hours of operation.

In case of abnormal conditions,

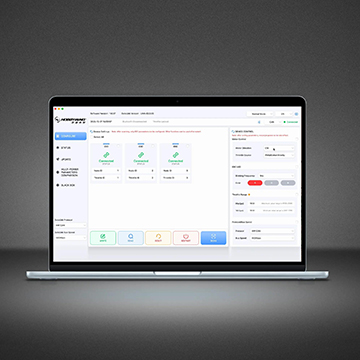

users can access the data via the host computer

software (DataLink) for fast fault diagnosis

and troubleshooting.

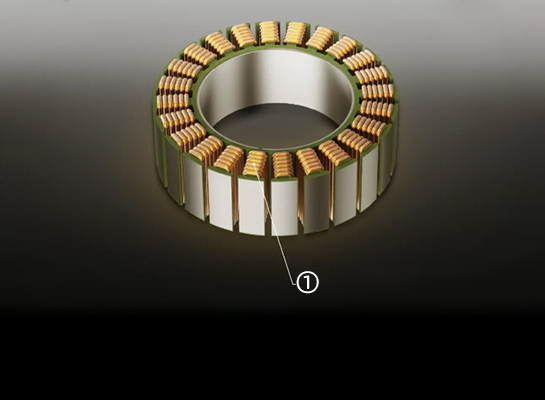

①High-temperature resistant enamel wire

The X6 Plus G2 UAV motor is coated with

high-temperature resistant enamel wire,

capable of withstanding temperatures up to 200°C.

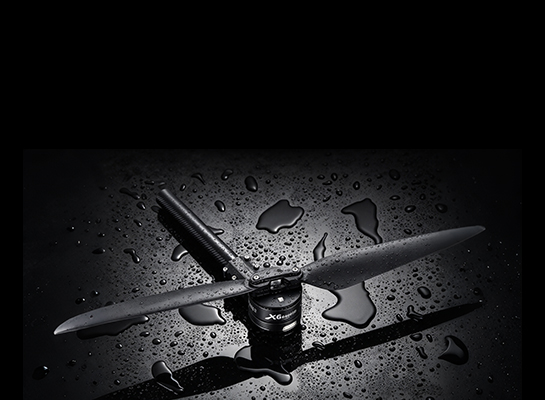

With an ingress protection rating of IPX6

the motor is capable of long-term and stable operation in harsh operating environments, including rain, pesticide mist, high temperatures, and dust. With a liquid drainage channel, after use can be simply rinsed with water for easier maintenance.

Comprehensive Safety

Featuresfor Secure Flights

X6 Plus G2 integrates various software and hardware protection mechanisms,

including over-current, motor stall, throttle loss, temperature anomaly monitoring,

and over/under-voltage protection, ensuring comprehensive safety during flight.

(This protection function can be enabled or disabled as needed,

allowing flexible configuration based on the requirements of the overall system.)

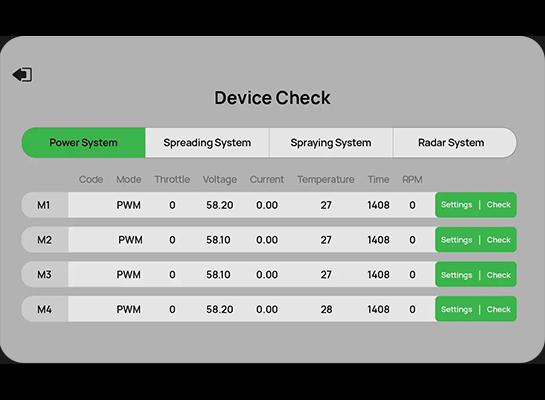

Self-Check Protection & Running Protection
