Lite3: Delivering family fun and boosting scientific research
Unlock the celebrity-favorite robot dog
Feature Guide
Version/Model | Trial Version | Explorer Edition | Professional Edition | Laser Version |
Recommended for use | Tech Product Experience Family Growth & Companionship | Educational Research Scientific Research and Development Tech Enthusiast | Educational ResearchScientific Research and Development Industrial R&D for Tech-Focused Enterprises | educational research Scientific research and development Tech Tech Geek Corporate Industrial R&D Geek Inspection and development |
Voice Interaction | Optional "Cute Motion" module available. | none | none | none |
Secondary development | Not supported | support | support | support |
Handheld remote control | Optional | Optional | Standard equipment | Standard equipment |
Battery life / Range | 1-2H | 1-2H | 1-2H | 1-2H |
Warranty Policy | Part Name | Warranty period | ||
Joint module, swappable battery | 6 months | |||
Wide-angle camera, ultrasonic radar, depth camera, LiDAR, AI computing unit, control system, other electronic components | 12 months | |||
The warranty periods for the major components of the Jueying Lite3 you purchased are listed in the table below.：
Note: Wear-and-tear parts (such as the outer casing and foot pads) and accessories (such as shipping cases) are not covered by the warranty; please contact after-sales support if needed.
The warranty period begins on the day you sign for the delivery; please be sure to keep your warranty documentation safe. Products or components that meet the warranty criteria regarding duration and coverage are eligible for free after-sales service. If your product is outside the warranty period, you can still obtain assistance by purchasing a separate service plan.

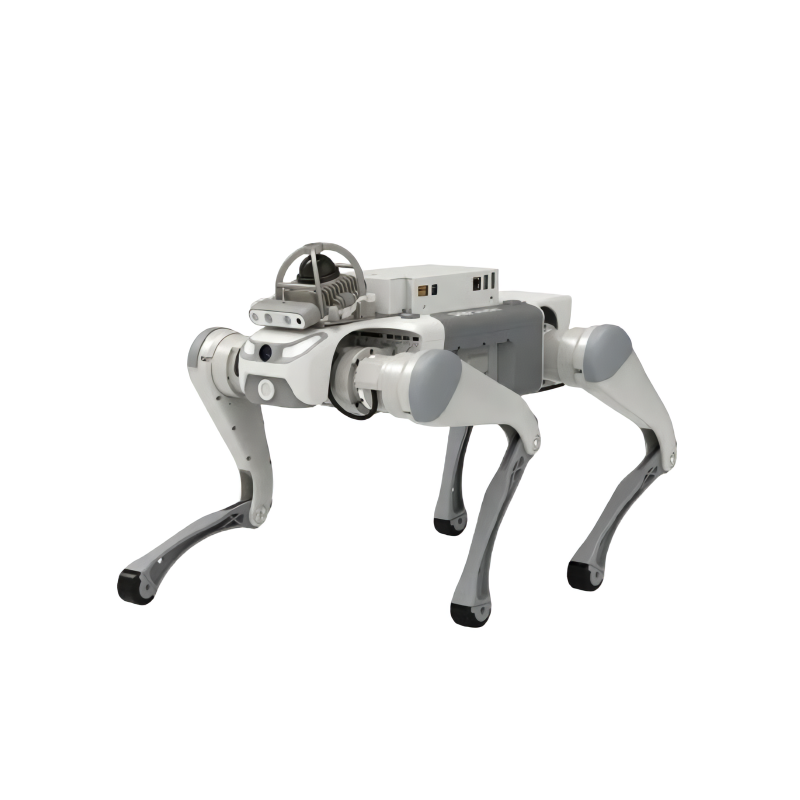

Jueying Lite3
As agile as a shadow Boundless Expansion
For detailed information, please visit the Yunshenchu Official Flagship Store.

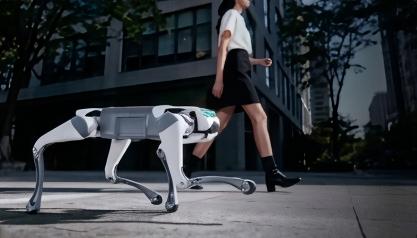

High-efficiency power output
Unleashing powerful athletic performance
Precisely control limb gait to effortlessly handle tasks like hill-climbing and obstacle traversal,
Navigate diverse, complex terrains with ease—demonstrating true, rugged capability.

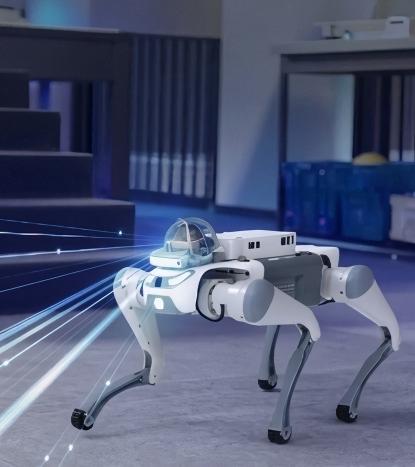

4DUltra-Wide-Angle LiDAR Perception system improved by200% | Maximum running speed 2.5m/s
|
Maximum load capacity 7.5kg
| |
AIVoice Interaction Possessing a "spirit" much like a pet. |

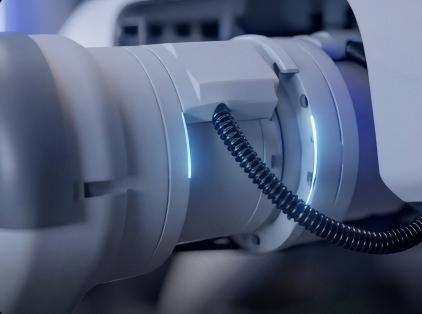

In-house developed high-performance motor 30% improvement in joint performance |
Driving range increased by150% |
Intelligent Following System |

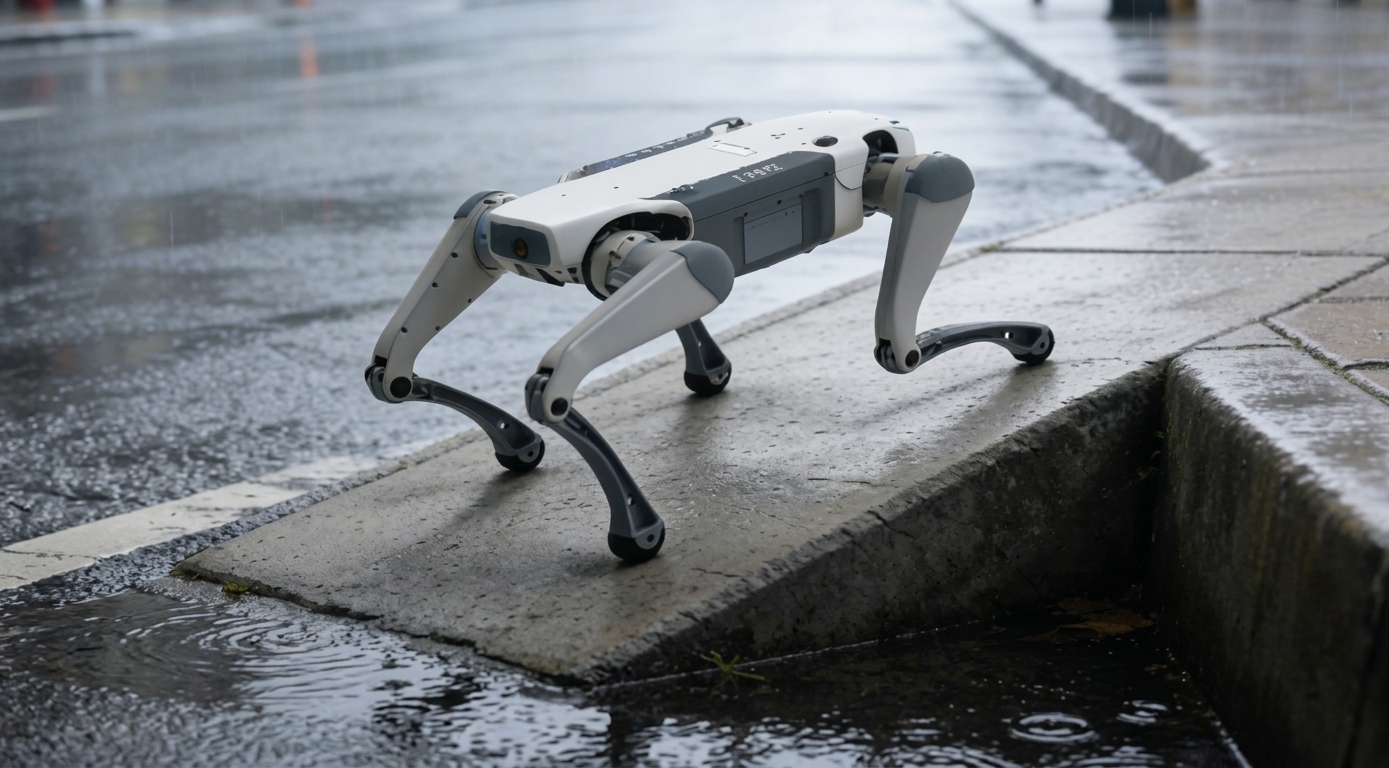

Tread across rugged terrain, transcend limits.
Accurately identifies various terrains and surface conditions such as lawns, gravel areas, stairs,
and raised platforms—ensuring unobstructed movement.
| Slope 40°Accessible Inclined Walkway |
Four major terrain types
grassland |
Sandy and stony ground |
stairs |
Split-level platform |
Application Scenarios
Exploring more use cases with you.

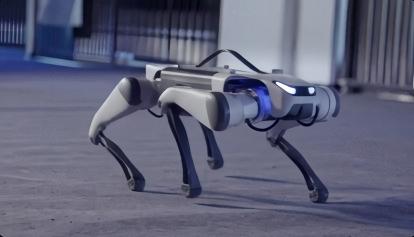

| Commercial Entertainment and Performance Events Swarm-controlled performance, expert at drawing in customers. |

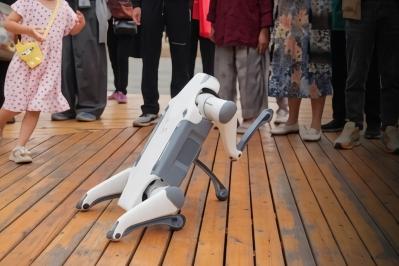

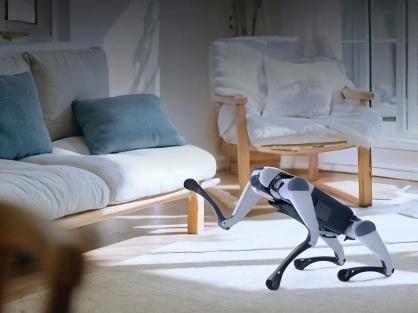

Family Companionship A Great AI Learning Companion for Children |
|

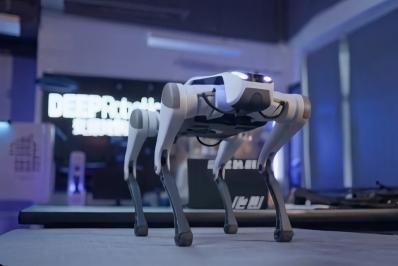

| Research & Education Professional version for development needs |

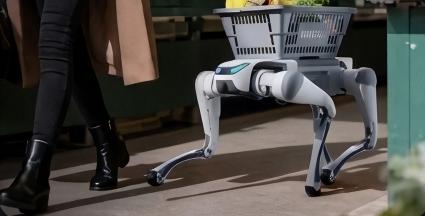

Further needs Provides a wide range of backpack options |
|

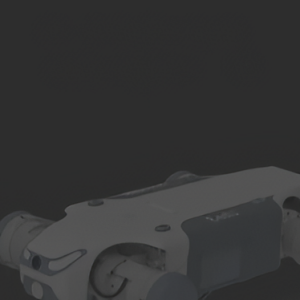

A wide range of mounting options available.

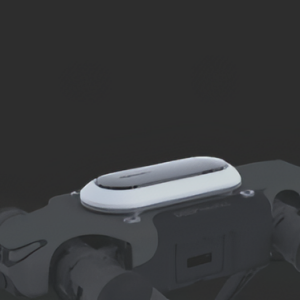

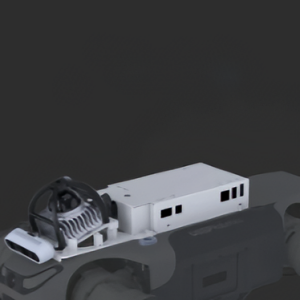

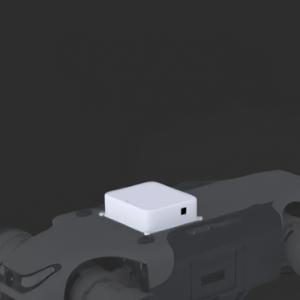

Explorer Edition Roof Rack

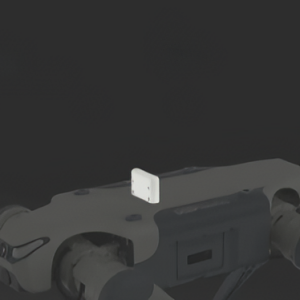

| Laser-etched back panel
|

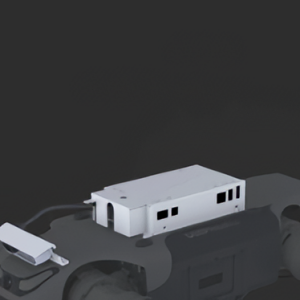

Pro-level back-carry system
| Large-scale AI models
|
Reinforcement learning-based gait
| Mass control （Control multiple dogs with a single handle）
|
Lite3 Product Specifications
Please contact customer service for purchases.
Key Specifications | Trial Version | Explorer Edition | Professional Edition | Laser Version | |
Unit Specifications | Dimensions when set up (L × W × H) | 610x370x406mm | 610x370x436mm | 610x370x450mm | 610x370x496mm |
Footprint dimensions (L × W × H) | 680×370×115mm | 680×370×145mm | 680×370x160mm | 680×370x205mm | |
Overall unit weight | 12kg | 12.2kg | 12.7kg | 13.5kg | |
Motion parameters | Exercise load | 5kg | 4.5kg | 4kg | 4kg |
Speed range | 0.5m/s~2.5m/s | 0.5m/s~2.5m/s | 0.5m/s~2.5m/s | 0.5m/s~2.5m/s | |
Slope gradient | 40° | 40° | 40° | 40° | |
Continuous stair height | 15cm | 15cm | 15cm | 15cm | |
No-load operating time | 1.5h~2h | 1.5h~2h | 1.5h~2h | 1.5h~2h | |
Unladen range | 5km | 5km | 5km | 5km | |
Electrical parameters | Battery energy | 126.72 Wh | 126.72 Wh | 126.72 Wh | 126.72 Wh |
Charger input | 100V~240V | 100V~240V | 100V~240V | 100V~240V | |
Charger output | 33.6V/5A | 33.6V/5A | 33.6V/5A | 33.6V/5A | |
Battery charging time | 40min~1h | 40min~1h | 40min~1h | 40min~1h | |
Feature List | Basic movements and actions | ● | ● | ● | ● |
RL Sports | ● | ● | ● | ● | |
Carrying strap / Handle | ● | ● | ● | ● | |
High-definition video stream | ● | ● | ● | ● | |
WiFi | ● | ● | ● | ● | |
Voice features | ● | ● | ● | ● | |
Front and Rear Parking Assist | ● | ● | ● | ● | |
Visual tracking | ● | ● | ● | ● | |
Intelligent obstacle avoidance | ● | ● | ● | ● | |
Autonomous mode | ● | ● | ● | ● | |
Secondary Development (2) | ● | ● | ● | ● | |
other | Intelligent Sensing System | 1 wide-angle camera, 2 ultrasonic radars | 1 wide-angle camera, 2 ultrasonic radars | Wide-angle camera ×1, ultrasonic radar ×2 | Wide-angle camera ×1, ultrasonic radar ×2 |
Operating temperature | 0°C~40°C | 0°C~40°C | 0°C~40°C | 0°C~40°C | |
Handheld remote controller (gamepad) | Optional | X1 | X1 | X1 | |
High-performance computing module | / | / | X1 | X1 | |
charger | X1 | X1 | X1 | X1 |
*The above data were obtained under ideal conditions; actual results may vary.
*When performing secondary development on the device, overall power consumption will increase; actual battery life depends on actual usage.
[1] Under this load, the normal operation of the robot is not affected
[2] Basic AI Venture supports motion development; Pro LiDAR supports motion and perception development.
*Please note: Due to current limitations in technology and computing resources, some functions require manual operation or further development. This is a consumer-grade robot; users should not modify or use the robot in a dangerous manner.
