Product Description

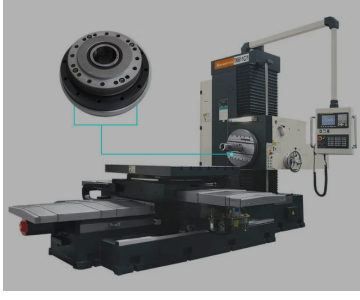

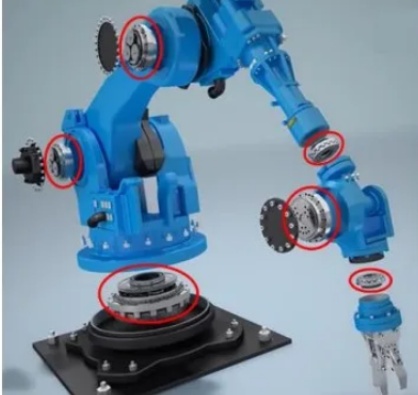

Harmonic reducer is a new type of reduction device, mainly composed of three basic components: wave generator, flexible gear (flexwheel), and rigid gear (rigid wheel). Harmonic reducer is widely used in industrial robots, CNC machine tools, aerospace, medical equipment, automated production lines and other fields. In the field of robotics, it can achieve high-precision position control to ensure that the robot's end effector can accurately reach the predetermined position and perform delicate operations, such as assembling tiny parts and welding electronic products. Although it is small in size, it can provide a large torque in a limited space to meet the power requirements of the robot in situations such as carrying heavy objects and performing complex processing tasks.
Product parameters
| Reduction ratio | 30 | 50 | 80 | 100 | 120 |
| Input rated torque at 2000r/min | 10.2Nm | 17Nm | 22.4Nm | 28Nm | 28Nm |
| Allowable peak torque at start and stop | 23.4Nm | 39Nm | 45.6Nm | 57Nm | 61Nm |
| The max. allowable torque of the average load | 14.4Nm | 24Nm | 27.26Nm | 34.8Nm | 34.8Nm |
| Instantaneous maximum allowable torque | 41.4Nm | 69Nm | 76Nm | 95Nm | 95Nm |
| Backlash | ≤20Arcsec | ≤20Arcsec | ≤10Arcsec | ≤10Arcsec | ≤10Arcsec |
| Maximum input speed allowed | 7000rpm | ||||
| Allowable average inputspeed | 3500rpm | ||||
| Rotational inertia(1/4GD) | 0.09(lx104 kgm²)0.092(Jx105kfgms2) | ||||
Technological Innovation
1.Materials
Ultra-fine ADI material
We use ultra-fine and dense ductile iron continuous-cast hollow profiles and austemperate them to obtain ultra-fine and dense ADI materials.
Features: 1. Self-lubricating 2. Low temperature rise 3. Shock absorption and noise reduction 4. Wide service temperature range 5. Long life
2. Ultra-precision heat treatment process
We have many years of technical experience in material heat treatment processes.
Find the changing rules of the balance point between the two factors of hardness and toughness that affect fatigue strength due to harmonics
A perfect heat treatment process is developed based on the stress accumulation after processing and the stress dissipation before processing.
and fully put into mass production

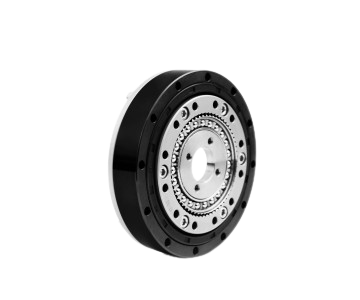

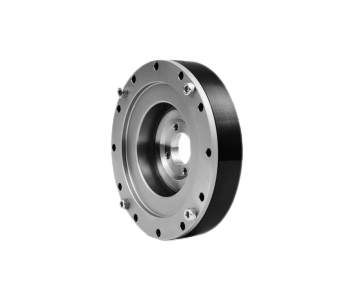

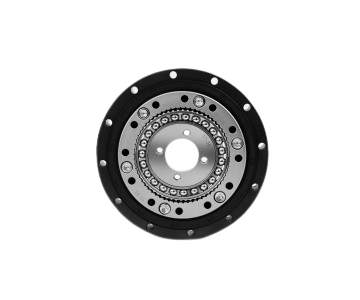

Product Display
With the rapid development of science and technology, harmonic drive technology is also constantly evolving. The research and development and application of new materials have brought more excellent mechanical properties and durability to components such as flexible wheels, enabling them to operate stably under more stringent working conditions. At the same time, the introduction of advanced manufacturing processes such as precision CNC machining and special molding technology has made a qualitative leap in the manufacturing accuracy and production efficiency of harmonic drive devices, further reducing production costs and improving the market competitiveness of products.
In the field of processing technology, we have independently developed a series of high-precision and high-efficiency processing equipment and process routes. From precision forging, CNC cutting to special processing, every link strictly controls the processing accuracy and quality, realizing the transformation and upgrading from traditional processing mode to intelligent and digital processing and manufacturing.
Size & Interface
Application Cases

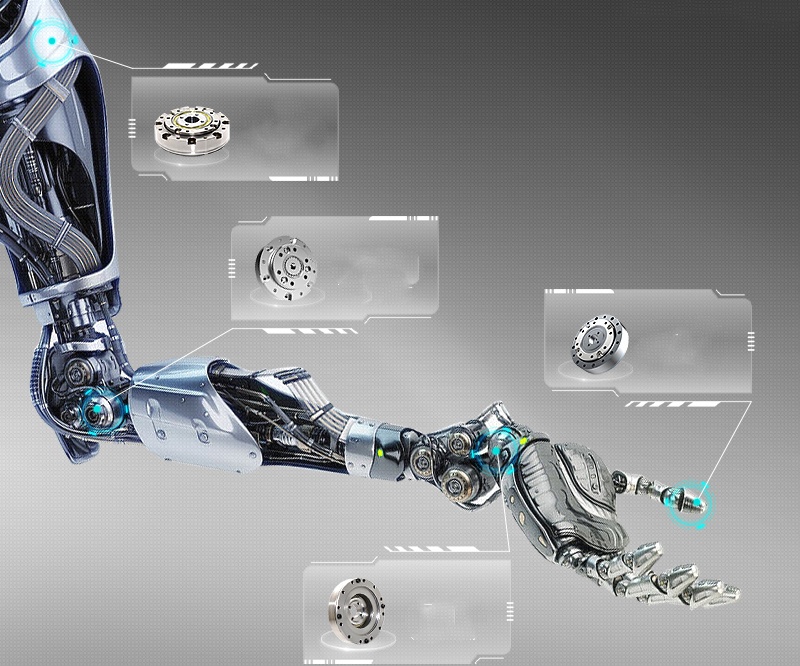

The harmonic reducer is small in size and light in weight, and can be installed in the small space of the robot hand to provide precise power transmission and motion control for the hand joints, allowing the robot hand to achieve flexible movements. In addition, the low vibration and low noise characteristics of the harmonic reducer also help reduce vibration and noise during hand joint movements, improving the operational stability and quietness of the robot. The limbs of humanoid robots need to complete various complex and delicate movements, such as grabbing objects, walking, climbing, etc. The harmonic reducer has high transmission accuracy, which can ensure that the robot's limb joints accurately reach the predetermined position and achieve high-precision motion control.
