Product Overview

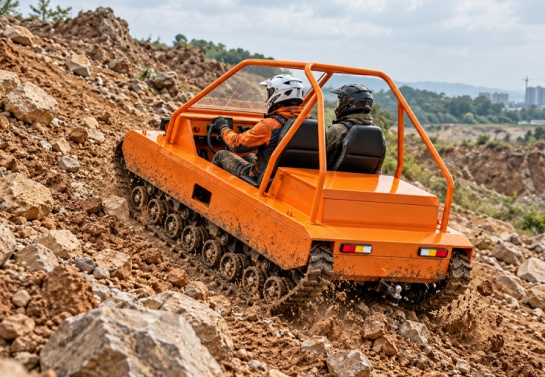

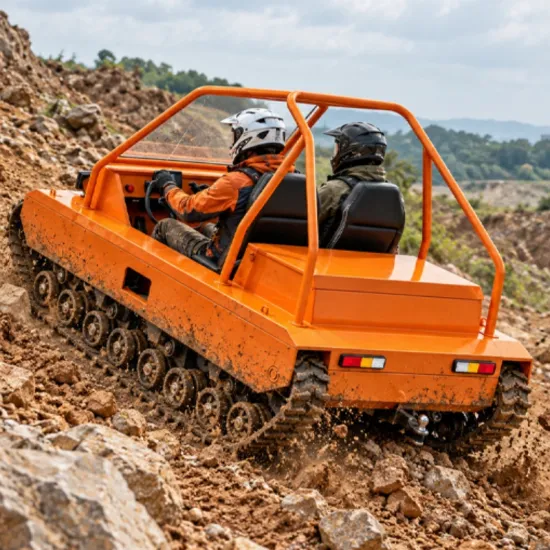

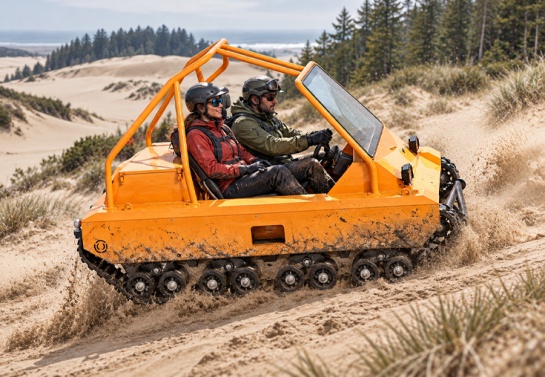

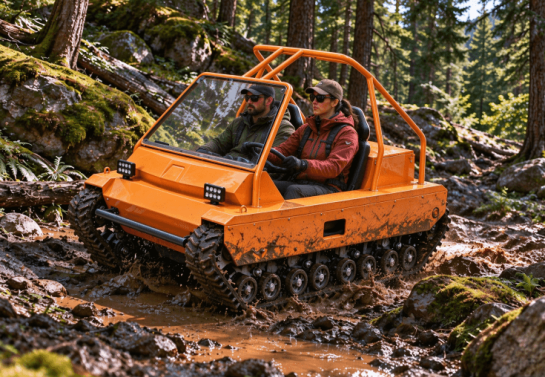

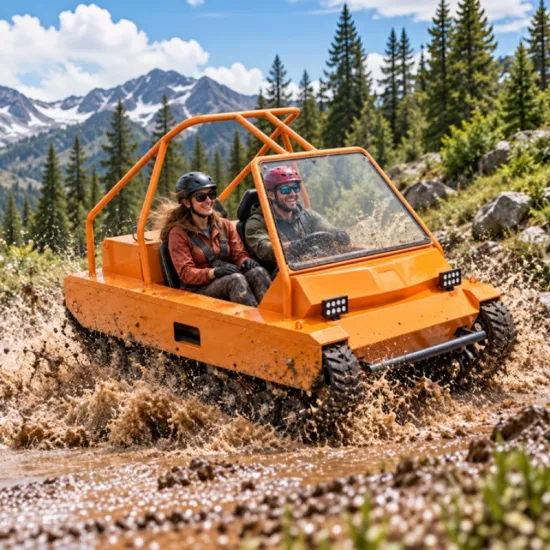

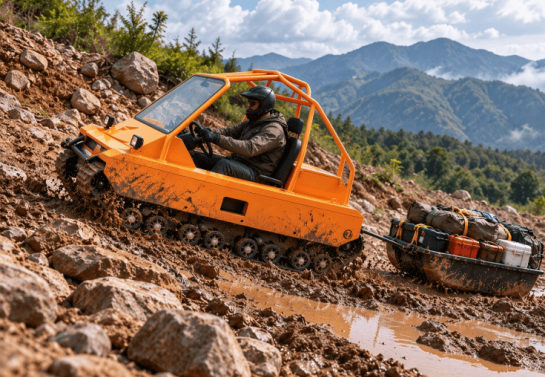

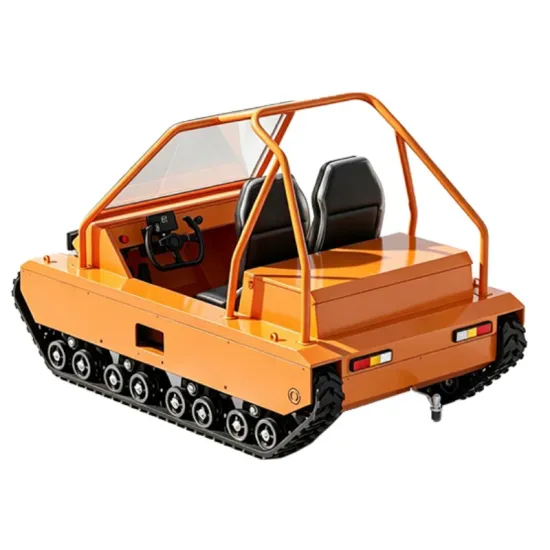

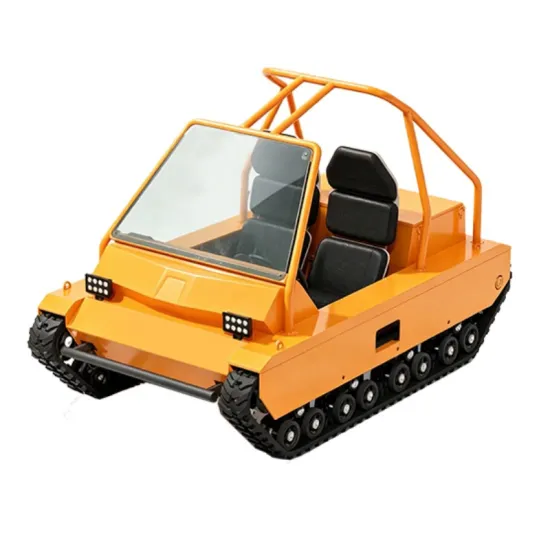

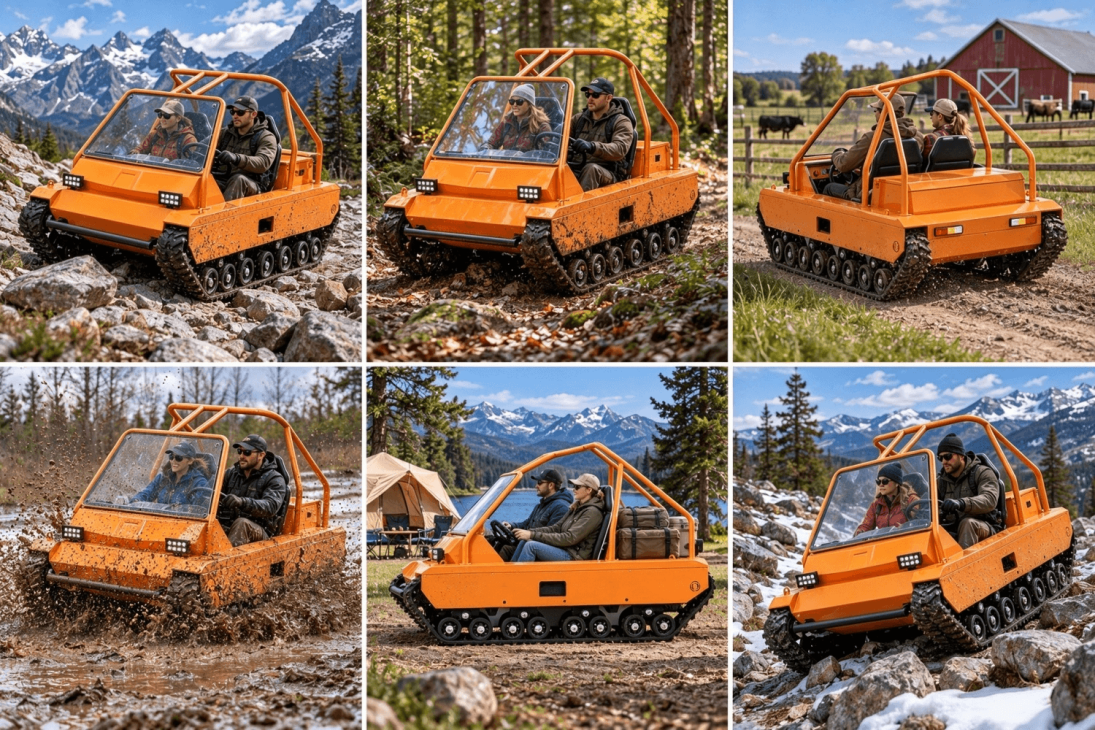

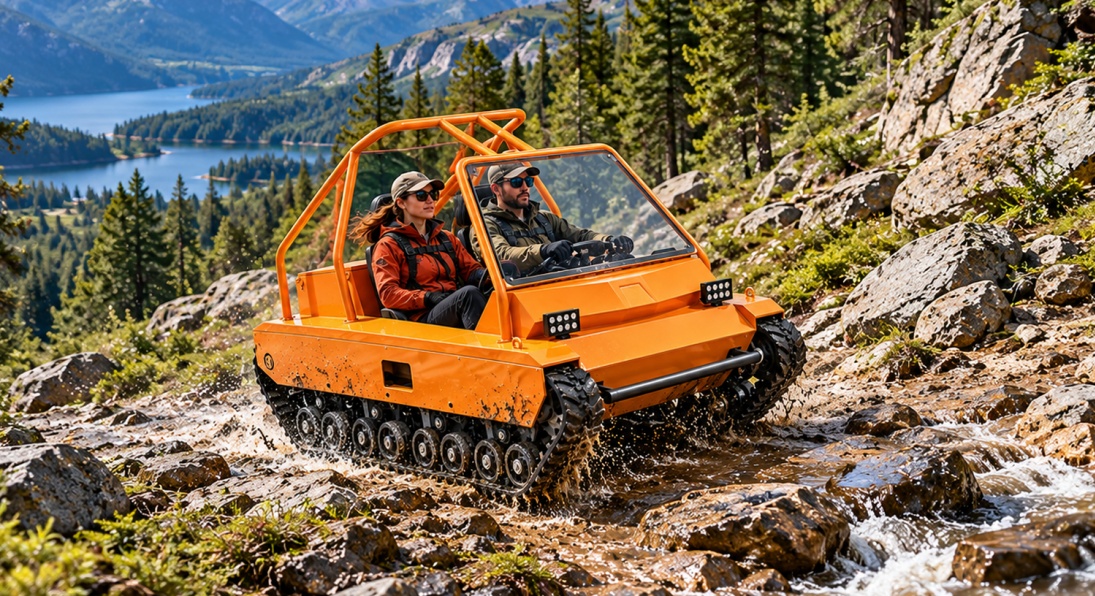

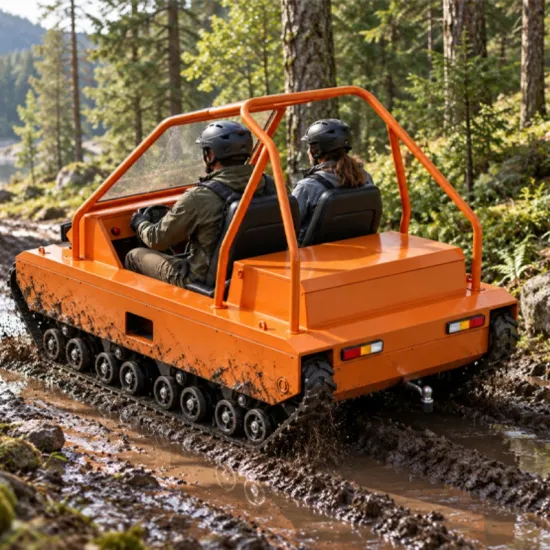

A compact tracked ATV designed for outdoor adventure and off-road exploration. Featuring dual motor drive, strong torque, and excellent all-terrain capability, it performs reliably on mud, sand, snow, grassland, and uneven terrain.
Key Features
| All-Terrain Tracked Mobility The tracked system increases ground contact and traction, improving performance on mud, sand, snow, grassland, and uneven terrain. 150mm wide track design for improved terrain adaptability Enhanced traction on soft and challenging surfaces Stable performance for outdoor adventure and off-road riding |
Dual Motor High Torque Drive System The dual motor system delivers strong power output and reliable traction for demanding off-road conditions. 2×1.5kW–4.5kW motor output Up to 600N·m high torque Strong pulling force for complex terrain operation |
|
| Off-Road Capability High ground clearance and climbing ability help overcome slopes, obstacles, and rugged outdoor terrain. 200mm ground clearance Up to 30° climbing capability Improved obstacle clearance performance |
Compact Adventure Design The two-seat configuration combines maneuverability and off-road performance for outdoor exploration. Two-seat adventure configuration Flexible handling on challenging routes Designed for outdoor sports and exploration |
|
Specifications
| Item | Parameters | Item | Parameters |
| Product Dimensions | 2200*1320*1300mm | Track Parameters | Width 150mm 72 sections |
| Motor Power | 2x(1.5kw-4.5kw) | Motor Rated Speed | 3000-4500RPM |
| Minimum Ground Clearance | 200mm | Maximum Speed | 25km/h |
| Battery Compartment Dimensions | 700*400*200mm | Design Gross Weight | 350kg (excluding battery) |
| Maximum Battery Dimensions | 680*380*175mm | Maximum Climbing Angle | 30 |
| Reduction Ratio | 1:7.5-20 | Output Torque | 200-600NM |
| Load Capacity | 200Kg | Protection Rating | IP65 |
Applications
Designed for individual outdoor adventure and off-road driving, suitable for mountain trails, forests, farms, and challenging terrains where agility and maneuverability are required.
