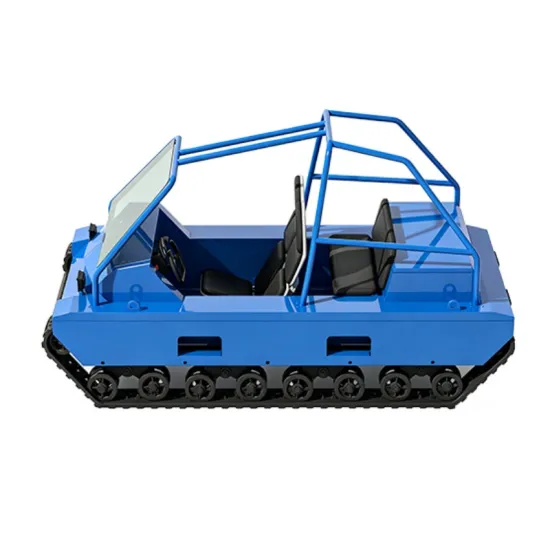

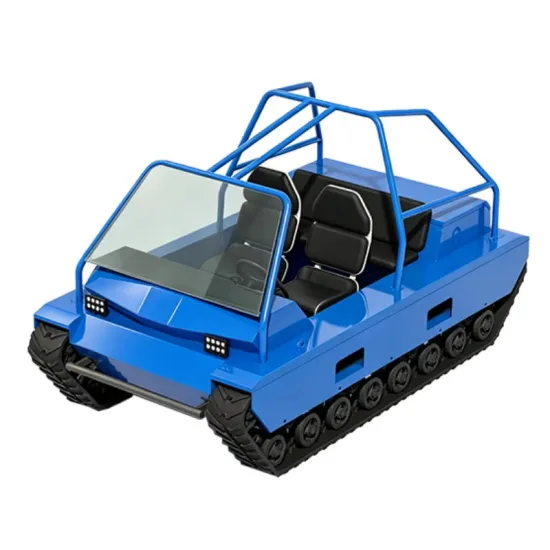

Product Overview

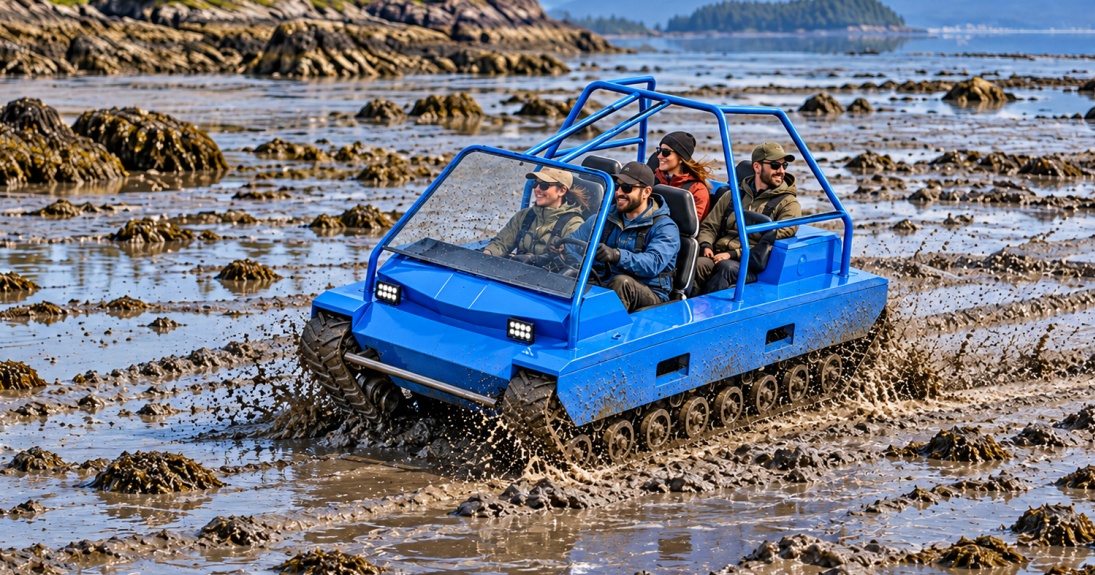

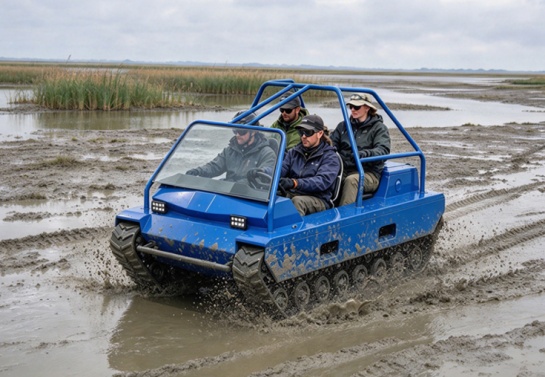

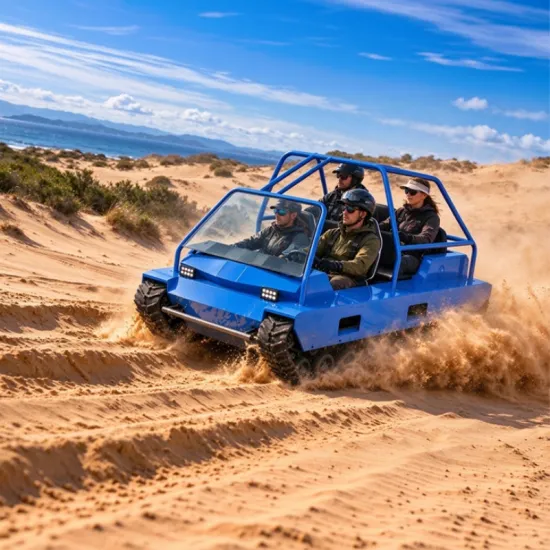

A heavy-duty 4-seater tracked ATV built for outdoor adventure and challenging terrain. With high-power dual motors, wide tracks, and strong traction, it delivers stable off-road performance across various environments.
Key Features
| Heavy-Duty All-Terrain Tracked System The wide track structure improves stability, traction, and load capability across various terrains. 230mm wide track design Larger ground contact area for better traction Suitable for mud, sand, mountain, and rough terrain |
High Power Dual Motor Drive System The high-output dual motor system provides strong performance for heavy-duty off-road applications. 2×4kW–8kW motor output Up to 1200N·m torque Strong traction for challenging environments |
|

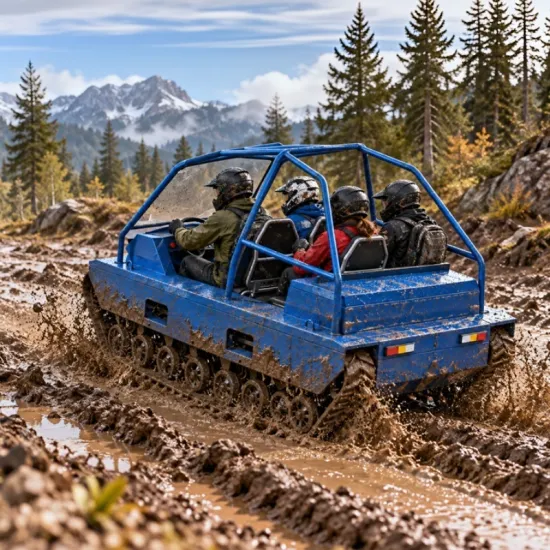

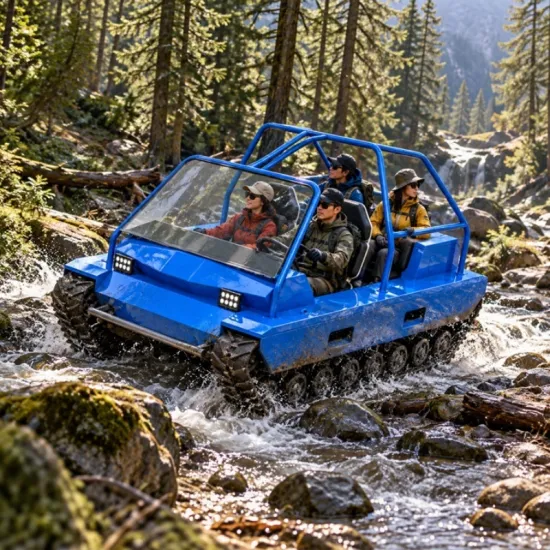

| Multi-Person Heavy-Duty Off-Road Capability The four-seat configuration with high load capacity supports group exploration and outdoor equipment transport. 400kg payload capacity Supports multi-person outdoor exploration Balanced performance, space, and stability |

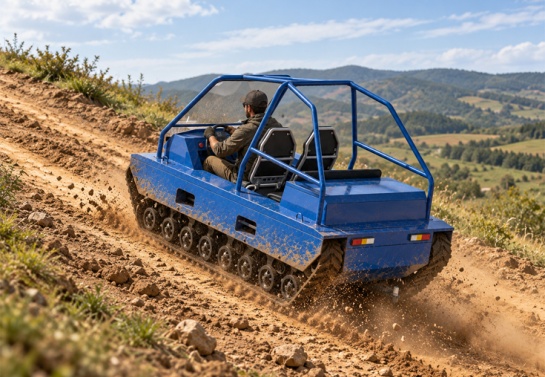

Extreme Terrain Adaptability High ground clearance and climbing capability enhance performance in demanding outdoor environments. 200mm ground clearance Up to 30° climbing capability Designed for slopes, mud, and rugged terrain |
|
Specifications
| Item | Parameters | Item | Parameters |
| Product Dimensions | 2900*1530*1380mm | Track Parameters | Width 230mm 72 sections |
| Motor Power | 2x(4KW-8KW) | Motor Rated Speed | 3000-4500RPM |
| Minimum Ground Clearance | 200mm | Maximum Speed | 25km/h |
| Battery Compartment Dimensions | 700*450*220mm | Design Gross Weight | 350kg (excluding battery) |
| Maximum Battery Dimensions | 680*420*200mm | Maximum Climbing Angle | 30 |
| Reduction Ratio | 1:7.5-20 | Output Torque | 200-600NM |
| Load Capacity | 400Kg | Protection Rating | IP65 |

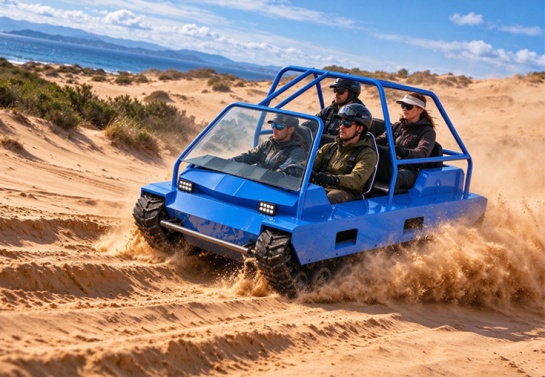

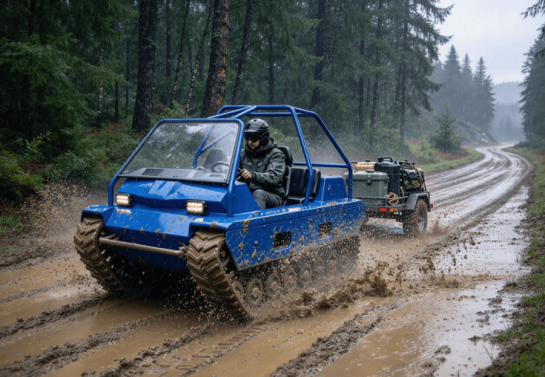

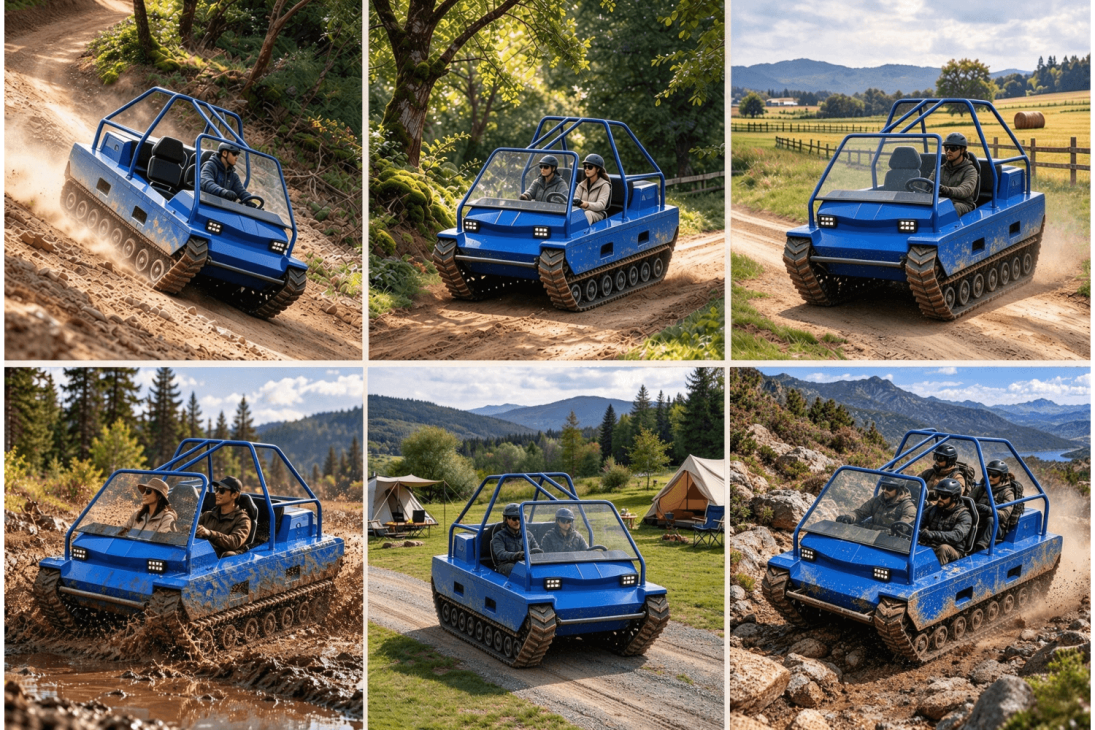

Applications
Designed for multi-person outdoor exploration and heavy-duty off-road applications, suitable for adventure teams, outdoor camps, ranches, and terrain exploration requiring higher capacity.
