Product Description

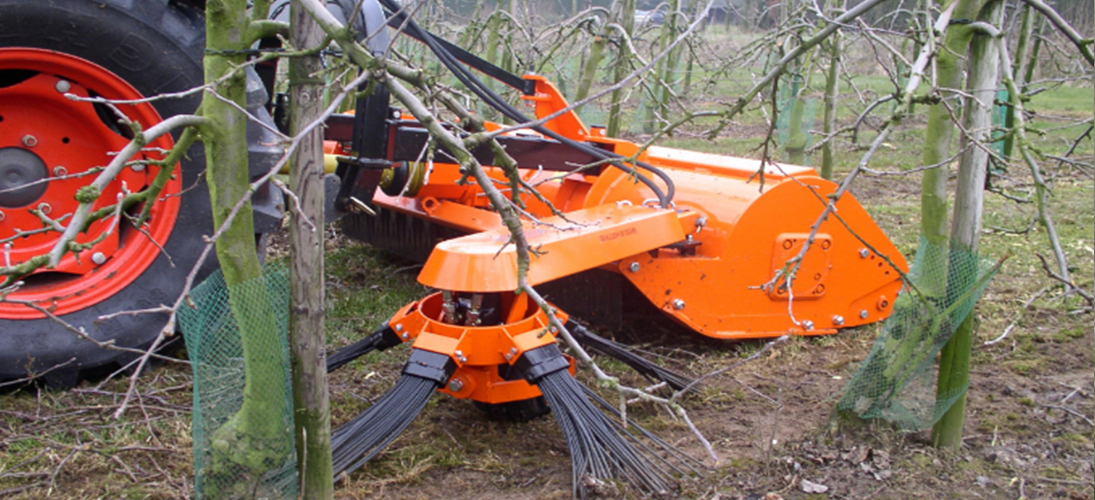

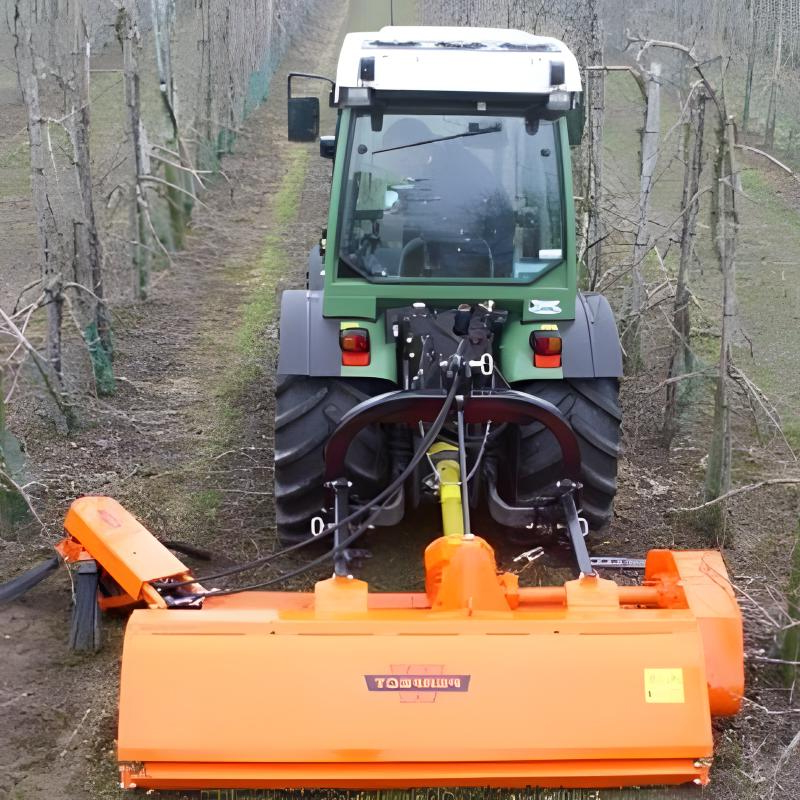

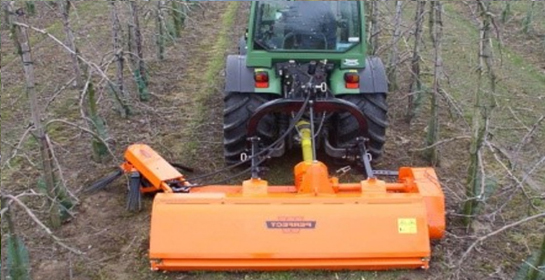

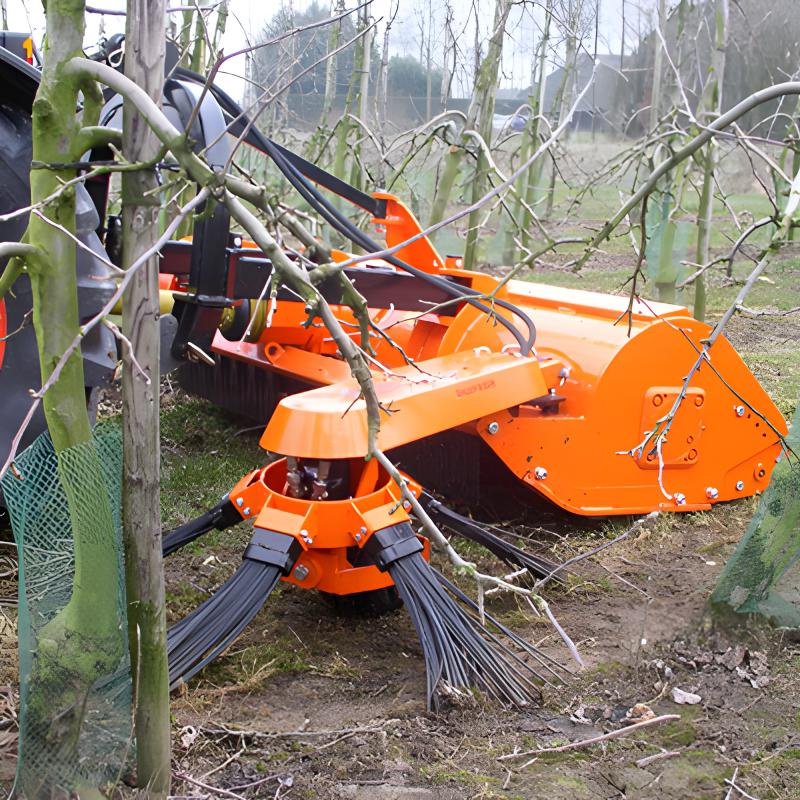

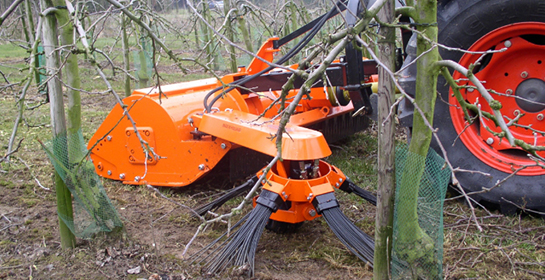

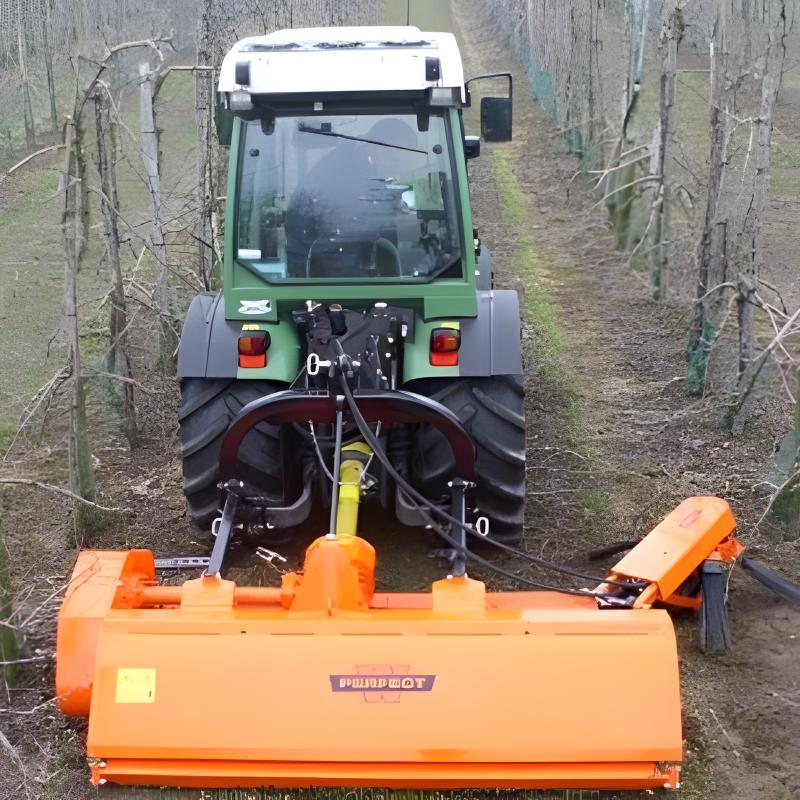

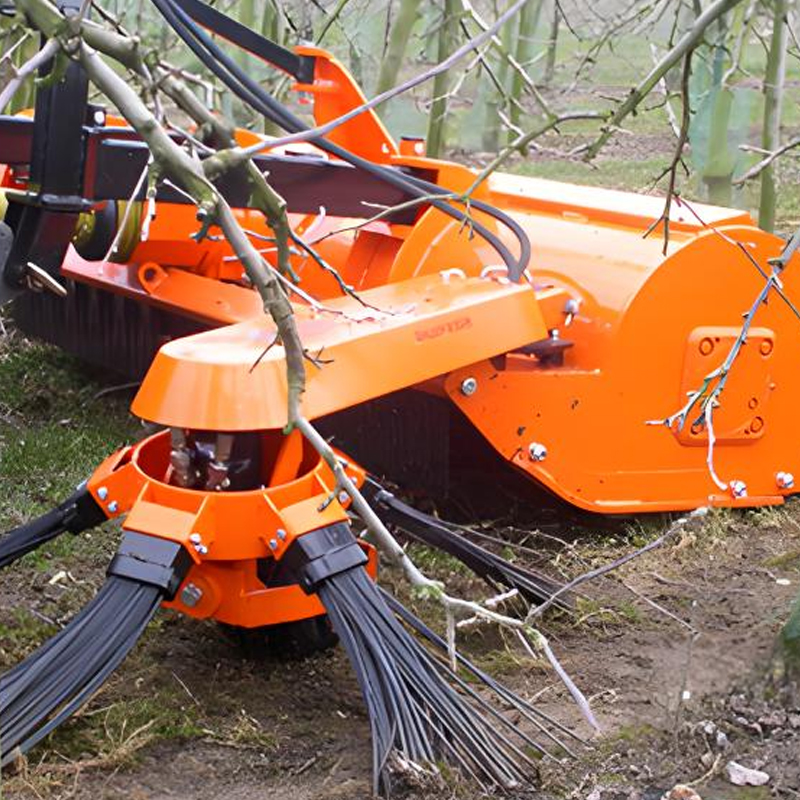

The traction-type branch gathering and crushing machine is an agricultural machinery equipment, which is mainly used in orchards, forest farms and other places. It is connected to a power source such as a tractor through a traction device, and can gather and collect scattered branches and crush the collected branches. The traction-type branch crusher, the cleaning brush can gather the branches between the rows, and the branch crusher can crush branches within a diameter of 8CM.
Product Features
- Full utilization of resources: The crushed branches can be used as organic fertilizer or biomass fuel, which realizes the resource utilization of branches, reduces waste emissions, and conforms to the concept of ecological agriculture and circular economy.
- Easy to operate: With a traction design, as long as it is connected to a suitable tractor, it can be easily operated in orchards, forest farms and other places. The operator only needs to drive the tractor and simply monitor the working status of the machine.
- Efficient operation: The two functions of branch gathering and crushing are integrated together, which reduces the steps of manual collection and transportation of branches and can quickly clean up the branches on the ground in the orchard.
- Wide range of applications: It can process various types of fruit tree branches and forest tree branches, whether they are thinner fruit branches or thicker branches, as long as they are within the feed size range of the machine, they can be gathered and crushed.
Product parameters
| Model | BG2-150 model |
|---|---|
| Connection method | Three-point suspension, with power of more than 50 horsepower, PTO speed of 540RPM |
| Structural features | Three V-belt drives with automatic spring tensioning |
| Appearance design structure | Parallelogram structure, can achieve about 70CM displacement |
| Height | The product structure is compact, the overall height is not higher than 51.5CM |
| Location of the shredder blade | The shredder blade is installed inside the structure to reduce the width of the machine |
| Blade mounting | The blade is mounted on an electronically balanced and vibration-proof shaft with 20mm bolts and replaceable steel bushings |
| Rear roller | Both ends of the rear roller are tapered and equipped with bearing protection. |
| Working range | Width of shredded branches: 150CM, diameter of shredded branches: up to 8CM, 9 blades |
| Working width | The branch gathering machine is installed on the branch shredder, with a working width of 1 meter. |
| Number of brushes | 5 brushes with support wheels |
| Drive oil flow | Hydraulic drive, oil flow 301/min, ±70 |
| Moving mode | Hydraulically lifting and gathering device for easy transportation |
Pack
In sea transportation, wooden boxes can protect products from the effects of sea waves, air pressure changes and other factors. For example, in the process of sea transportation, wooden boxes can prevent seawater erosion and humid environment from damaging products, and at the same time protect products from collisions with port equipment during loading and unloading. Considering the difficulty of loading and unloading large products, wooden boxes are designed with a structure that is easy to load and unload by forklifts or cranes. Due to the shape and characteristics of the product, the specific delivery depends on the situation.
Transport
Our multimodal transport service: organically combines two or more modes of transport to achieve "one-stop" transport of goods. For example, sea-rail transport is a common multimodal transport mode. After the goods are transported to the port by ship, they are transported to the inland destination by rail, which reduces the number of loading and unloading times during the transportation process, improves transportation efficiency, and reduces the risk of cargo damage.
