Product Description
E3 series, 360° industrial area monitoring, in the face of stringent requirements in the industrial field, Thran Technology provides software algorithms, upgrades software structure, launched the LPX-E3X1 regional monitoring radar, for regional monitoring applications, fully empowering the industrial field, monitoring radius of 25 meters, anti-sunlight ability ≥80Klux, Angle resolution 0.225° Built-in area monitoring application, 64 monitoring area groups, to meet various scenarios
Product parameters
| name | argument | name | argument |
|---|---|---|---|
| Range radius | 0.05-25m (识别区(≥70%反射率)) 0.05-10m(警告区(≥10%反射率)) 0.05-4m(报警区(≥2%反射率)) | The number of area groups to be monitored | 1(contains three areas) |
| Measurement blind area | 0.05m | Configuration interface | USB Type-C |
| Sweep frequency | 20Hz | Point cloud output | 无 |
| Angular resolution | 0.225°@20Hz | Ranging resolution | 10mm |
| Area monitoring data output | IO / RS485/Ethernet | Measurement accuracy | ±30mm |
| Monitoring area group | 64组@20Hz | Operating temperature | 0℃~50℃ |
Technological Innovation
The LPX-E3X1 is innovative and uses Thran's third generation SL-dTOF technology to demonstrate impressive detection accuracy against extremely black objects with a reflectivity of only 2%. Whether it is small detection objects or extremely challenging low-reflectivity scenes, the LPX-E3X1 can play an excellent monitoring effect, providing a reliable guarantee for a variety of application scenarios.

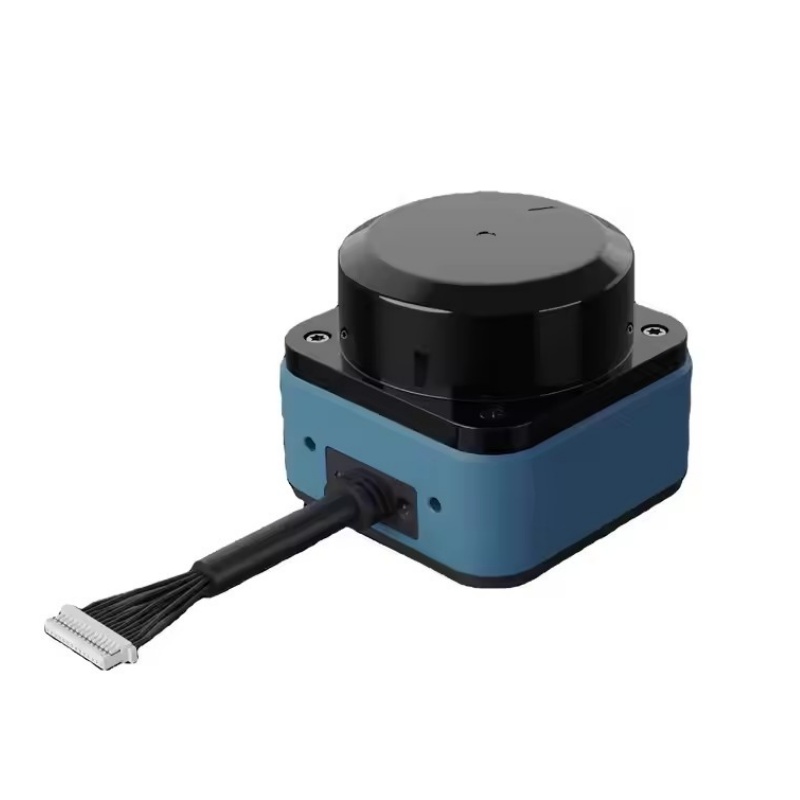

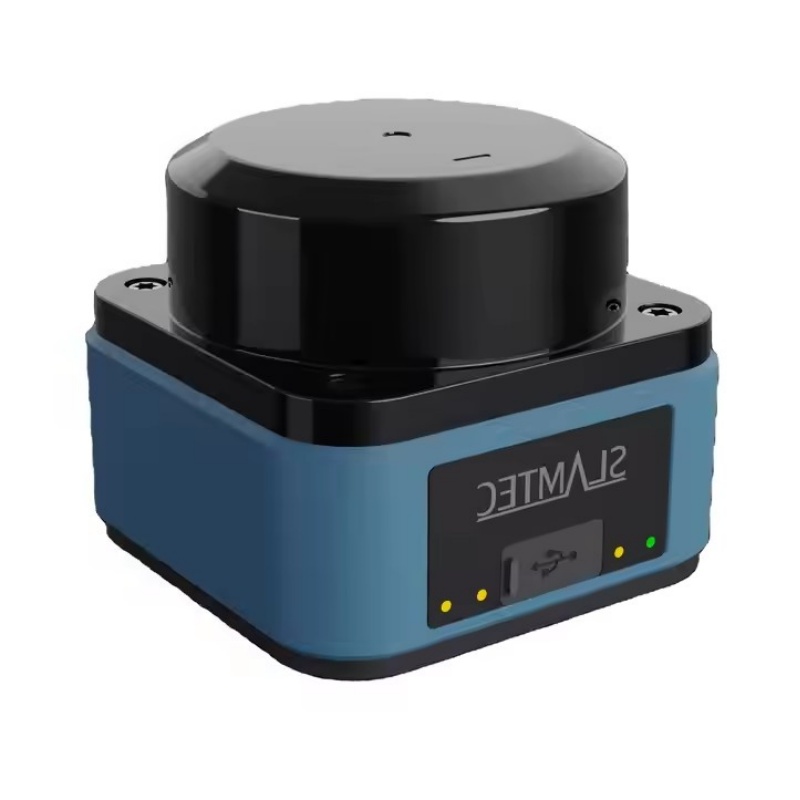

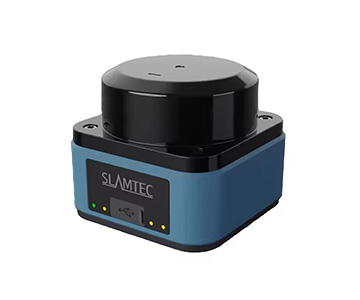

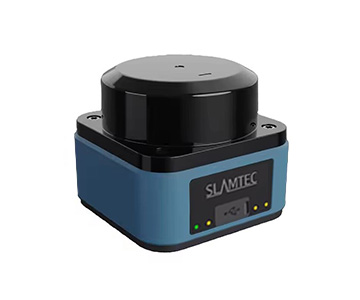

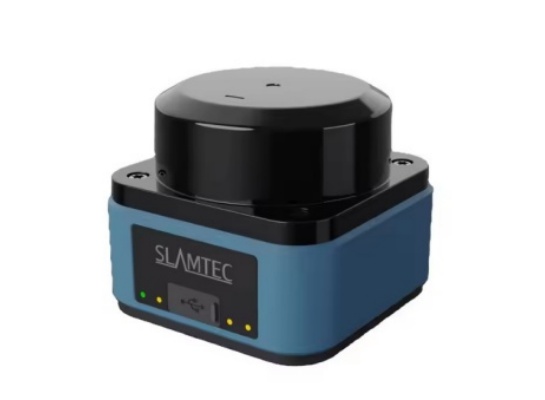

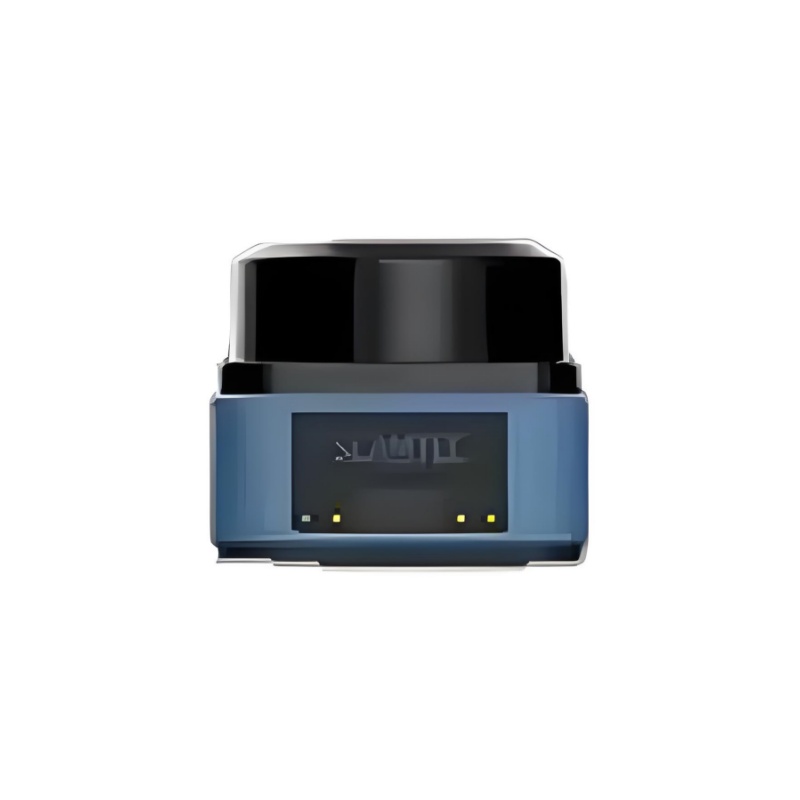

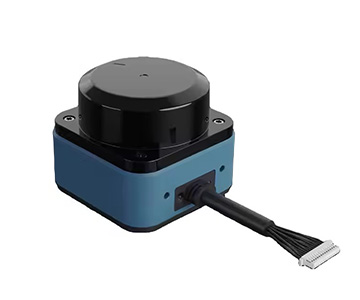

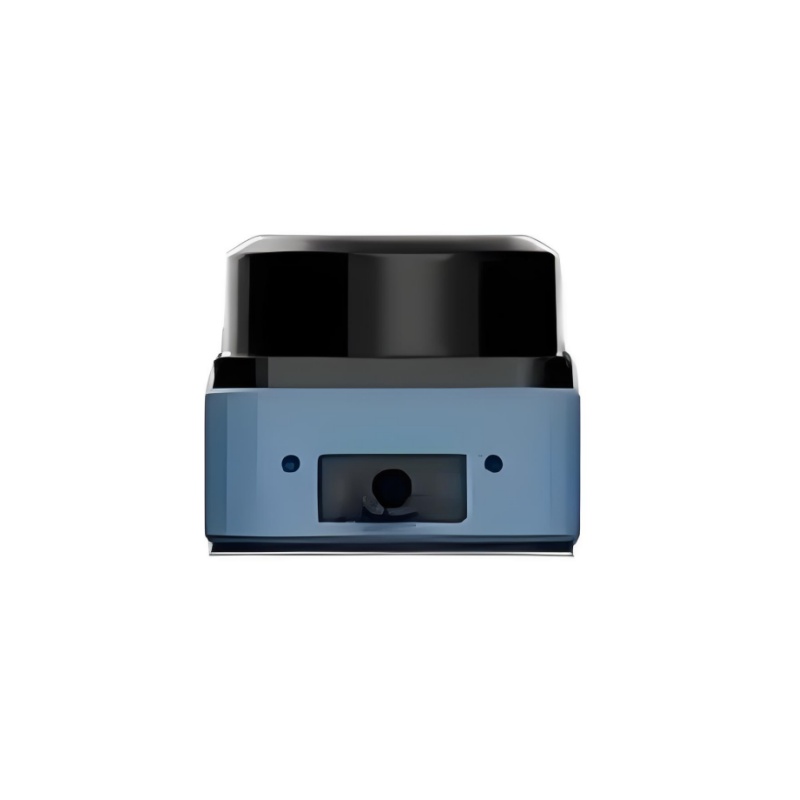

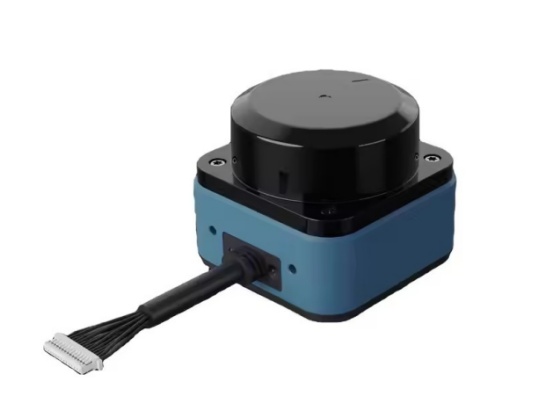

Product Display
Built-in real-time area monitoring system, various output forms
LPX-E3 built-in area monitoring application, can be configured to monitor the intrusion of the monitoring area, direct access to the existing PLC and other equipment, without relying on external computing system for secondary development.
Industrial grade, high reliability
The LPX-E3 uses Thran's high-performance SL-DToF laser ranging core technology to meet the exacting standards of industry grade. The combination of high precision, low reflectivity, sun resistance and other excellent performance to ensure stable and reliable work in industrial environment.
Quality Control
10 years of R & D quality verification, trust the preferred leading industry products

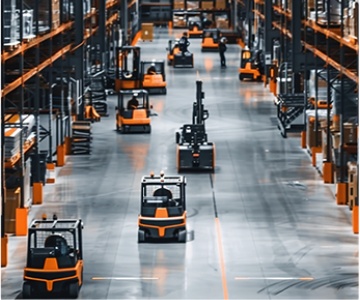

Application Cases
LPX-E3X1 industrial area monitoring radar is widely used in area intrusion monitoring scenarios, which can accurately identify unauthorized intrusion behaviors and provide reliable guarantee for regional security. At the same time, it performs well in the assembly line piecework, can accurately count the number of products, and improve production efficiency. In addition, it is also suitable for channel monitoring to grasp the passage of personnel or items in real time.
