Product Description

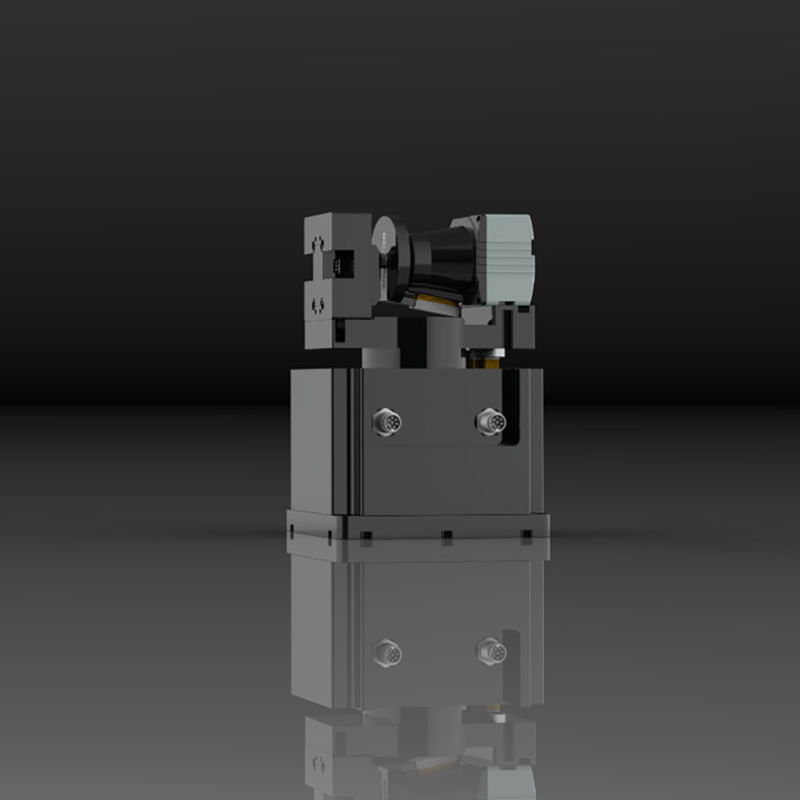

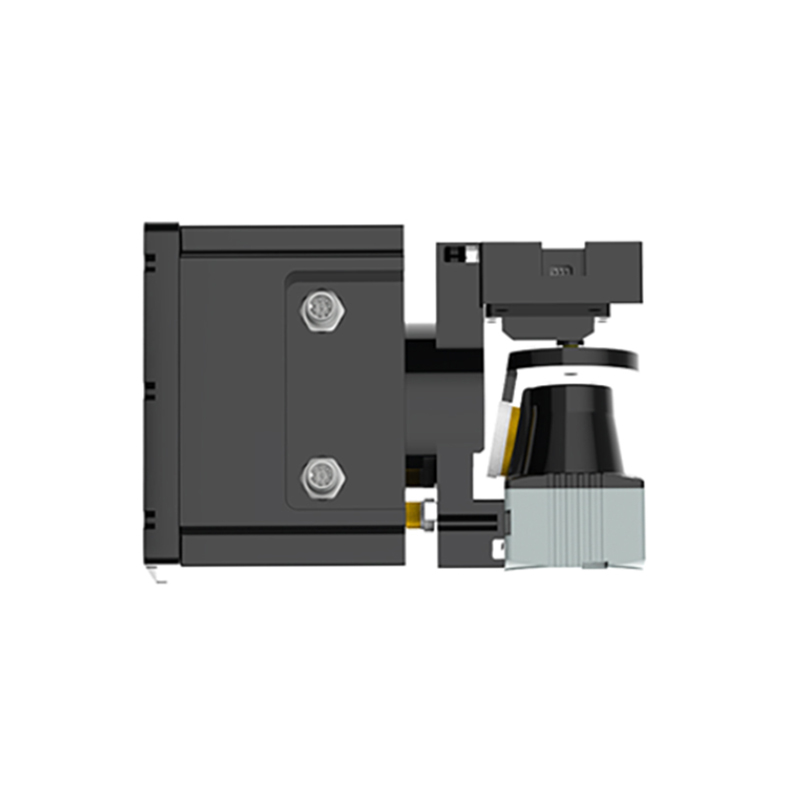

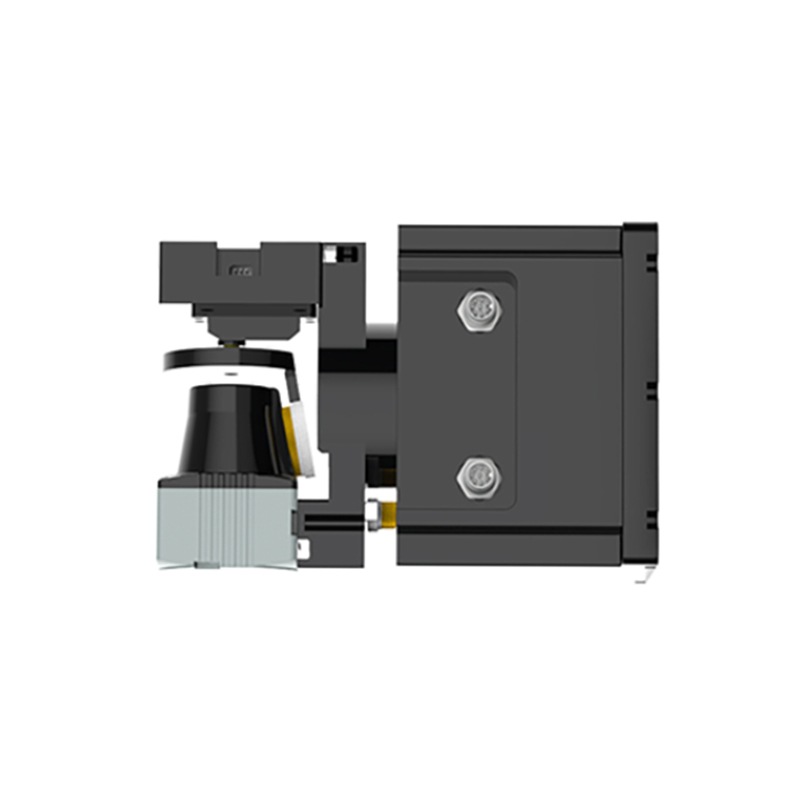

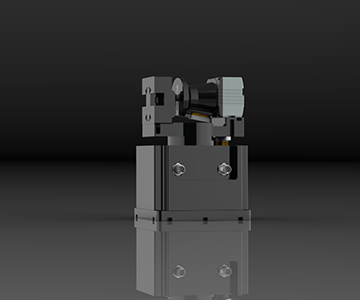

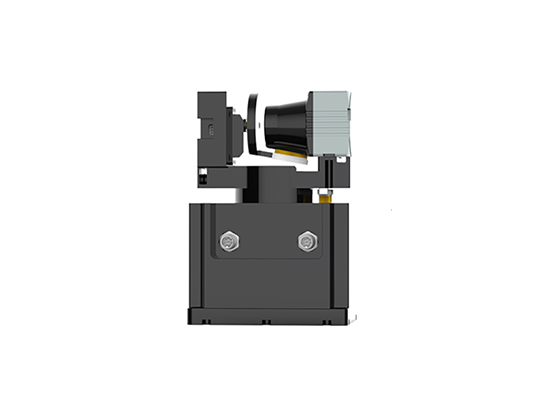

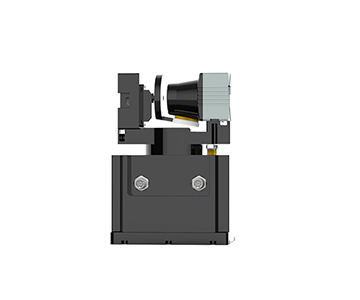

Industrial high precision 3D scanning module is a set of intelligent volume measurement system independently designed, developed and produced by Ruizhi. The system adopts integrated design, compact structure and powerful performance. The device integrates Lakibeam Lidar, PTZ and HD camera to achieve three-dimensional reconstruction of the target object using the scanning capabilities of the liDAR 270° and PTZ 360°. Mine bulk volume measurement Granary bulk volume measurement winery bulk volume measurement Incinerator waste volume measurement.
Product parameters
| name | argument | name | argument | name | argument |
|---|---|---|---|---|---|
| Radar type | High precision 3D scanning module | Lidar scan Angle | 270°(max) | Measurement accuracy | ±2cm |
| Laser wavelength | 940nm | Head scan Angle | 360°(max) | Anti-ambient light | 100000LuX |
| Eye safety level | Class1(IEC60825-1) Eye safety | Data network port | 100Mbps Ethernet | Lidar angular resolution | 0.1°(adjustable) |
| range | 40m@70% reflectivity | Head resolution | 0.09°(adjustable) | Operating temperature | -25℃ to 60℃ |
| Operating voltage | 24V DC(POE optional) | Working power | <15W | Class of protection | IP65 |
| Storage temperature | -40 °C to 80°C | camera | selectable | self-cleaning | With automatic cleaning module |
Product Display
High precision 3D scanning
With the self-developed optical chip and high-performance hardware architecture, it can capture high-density point cloud data and restore the spatial details of the target object in detail.

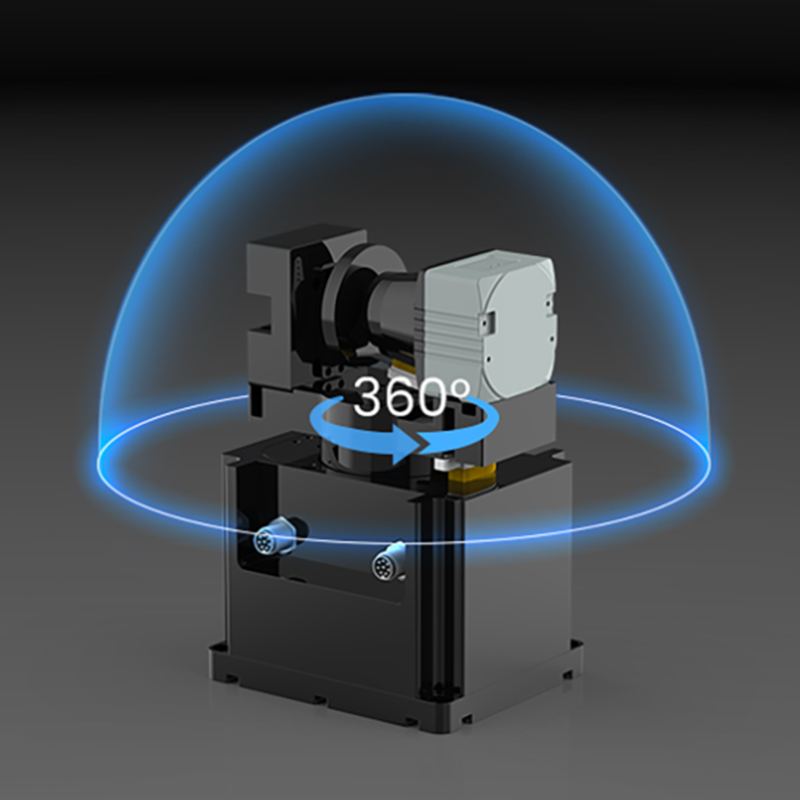

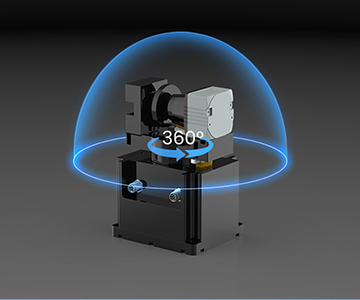

Large field of view Angle

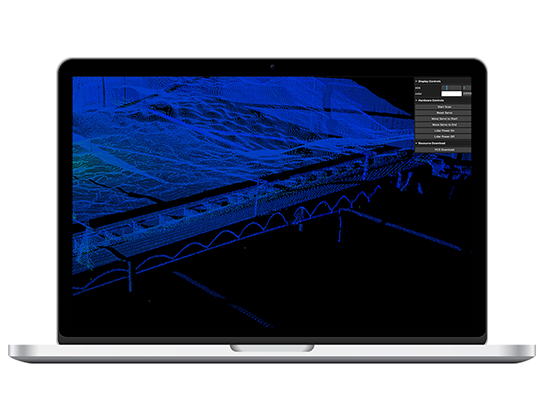

360°×270° large field of view Angle, complete capture of surrounding details visual interface. Users can view the scanning results of LiDAR in real time, obtain high-density point cloud data, without installing software, open the browser can control the regional dynamics anytime and anywhere.
self-cleaning
The equipment is specially designed to detect and remove dust, dirt and water droplets on the Lidar housing, so as to avoid affecting the scanning accuracy and data quality due to external contamination.
Remote management
The 3D scanning module gives the user the ability to control and monitor the equipment comprehensively. Through the HD camera of the equipment, the user can view the running status of the site in real time, adjust the scanning parameters, and carry out the fault clinic and maintenance of the equipment.
Resistance to ambient light
Effectively filter strong light interference, maintain high precision scanning effect, not affected by night and day light.
Solution recommendation
3D scanning module as an advanced measurement means, in the mine management and operation, can accurately measure the pile volume, greatly shorten the measurement cycle.
Quality Control
- Calibration equipment accuracy: Use high-precision calibration equipment and instruments to calibrate and calibrate Lidar, such as high-precision rangefinder, Angle meter, etc., and regularly calibrate and maintain the calibration equipment to ensure its accuracy and accuracy.
- Calibration methods and processes: Develop scientific and reasonable calibration methods and processes, and carry out calibration and calibration work in strict accordance with standard operating procedures to ensure the consistency and reliability of calibration results. For example, the range measurement of lidar is calibrated by multiple points, and the Angle measurement is calibrated in all directions.
- Calibration data recording and traceability: All data generated in the calibration process are recorded and saved in detail, and calibration data files are established in order to trace and query the quality status of the product, and provide data support for subsequent quality improvement.
Application Cases
Lidar is very widely used, and here are some common application areas:
- In the field of automatic driving: high-precision positioning combined with high-precision maps, LiDAR can realize high-precision positioning of vehicles through the identification and matching of surrounding environmental characteristics, and determine the accurate position of vehicles in the map, thus providing a reliable basis for the path planning and navigation of automatic driving.
- Robot field: navigation and determination, industrial robots, service robots, warehousing and logistics robots, etc., can use LiDAR to obtain information about the surrounding environment, achieve autonomous navigation and accurate positioning, so as to accurately move to the target position in a complex environment and complete various tasks, such as material handling, cleaning, inspection, etc.
- Intelligent transportation field: traffic flow monitoring, liDAR installed above the road or on the roadside can monitor the flow, speed and density of vehicles on the road in real time, providing accurate data support for traffic management departments to better traffic signal control, congestion relief and traffic planning.
Service
- Installation and commissioning: Assist customers in the installation and commissioning of LiDAR to ensure the normal operation of the equipment. Lidar technical support includes product installation, commissioning and other services to help customers better use and maintain products.
- Use training: Provide product use training for customers, so that customers can master the operation methods and precautions of LiDAR, use the equipment correctly, and extend the service life of the equipment.
- Problem consultation and answer: When customers encounter problems in the process of use, they can consult the after-sales technical support team at any time, and the technical staff will answer the questions in time and provide solutions.
- Remote assistance: Provide remote technical support to customers through telephone, email, online customer service, etc., to help customers solve some simple problems and quickly restore equipment operation.
