Product Description
Our non-standard precision welding is an excellent process that combines high precision and customization. It uses advanced methods such as laser welding, electron beam welding, micro-arc plasma welding, TIG precision welding, etc. to achieve micron-level precision welding of various materials and material combinations such as steel, aluminum, copper, titanium alloy, etc. The weld width and position accuracy are extremely high, which can meet the welding needs of parts with complex shapes and structures in the fields of aerospace, electronics, automobiles, medical treatment, mold manufacturing, etc. At the same time, we strictly control the quality from equipment selection and maintenance, material quality control, process parameter optimization, personnel skills training to various quality inspections to create a solid, reliable and high-quality welding effect for the product.

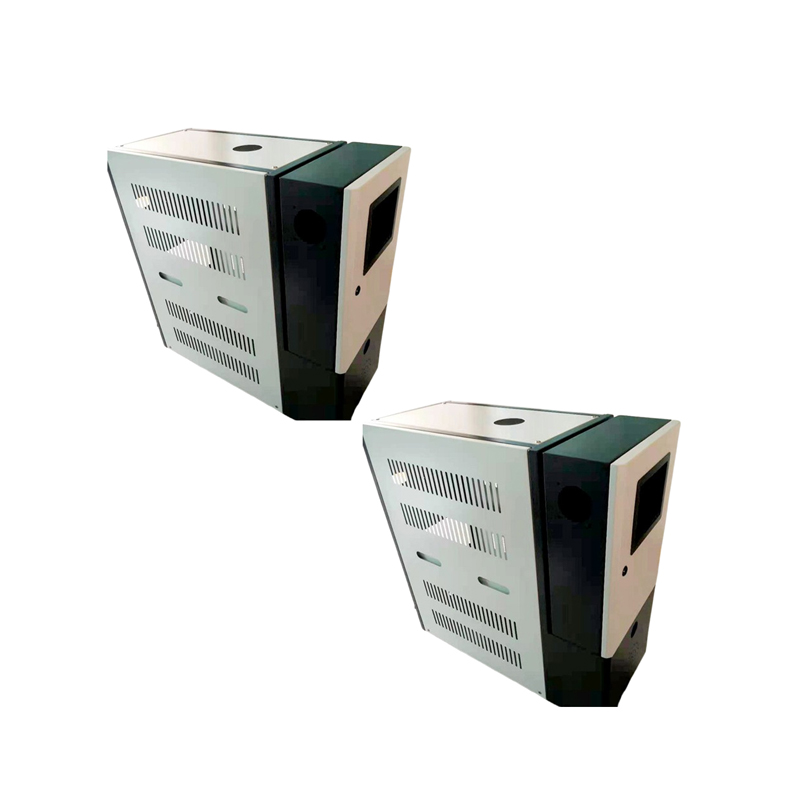

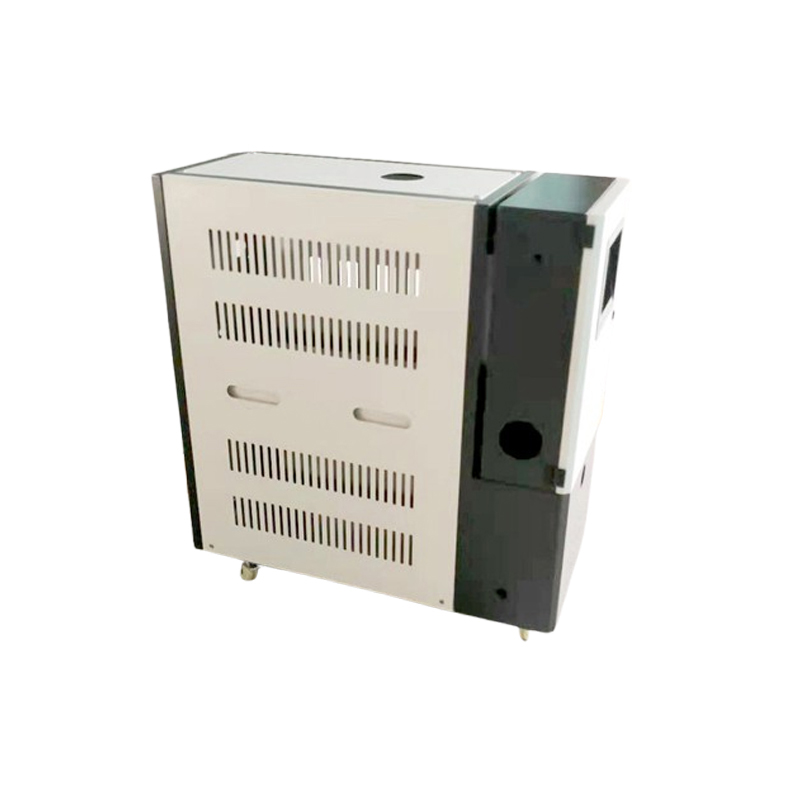

Product parameters
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|---|---|---|
| Sheet metal material | Galvanized sheet | Sheet thickness | 1.0 (mm) |
| Processing size/length*width*height | 700X500X200（mm） | Molding parts | Others |
| Cutting method | Laser cutting | Tolerance | 0.05 |
| Processing procedure | Flanging, punching, cutting, filleting, unfolding, stamping, forming, bending, embedding flanges, notching, ribs | Surface treatment | Baking paint |
| Surface roughness | 0.05 | Proofing cycle | 1-3 days |
| Processing cycle | 1-3 days | Annual remaining processing capacity | 100000 |
| Annual maximum processing capacity | 1000000 | Application areas | Office supplies, electricity, construction, household goods, communications, public facilities |
Custom Process
1. Put forward a demand
2. Initial communication
3. Solution design and quotation
4. Confirmation of the plan
5. Contract Conclusion
6. Payment of advance
7. Customized production and supervision
8. Acceptance and final payment
Process Type
TIG precision welding
Using tungsten as the electrode, an arc is generated between the tungsten electrode and the workpiece, and the heat of the arc is used to melt the part to be welded. At the same time, inert gas is used to protect the welding area to prevent oxidation and form a high-quality weld.
Resistance spot welding
The electrodes apply pressure and current to the contact surface of the weldment, and the heat generated by the resistance between the weldments is used to heat and melt the metal at the contact point to form a weld, thereby achieving connection.
Micro-arc plasma welding
The arc is compressed with the help of a water-cooled copper nozzle to form a high-temperature, high-energy-density plasma arc as a welding heat source. The plasma arc has a high degree of ionization and energy density, which can quickly melt the weldment to form a weld.
Material
Stainless steel
Copper Alloy
Aluminum Alloy
Galvanized sheet
Quality Control
Talent and technology updates only for quality
Advanced technology and production processes, strict quality management system, make the products stable, reliable and durable. The company has multiple CNC processing production lines, laser cutting, CNC punching, machining center and other processing equipment. And has a complete management system and product inspection system.
We have a professional and fast after-sales service team to promptly solve the difficult problems encountered by customers in the production and development process. Achieve one-stop service from product quality, customer experience, and worry-free after-sales.
Processing capability
- Comprehensive testing methods: We have a variety of advanced quality testing equipment, such as three-coordinate measuring machine, metallographic microscope, ultrasonic flaw detector, X-ray detector, spectrum analyzer, etc., which can conduct comprehensive quality testing on welding products, including dimensional accuracy measurement, weld appearance inspection, internal defect detection, metallographic structure analysis, chemical composition analysis, etc., to ensure that product quality meets relevant standards and customer requirements.
Additional processes
Surface treatment process
Electroplating: A layer of metal or alloy coating, such as chrome plating, zinc plating, nickel plating, etc., is deposited on the surface of the welding product by electrolysis to improve the corrosion resistance, wear resistance, decorative properties and other properties of the product.
Spraying: Spraying paint or powder on the surface of the welded product to form a protective film, such as paint spraying, powder spraying, etc. Spraying can provide good protection and appearance effects, and can also achieve special functions such as fire prevention, insulation, and heat insulation according to different paint formulas.
