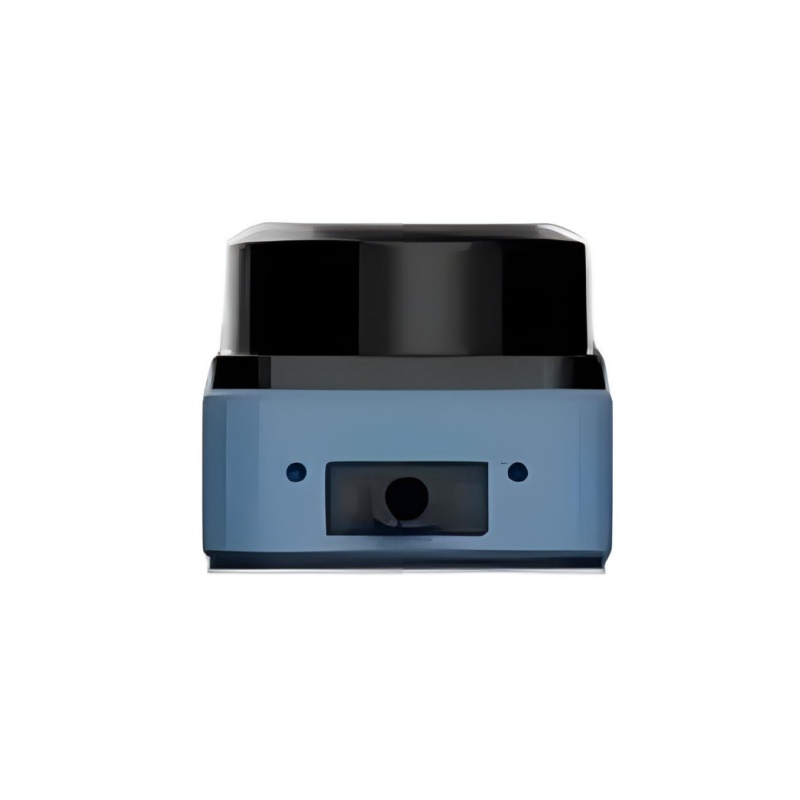

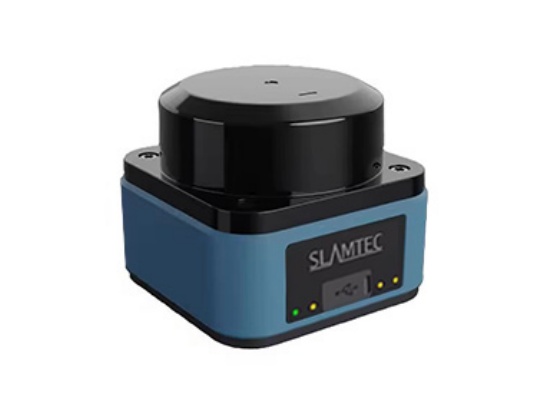

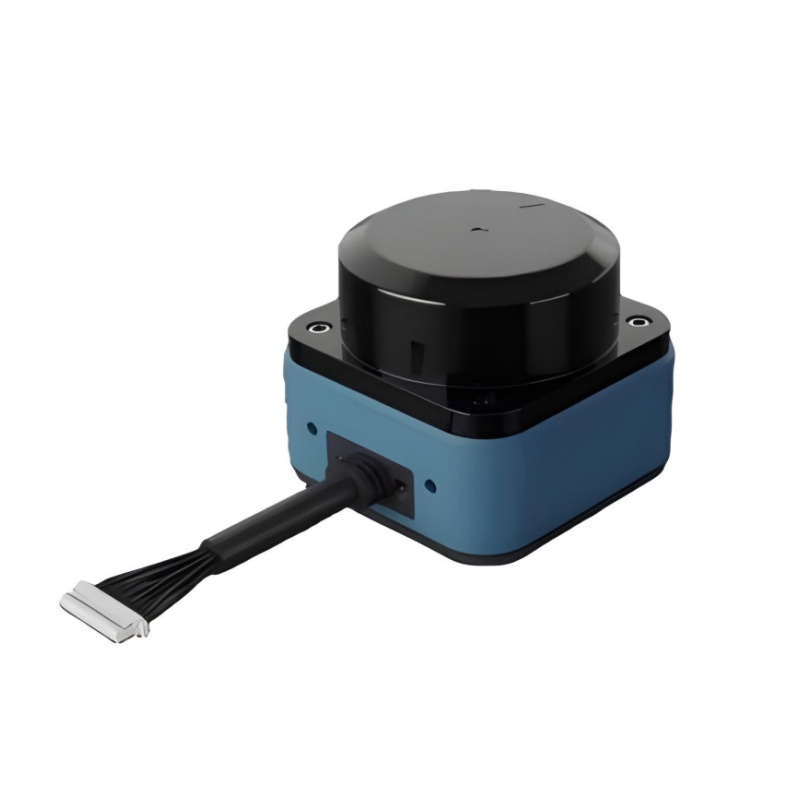

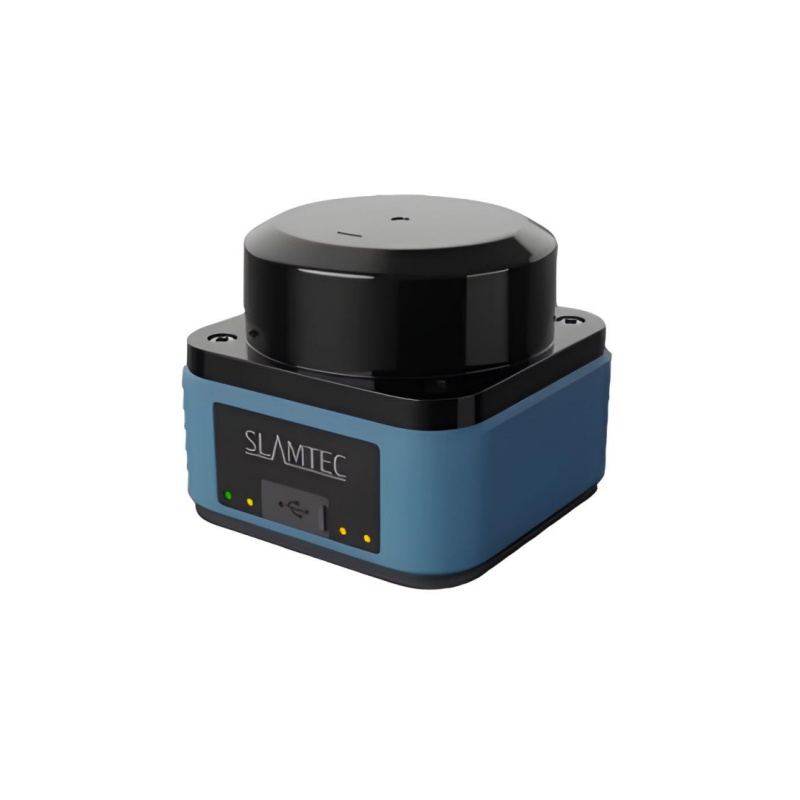

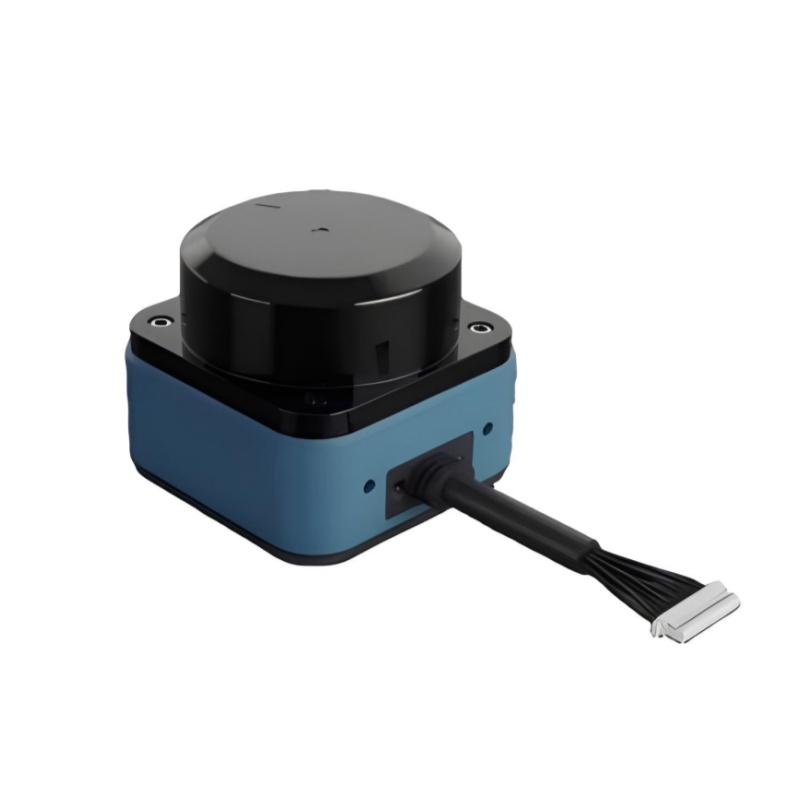

LPX-E3X2 surveillance radar

LPX-E3X2 area monitoring radar, for area monitoring applications, fully enabling industrial fields.

  • range:0.05-40m
  • Scope of work:360°
  • Sampling frequency:32000
  • weight:180g
  • dimension:56.63mm*56.63mm*48mm

USD: 386

ablity:Monthly Output3000

contact shop

Product Description

         E3 series, 360° industrial area monitoring, in the face of stringent requirements in the industrial field, Silan Technology provides software algorithms, upgrades software structure, launched the LPX-E3X2 regional monitoring radar, for regional monitoring applications, fully empowering the industrial field, monitoring radius of 40 meters, anti-sunlight ability ≥80Klux, Angle resolution 0.225° Built-in area monitoring application, 64 monitoring area groups, to meet various scenarios

Product parameters

nameargumentnameargument
Range radius0.05-40m (测量区(≥70%反射率))
0.05-40m (识别区(≥70%反射率))
0.05-15m(警告区(≥10%反射率))
0.05-5m(报警区(≥2%反射率))
The number of area groups to be monitored1(contains three areas)
Measurement blind area0.05mConfiguration interfaceUSB Type-C
Sweep frequency10/15/20HzPoint cloud outputEthernet / Serial
Angular resolution0.1125°@ 10Hz
0.17°@ 15Hz
0.225°@ 20Hz(典型值)
Ranging resolution10mm
Area monitoring data outputIO / RS485/EthernetMeasurement accuracy±30mm
Monitoring area group64 组 @ 20Hz(典型值)
48 组 @ 15Hz
32组 @ 10Hz
Operating temperature0℃~50℃


Technological Innovation

       The LPX-E3X2 presents a small and agile appearance and volume while maintaining strong performance. Its exquisite design makes it easy to integrate into various industrial applications, providing efficient and convenient solutions for different scenarios, fully demonstrating the perfect combination of technology and practicality.

Product Display



64 monitoring area groups for various scenarios

The LPX-E3X2 has three simultaneous monitoring areas and stores up to 64 monitoring area groups, which can be switched according to different scenario requirements.




Exclusive ScanDesigner configuration software, professional and easy to use

The LPX-E3X2 provides its own ScanDesigner configuration software, which freely supports area shape drawing, association layers, and configuration updates based on radar installation position adjustments.

Quality Control

10 years of R & D quality verification, trust the preferred leading industry products

Application Cases

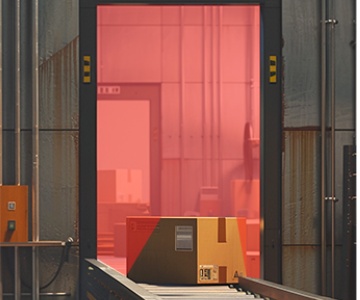

       LPX-E3X2 industrial area monitoring radar is widely used in area intrusion monitoring scenarios, which can accurately identify unauthorized intrusion behaviors and provide reliable guarantee for regional security. At the same time, it performs well in the assembly line piecework, can accurately count the number of products, and improve production efficiency. In addition, it is also suitable for channel monitoring to grasp the passage of personnel or items in real time.
