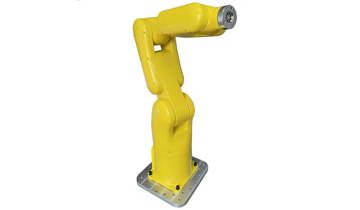

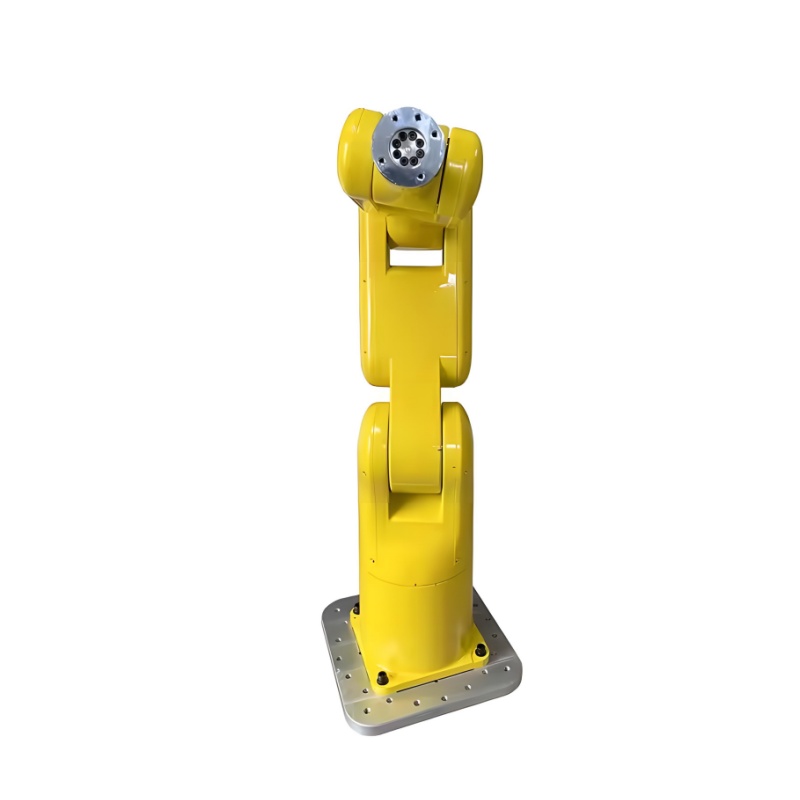

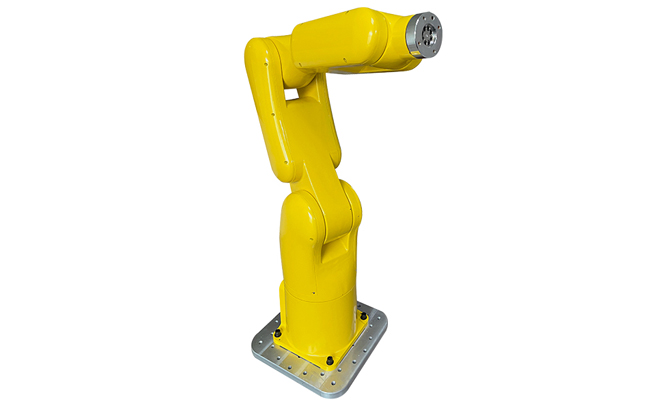

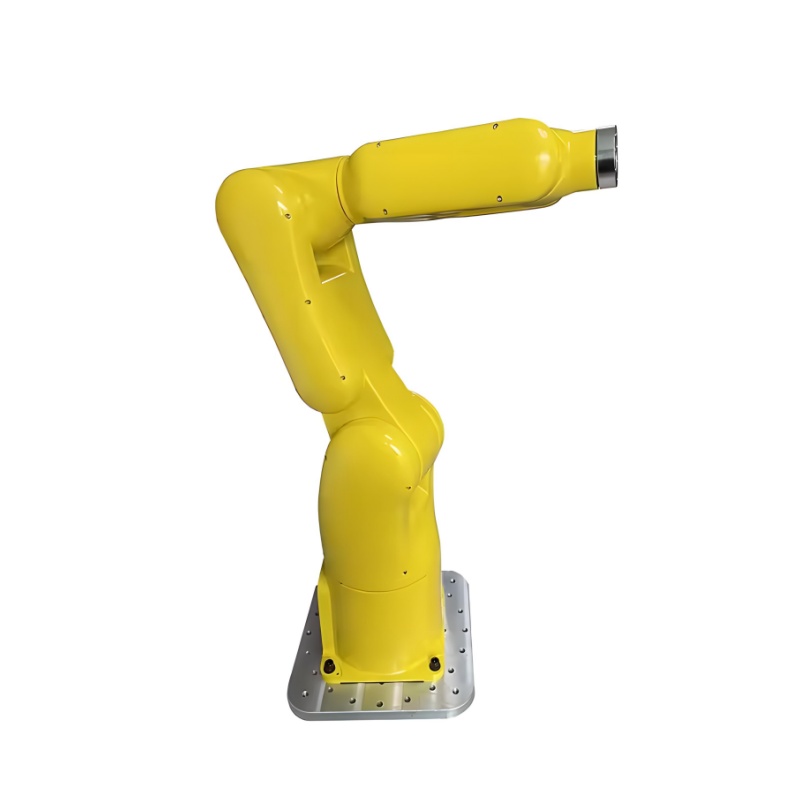

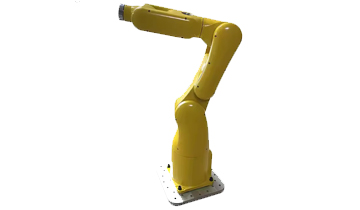

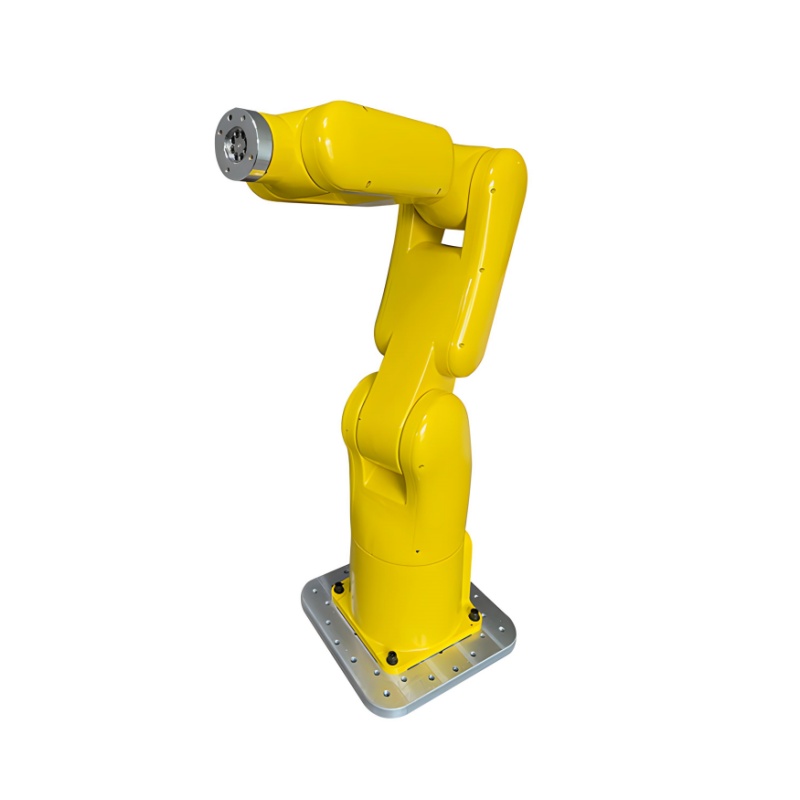

Product Description
Numerical control material
Stylish and sturdy aluminum body
Precision machining
Rated load 7kg, maximum load 9kg
Strong and wear resistant body
Longer service life
Product Features

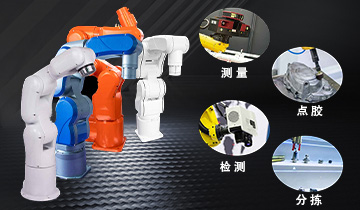

A multi-functional robot
Used in a variety of functions
Can be used for education and training as well as research, commercial and light industry, integrated handling, testing and inspection.

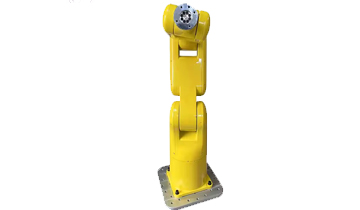

Golden size
Newly upgraded look
Longer arm length, golden ratio body design
Glossy body fashion atmosphere
Higher configuration
Simple and practical operation
Multi-turn absolute encoder for accurate position recording
Industrial grade flexible cable

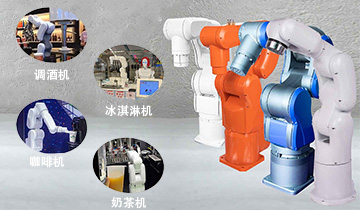

Application Cases

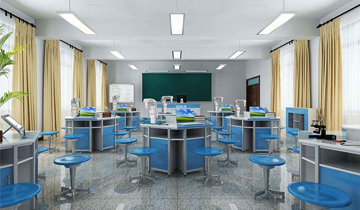

The 6-axis robot arm plays an important role in many fields such as education and training, research, commerce and light industry. In terms of education, it provides students with intuitive automated operation and programming teaching; In the research, help all kinds of experimental exploration. Commercially, improve operational efficiency. In light industry, it is indispensable. It integrates the functions of handling, testing and inspection in one, accurate positioning during handling, stable and reliable during testing, meticulous inspection, and is a helpful assistant to improve efficiency and ensure quality in many scenarios.
Technical Parameter
| item | argument | item | argument |
|---|---|---|---|
| Number of axes | 6 | Fuselage material | casting |
| Operating radius | 905mm | Power plant | Dc servo motor |
| Maximum load | 7kg | Reduction gear | Harmonic deceleration |
| Rated load | 5kg | Repeated positioning accuracy | + / - 0.05 mm |
| Body weight | 54kg | Environment Requirements Temperature/humidity | Temperature 5℃-50℃/ Humidity 10%-80% |
| Input voltage | 220V | Installation mode | Countertop, side mount, flip mount |
| Operating range (Axis 1) | -170°/+170° | Maximum speed (Axis 1) | 148°/SEC |
| Operating range (Axis 2) | -130°/+100° | Maximum speed (Axis 2) | 148°/SEC |
| Operating range (Axis 3) | -50°/+200° | Maximum speed (Axis 3) | 178°/SEC |
| Operating range (Axis 4) | -160°/+160° | Maximum speed (Axis 4) | 166°/SEC |
| Operating range (Axis 5) | -130°/+130° | Maximum speed (Axis 5) | 178°/SEC |
| Operating range (Axis 6) | -180°/+180° | Maximum speed (axis 6) | 225°/SEC |
Packing list
Packing: We usually use standard export packing. We can also according to customer requirements.
Transportation:
1. Courier
2. Air Freight
3. Shipping
Specifications:
Model: 6-axis cooperative robot
Housing material: aluminum
Volume weight: 41 kg /46 kg /70 kg

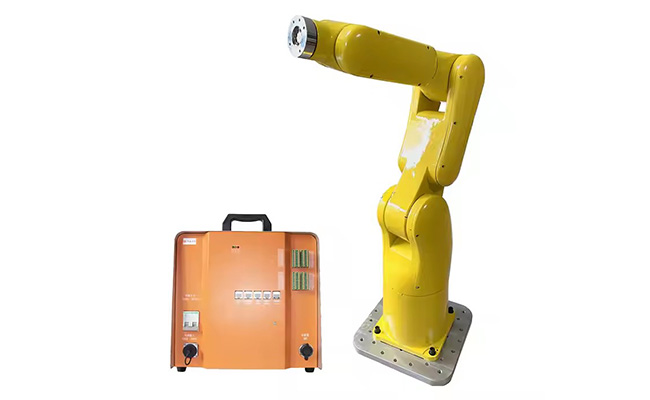

The package includes:
1 * mechanical arm body
1 * Robot controller
1 * Teaching pendant
1 * power cord
1 * USB cable
1 * USB flash drive (includes user manual and information)
