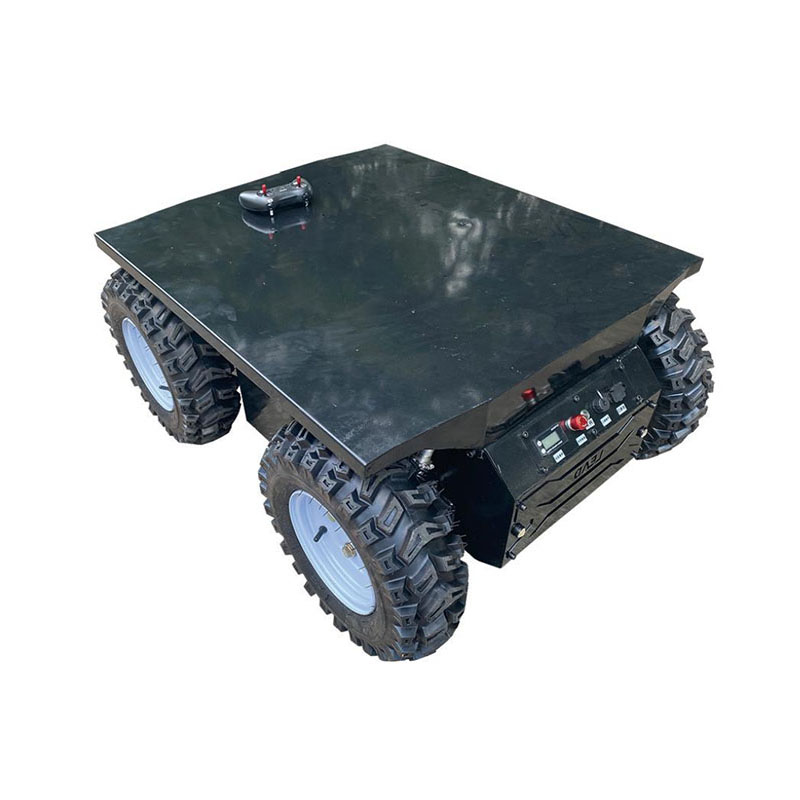

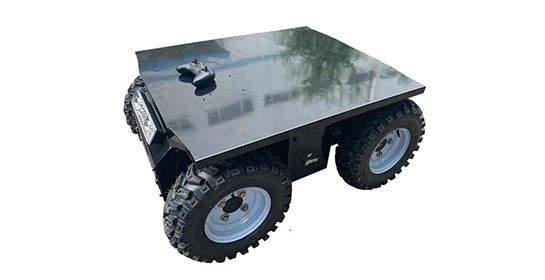

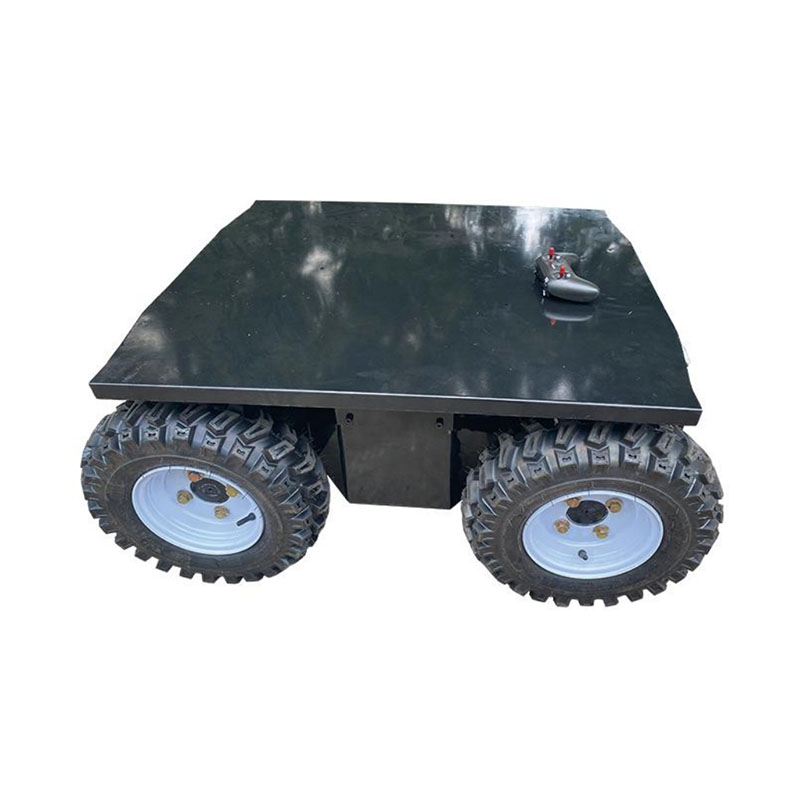

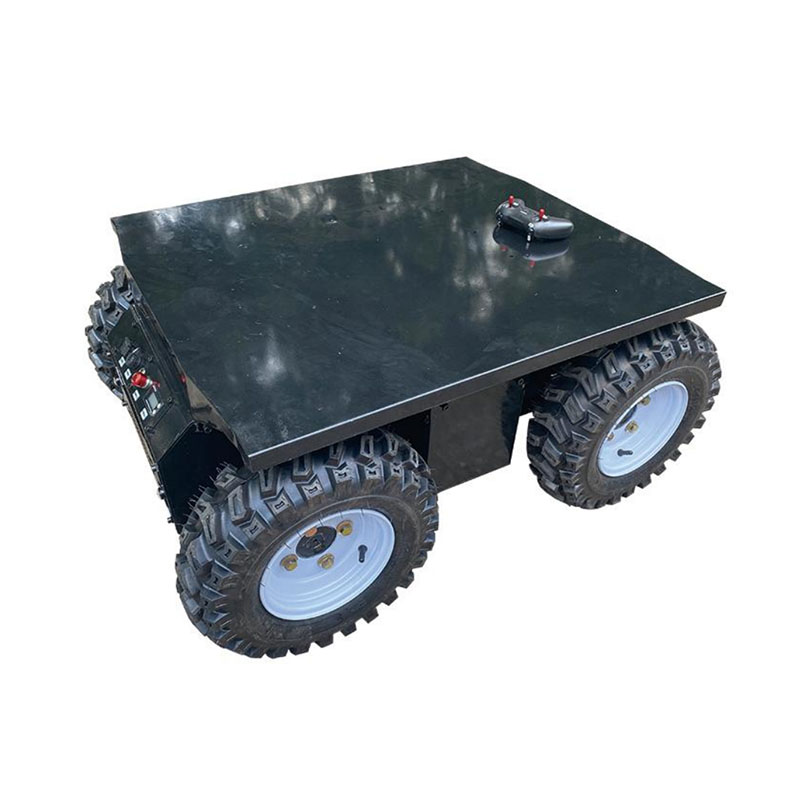

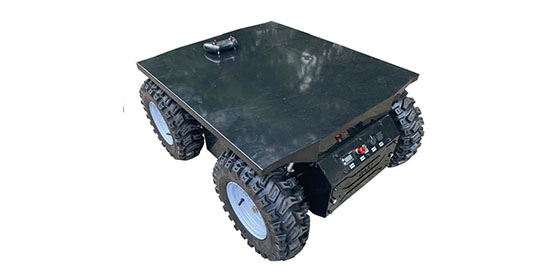

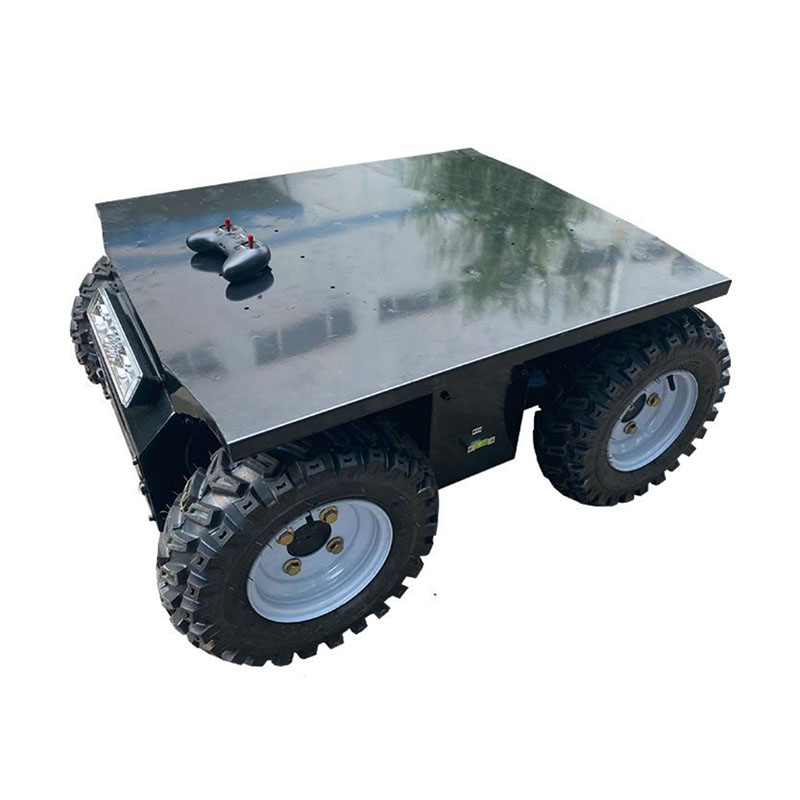

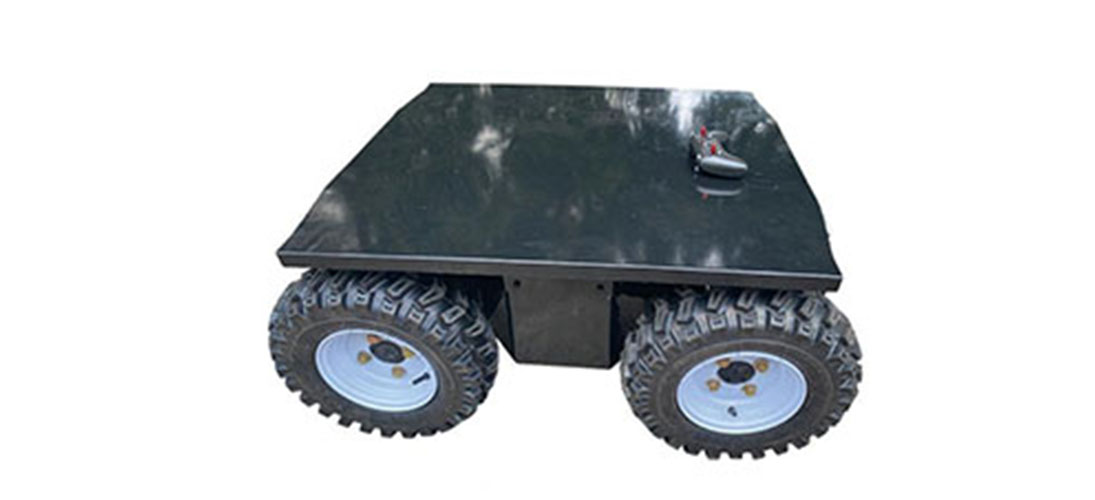

Product Description
ZDDG-WHLD-LSThe wheeled small chassis is capable of steering and moving in relatively narrow Spaces. Due to its small size and wheeled structure, it has a small turning radius. The wheeled chassis can achieve in-place steering or near-in-place steering, which is very beneficial for operation in limited working Spaces or complex terrain environments.
Product Features
Speed advantage On flat, hard roads, wheeled small chassis can achieve relatively high driving speeds. Compared with the tracked chassis, the wheeled chassis has low rolling resistance, high power transmission efficiency, and can use power more efficiently to achieve fast movement. For example, in some occasions where a small number of items need to be transported quickly, such as small luggage transportation at the airport, rapid distribution of parts in the factory, etc., wheeled small chassis can complete the transportation task in a short time.
Most wheeled small chassis can be adapted to a variety of road modes. On the road or the flat ground indoors, it can use the normal driving mode to ensure the smoothness and speed of driving. When encountering some uneven road surface, such as a rural path or a temporary passage on a construction site, it can increase the friction and penetration with the ground by adjusting the tire pressure or using a special tire pattern design.

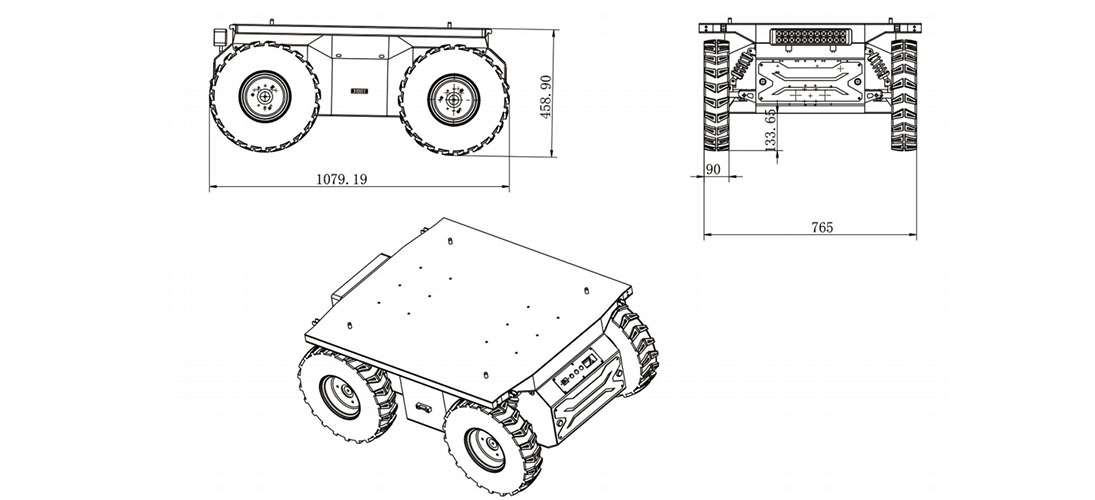

Structure Diagram
Product parameters
| name | argument | name | argument |
|---|---|---|---|
| Chassis length | 1040mm | Chassis width | 810mm |
| Chassis height | 490mm | Maximum obstacle crossing | ≥100MM |
| Travel speed | Conventional 0-3km/h or so, can also be customized | Reducer parameter | Planetary reducer speed 30 |
| Climbing ability | 30° slope | Track material | Rubber track (Grade A natural rubber with Kevlar fiber) |
| Waterproof class | IP55 | Motor power | 48V1.5KW-3000 RPM (DC brushless motor) |
| Braking mode | Motor braking | surface | Spray treatment |
| Gear train material | Special synthetic polymer materials | Main material | Carbon steel, aluminum |
| Turning radius | 360° turn in place | Control parameter | Dual drive controller (CAN/PWM/232/485) |
Our Factory
Product Certificate
Pack
All the equipment in the factory is packaged in wooden cases combined with other cushioning materials. The wood itself has a certain elasticity, which can play a buffer role when it is impacted by external forces. Moreover, the wooden box can also be used with other buffer materials (such as foam, sponge, etc.) to further enhance the buffer effect. In the logistics and storage process, the wooden box can be stably stacked, make full use of space, and can withstand the pressure of the upper goods, to ensure the safety of the goods in the stacked state.
Transport
Whether it is a small package or a large shipment, whether it is local delivery or long-distance transportation, we meet your needs with a professional attitude and quality service. Safety is the core value of our transportation services. At the same time, the order has a perfect cargo tracking and monitoring system, you can know the transportation status of the goods anytime and anywhere through the mobile phone or computer, just like you personally accompany the goods on the journey. From the moment the goods are loaded until they arrive safely at their destination, we provide you with a transparent service throughout.
