Product Description
High-precision 5-axis CNC machined parts crafted from stainless steel, brass, aluminum, and titanium. These components are engineered with exceptional accuracy and designed to meet the most demanding specifications across various industries, ensuring long-lasting durability, reliability, and optimal performance in every application.
Product parameters
| Product Name | 5-Axis CNC Metal Parts |
| Service | CNC Machining Turning and Milling CNC Turning OEM Parts |
| Material | 1).Aluminum: AL 6061-T6,6063,7075-T etc 2).Stainless steel: 303,304.316L,17-4(SUS630) etc 3).Steel: 4140,Q235,Q345B,20#,45# etc. 4).Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc 5).Brass: C36000 (HPb62),C37700 (HPb59),C26800 (H68),C22000(H90) etc 6).Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish Power coating, Passivation PvD, Titanium Plating, Electrogalvanizing electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench) Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc |
| Drawing format | STEP,STPIGS.CAD.PDF.DWG.DXF etc or samples. |
| Tolerance | +/-0.01mm~+/-0.05mm |
| Surface roughness | Ra 0.1~3.2 |
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier.CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, internal Centigrade Gauge |
| Capacity | CNC turning work range: p0.5mm-p150mm*300mm CNC milling work range: 510mm*1020mm*500mm |
Custom Process
1.send inquiries
2.drawings or samples
3. Quotation
4.customer confirmation
5. places order and pays
6.Mass production
7.Test before packaging
8.Shipping & confirmation
Process Type

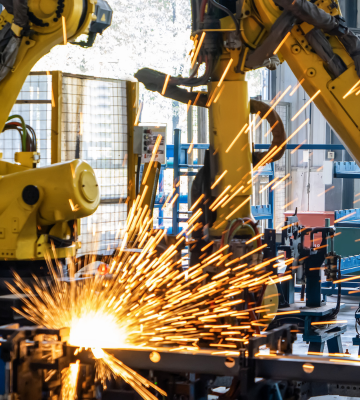

Industrial Robot Parts
Reason for using 5-Axis CNC:
Industrial robots often have complex components such as robotic arms and connecting joints that require high precision during manufacturing. Using 5-Axis CNC technology allows the machining of these parts from multiple directions. This ensures that intricate details and precise connections are maintained, enabling smooth and efficient movement of the robot. Such precision is crucial in industries where high accuracy and continuous operation are required
Machinery Components
Reason for using 5-Axis CNC:
Components used in machinery across various industries must be highly accurate and durable to ensure efficient operation. Parts such as gears or pulleys often have complex shapes that require precise machining from multiple angles. 5-Axis CNC machining allows for more efficient cutting and drilling, reducing setup time and errors, and ensuring high-quality parts that can withstand demanding industrial environments.

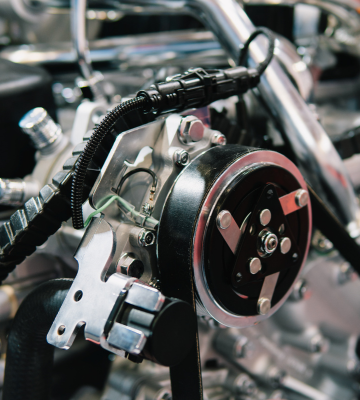

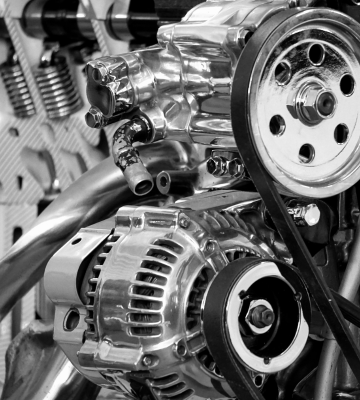

Automotive Parts
Reason for using 5-Axis CNC:
In the automotive industry, parts like drivetrain components and structural elements often have complex designs that require high precision. These parts must withstand significant wear, impact, and harsh operational conditions. 5-Axis CNC technology allows for the machining of these complex shapes with high precision across multiple angles, ensuring parts that are both durable and high-performing, essential for the safety and efficiency of vehicles.
Material
Brass

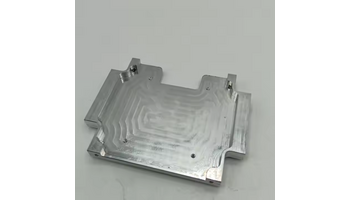

Aluminum Alloy

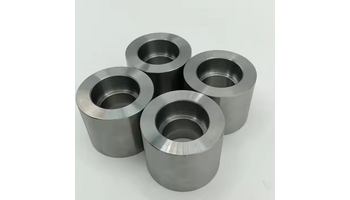

Stainless Steel
Copper
Quality Control
Quality control for 5-Axis CNC Metal Parts ensures precision and consistency at every stage of production. Each component undergoes rigorous inspection using advanced measuring tools like coordinate measuring machines (CMM) to verify dimensions and tolerances. Surface finish, material integrity, and functionality are thoroughly tested to meet strict industry standards. The process includes pre-production material verification, in-process monitoring, and post-production checks to deliver flawless and reliable parts for various applications.

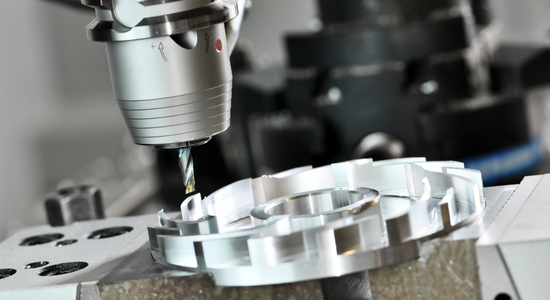

Processing capability
The processing capability of 5-Axis CNC Metal Parts includes advanced machining for complex geometries, tight tolerances, and intricate details. With the ability to machine stainless steel, brass, aluminum, and titanium, it ensures versatility across various materials. The 5-axis technology allows simultaneous movement along multiple axes, enabling precise shaping of contoured surfaces and intricate designs. It supports high-speed operations, reduces manual intervention, and ensures consistent quality for both prototype and large-scale production. This capability meets the demands of industries requiring high precision and exceptional performance.
Additional processes
Additional processes for 5-Axis CNC Metal Parts include surface treatments such as anodizing, powder coating, and polishing to enhance durability and aesthetics. Heat treatment is available to improve material hardness and mechanical properties, while precision grinding and lapping refine surface finishes for optimal functionality. Threading, drilling, and tapping services can be integrated into the machining process for complex assemblies. Additional inspections, such as X-ray or ultrasonic testing, ensure internal integrity. Custom labeling and packaging options are also provided to meet specific client requirements.
