Product Description

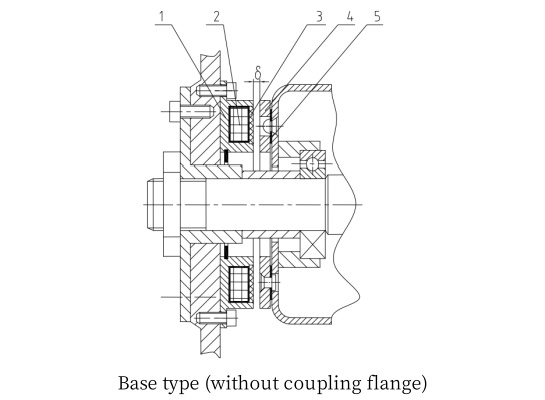

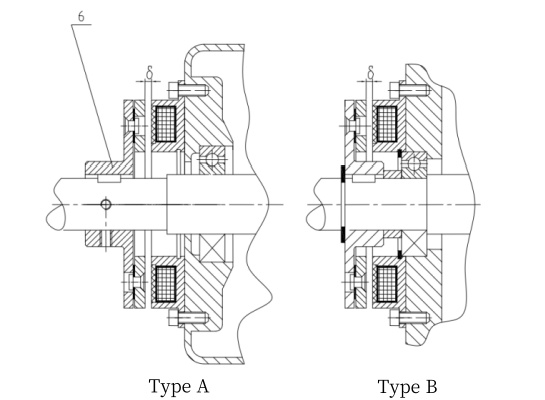

DZD2 type single-piece electromagnetic brake is mainly composed of two parts: exciting part (yoke 1, coil 2, friction plate 3) and connecting assembly (armature 4, spring plate 5, connecting flange 6). When the exciting coil 2 is energized, magnetic flux is generated, and the magnetic yoke 1 absorbs the armature 4 and closes the magnetic circuit, thus generating friction torque and braking the transmission part. When the coil 2 is powered off, the armature 4 is released under the action of the spring plate 5, so that the braking is released.
This type of brake belongs to dry brake, it has no no-load torque, short switching and disconnecting time, long service life, stable performance and compact structure, easy installation, is an ideal automatic actuator in various mechanical transmission systems.
DZD2 single-piece electromagnetic brake is widely used in textile, printing and dyeing, printing, paper making, packaging, construction, ships and other mechanical transmission systems, and is also suitable for positioning, braking, micro-motion and other occasions in other mechanical transmission systems.
Product parameters
| Parameter \ Model | DZD2-04 | DZD2-10 | DZD2-20 | DZD2-40 | DZD2-80 | DZD2-160 | DZD2-320 | DZD2-1000 | |
|---|---|---|---|---|---|---|---|---|---|
| Rated braking moment Me(N·m) | static | 4.4 | 11 | 22 | 45 | 90 | 175 | 350 | 1100 |
| dynamic | 4 | 10 | 20 | 40 | 80 | 160 | 320 | 1000 | |
| Rated voltage DC(V) | 24、99、170 | ||||||||
| Rated power P20℃(W) | 11 | 15 | 20 | 25 | 35 | 45 | 60 | 100 | |
| Maximum working air gap (mm) | 1.5 | 1.8 | 2.2 | 2.5 | |||||
| Maximum allowable relative speed (rpm) | 6000 | 5000 | 4000 | 3500 | 3000 | 2000 | 1500 | ||
| Model \ Size | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DZD2-04 | 80 | 72 | 35 | 46 | 63 | 26 | 22 | 37 | 25.5 | 3 | 11.5 | 15 | 1.8 |
| DZD2-10 | 100 | 90 | 42 | 60 | 80 | 31 | 24.5 | 44.5 | 28.5 | 3 | 16 | 20 | 2.6 |
| DZD2-20 | 125 | 112 | 52 | 76 | 100 | 41 | 28 | 53 | 33 | 3 | 20 | 25 | 2.8 |
| DZD2-40 | 150 | 137 | 62 | 95 | 125 | 49 | 31 | 61 | 37 | 4 | 24 | 30 | 3.3 |
| DZD2-80 | 190 | 175 | 80 | 120 | 160 | 65 | 35 | 73 | 42 | 5 | 31 | 38 | 3.3 |
| DZD2-160 | 230 | 215 | 100 | 158 | 200 | 83 | 41.5 | 86.5 | 50.5 | 5 | 36 | 45 | 4.3 |
| DZD2-320 | 292 | 276 | 125 | 210 | 260 | 105 | 48 | 102 | 59 | 8 | 43 | 54 | 4.8 |
| DZD2-1000 | 440 | 420 | 200 | 315 | 400 | 130 | 69.5 | 145.5 | 85.5 | 10 | 60 | 76 | 9.8 |
| Model \ Size | L8 | M | V1 | V2 | V3 | d | φ | h | b | δ |
|---|---|---|---|---|---|---|---|---|---|---|
| DZD2-04 | 6 | M4 | 3.1 | 7 | 5 | 5 | 12/15 | 13.8/17.3 | 4/5 | 0.2 |
| DZD2-10 | 8 | M5 | 4.1 | 9 | 7 | 6 | 15/20 | 17.3/22.8 | 5/6 | 0.2 |
| DZD2-20 | 10 | M5 | 5.2 | 10.5 | 8 | 7 | 20/25 | 22.8/28.3 | 6/8 | 0.2 |
| DZD2-40 | 12 | M6 | 6.2 | 12 | 10 | 7 | 25/30 | 28.3/33.3 | 8 | 0.3 |
| DZD2-80 | 15 | M8 | 8.2 | 15 | 12 | 9 | 30/40 | 33.3/43.3 | 8/12 | 0.3 |
| DZD2-160 | 18 | M8 | 10.3 | 18 | 15 | 9 | 40/50 | 43.3/53.8 | 12/14 | 0.5 |
| DZD2-320 | 22 | M10 | 12.4 | 22 | 18 | 11 | 50/60 | 53.8/64.4 | 14/18 | 0.5 |
| DZD2-1000 | 30 | M12 | 16.5 | 28 | 24 | 13 | 70/80 | 74.9/85.4 | 20/22 | 0.7 |
Product Display
Rapid braking response
It can complete the braking action in a very short time, usually the response time can be controlled between a few milliseconds to tens of milliseconds, effectively meeting the strict requirements of high-speed mechanical transmission system for braking timeliness, significantly reducing the risk of wear and accidents caused by inertia movement of mechanical parts.
Braking torque is accurate and stable
With a well-designed braking structure and high-quality friction materials, precise and stable braking torque can be provided under different working conditions. Whether it is light load or heavy load, within the specified range of working parameters, it can ensure the consistency and reliability of the braking effect, and ensure the smooth operation and accurate positioning of the mechanical transmission system.
Compact and lightweight
Using the monolithic design concept, the overall structure is highly integrated and compact, occupying a small space and light weight. This makes it easy to install and flexible in space-limited mechanical devices, while helping to reduce the weight of the entire mechanical transmission system and improve the energy efficiency and dynamic performance of the system.
Strong environmental adaptability
With excellent resistance to high temperature, moisture, dust and electromagnetic interference, it can operate stably in textile, printing and dyeing, printing, paper making, packaging, construction, ships and other complex and harsh industrial environments for a long time, effectively reducing the downtime caused by environmental factors, and reducing maintenance costs and production losses.
Low noise operation
In the braking process, by optimizing the material matching between the brake disc and the brake disc, the surface treatment process and the dynamic design of the brake structure, the noise and vibration generated during braking are effectively reduced, and a relatively quiet and comfortable working environment is created, which meets the environmental protection requirements of modern industry for equipment with low noise operation.
Size & Interface

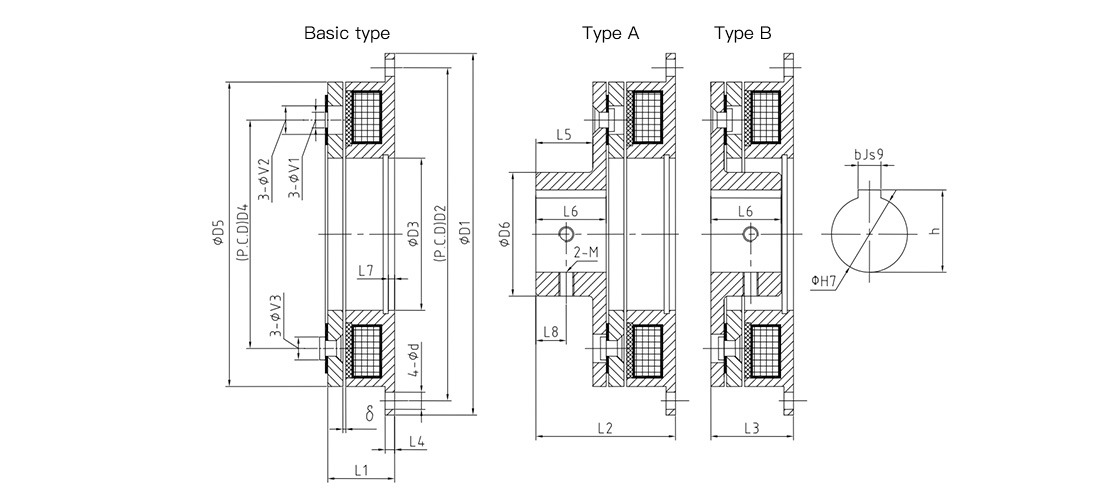

Installation dimension drawing
Quality Control
Electromagnetic brake quality control covers multiple links:
When purchasing raw materials, the key materials such as enameled wire, friction sheet and iron core are strictly screened and tested to ensure that their electrical, friction and magnetic properties meet the standards. In the production and processing, high-precision equipment is used to control the machining accuracy of parts, and the assembly quality is guaranteed through standardized assembly process and strict testing, including static suction, brake clearance adjustment, and simulated brake test. The finished products need comprehensive quality inspection and durability testing, and comply with international and domestic standards to obtain relevant certifications, from the source to the finished product comprehensive control, to ensure high quality, high reliability and high performance of products, to meet the braking needs of various fields.
Application Cases
Textile machinery: In the roller drive of textile equipment, the winding mechanism and the main shaft brake of the loom, DZD2 single-piece electromagnetic brake can accurately control the tension and speed of the yarn, ensure the continuity of the textile process and the stability of the product quality, and achieve high-speed, efficient and high-precision textile production operations.
Printing and dyeing machinery: used in printing and dyeing equipment drying cylinder transmission, printing guide band braking and dyeing cylinder agitator positioning control, reliable braking performance to ensure the accurate connection of each process in printing and dyeing process and accurate control of the running rhythm, effectively improve the color uniformity and pattern clarity of printing and dyeing products.
Printing machinery: In the printing machine plate cylinder, rubber cylinder and paper feeding mechanism and other key parts, the electromagnetic brake can realize fast braking and accurate start and stop, effectively prevent the slip and dislocation of paper in the printing process, to ensure the alignment accuracy of printing graphics and printing quality consistency, to meet the high speed, high quality printing production needs.
Paper making machinery: applied to the transmission system braking and positioning control of the mesh part, the press part, the drying part and the rolling machine of the paper machine, so as to ensure the smooth operation and accurate processing of the paper in the entire production process, improve the production efficiency and product quality of the paper, and reduce the scrap rate and production cost.
