Product Description
This 24V lithium battery is carefully made of 18650 cells and has multiple voltage output modes. It can flexibly switch between 12V and 5V to meet the diverse needs of different electrical devices.
It integrates the excellent characteristics of 18650 cells and takes 24V as the core power supply benchmark. Whether it is a strong drive for high-power devices or a stable power supply for low-voltage small appliances, it can show excellent performance with the switchable output of 12V and 5V.



Product parameters
Parameter name | Parameter value |
---|---|
Product | Yisenneng |
Capacity | 12600mAh/14000mAh/15400mAh/18200mAh/22400mAh |
Weight | 0.5KG |
Input voltage | 29.4V |
Output voltage | 24V/12V/5V |
Maximum current | 5V/2A 12V/2A 24V/3A |
Operating temperature | -20-60℃ |
Size | 135x80x40mm |
Accessories | 29.4V0.7A charger*1DC adapter*2 |
Number of cycles | 1000 times |
Battery cell standard | A-grade battery |
Battery cover | Flat head + protection board |
Battery type | Lithium-ion battery |
Combination method | 7S1P |
Discharge current | 3A |
Weight | About 500g |
Shelf life | 1 year |
Product Display

Multiple rigorous tests to ensure good quality
Strict testing process, strict industry testing standards
- Leakage test
- Short circuit protection
- Drop test
- High temperature test
- Aging test
- Withstand voltage test

Anti-slip and anti-fall
Grooved stripes, adding a touch of anti-slip
Vertical stripes design, stylish appearance
Good shell has many advantages: light weight, good heat insulation, moisture-proof, flame retardant, acid and alkali resistant, corrosion resistant

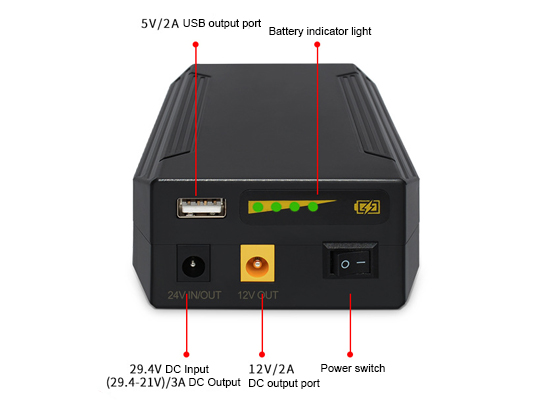

Size & Interface


Quality Control
Since its establishment, the Yisenneng Technology Center has formed a stable and innovative lithium battery module system R&D team. The technical center's engineering team has professional and technical personnel including industrial design, electronics, power supply, structure, process, software, measurement and control, electrochemistry, etc.
The development concept is based on "integrated innovation", "project management", "elite team" and "process originality", fully highlighting the unique core competitiveness of "fast response, excellence, customization and strong guarantee", so as to fully meet the special needs of special users for special products, and continuously create value for users in the whole process of serving special users.

Application Cases
Whether it is power tools in industrial scenarios, such as electric drills and electric saws, they can achieve efficient operation with the high voltage of 24V lithium batteries, and switch accurately when 12V is needed to adapt special tool accessories or 5V is needed to power the smart module on the tool; or monitoring equipment in the security field, 24V ensures stable operation of the camera, 12V lights up the infrared fill light, and 5V maintains the keen perception of the smart alarm system; or lighting equipment for outdoor adventures, 24V brings strong light and long-distance illumination, 12V is used for brightness adjustment, and 5V is convenient for charging mobile phones, etc. This 24V lithium battery 12V 5V 18650 core can perfectly match different needs with its multi-voltage output and the reliable characteristics of the 18650 core, becoming a stable and powerful power source for various equipment.



Service
Service Purpose
Provide customers with professional, fast, thoughtful and high-quality pre-sales and after-sales services.
Service Scope
All Yisenneng products purchased through regular sales channels will enjoy the after-sales service provided by our company during the warranty period.
Service Content
If there are any quality problems within 7 days, the product can be returned or exchanged if the product appearance and packaging are intact (except for customized batteries)
If there are any quality problems within one year, it can be sent back for warranty (battery damage caused by human factors such as water ingress, battery power loss, etc. is not covered by the warranty)
The shelf life of the product after the warranty is the remaining days of the original warranty period. Paid maintenance can be provided after the warranty period
