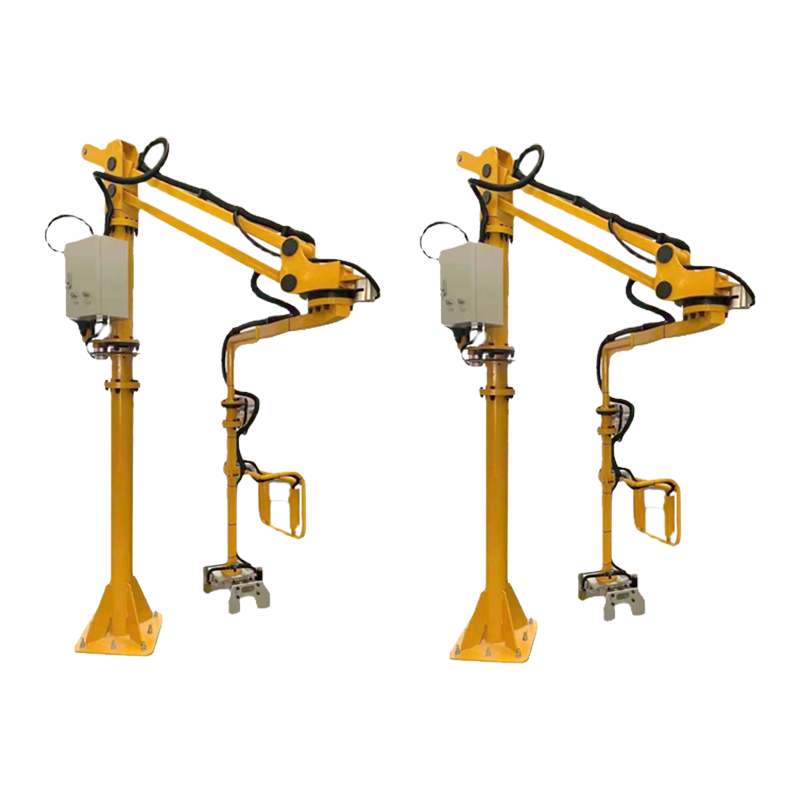

Product Description
Power manipulator, also known as manipulator, balance crane, balance booster, manual load shifting machine (the above is not professional but has been popular in China), is a novel, for material handling and installation of labor-saving operation of the power equipment. It cleverly applies the principle of balance of force, so that the operator can push and pull the weight accordingly, and the balance can be moved and positioned in the space. The weight forms a floating state when lifting or falling, and relies on the gas path to ensure zero operating force (the actual situation is less than 3kg because of the processing technology and design cost control, the operating force is determined by the weight of the workpiece). Without skilled point operation, the operator can push and pull the weight by hand, and the weight can be correctly placed in any position in the space.
Product parameters
| Mode number | load(kg) | journey(mm) | Large radius(mm) | Minor radius(mm) |
|---|---|---|---|---|
| TYS-50 | 50 | 2000 | 3000 | 500 |
| TYS-80 | 80 | 1800 | 3000 | 500 |
| TYS-100 | 100 | 1800 | 3000 | 500 |
| TYS-150 | 150 | 1600 | 2500 | 500 |
| TYS-200 | 200 | 1600 | 2500 | 500 |
| TYS-250 | 250 | 1400 | 2500 | 500 |
| TYS-300 | 300 | 1400 | 2200 | 500 |
| TYS-400 | 400 | 1200 | 2000 | 500 |
| TYS-500 | 500 | 1000 | 2000 | 500 |

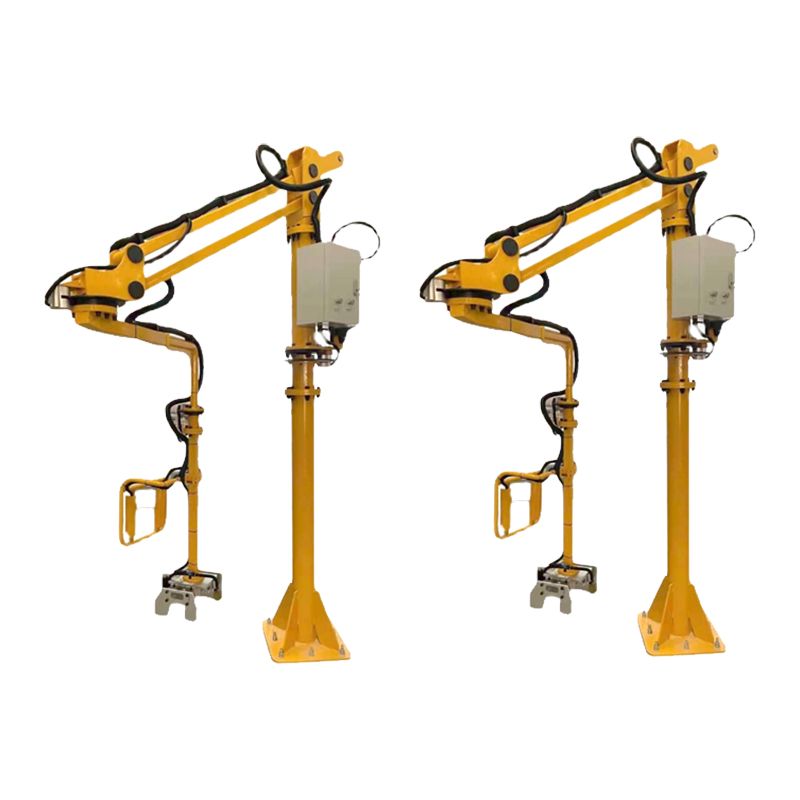

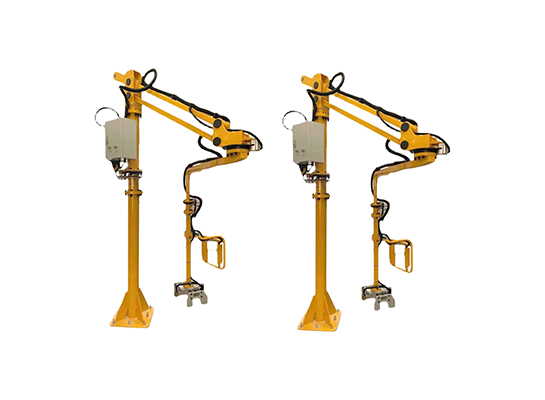

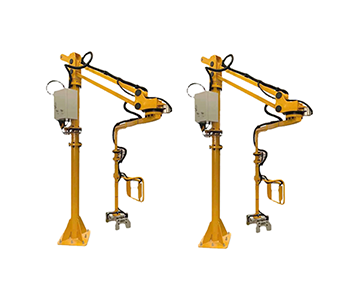

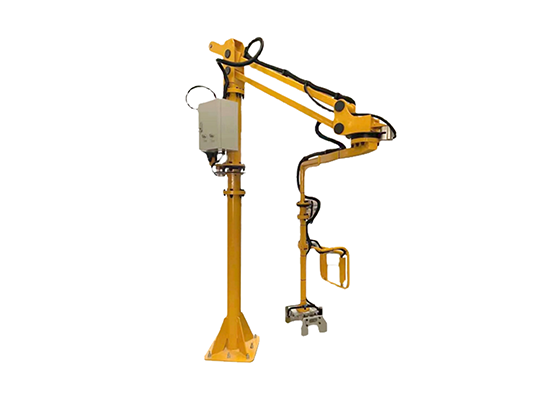

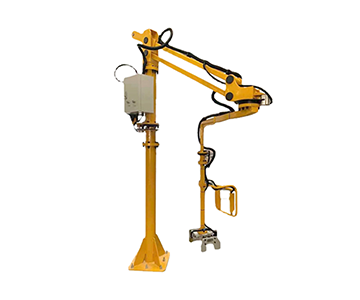

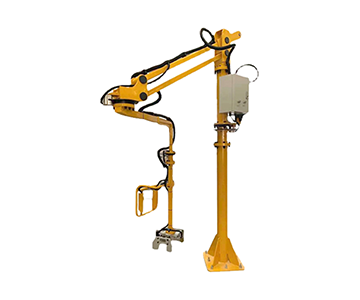

Product Display
Light operation and small space: Light operation, workers can hold the workpiece with both hands for positioning, occupying a small space and flexible lapping various installation types of fixtures to meet the specific process conditions.
The balance of the assisted manipulator is achieved through sophisticated sensors and control systems. The sensors sense the weight of the load and the force applied by the operator, and then transmit these signals to the control system. The control system adjusts the power source (such as the air pressure of the cylinder or the torque of the motor) according to preset algorithms and parameters to achieve a force balance.
The power manipulator uses the principle of force balance. It usually has a complex pneumatic or electric system inside. Taking the pneumatic assisted manipulator as an example, it balances the weight of the load through the air pressure in the cylinder. When the operator exerts a small force on the manipulator, the system will adjust the air pressure according to the size and direction of the force, so that the manipulator can easily follow the operator's action. It is as if a pair of invisible hands are helping to share the weight of a heavy object, making the operator feel as if the object has become lighter.

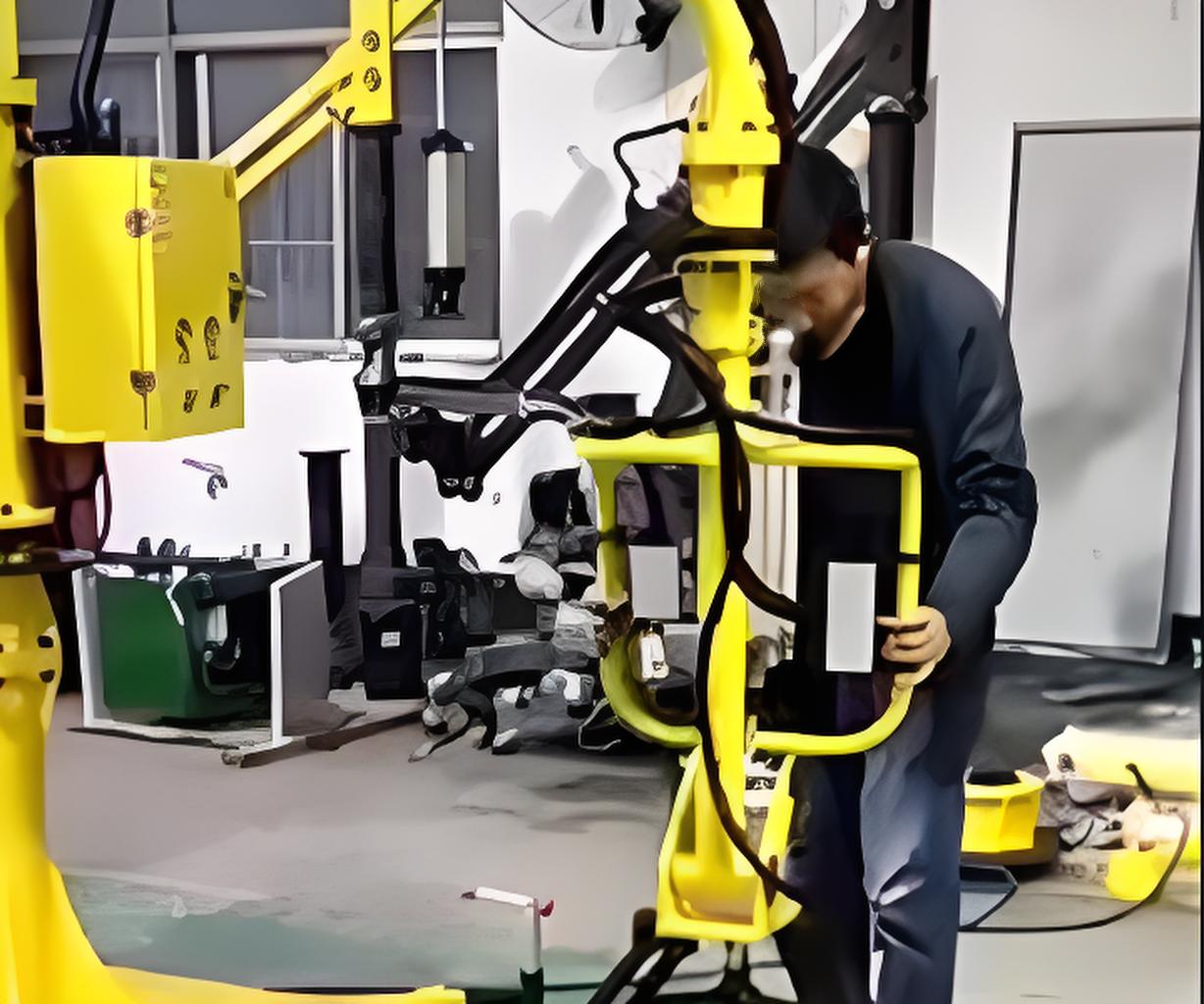

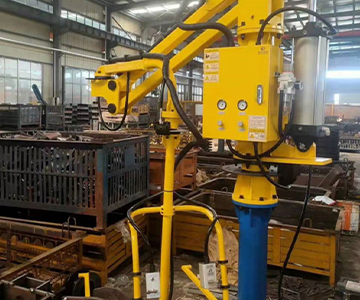

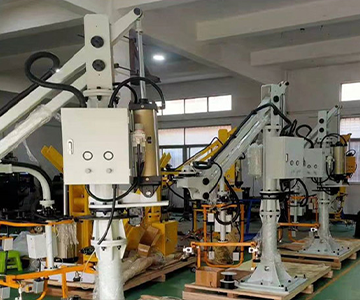

Application Cases
Suzhou Tongyousheng Electronic Technology Co., LTD., specializing in the production of servo electric cylinder, linear slide module, servo press, multi-dimensional free movement platform robot, robot series products. And provide Mitsubishi, Panasonic industrial control products, PLC, servo motor, inverter, touch screen, guide rail, screw, reducer series products.
Company Introduction

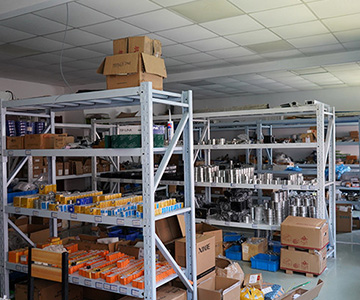

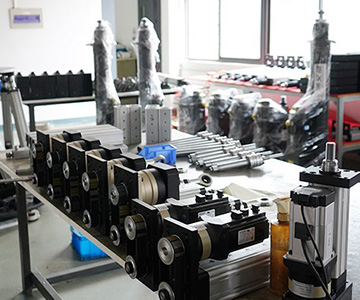

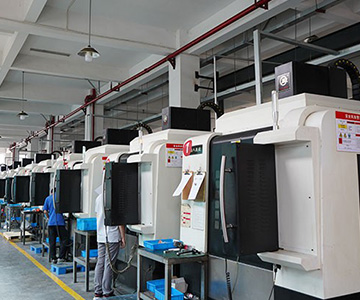

The company introduces foreign advanced technology, has specialized production equipment, advanced CNC processing equipment, high-precision test equipment, and has senior mechanical transmission designers, advanced design software, after years of struggle and struggle, Suzhou Tongyousheng Electronic Technology Co., Ltd. has established a leading advantage of "large scale, high output, stable quality" in the industry. Determined to strive for the development of Industry 4.0, we cooperate with a number of state-owned enterprises, top 500 units and universities. To provide customers with simple operation, excellent efficiency, stable performance, reasonable price of product equipment.
Cooperative partner
Service
- Pre-sales -- Help reasonable selection: project evaluation engineers docking, in-depth communication to understand the use of conditions, to confirm the appropriate selection and specifications, to give customers reasonable suggestions, effectively avoid problems in production
- Sales -- Ensure production delivery: dedicated engineers and business specialists docking, project managers to process control, active communication and interaction, timely detection of problems and timeliness communication, for the production delivery escort
- After-sales -- Timely response processing: after-sales engineering personnel docking, the same day response; And timely to the scene to confirm, discuss, solve and deal with problems, to meet customer production needs, to avoid downtime and production
