Product Description
The servo motor cylinder is equipped with high precision servo motor and position feedback device. The encoder can accurately monitor the position of the electric cylinder push rod in real time and feed the position information back to the control system. The control system fine-tuning the servo motor according to the feedback signal, so that the positioning accuracy of the push rod can reach a very high level, usually up to ±0.02mm or even higher accuracy.
Product parameters
| Model number | TYSC220 | |||||
|---|---|---|---|---|---|---|
| Motor mounting mode | direct-connected | reentrant | ||||
| Screw diameter (mm) | 80 | |||||
| Screw lead (mm) | 20 | 20 | ||||
| Effective travel (mm) | 0-3000 | 0-3000 | ||||
| Rated output (KN) | 200 | |||||
| Reduction ratio | 1:4/1:5/1:10/1:20/1:50 | |||||
| Motor Power (W) | 3/4/5.5/7.5/11 | |||||
| Rated speed (mvs) | 250 | 250 | ||||
| Internal anti-turning mechanism | Yes/no | |||||
| Limit switch | Yes/no | |||||
| Repeated positioning accuracy (mm) | ±0.02 | |||||
| Electric cylinder installation mode | Bottom thread hole | |||||
| Bottom plate | ||||||
| Front flange | ||||||
| Tail flange | ||||||
| Tail pin | ||||||
| Tail pin hole | ||||||
| custom | ||||||
| Load connection mode | Male thread | |||||
| Internal thread | ||||||
| Rod end joint bearing | ||||||
| Double bolt hole at rod end | ||||||
| custom | ||||||
| Class of protection | Ip65 | |||||

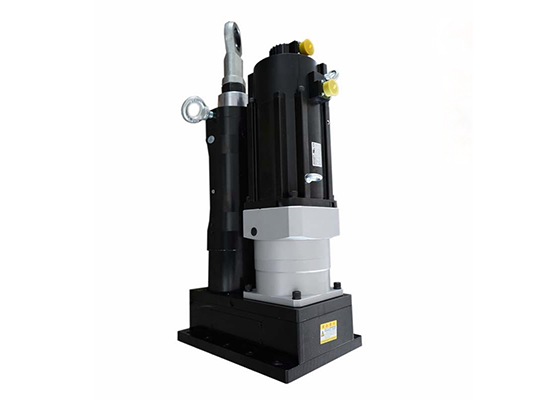

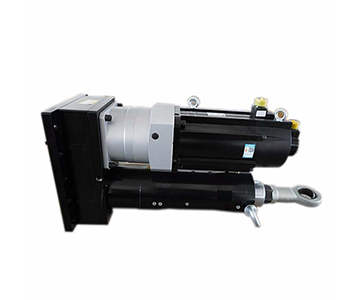

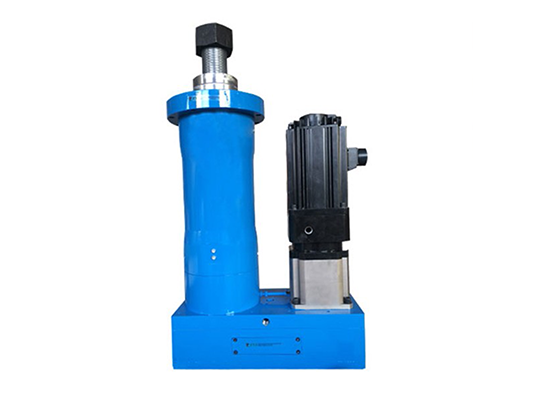

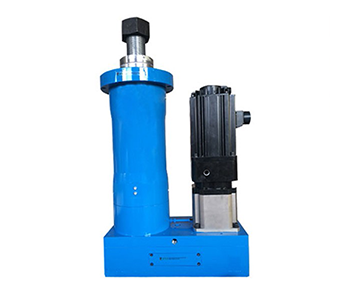

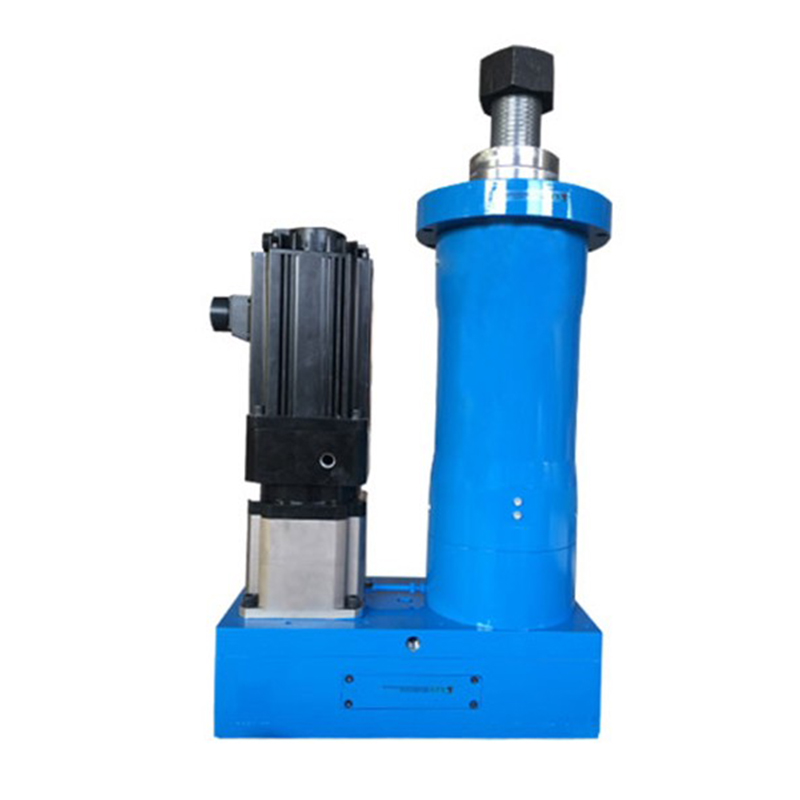

Product Display
● Characteristics of servo electric cylinder: energy saving and environmental protection, low noise, high speed, high precision, fast response, long life, can work in harsh environment without trouble for a long time stable. Therefore, it can be used in the field of mechanical automation, automotive industry, chemical industry, military manufacturing, large-scale special scene simulation and other fields and industries.
● In performance, the electric cylinder is more stable. It operates at an increased speed and power range, and can provide greater position accuracy. One of the drawbacks of the hydraulic system is that the viscosity of the hydraulic oil can change with time and temperature, affecting the performance of the machine. Electric cylinders, on the other hand, can always maintain precise tolerances over long periods of operation, and because their moving parts are based on recognized rolling element bearing technology, their service life can be predicted under a given set of operating conditions.
Taiwan TBI imported screw
Using high-precision ball screw, the service life is more than 30,000 kilometers, smooth and smooth
Long life and stable performance
Japan original NSK bearing, made of superior raw materials, fine process casting good bearing, high limit speed, high load resistance, low noise

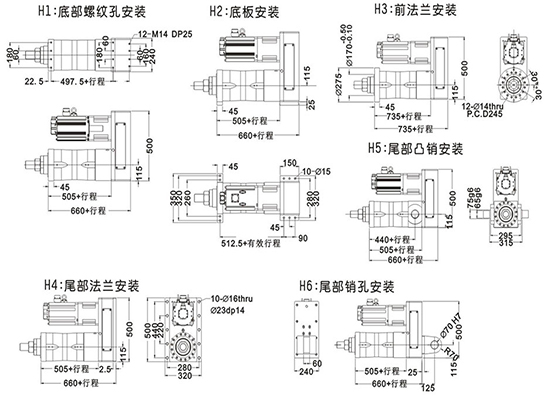

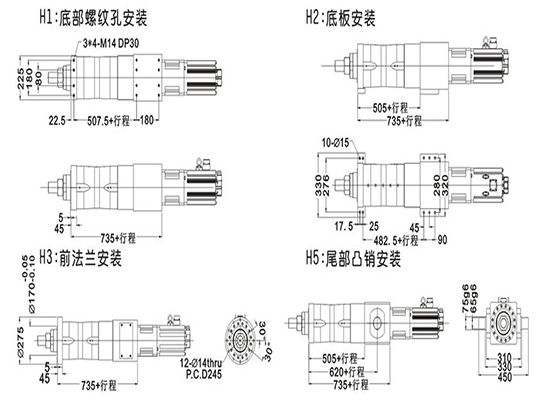

Size & Interface

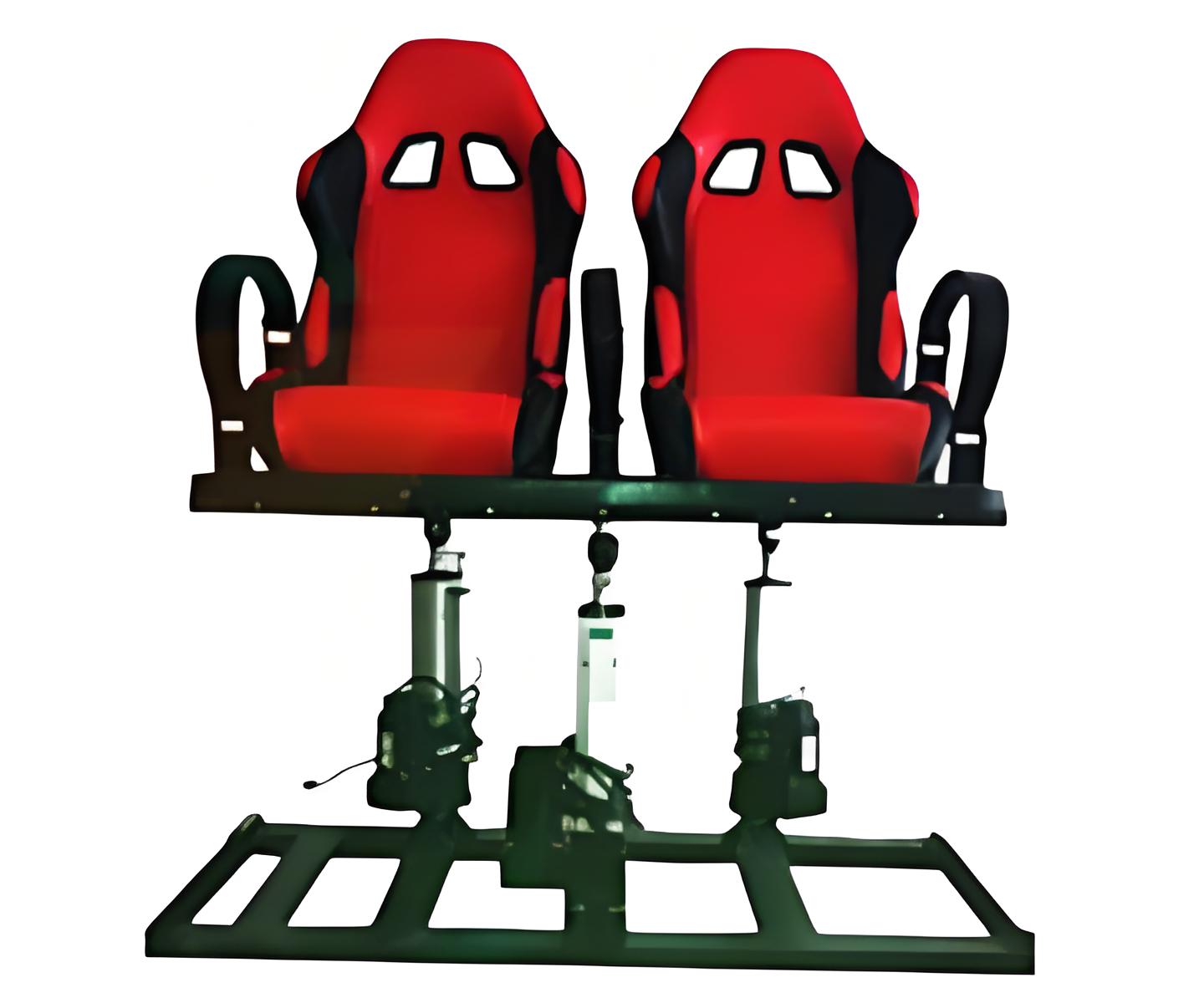

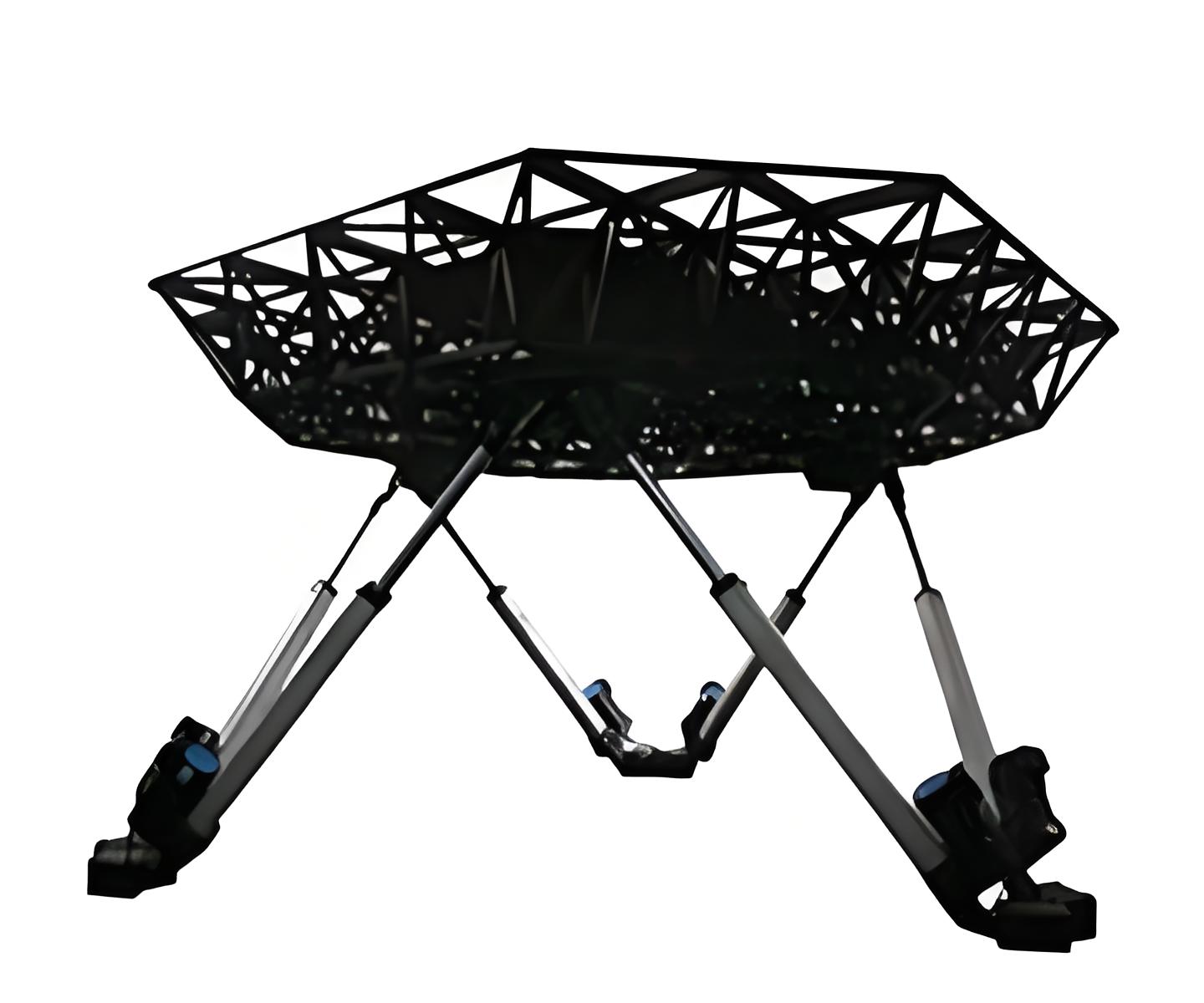

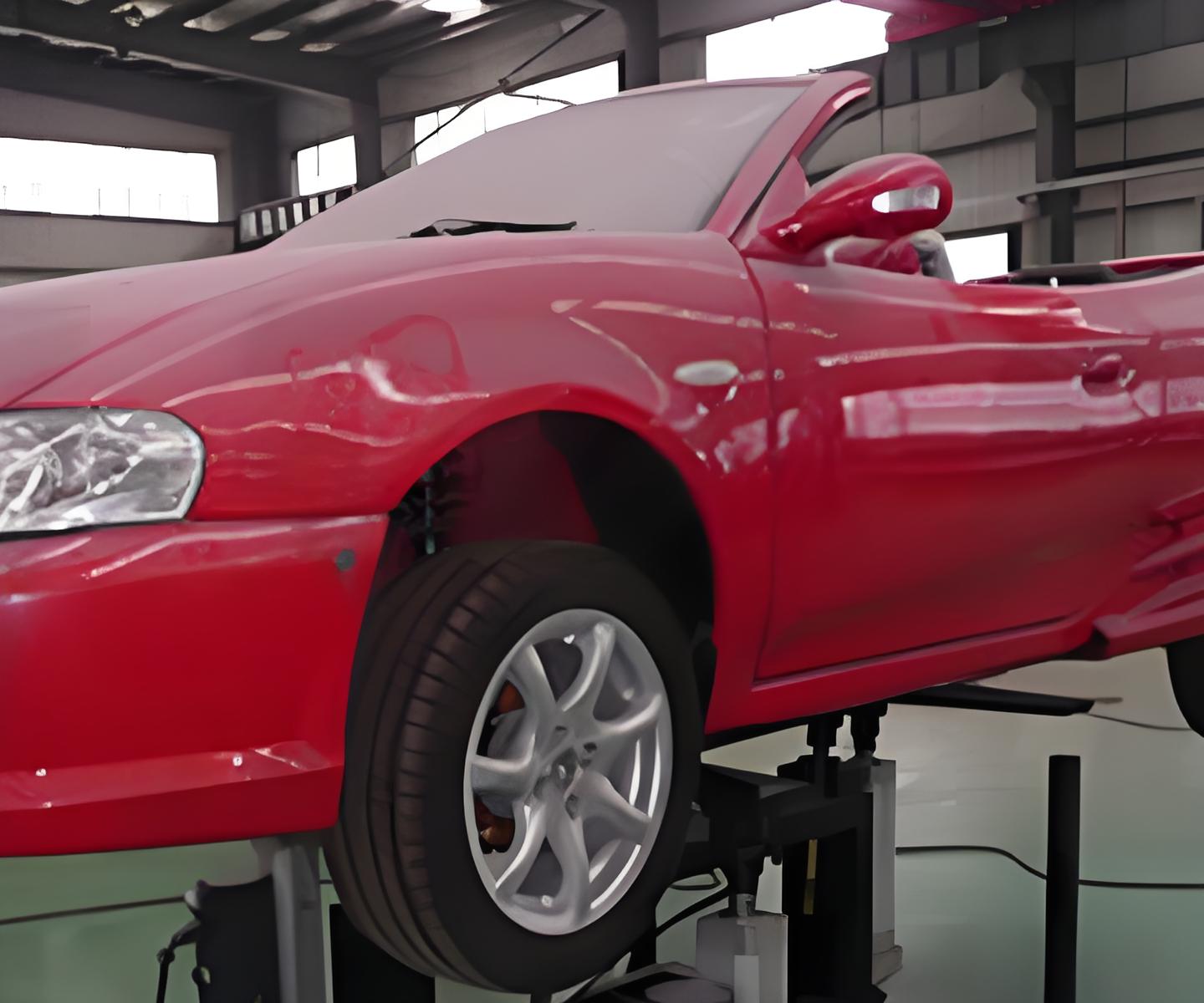

Application Cases
Suzhou Tongyousheng Electronic Technology Co., LTD., specializing in the production of servo electric cylinder, linear slide module, servo press, multi-dimensional free movement platform robot, robot series products. And provide Mitsubishi, Panasonic industrial control products, PLC, servo motor, inverter, touch screen, guide rail, screw, reducer series products.

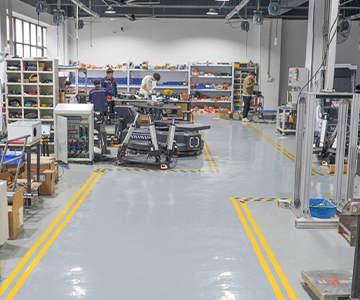

Company Introduction
The company introduces foreign advanced technology, has specialized production equipment, advanced CNC processing equipment, high-precision test equipment, and has senior mechanical transmission designers, advanced design software, after years of struggle and struggle, Suzhou Tongyousheng Electronic Technology Co., Ltd. has established a leading advantage of "large scale, high output, stable quality" in the industry. Determined to strive for the development of Industry 4.0, we cooperate with a number of state-owned enterprises, top 500 units and universities. To provide customers with simple operation, excellent efficiency, stable performance, reasonable price of product equipment.
Service
- Pre-sales -- Help reasonable selection: project evaluation engineers docking, in-depth communication to understand the use of conditions, to confirm the appropriate selection and specifications, to give customers reasonable suggestions, effectively avoid problems in production
- Sales -- Ensure production delivery: dedicated engineers and business specialists docking, project managers to process control, active communication and interaction, timely detection of problems and timeliness communication, for the production delivery escort
- After-sales -- Timely response processing: after-sales engineering personnel docking, the same day response; And timely to the scene to confirm, discuss, solve and deal with problems, to meet customer production needs, to avoid downtime and production
