Product Description
AgileLight - 300A digital closed loop single-axis fiber optic gyroscope is a high-end inertial measurement instrument designed to meet the demanding precision and response requirements of motion attitude control and servo tracking applications. With its excellent single-axis angular velocity measurement performance, it has become the core key component for accurate motion control and stable servo tracking in many cutting-edge scientific and technological fields, providing indispensable basic data support for the efficient operation and accurate operation of the system, and greatly improving the performance and reliability of related equipment in complex dynamic environments.
Product parameters
| Technical parameter | Axial direction | uniaxial |
| Measuring range (°/s) | -450~450 | |
| Zero bias stability (°/h), 1σ | ≤0.1 | |
| Zero bias repeatability (°/h), 1σ | ≤0.1 | |
| Random walk coefficient (°/√hr) | ≤0.01 | |
| Scale factor nonlinearity (ppm) | ≤200 | |
| Scale factor asymmetry (ppm) | ≤200 | |
| Scale factor repeatability (ppm), 1σ | ≤200 | |
| Physical characteristics | Frequency band width (Hz) | ≥100 |
| Start time (s) | ≤1 | |
| Power Supply (V) | -5~+5 | |
| Power consumption (W) | ≤5 | |
| Size (mm) | φ70xH32 | |
| Weight (g) | ≤220 | |
| Output mode | RS 422 | |
| Operating temperature (C) | -40~+65 | |
| Storage temperature (℃) | -45~+85 | |
| coupler | J30J-15TJL |

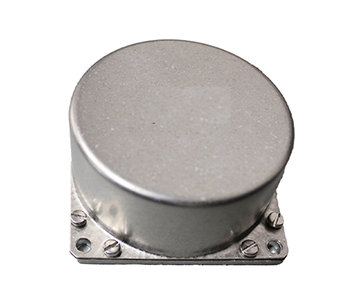

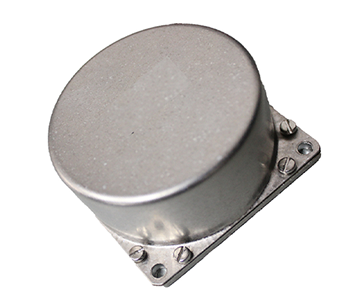

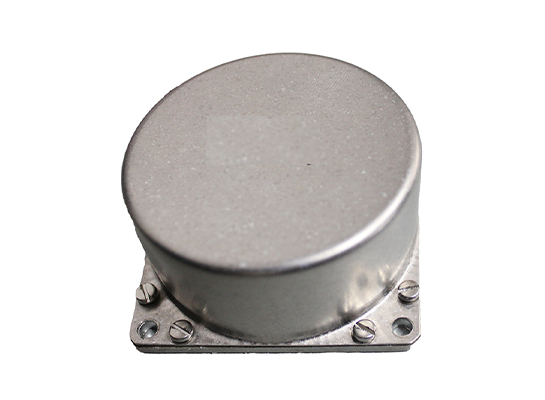

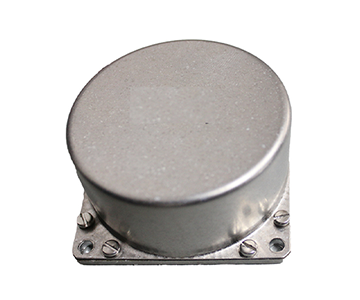

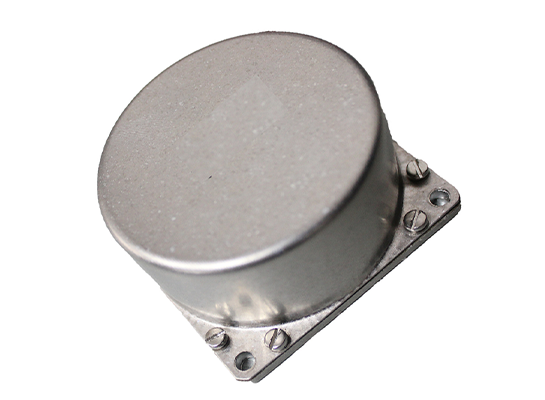

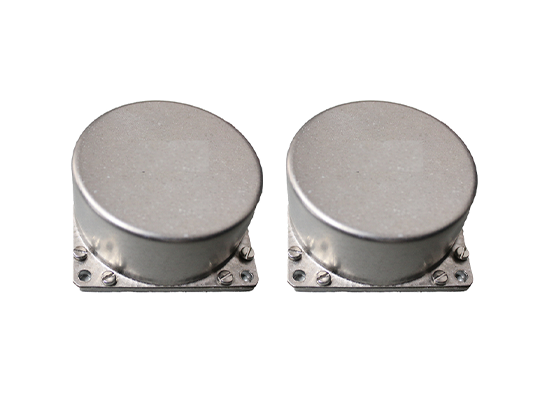

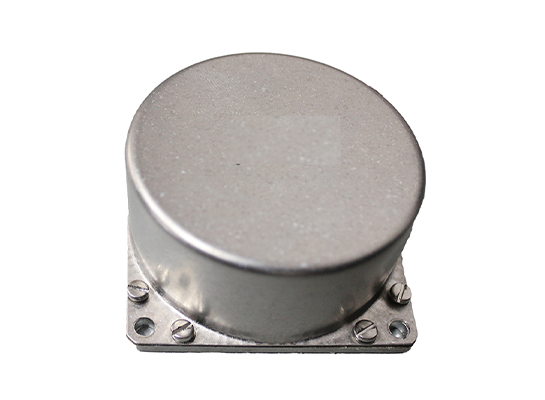

Product Display
High precision and stability
With its advanced technical principles and precise component design, the AgileLight 300A demonstrates excellent accuracy and long-term stability in single-axis angular velocity measurement. Whether it is long-term static measurement or continuous measurement in complex dynamic environments, it can consistently provide high-precision measurement data with minimal error and low drift rate, providing a solid guarantee for applications that require extremely high attitude control accuracy.
Fast response and high bandwidth
The product has extremely fast response speed and wide measurement bandwidth, which can track the change of angular velocity of high-speed rotating objects in real time, capture the change of motion state in an instant, and timely output accurate measurement results. This makes it excellent in high-speed motion control and servo tracking applications, and can meet the stringent requirements for dynamic response performance of equipment such as high-speed industrial robots and aircraft.
Strong anti-interference
Based on the characteristics of optical fiber sensing technology, AgileLight 300A has a natural high resistance to electromagnetic interference, and can still work stably and reliably in strong electromagnetic environments (such as industrial production sites, avionics equipment compartments, etc.), and will not affect the measurement accuracy and stability due to external electromagnetic interference. This feature gives it a clear advantage in complex electromagnetic environment application scenarios, reducing the need for additional electromagnetic shielding measures, reducing system cost and complexity.
Wide temperature range and harsh environment adaptability
It can work normally in a wide temperature range (-40 ° C to + 60 ° C) and maintain good performance under harsh environmental conditions such as high humidity, high vibration and high impact. This makes it widely used in a variety of extreme environment motion attitude control and servo tracking applications, such as outdoor robots, aerospace equipment, industrial automation production lines, etc., greatly expanding the product application range and market space.

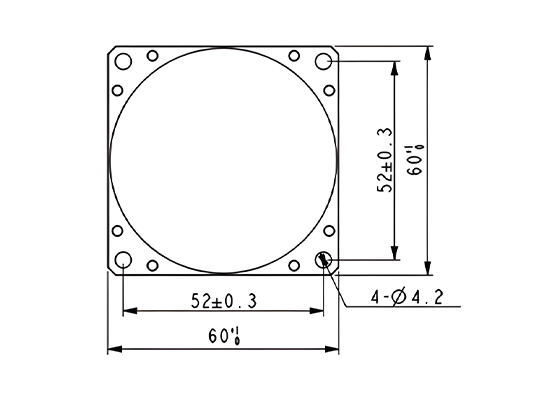

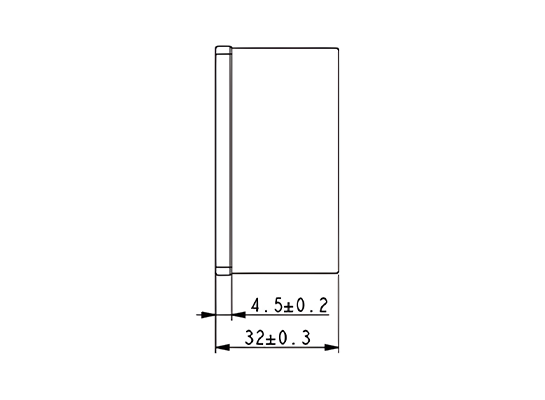

Size & Interface
Quality Control
The quality requirements are extremely strict. In the procurement of raw materials and parts, carefully select suppliers and strictly inspect the factory. In the production process, we operate according to the standardized operation process, set up multiple online detection points for real-time monitoring, and strictly control the production environment. The finished product inspection process, comprehensive performance testing, covering all key indicators, but also reliability testing, including high temperature aging, vibration shock, environmental adaptability, etc. At the same time, build a perfect quality traceability system to ensure high quality and high performance of products, meet the needs of multiple applications and ensure that after-sales can be checked and controllable.
Application Cases
aerospace
Attitude control for small aircraft
In small drones, aerial models and other aircraft, the AgileLight 300A can be used to measure single-axis attitude changes such as roll, pitch or yaw of the aircraft. It provides real-time attitude data for the flight control system of the aircraft, so that the aircraft can maintain stability under complex weather conditions and flight environment. For example, when a drone is carrying out an aerial photography task, precise attitude control can ensure the smooth and clear shooting picture.
Spacecraft component testing
During the component development and testing phase of spacecraft, the product can be used to simulate and test the performance of components in a single-axis rotation state. For example, in the test of the satellite solar panel deployment mechanism, the angular velocity of the panel deployment process can be accurately measured by installing a fiber optic gyroscope on the rotation axis, which provides data support for the optimal design of the mechanism.
