Product Description
DS-U006 7KG-class large electric landing gear is designed for application scenarios that pursue excellent performance and reliability. This landing gear has a load-bearing capacity of up to 7KG and is made of high-strength alloy material. The structure is sturdy and stable, enough to cope with various complex and high-intensity take-off and landing tasks. Its electric drive system responds quickly and can complete the extension and retraction of the landing gear in an instant, ensuring the efficiency and timeliness of the operation. Equipped with precise sensors and intelligent control systems, it can automatically adjust the operation of the landing gear according to the flight status, achieve precise height control and stable landing support, and provide safe and smooth take-off and landing for the aircraft. Whether it is a large drone or a professional model aircraft, DS-U006 can become a solid backing for flight safety with its excellent quality and performance.
Product parameters
| Parameter name | Parameter Value |
|---|---|
| OperatingVoltage | 4.8~6.0V DC |
| Rated Voltage | 6.0V |
| RatedTorque | 1.75kgf·cm |
| No Load Current | ≤180mA |
| StallCurrent | ≤1.5 A |
| No-loadspeed | <5 s/90° |
| DynamicTorque | 7kgf·cm |
| Pulse Width Range | 300μs~2700μS |
| OperatingTravelAngle | 0°/83° |
| Backlash | 0.5° |
| Weight | 93g±1g |
| MechanicalLimitAngle | 90° |
| Wire length | 210mm |

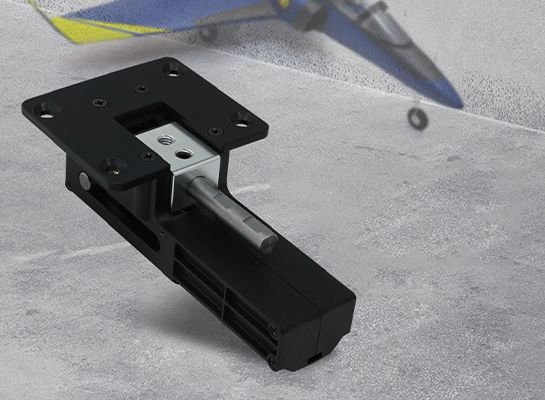

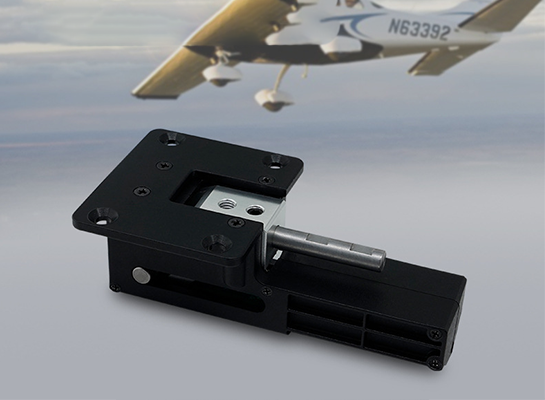

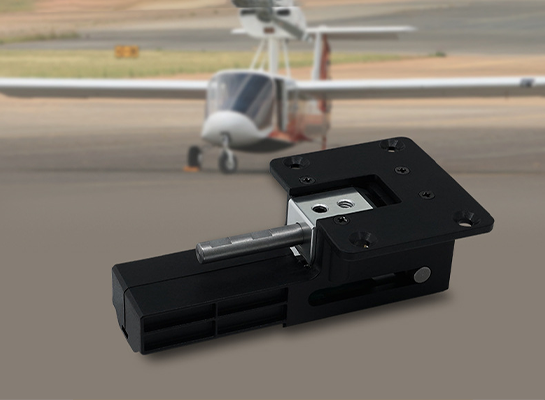

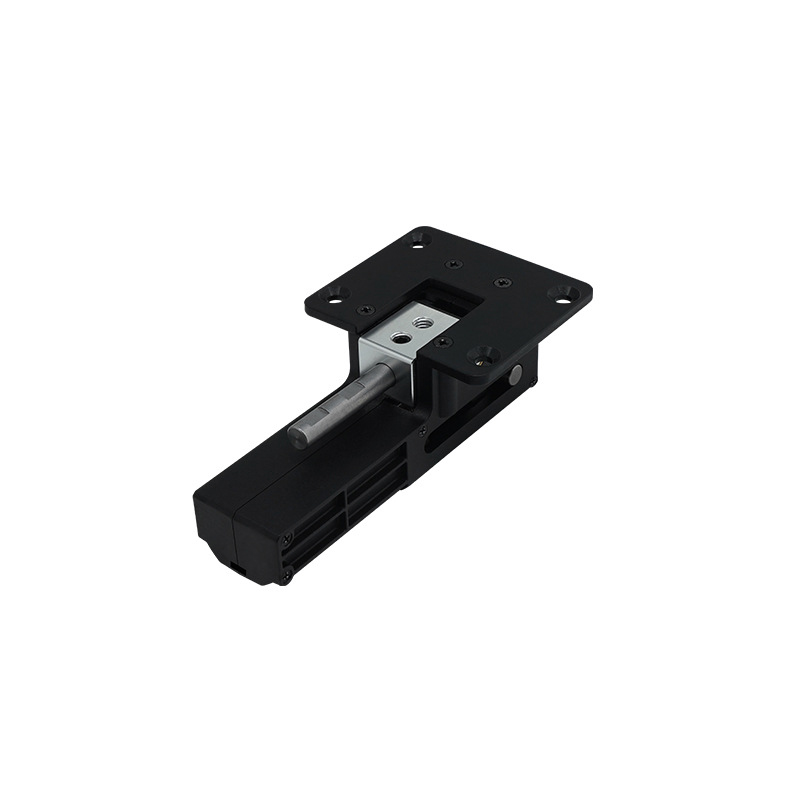

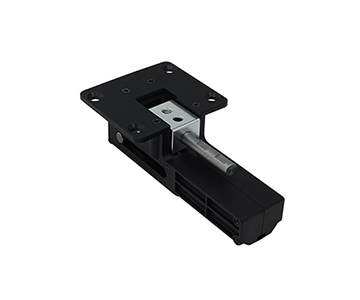

Product Display
Actual measured lifting weight: 7KG
Large front wheel landing gear
Small virtual position (starting point and end point position ≤ 0.5°)
Screw drive + with self-locking function, automatic stop when in place
Metal slider unloads force-resistance to impact
Protects the fuselage from damage
Stalled rotor anti-burn protection: 2S trigger
Double shock-absorbing design protects gears from impact
CNC steel metal shaft
Stronger to use
Exclusively supplied by the model aircraft factory
Quality assurance
Full supply chain controllable
Stable delivery and quality assurance

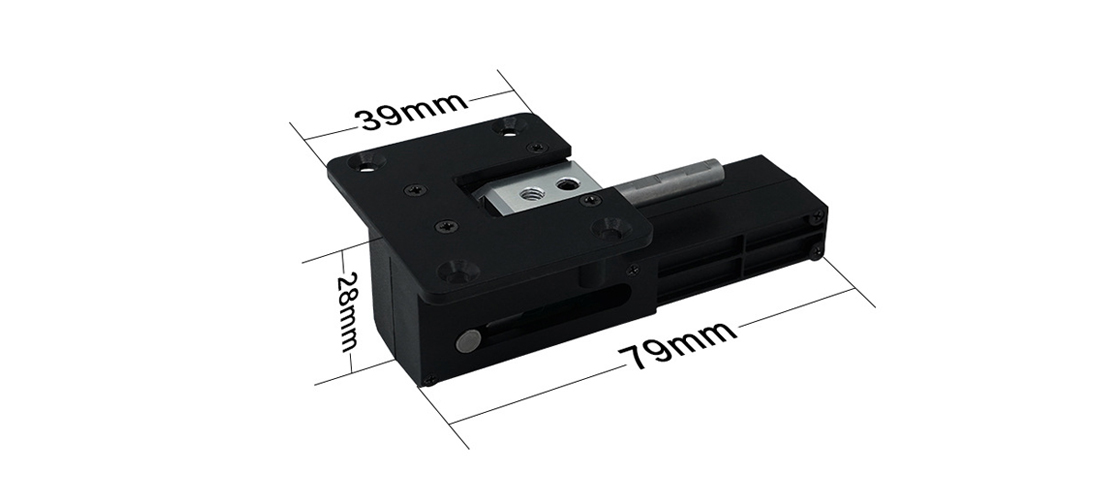

Size & Interface
Quality Control
- Quality control is the foundation of our company. From the strict selection of raw materials, to the meticulous management of the production process, to the all-round testing of finished products before delivery, every step embodies the persistent pursuit of quality, just to present impeccable products to the market.
- In our company, quality control runs through every link of production and operation. Advanced testing equipment and professional quality inspectors work closely together to accurately control product quality, and ensure that products always maintain excellent quality from the production line to the hands of customers with high standards and strict requirements.
- The company always adheres to the strict quality control concept, starting from the source, optimizing the production process, strengthening quality testing, and carving each product with ingenuity, so that high quality and reliability become the distinctive label of the company's products, winning the trust of customers and the recognition of the market.
Application Cases
The DS-U006 7KG-class large electric landing gear has a wide range of application scenarios and is extremely valuable. In high-end model aircraft display flights, it allows model aircraft to take off and land smoothly and accurately, presenting a wonderful flight show for model aircraft enthusiasts. At the same time, in some special scientific research and detection drone projects, it also relies on stable and reliable performance to help aircraft successfully complete takeoff and landing in harsh environments, providing a solid guarantee for the collection of scientific research data, and has become an indispensable and powerful equipment in many professional fields.
