Product Description
Hardware composition: It is mainly composed of high-precision sensor module, microprocessor unit, wireless communication module, power module and strong protective housing. Among them, the sensor module is responsible for collecting various physical data; The microprocessor unit processes, analyzes and stores the collected data, and controls the wireless communication module to send the data out. The power module provides stable power supply for the whole equipment; The protective shell is made of magnesium and aluminum alloy and is anodized to protect the internal components from the external environment.
Product parameters
| Power interface | Rechargeable battery voltage | 4.2VDC |
| Disposable dry battery voltage | 3.6VDC | |
| Standby current | 6μA(typical) | |
| Working current | 50mA(average) | |
| Rechargeable battery capacity | 6000mAH | |
| Disposable dry battery capacity | 19000mAH | |
| Operating temperature | -40℃~85℃ | |
| Communication distance | Max. 5Km | |
| LoRa band | 410.125~493.125MHz | |
| Standard antenna height | 110mm | |
| Antenna gain is standard | 2.5DBI | |
| Rated flow | Each frame is 20 bytes | |
| reliability | The average trouble-free operating time (MTBF) is not less than 50,000 hours Ultra-low power design, including automatic sleep mode, timed wake up, motion wake up | |
| Measuring range (°) | Conditions | ≤5 | 5~30 | 30~60 |
| Measuring shaft | Perpendicular to each other | X-Y-Z | ||
| Accuracy (°) | Room temperature | ±0.005 | ±0.006 | ±0.007 |
| Resolution (°) | 0.001 | 0.001 | 0.001 | |
| Zero temperature drift (°/ ° C) | -40~85℃ | ±0.001 | ±0.001 | ±0.0007 |
| Cross axis error (°) | 25℃ | 0.005 | 0.005 | 0.005 |
| Output frequency (Hz) | Up to 100 | |||
| Other output data | Temperature, battery voltage | |||
| Automatic sleep mode | support | |||
| Timed wake-up | support | |||
| Motor arousal | support | |||
| Mean trouble-free working time | ≥ 90,000 hours | |||
| Electromagnetic compatibility | According to GBT17626 | |||
| Insulation resistance | ≥100 megohm | |||
| Impact resistance | 0g, 0.5ms,3 times/axis | |||
| Overall dimension | L105.2*W85*H76(mm)(without antenna), standard antenna height: 110mm | |||
Technological innovation and advantages
Wireless transmission function: Based on LoRa wireless communication technology, the communication distance is long, and it can reach several kilometers in an open environment, which can effectively solve the problems of wired transmission and wiring difficulties and high cost, and facilitate deployment in large-area and distributed monitoring scenarios, such as landslide monitoring in mountainous areas and structural health monitoring of large Bridges

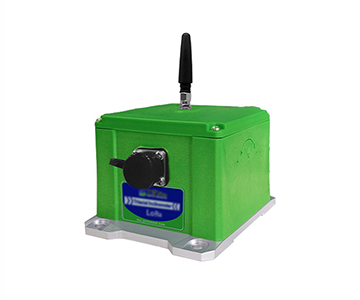

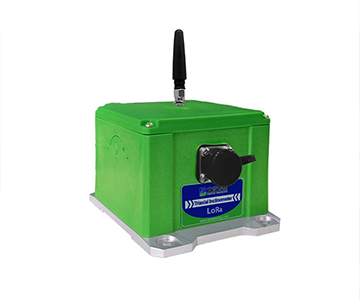

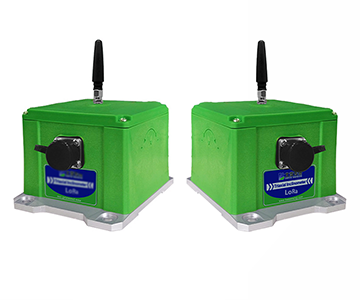

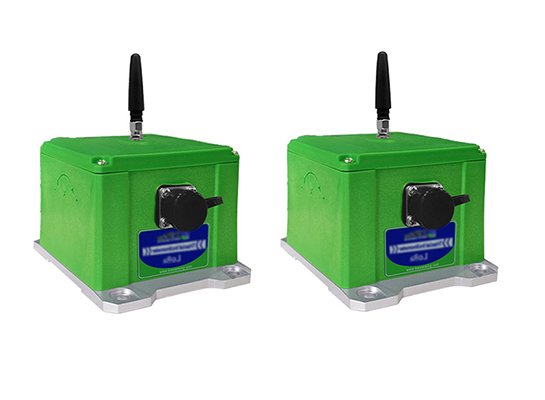

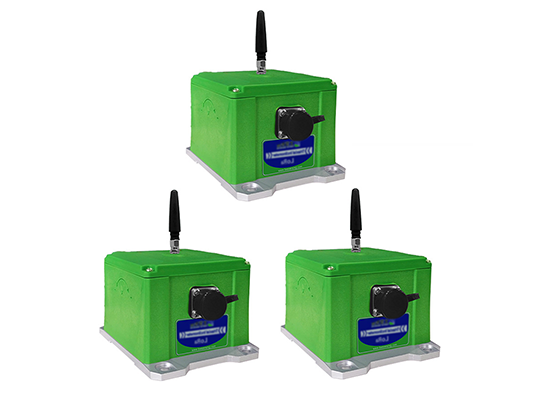

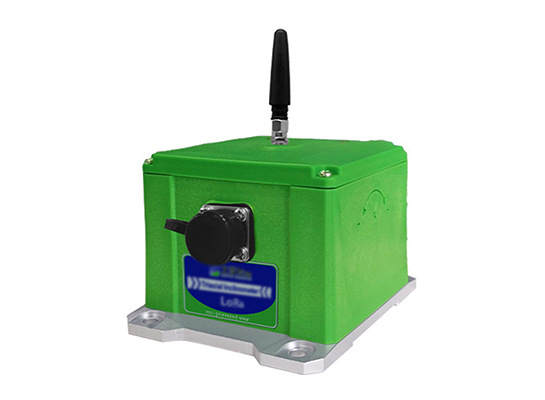

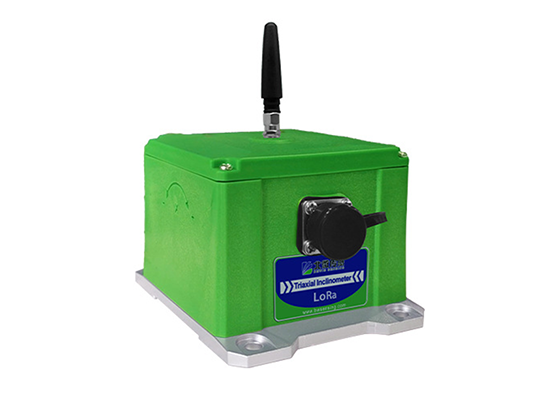

Product Display
High precision measurement:
With a measurement accuracy of up to 0.005° and a resolution of 0.001°, the sensor can accurately measure small tilt Angle changes, which can meet the accuracy requirements of most engineering and monitoring scenarios.
Multi-axis measurement and wide measurement range:
The three-axis design can measure the tilt Angle of X, Y and Z axes at the same time, and the measurement range is ±60°, which can fully reflect the attitude change of objects in space, and is suitable for a variety of complex monitoring environments and objects.
High stability and reliability:
Support IP68 protection grade, with good waterproof, dust-proof performance, can adapt to a variety of harsh outdoor environment. At the same time, its mean time to failure (MTBF) is not less than 50,000 hours, ensuring long-term stable and reliable operation.
Ultra-low power design
Including automatic sleep mode
Timed wake-up
Motor arousal

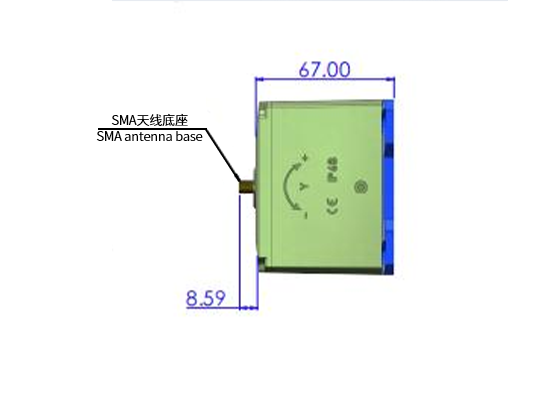

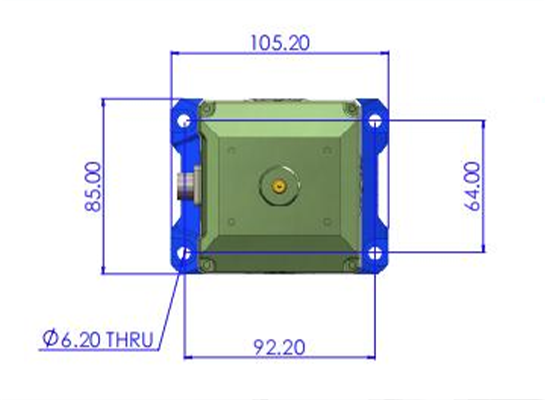

Size & Interface
Quality Control
The quality requirements are extremely strict. In the procurement of raw materials and parts, carefully select suppliers and strictly inspect the factory. In the production process, we operate according to the standardized operation process, set up multiple online detection points for real-time monitoring, and strictly control the production environment. The finished product inspection process, comprehensive performance testing, covering all key indicators, but also reliability testing, including high temperature aging, vibration shock, environmental adaptability, etc. At the same time, build a perfect quality traceability system to ensure high quality and high performance of products, meet the needs of multiple applications and ensure that after-sales can be checked and controllable.
Application Cases

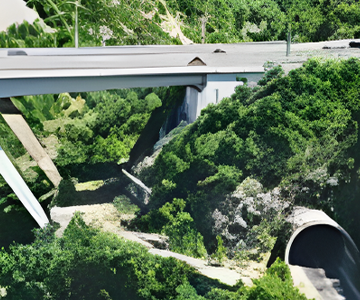

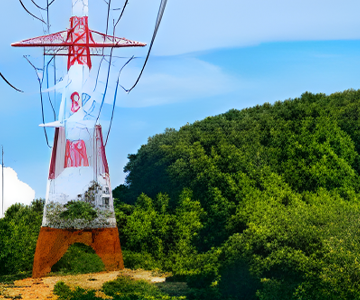

The sensor is widely used in many structural health monitoring fields such as bridge tower tilt measurement, dam monitoring, landslide prevention, ancient building protection monitoring, tunnel monitoring, foundation pit monitoring, tower pole tilt monitoring, etc. It provides strong technical support for ensuring the safe operation of infrastructure and the early warning and prevention of geological disasters.
