Product Description

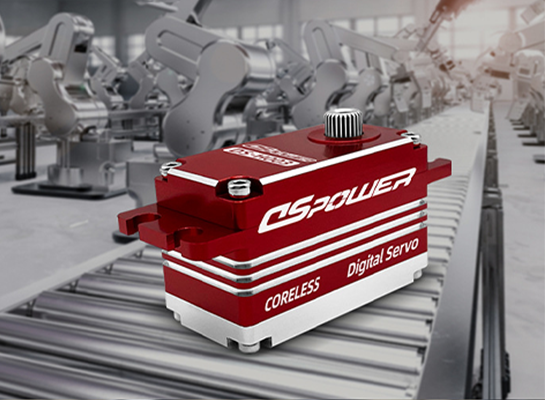

The DS-H003 15KG low-profile waterproof servo stands out for its excellent performance. The compact low-profile design can be easily installed in space-constrained application scenarios, providing convenience for the miniaturization and integration of equipment. It has a powerful 15KG torque output, which is enough to drive all kinds of heavy loads and ensure stable and efficient operation. Its waterproof feature is a highlight. It adopts advanced sealing technology to effectively prevent the intrusion of impurities such as moisture and dust. Whether it is outdoor harsh rain and snow weather or humid and dusty industrial environment, it can operate stably and reliably, providing an ideal power solution for many equipment that requires precise control and faces complex environmental challenges.
Product parameters
| Parameter name | Parameter Value |
|---|---|
| Operating Voltage | 6.0~7.4V DC |
| Static current | ≤15 mA |
| Stall Current | ≤3.2A at 6.0V,≤4.0A at 7.4V |
| Stall Torque | ≥13kgf.cm at 6.0v,≥16kgf.cm at 7.4V |
| Rotating Direction | 2000us→1000us clockwise and forward direction |
| Stall Torque | 10kgf.cm at 4.8v; 13.3kgf.cm at 6v; 16.8kgf.cm at 7.4 |
| No-load speed | ≤0.09sec./60°at 6.0V,≤0.08sec./60°at 7.4V |
| Pulse Width Range | 500~2500μs |
| Working Frequency | 1520μs/333Hz |
| Operating Travel Angle | 180°±10° |
| Return Angle Deviation | ≤1° |
| Weight | 58±0.5g |
| Dimension | 40.5*20.5*23.1mm (1.59*0.8*0.9inch) |
| Communication Interface | PWM |
| Horn Gear Spline | 25T/Ф5.9mm |
| Back Lash | ≤1° |
| Motor Type | Brushless Motor |
| Gear Type | Metal Gear |
| Bearing Type | 2BB |

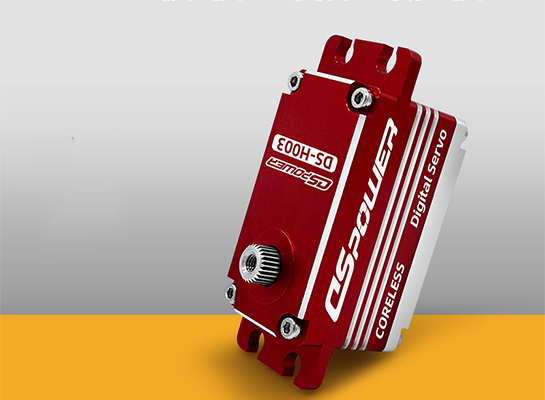

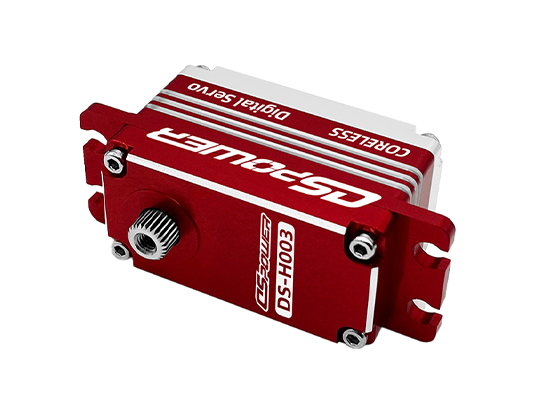

Product Display
Equipped with high-quality hollow cup motor
Provides higher initial speed ≤0.08Sec/60° (under no-load state)
Smooth operation, no lag, small dead zone

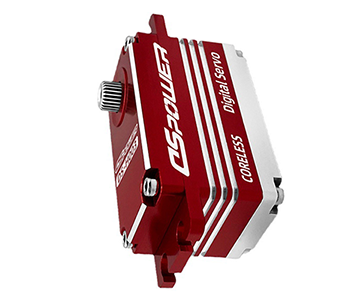

Standard design low-profile servo
Ingenious design reduces the servo height to 25mm
Adopts compact low-profile design to meet the needs of high torque in small space
- Anodized body treatment - wear-resistant and corrosion-resistant
- Waterproof and dustproof design - stable operation in harsh environments
- Strong independent R&D team - customized ultimate products

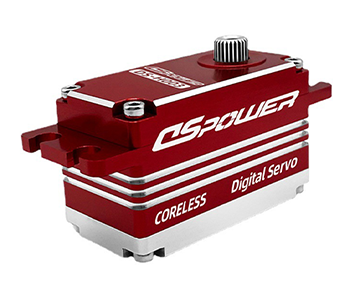

Smart design, high performance, long life

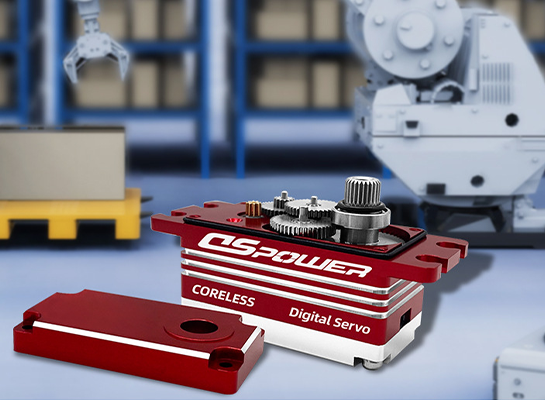

Reinforced steel teeth + hollow cup motor + metal body

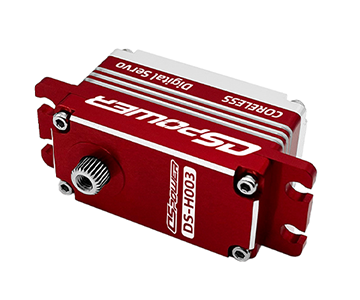

Super strong environmental adaptability
Supports customization for different scenarios

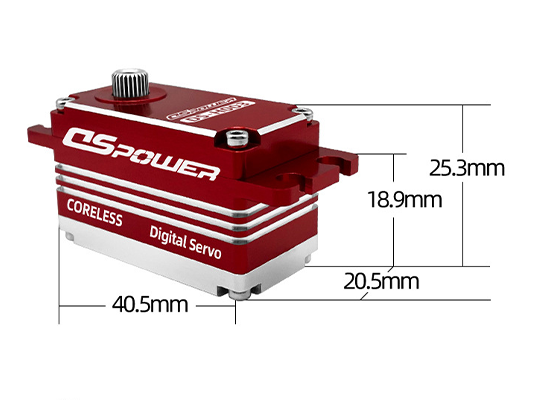

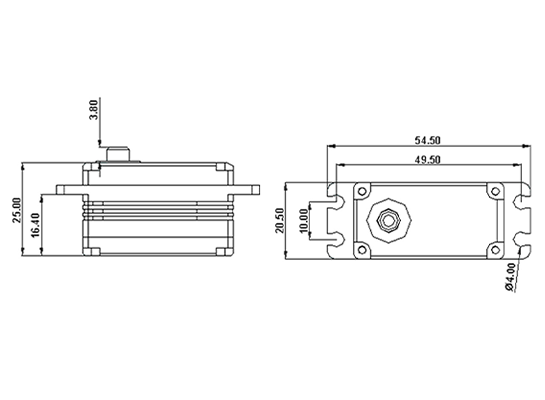

Size & Interface
Application Cases
- Industrial endoscopes can easily penetrate into narrow spaces with the help of the low-profile advantage of the DS-H003 servo. Its waterproof performance and 15KG torque can stably drive the lens and accurately detect internal conditions.
- In the field of industrial automation, the DS-H003 servo is perfectly integrated with a low-profile structure, 15KG torque can operate reliably, is waterproof and dustproof, and accurately controls mechanical parts for efficient operation.
- Rehabilitation equipment uses the DS-H003 servo. The low-profile design fits the use requirements, the powerful torque assists precise movements, and the waterproof ability ensures long-term stable operation, which helps patients with rehabilitation training.
Service
Adhere to self-production and self-research: strictly control from design to production process
Adhere to 100% full inspection: ensure the stability and consistency of delivery quality
Adhere to good materials: good craftsmanship + good materials + good quality, the ultimate cost-effectiveness
Adhere to customer-centricity: match the appropriate solution according to the needs, and refuse performance redundancy
Modular R&D ideas, product functions can be matched at will: reduce customization and shorten the R&D cycle
