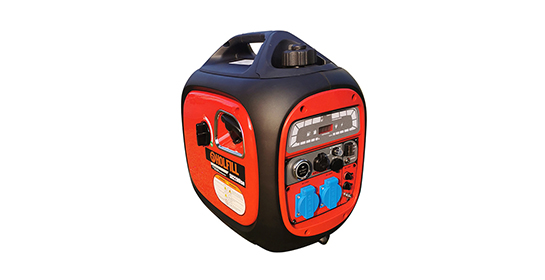

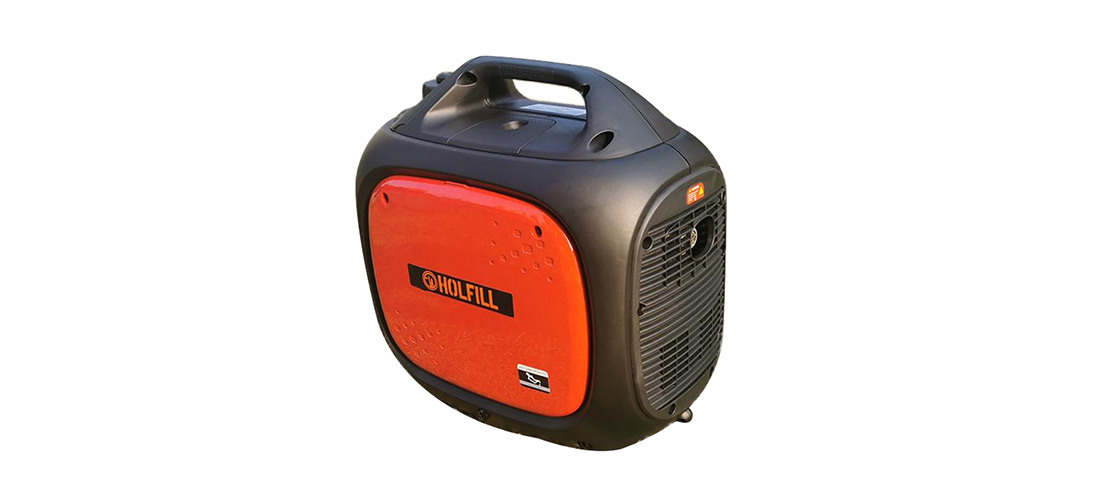

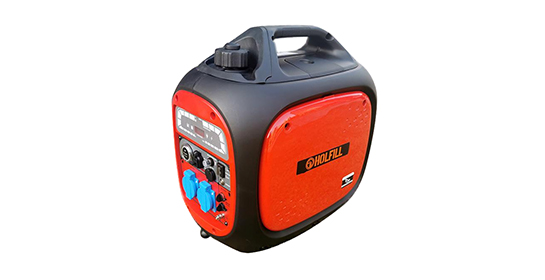

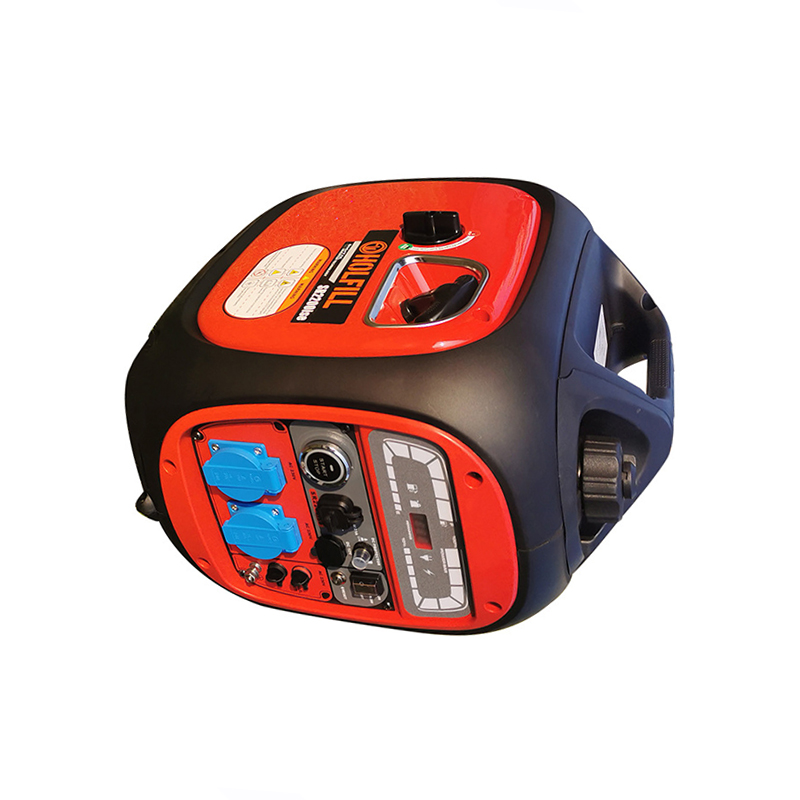

Product Description
Portable low noise gasoline variable frequency generator mainly generates power through gasoline combustion, drives the crankshaft of the engine to rotate, and then drives the rotor of the generator to rotate. According to the principle of electromagnetic induction, when the conductor cuts the motion of the magnetic inductance line in the magnetic field, the induced electromotive force will be generated at both ends of the conductor, thus output alternating current. On this basis, the inverter converts the original alternating current generated by the generator into stable alternating current that can be adjusted according to actual needs through the built-in inverter.
Product Features
Output voltage and frequency stability: no matter how the load changes, the variable frequency generator can be adjusted by the inverter to maintain the stability of the output voltage and frequency. This is very important for some electronic devices that require high voltage and frequency accuracy. For example, when powering precision medical equipment or high-end electronics, stable voltage and frequency can prevent damage to the equipment and ensure its normal operation.
Small size and light weight: Micro variable frequency generators usually have a compact design and lightweight materials that are easy to carry and move. They can be used for outdoor activities, such as camping, field work and other scenarios. For example, a small variable frequency generator, which may be half the size and light, can easily fit in the trunk of a car to provide power for electrical equipment while camping.
High efficiency and energy saving: The output power can be automatically adjusted according to the actual demand of the load, reducing the waste of energy. Compared with traditional generators, the fuel consumption of variable frequency generators can be reduced by about 30%-40% under partial load conditions.
Low noise: Due to the use of advanced noise reduction technology and optimized engine design, the micro variable frequency generator generates relatively low noise during operation. Generally speaking, its working noise can be controlled at ≤65 decibels, which is much lower than the noise of traditional generators, and will not cause too much interference to the surrounding environment.
Product parameters
| Engine type | SR2200is/SR2200ise |
|---|---|
| Aperture x stroke (mm) | 52x46 |
| Volume (ml) | 98 |
| Starting system | Kickstart/electric start |
| Gas type | 90# or higher standard unleaded gasoline |
| Tank capacity (L) | 4 |
| Oil volume (L) | 0.35 |
| Noise db(A) | ≤65 |
| Rated voltage (V) | 230 |
| Rated frequency (Hz) | 50/60 |
| Rated output (kW) | 1.8 |
| Max output (kW) | 2.2 |
| Regulating system | Electronic speed regulation |
| Power factor cosΦ | 1 |
| Package size (mm) | 490x330x490 |
| Load quantity (20/40/40HQ) | 336/672/840 |
Customer Case
Camping electricity

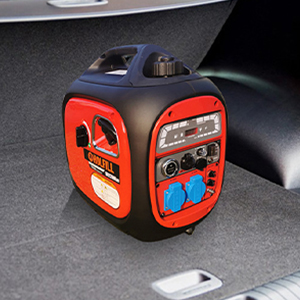

Vehicle backup power supply
Home emergency power supply
Our Factory
Product Certificate
Service
- Experienced in the industry：More than ten years of production experience, quality is more secure, and we are also a set of design, development, production, sales as one of the enterprises. The Group has a small general machinery and power engine factory in Chongqing, which is equipped with a number of automatic assembly lines, perfect quality system and testing facilities, and produces 300,000 general machinery and power engines every year.
- More advanced production equipment：It has more than 200 sets of equipment, including product testing, production line, machining, etc. In addition, there are a number of general machinery and power production lines. Has formed an annual output of 30W production capacity, the company attaches importance to science and technology and research and development, with soft, invention and 15 utility models, and in 2022 to obtain the national high-tech enterprise recognition; Products have CE, Euro 5 and other certifications.
- Strict quality control：From the raw materials, production, shipping and other links have strict inspection, the company has formulated the "integration of the world's advanced technology, to create stronger technology, to serve global users" strategic goals. Adhere to the "unity, struggle, truth-seeking, innovation" business philosophy, adhere to the "product oriented, with integrity to stabilize the market" business purposes. We always put product quality and customer interests first to provide customers with better products and services to achieve mutual benefit and win-win!
- Professional service team：We strive to serve customers, serve the community, and serve everyone is a foothold for our development. We not only provide good products, but also ensure considerate service, and we always strive to provide customers with as much added value as possible.
Pack
Microgenerator packaging is first and foremost designed to protect generators from physical damage, such as collisions, squashing and vibration, during transportation and storage. Because there are many precise parts inside the generator, such as rotors, stators, circuit boards, etc., these parts are easily damaged by external forces. Secondly, in order to prevent moisture and dust, to prevent external environmental factors from adversely affecting the performance of the generator. For example, a humid environment may cause the metal components inside the generator to rust, and dust may block heat dissipation channels or affect electrical insulation performance.
Carton: can easily print product information, identification and transportation precautions. The strength of the carton can be selected according to the weight and transportation requirements of the generator, and double-layer corrugated cartons are generally used to pack the micro generator. This kind of carton has good compression and puncture resistance, and can withstand a certain degree of pressure during stacking and handling.
Wooden box: For some micro-generators with longer distribution distances or higher protection requirements, wooden boxes will be used. The construction of wooden cases is stronger and can provide greater protection. Especially for export products or generators that need to be transported over long distances and in complex environments, wooden boxes can better withstand external pressure and collisions.
Transport
During the transportation process, to ensure the completeness of the transportation process and the safety of the equipment, do the following related work:
- Package inspection: Before shipping the generator, carefully check the package is in good condition. Make sure the inner packaging material (e.g., foam, bubble wrap) is tightly wrapped around the generator and is not loose or displaced. The outer packing (carton or wooden case) should be strong, tightly sealed, and the signs on the packaging (such as fragile sign, moisture proof sign, upward sign, etc.) should be clearly visible.
- Document preparation: Prepare relevant shipping documents, including product manuals, warranty cards, shipping lists, etc. If it is cross-border transportation, it is also necessary to prepare customs declaration documents, certificates of origin and other necessary documents.
- Fixed generator: If the generator is transported in a transport vehicle (such as a truck, a container), it needs to be fixed. Tools such as ropes and wooden wedges can be used to prevent the generator from being damaged by shaking and collision during transportation. For example, in the truck compartment, after the generator is placed in the right position, it is tied with the fixed point of the compartment with a rope to ensure that it does not shift during the vehicle.
