Product Description

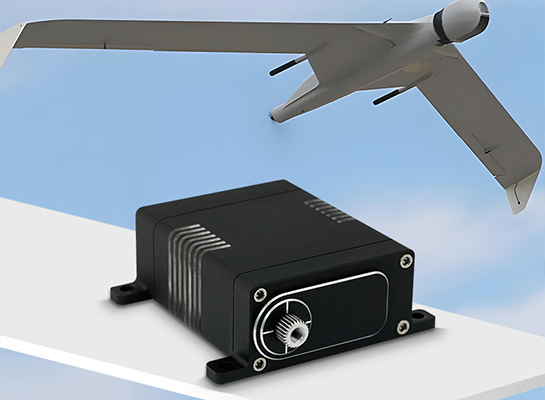

In extreme environments, the DS-W002A -50℃ low-temperature drone aileron/tail servo stands out. It is designed to cope with severe cold challenges and can operate accurately and stably even in temperatures as low as -50℃. Whether it is the flexible steering of the ailerons or the precise control of the tail, it can be easily controlled to ensure the stability and safety of the drone's flight attitude under low temperature conditions, providing reliable control guarantees for drone operations in various cold regions, so that the drone's flight performance is not affected by low temperatures and always maintains excellent condition.
Product parameters
| Parameter name | Parameter Value |
|---|---|
| Operating voltage | 23~33.0V |
| Rated voltage | 28.0V |
| Rated torque | ≥14kgf.cm |
| Quiescent current | ≤65mA |
| No-load current | ≤350mA |
| No-load speed | ≤0.15sec./60° |
| Stall current | ≤5.0A |
| Stalle torque | ≥65kgf.cm |
| Operating angle | 360° |
| Mechanical position | ≤1° |
| Communication method | CANopen |
| Gear material | Metal Gearmetal gear set |
| Weight | 100±2.0g |

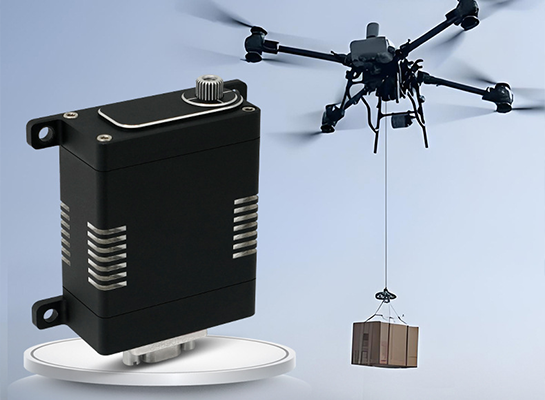

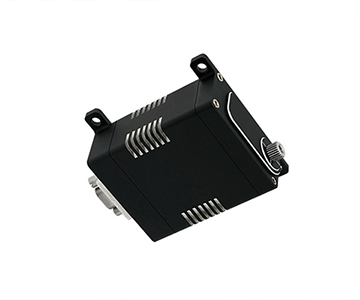

Product Display
Dual magnetic encoding technology
Self-developed software control accuracy reaches ≤0.3°
No-load speed ≤ 0.15SEC./60° (90RPM)
Frequency domain characteristics Cabin bandwidth ≥ 5
Quick response, factory built-in protection, good communication stability (protocol can be adapted as needed)
Stalling protection, temperature protection, voltage protection, current protection
Caitian shielding technology + filtering technology, etc.
Reduce external electromagnetic interference (resolutely complete the task)
Repeat positioning accuracy ≤1.5°, mechanical virtual position ≤1°
Dual power supply with isolation function, dual redundancy, high reliability. Suitable for sensitive/hazardous applications
Provide debugging tools and 3D appearance drawings to facilitate design docking

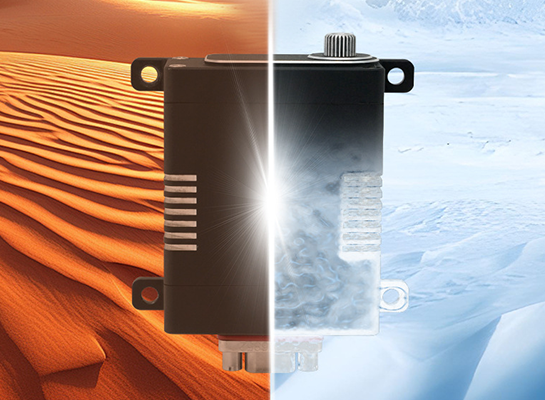

Operating temperature
-50℃~60℃, <95%RH
Resistant to high and low temperature cycles

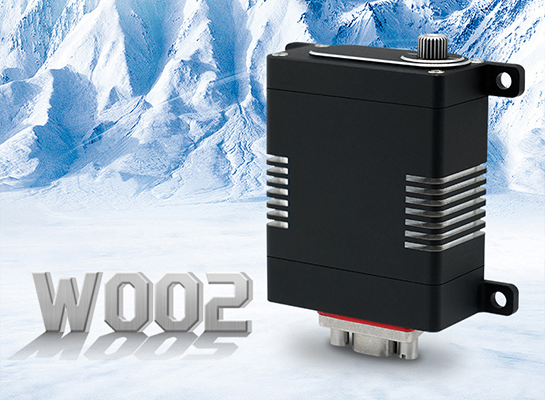

Supports low temperature operation of -50 degrees
Machine inspection + quality testing
Double performance guarantee, mature solution application
CANopen-stable transmission and integrated control
RS485 and PWM communication protocols can be adapted as required

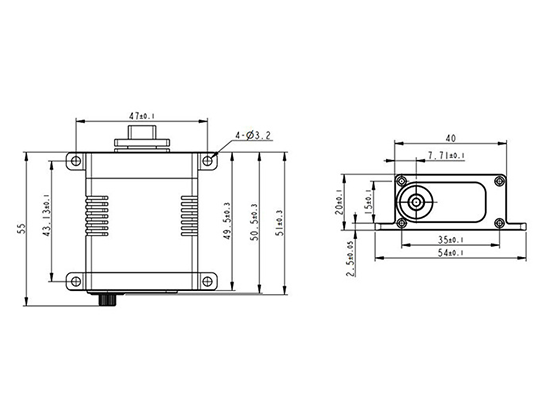

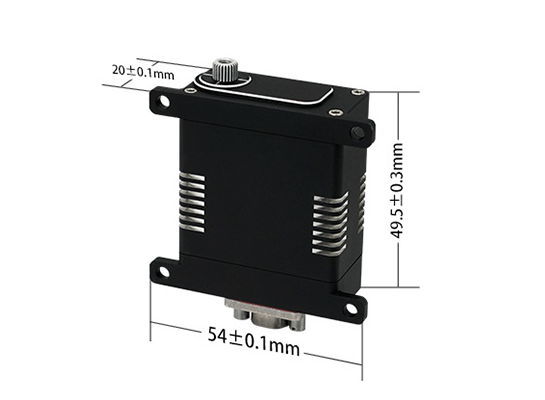

Size & Interface
Application Cases
The scientific research team can use the drone equipped with the DS-W002A -50℃ low-temperature drone aileron/tail servo to conduct glacial landform mapping and meteorological data collection. With the excellent performance of the servo in low-temperature environments, the drone can stably shuttle through the biting cold wind. Its ailerons and tail wing accurately respond to control commands to ensure accurate flight paths, successfully complete high-definition photography of complex glacial terrain and accurate collection of cold atmospheric environmental parameters, and provide key and detailed data for scientific researchers to gain an in-depth understanding of polar climate and geological changes, greatly improving the efficiency and safety of polar scientific research, and fully demonstrating the reliability and indispensability of this low-temperature servo in extreme environments.
Service
Adhere to 100% full inspection
Ensure the stability and consistency of shipment quality
Adhere to the use of good materials
Good craftsmanship + good materials + good quality, the ultimate cost-effectiveness
Adhere to self-production and self-research
Strictly control from design to production process
