Product Description
SK-YPC-JD Fully enclosed rack-mounted Industrial control machine is a high-performance embedded industrial tablet touch computer designed for industrial automation. It integrates advanced fanless cooling technology, robust and durable fully enclosed structure and excellent touch display performance, and can operate stably and reliably in a variety of harsh industrial environments, providing strong support for tasks such as data acquisition, monitoring and management, and automation control in the industrial production process.
Product parameters
| selectable Host configuration | Intel Celeron J1900, DDR4-8G, SSD-128G | |
| Intel Celeron J6412, DDR4-8G, SSD-128G | ||
| Intel Core i3-3217U, DDR4-8G, SSD-128G | ||
| Intel Core i5-3317U, DDR4-8G, SSD-128G | ||
| Intel Core i3-7100U, DDR4-8G, SSD-128G | ||
| Intel Core i5-7200U, DDR4-8G, SSD-128G | ||
| Android optional Host configuration | Android A133/2G/16G | |
| Android RK3288/2G/16G | ||
| Android RK3568/2G/16G | ||
| Android RK3568/2G/16G | ||
| Android 3399 4G+32G | ||
| Android configuration host PK | |||
|---|---|---|---|
| CPU model | RK3288 quadrinucleus | RK3568 quadrinucleus | RK3399 hexacaryon |
| architecture | CORTEX-A17 | CORTEX-A55 | Dual-core CORTEX-A72 + Quad-core CORTEX-A53 |
| Dominant frequency | 1.8GHZ | 2.0GHZ | 1.8GHZ |
| Android system | Android 5.1/6.0/ 7.1/8.1 | Android11 | Android 7.1/8.1/9.0 |
| Running points | 75,990 points | 128,342 points | 97,558 points |
| name | argument | name | argument |
|---|---|---|---|
| Model number | SK-YPC-JD | Hard disk capacity | 128GB |
| Memory capacity | 128GB | Warranty period | 12 months |
| Screen size | 15 inches | Operating system | other |
| Energy efficiency class | Second level | Whether touch screen | is |
| Memory type | other | Video memory capacity | 8GB |
Product Display

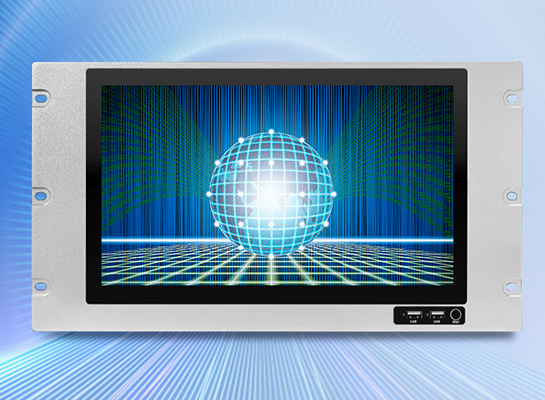

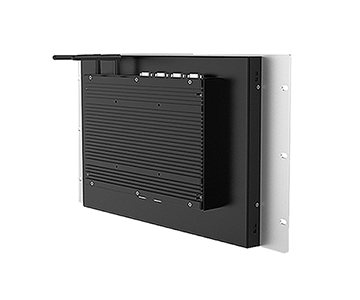

Fully enclosed rack design
The device is uniquely rack-mounted and can be embedded into standard cabinets, saving space and facilitating integration. The fully enclosed high-strength shell is resistant to dust, moisture, oil, etc., to ensure the normal operation of internal components, enhance reliability and stability, and reduce fault downtime. The compact structure realizes multi-function integration in limited space, with good compatibility and scalability, and can seamlessly connect with other industrial automation equipment to build a complete system.

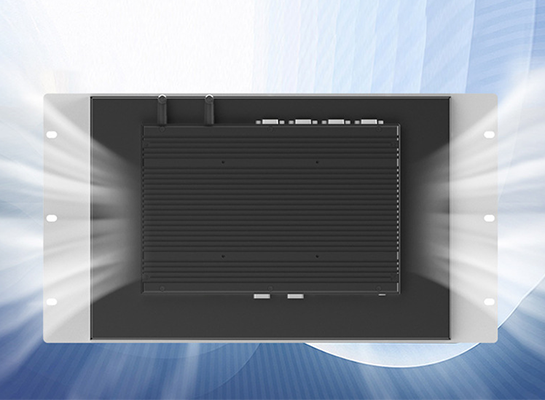

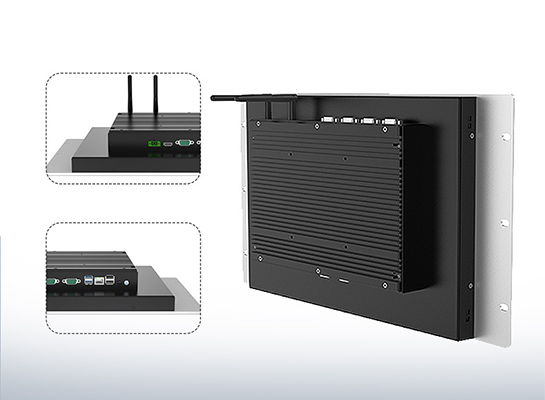

Efficient fanless cooling technology
Innovative fanless cooling design to overcome traditional fan cooling noise, dust accumulation and vulnerability. Through the internal structure optimization and large area of aluminum heat fin, thermal silicone and other high-performance materials, fast heat transfer, ensure long-term stable operation of equipment at low temperature, extend life, improve reliability, suitable for laboratory, precision manufacturing workshop and other noise-sensitive environment, to create a quiet and clean working atmosphere.

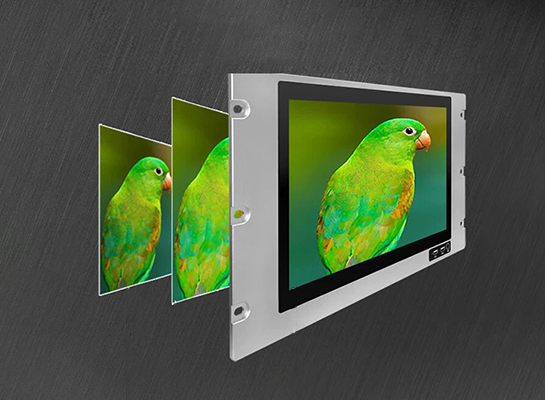

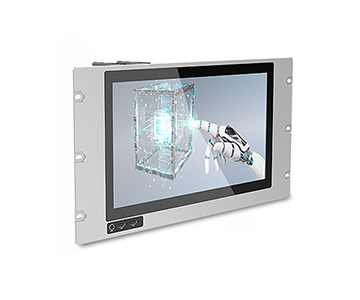

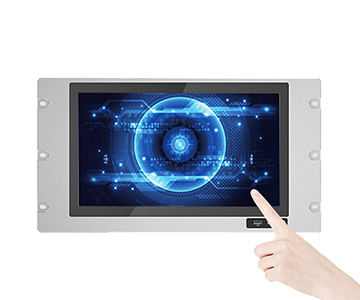

Excellent touch display performance
Equipped with high-definition LCD screen, good picture quality, strong color reproduction, can be customized size and resolution according to demand, clearly display all kinds of industrial information, give the operator accurate visual feedback. Advanced capacitive touch technology, support multi-touch, sensitive and accurate response, finger touch can complete a variety of operations, to achieve convenient human-computer interaction. Touch screen after special treatment, wear resistance and scratch resistance, adapt to frequent touch, long-term use can still maintain good performance.

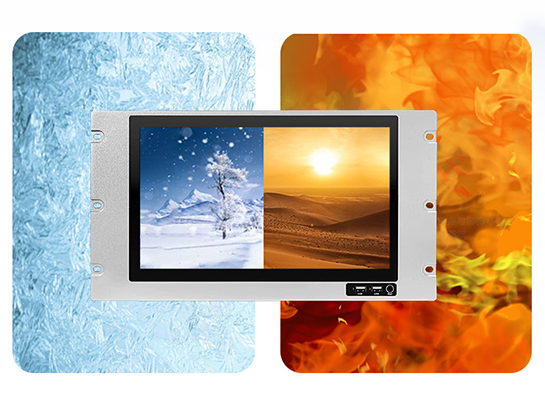

Wide temperature operating range
It can work normally in a wide temperature range (-20 ° C to 60 ° C) and adapt to various industrial environmental conditions in cold and hot summer. Whether it is in a high-temperature factory floor, a cold outdoor construction site or an industrial storage environment with drastic temperature changes, the SK-YPC-JD industrial control machine can operate stably to ensure the continuity and reliability of the industrial production process.

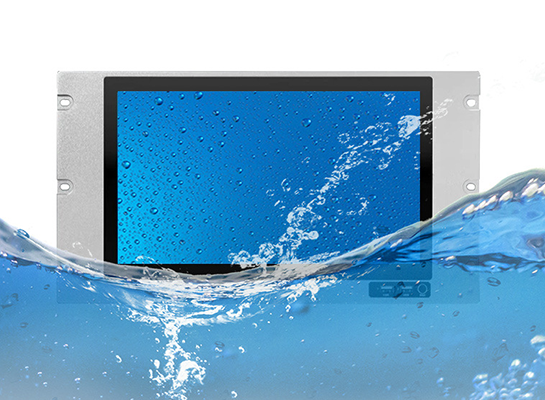

High level of protection
It adopts the seamless full-screen panel design, and is treated by the four corner arc and the bezel chamfer, which makes the overall beauty of the cabinet match. With IP65 protection grade, it can effectively block dust, water droplets, oil, withstand certain mechanical shock and vibration. High protection gives it excellent anti-interference in harsh industrial environments, stable operation, reduce environmental failures, damage, and reduce maintenance costs and downtime.
Cold rolled steel plate three-dimensional heat dissipation
Fully enclosed design, aluminum plate and metal back shell porous heat dissipation
Low noise, good heat dissipation effect, strong stability
Greatly improve the machine running speed, effectively ensure the whole machine accessories life
Quality Control
Industrial control machine follows strict quality control system. The selection of raw materials is strict, the purity of the all-aluminum body material is high, and the corrosion resistance is strong. The touch screen and electronic components are from high-quality suppliers and have been tested multiple times. Precision production process control, high CNC machining precision of all aluminum fuselage, vacuum bonding technology for touch screen to ensure no defects, electronic components welding with advanced equipment and accurate setting of parameters, and products through multi-link testing, including performance, compatibility, stability and environmental adaptability testing, to ensure efficient and stable operation in complex industrial scenarios. Build a solid foundation of quality for industrial applications.
Application Cases
Industrial automation production line: In the automatic production line, SK-YPC-JD industrial control machine can be used as a man-machine interface (HMI) equipment, to achieve real-time monitoring of production equipment, parameter setting, fault alarm and other functions. Operators can easily operate and manage production lines by touching the screen, improving production efficiency and product quality, while reducing errors and risks from human intervention.
Intelligent storage management system: used for the monitoring and management of intelligent storage equipment, such as automated three-dimensional warehouses, shuttle vehicles, stackers, etc. Through the integration with the warehouse management software, the warehouse inventory information, cargo location, equipment operating status and other data can be displayed in real time, and the remote control and scheduling of the storage equipment can be realized, the storage space utilization rate can be improved and the efficiency of goods in and out of the storage can be improved, and the intelligent storage logistics management can be realized.
Industrial process control system: In the process control system of chemical industry, electric power, metallurgy and other industrial fields, as the operation terminal of the control center, it is responsible for collecting and processing the field sensor data, displaying the process picture, and realizing the accurate control and adjustment of the production process. With its stable and reliable performance and rich communication interfaces, it can work closely with various industrial controllers (such as PLC, DCS) to ensure the safe, stable and efficient operation of industrial production processes.
Intelligent transportation and monitoring system: can be applied to traffic signal control, highway toll station, parking lot management and other intelligent transportation system, as a monitoring terminal and operation interface. Real-time display of traffic flow information, vehicle driving status, toll data, etc., and realize remote monitoring and management of traffic facilities. At the same time, in the urban monitoring system, it can be used as a surveillance video display terminal for viewing and analyzing the monitoring screen, providing strong support for social security management.
Company Introduction
Founded in 2012, Sunke is a state-level high-tech enterprise with its own brand. It has subsidiaries in Beijing, Shanghai, Guangzhou, Foshan, Shenzhen and Hangzhou, with nearly 400 employees.
After more than 10 years of development and accumulation, Senke has formed a diversified business model of R & D design, production and manufacturing, system integration, e-commerce, sales and service, and its main products are industrial three defense terminals, industrial computer, industrial tablet computer, touch teaching machine, LCD advertising machine, LCD splicing screen, LED full color screen and other display products. Its products are widely used, covering industrial Internet, Internet of things, artificial intelligence, high-end equipment, commercial display, big data and other national strategic emerging industries and key areas, industrial products and commercial display products in the Internet market market share has been in the forefront of the industry for many years.
Adhering to the R & D concept of "innovation as vitality", Sunke has established an independent R & D technical team accounting for 20% of the total number of employees, with a mature and forward-looking R & D system, and has more than 100 core hardware and software patented technologies. In 2022, the Shanghai company passed the enterprise certification of specialized new little giant. With its strong hardware and software innovation and iteration ability, Senke has built a solid technical barrier, which has won the high recognition and trust of the domestic and foreign markets, and also made Senke grow into one of the high-tech enterprises with independent core technologies in the field of commercial display in China.
Service
Quality assurance service
The company provides a warranty period for the products sold: LCD screen protector for one year, wire electronic material for three years.
The warranty period is one year from the date of your receipt of the goods. Warranty period, is the product itself quality problems or other non-human factors caused by the failure, you can get free product warranty service (repair within three months, we bear the round-trip freight; If more than three months, each bear the shipping costs). Outside the warranty period, our company charges maintenance, if you need to return to the factory maintenance by the customer to bear the logistics costs.
During the warranty period, our company will repair the damaged parts caused by product quality problems free of charge; If the parts are replaced outside the warranty period or the parts are damaged artificially due to improper use by customers during the warranty period, our company will charge the material cost and manual maintenance fee.
In any of the following cases, the company does not provide free warranty service, but may apply a fee maintenance service:
- The product exceeds the warranty period stipulated by the Company;
- Failure and damage caused by failure to use, maintain and keep in accordance with the instructions for the use of the product;
- Damage caused by the use of a power supply other than the specified voltage;
- Cannot produce warranty card and valid purchase certificate;
- The product does not have any Logo of the company, or the product label and logo of the company are torn or replaced;
- Damage caused by water or other solution caused by improper use of equipment;
- Failure and damage caused by natural disasters and other force majeure (such as earthquake, fire, etc.);
- Failure and damage caused by handling, extrusion, bump, scratch, impact and high temperature after purchase.
- Long-term use of the product appearance wear is not covered by the warranty.
