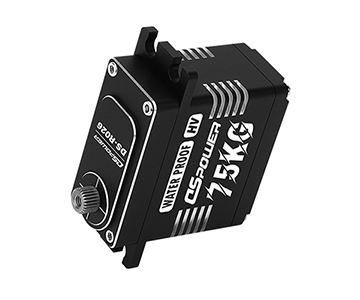

Product Description

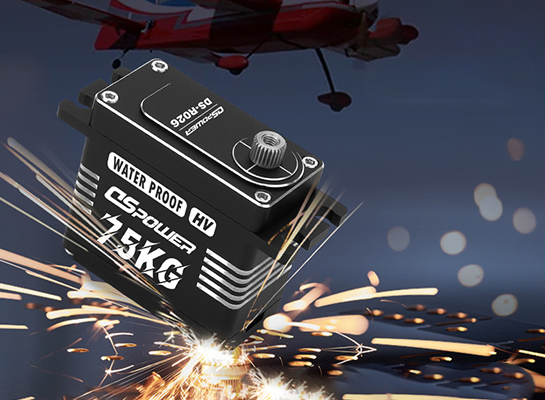

The DS-R026 high-torque digital servo is a masterpiece of industrial-grade power control. With an impressive 75KG super torque, it can easily drive heavy machinery under the most challenging working conditions, showing unparalleled power. The all-metal shell is extremely sturdy and effectively resists impact and erosion in various harsh environments, ensuring the stable operation of the internal precision brushless motor and complex electronic components, greatly extending the service life of the product. Advanced digital control technology is perfectly integrated into it. Accurate signal transmission and fast response capabilities enable the servo to perform accurate and correct actions for each command. Whether it is the precise positioning of large robotic arms or complex actions in industrial automation production, DS-R026 can meet the needs with excellent performance and become an indispensable key component in many high-end industrial applications.
Product parameters
| Parameter name | Parameter Value |
|---|---|
| Operating voltage range | 6.0-8.4V DC |
| No-load current | ≤350mA at 7.4V |
| Locked rotor current | ≤12A at 7.4A |
| Locked rotor torque | 70 Kgf.cm at 7.4V |
| Direction of rotation | CW(800~2200μs) |
| Signal width range | 500~2500us |
| Operable angle | 180°±10° |
| Actuable angle range | 360° |
| Weight | 91.5± 5.0g |
| Communication method | PWM |

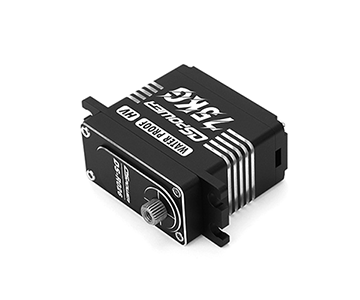

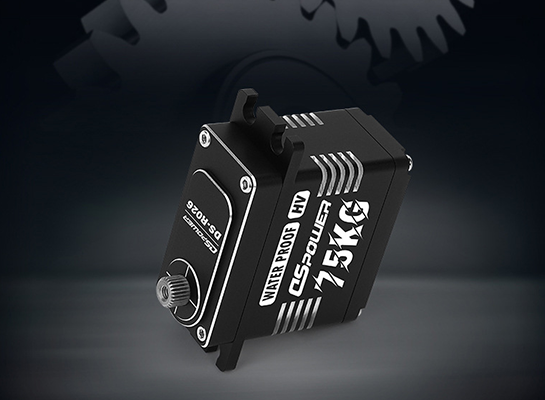

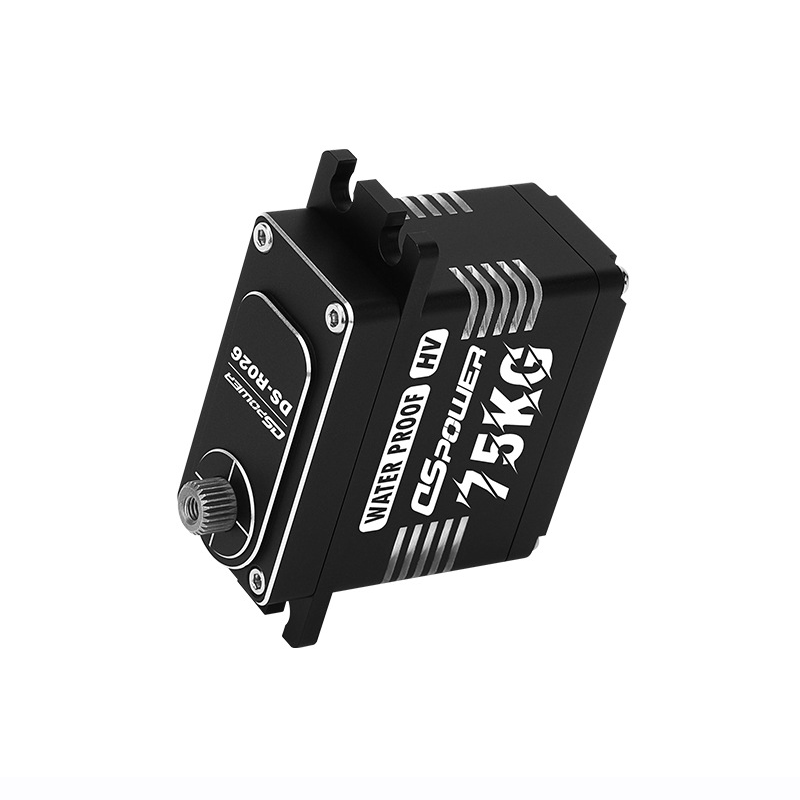

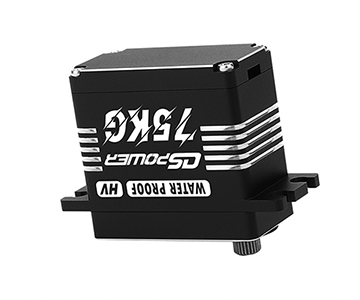

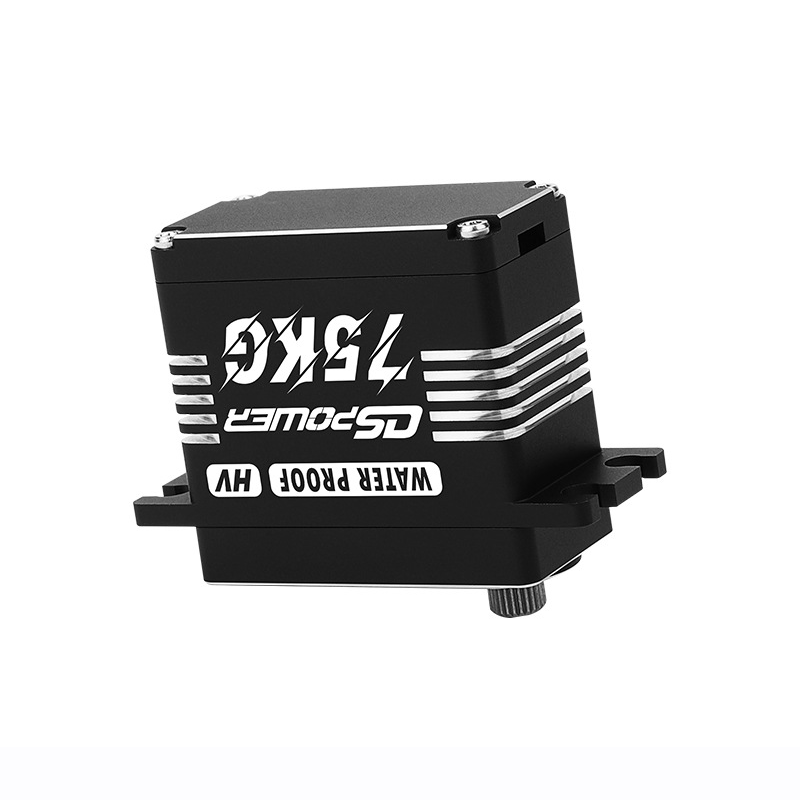

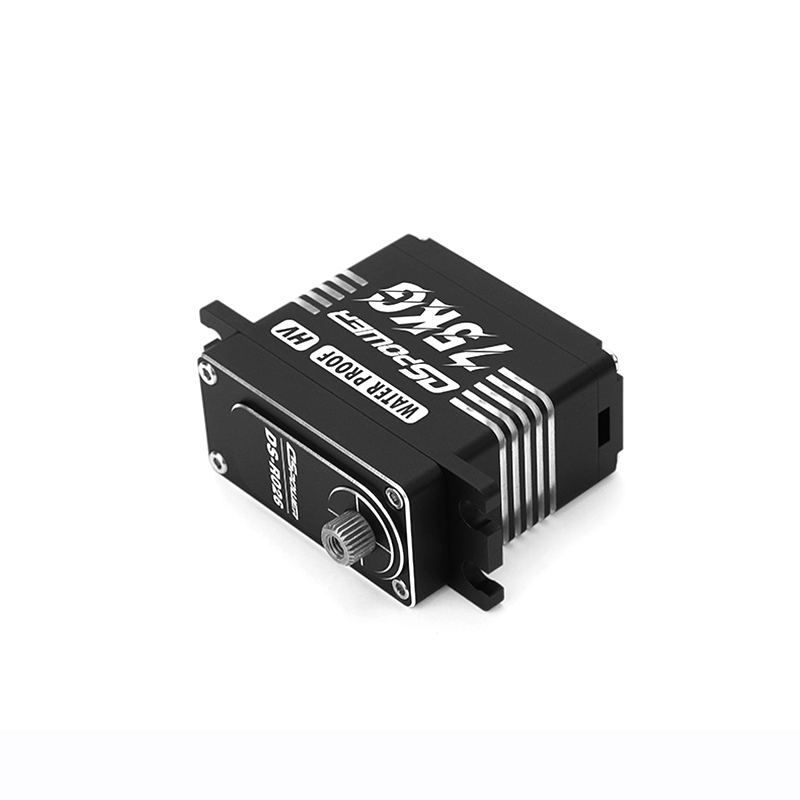

Product Display

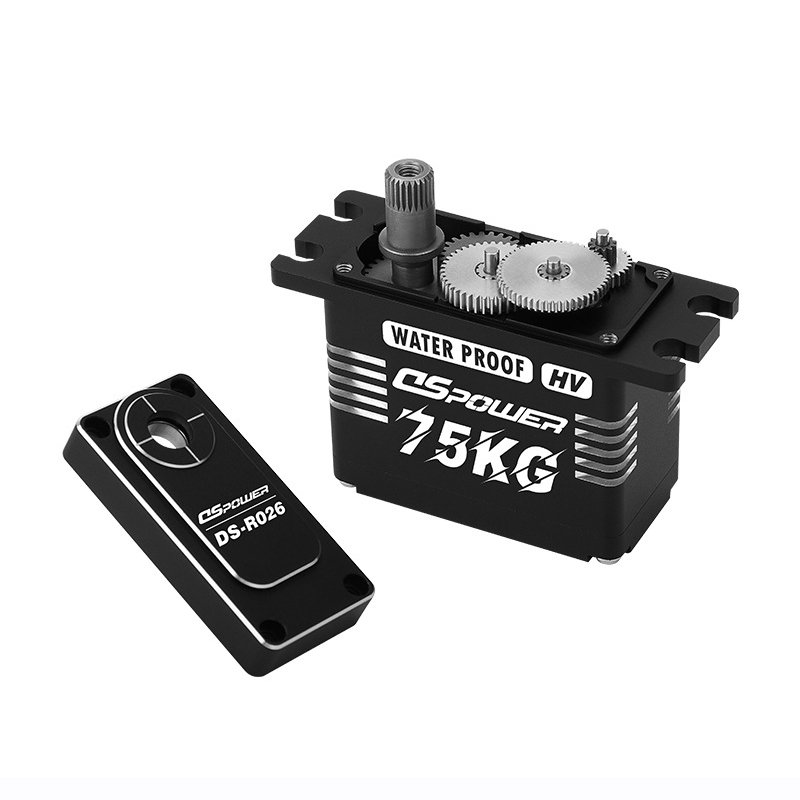

All-metal gear + brushless motor
Stronger and longer service life
With magnetic encoder, multi-turn precise control is achieved
Perform precise angle control and multi-turn position control

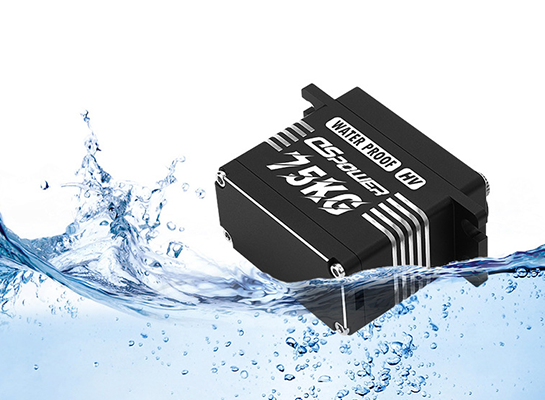

Good waterproof performance
Full metal body, high precision, good sealing, no water ingress

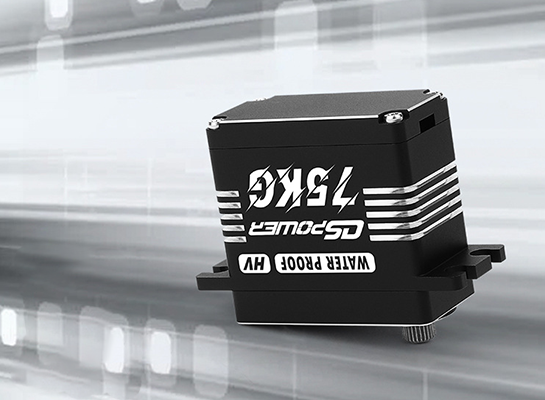

High torque and fast speed
The maximum speed can reach 0.05s/60° and the maximum torque can reach 75 kg

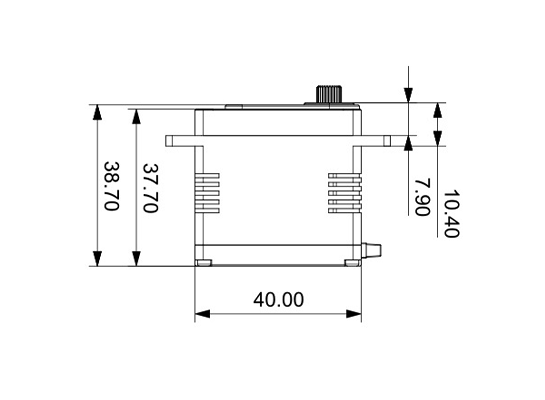

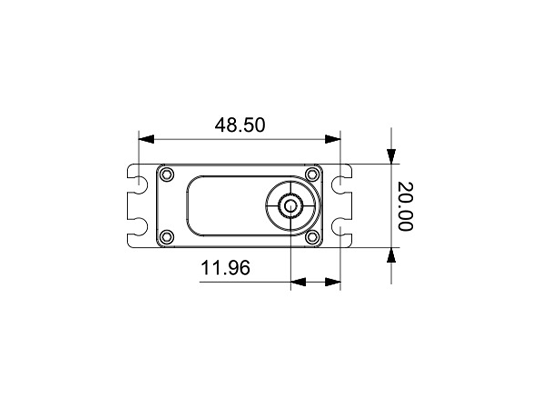

Size & Interface
Quality Control
- In our company, quality control runs through every link of production and operation. Advanced testing equipment and professional quality inspectors work closely together to accurately control product quality, and ensure that products always maintain excellent quality from the production line to the hands of customers with high standards and strict requirements.
- The company always adheres to the strict quality control concept, starting from the source, optimizing the production process, strengthening quality inspection, and carving each product with ingenuity, so that high quality and reliability become the distinctive label of the company's products, winning the trust of customers and the recognition of the market.
Application Cases

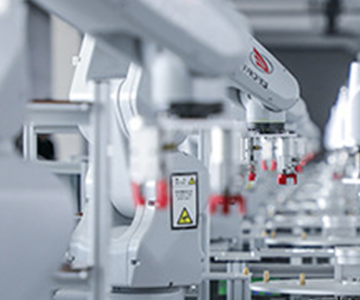

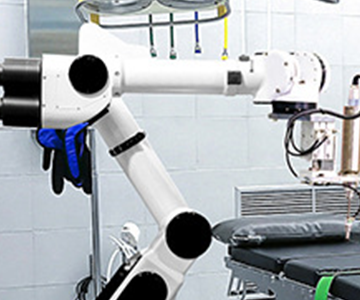

DS-R026 high-torque digital servo is widely used. On industrial robotic arms, its powerful 75KG torque can accurately control the handling of heavy objects; in construction equipment, it can stably control the opening and closing of large valves; in the field of heavy robots, it provides strong power for joints to ensure flexible operation in complex tasks. The all-metal brushless structure ensures stable and efficient operation, making it a powerful choice for many high-end application scenarios.
Service
Adhere to self-production and self-research: strictly control from design to production process
Adhere to 100% full inspection: ensure the stability and consistency of shipment quality
Adhere to good materials: good craftsmanship + good materials + good quality, the ultimate cost-effectiveness
Adhere to customer-centricity: match the appropriate solution according to the needs, and refuse performance redundancy
Modular R&D thinking, product functions can be matched at will: reduce customization and shorten the R&D cycle
