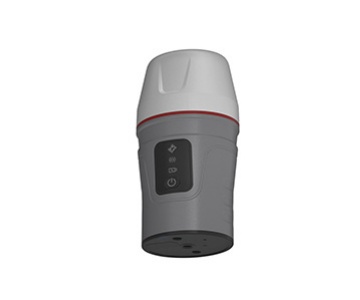

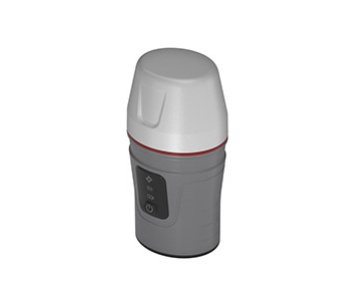

Product Description
Compact and lightweight: the overall design is compact, moderate weight, easy to carry and install, especially for users who need to move frequently in different locations, such as field mapping, agricultural surveying and other fields, and can be easily deployed and used in a variety of working environments.
Product parameters
| GNSS configuration | GPS: | L1C/A,L2P,L1C,L2C,L5 | Electrical and interface characteristics | Supply voltage: | 5V/9V±5％VDC |
| BDS-2: | B1I,B2I,B3I | Power consumption: | ≤1.7W | ||
| BDS-3: | B1C,B2a,B2b,B2b-ppp | Overvoltage protection voltage: | Within 30V, VBUS voltage exceeds 9.99V protection | ||
| GLONASS: | G1C,G1P,G2C,G2P,G3 | Electrical interface: | USB2.0 Type-c Indicates the interface | ||
| Galileo: | E1,E5b,E5a,E5AltBoc,E6c | Charging function: | Battery charging time ≤4h (QC2.0 fast charge) | ||
| QZSS: | L1C/A,L2C,L5,L1C,L1s,L5s,L6 | Working hours: | ≥20h | ||
| NAVIC: | L5 | Communication configuration | Network standard: | LTE-FDD、LTE-TDD、WCDMA、 TD-SCDMA、CDMA、GSM | |
| SBAS: | L1C/A,L5C | Data Protocol: | LTE-FDD、LTE-TDD、DC-HSDPA、 HSPA+、HSDPA、HSUPA、WCDMA、 TD-SCDMA、CDMA、EDGE、GPRS | ||
| Number of channels | Number of parallel channels: | 1590个 | Bluetooth: | BT4.1 Dual-mode Bluetooth | |
| Accuracy and reliability | Signal recapture: | ≤1s | Physical characteristics | Shell material: | High molecular sodium magnesium material |
| First positioning time: | Cold start :≤30s Hot start :≤10s | Size: | 80*70*150mm | ||
| Pseudo range accuracy: | Pr 10 cm or less, Cp 0.005 c or less (Note: Pseudo-range accuracy :L2P(GPS) B1(BDS)/≤0.13m) | Weight: | ≤400g | ||
| PVT accuracy: | H≤1.5m，V≤3m(1σ) | SIM Card: | eSIM card | ||
| RTD accuracy: | H≤0.3m，V≤0.6m(1σ) | Center rod interface: | M8 internal thread connection | ||
| RTK initialization time: | <5s(baseline length D≤10km) | Button: | Power switch | ||
| Dynamic difference accuracy: | H: ±(8+1*10-6*D)mm V: ±(15+1*10-6*D)mm D is the base line length in millimetres (mm) | R50 Hand thin | Operating system: | Android 11.0 | |
| Data update rate: | Measure & position 1Hz, 2Hz, 5Hz, 10Hz | CPU: | Qualcomm Snapdragon | ||
| Data integrity rate: | ≥99% | Storage: | 4GB+64GB | ||
| Laser tilt measurement: | 2m ranging, laser tilt measurement 3D error ≤5.5cm (Tilt Angle less than or equal to 30°) | Network: | Comes with eSIM card, 4G full Netcom | ||
| Output data format | NMEA-0183: | GPGGA、GPGSV、GPGSA、GPRMC、 GPVTG、GPZDA | Battery: | 9000mAh, 30h, no worries | |
| Sinan binary format: | cnb(Sinan Custom) | Touch screen | 5.5 inches, 500nits | ||
| RTCM2.x: | RTCM1B、RTCM3B、RTCM9B、 RTCM1819B、RTCM59B | Keyboard: | 9 grid number keyboard + British full keyboard | ||
| RTCM3.0: | 1004、1005、1006、1007、1008、1011、 1104、1033 | Resolution: | 1920*1080 resolution, sunlight visible | ||
| RTCM3.2: | MSM4、MSM5 | Waterproof and dustproof: | IP67 |

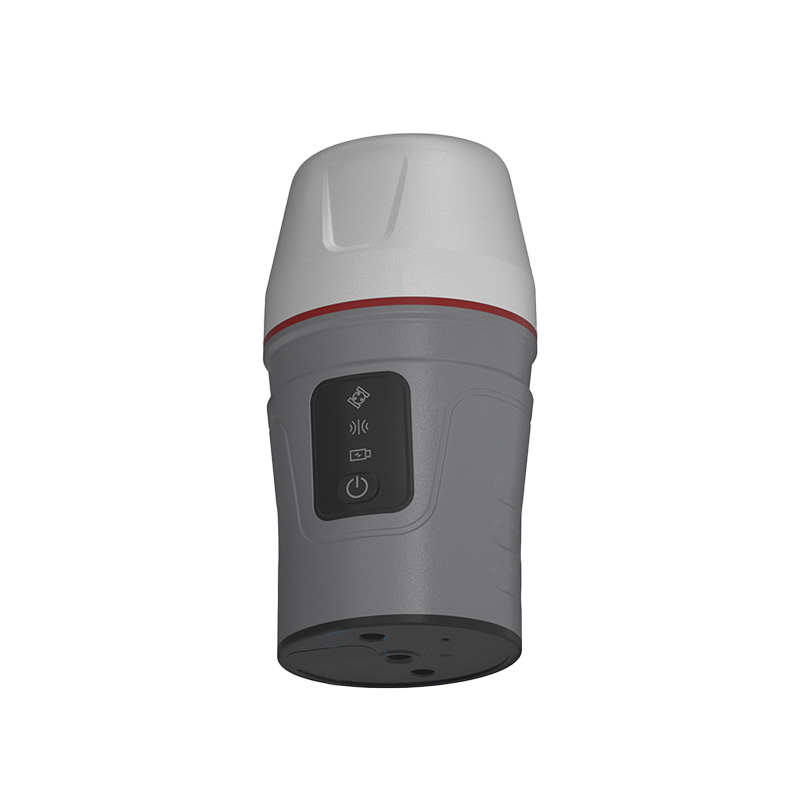

Product Display

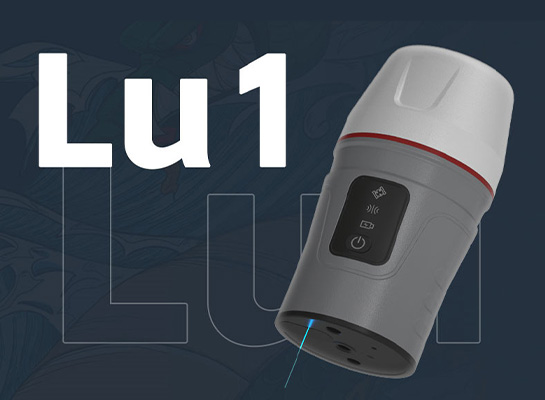

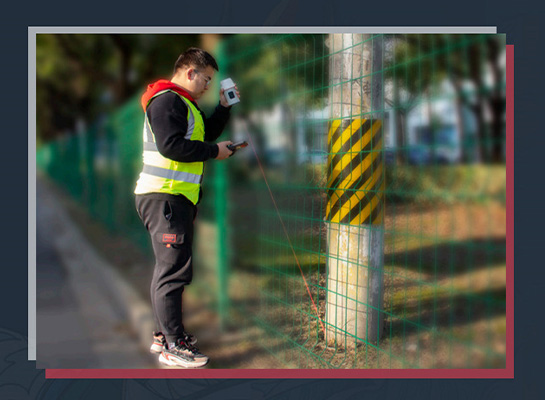

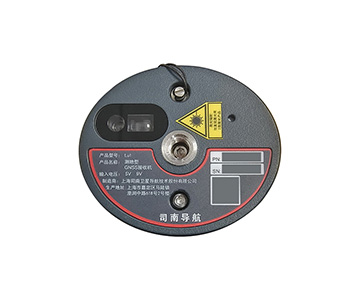

Drop the centering stick
I'll pick up where the laser goes
Survey lofting
Fast, accurate, steady and ruthless
Revolutionary generation of RTK equipment

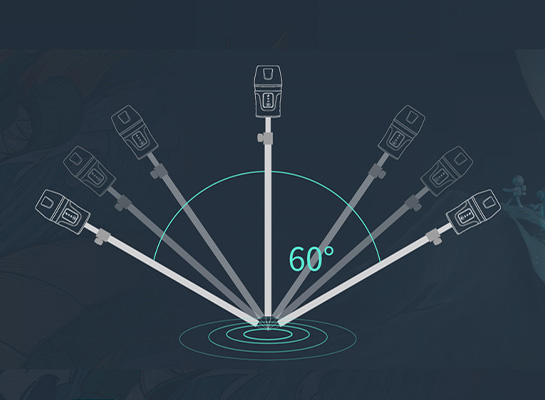

Third generation inertial navigation
Measurement of incline within 60°
No need to look at the bubbles
You can test it any way you want

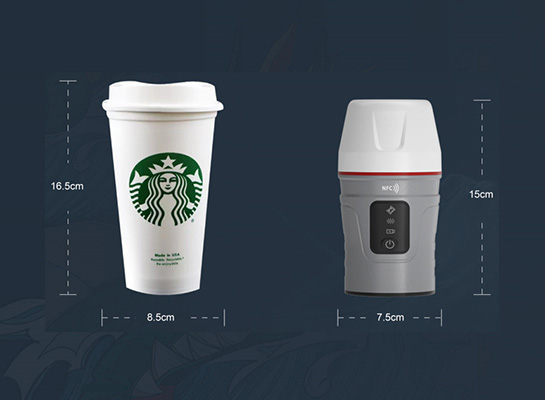

Easy to hold and carry
New model design, fit the human body hand-held drum design, exquisite structure,
Weighing only 380g, it is light and portable for measurement acceleration.
Ingenuity and thoughtful design
Integrated cavity, no fear of electromagnetic shielding, removable built-in battery design, two screws
The wire can be easily changed. It is easier to replace the battery, and the host is still reliable after removal.

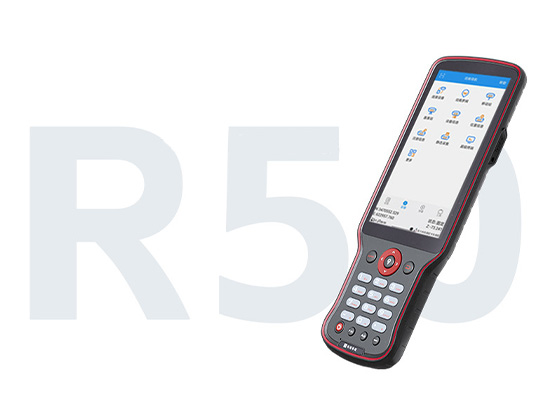

New generation engineering manual R50
Qualcomm Snapdragon processor, Android12 operating system
The software runs at a new speed, the CAD is not stuck in seconds, and the operation is smoother.
QC3.0 fast charge, large capacity battery, long life
Battery capacity 7000mAh, fast charging, durable work, worry-free.
5.5-inch HD Sunshine screen
Still clear under strong light, CAD base map can be seen.
Quality Control
Raw material control: According to the industry demand, global select suppliers, with high-precision equipment to strictly screen raw materials from electrical performance, mechanical strength accuracy and other dimensions, to ensure that the quality exceeds the industry standard, build a solid foundation of high quality products.
Production process optimization: Customize the fine process according to the characteristics of the application field, automatic precision assembly for the production of geographic information acquisition equipment, modular assembly for the manufacturing of fine agricultural navigation equipment, and set up multiple detection points to ensure the accuracy of each link and product consistency, and meet the requirements of high-precision scenarios.
Performance verification system: Build a comprehensive and targeted verification system, simulate the actual scenes of various industries in depth testing, safety engineering products to do extreme environmental reliability verification, industrial measurement products and professional instruments compared calibration, only qualified products to enter the market, to provide users with reliable satellite navigation solutions.
Application Cases
Agricultural field: It plays an important role in the automatic driving of agricultural machinery, farmland information collection, precision irrigation, etc., helping farmers realize the automation and precision of agricultural production.
Company Information
Sinan Navigation integrates the great achievements of China's high-precision GNSS technology, has a local R & D team specializing in high-precision GNSS core technology for many years, and more than 40 main technical backbone has won provincial and ministerial science and technology awards. Under the leadership of industry leader Dr. Wang Yongquan, Sinan Navigation has broken many foreign technical barriers, broken through the key technical bottlenecks of high-precision GNSS core algorithms, chips, boards, receivers, applications and industrialization, and developed a number of mature high-precision multi-mode and multi-frequency GNSS boards and receivers, filling the gaps in the field of high-precision GNSS at home and abroad for several times. At the same time, it is also the first satellite navigation enterprise that truly realizes the industrial application of Beidou in China.
Following the trend of compatibility and interoperability of the world's four major satellite navigation systems, Sinan Navigation flexibly meets the differentiated needs of users in different industries. Its business covers traditional surveying and mapping, geographic information, intelligent transportation, fine agriculture, machinery control, safety engineering, industrial measurement and other high-precision application fields, and its sales network covers more than 20 countries and regions around the world.
Sinan Beidou Industrial Park, with a total construction area of about 26,000 square meters invested by Sinan Navigation, is planned to be officially put into use in 2015, as the main research and development, production and application center of Beidou high-precision GNSS board in China, and will become a Beidou industrialization base that drives Shanghai, radiates the whole country and affects the world.
