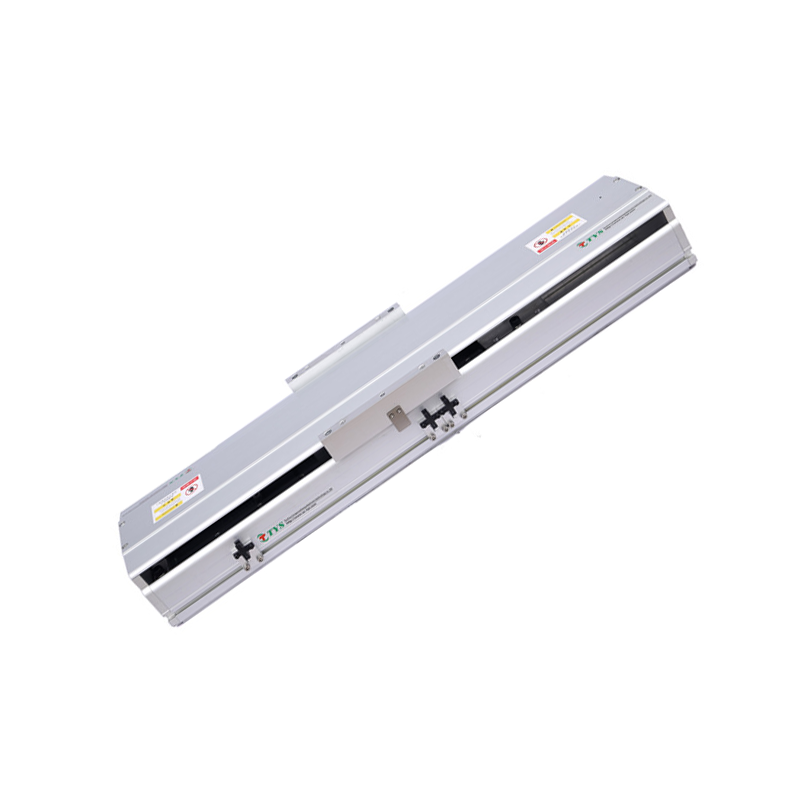

Product Description
Linear module is a specialized production of precision functional parts, is a highly integrated transmission platform, also known as linear slide, linear slide, electric cylinder, electric slide, mechanical arm, manipulator, etc., can achieve the linear movement of the load through the combination of various units, so that the automation of light load is more flexible and positioning is more accurate.
Product parameters
| name | argument |
|---|---|
| Motor output | 400W |
| One-way repeated positioning accuracy | ±0.02mm |
| Ball screw outside diameter | 16mm |
| Ball screw leads | 5mm，10mm，16mm，20mm |
| Maximum speed | 250mm/s，500mm/s，800mm/s，1000mm/s |
| Maximum load level use | 60kg，45kg，35kg，30kg |
| Maximum load is used vertically | 20kg，15kg，13kg，10kg |
| Rated thrust | 615N，307N，192N，154N |
| journey | 50~1200(mm)/(50 interval) |

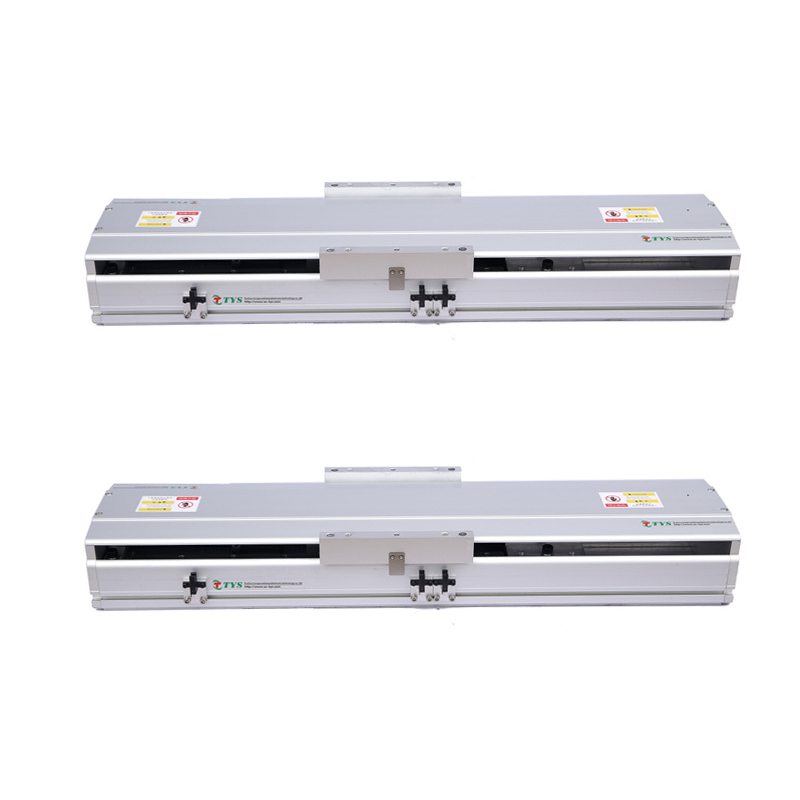

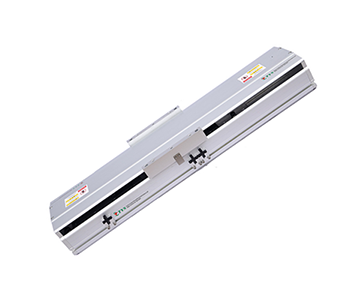

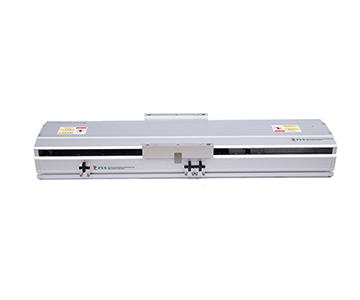

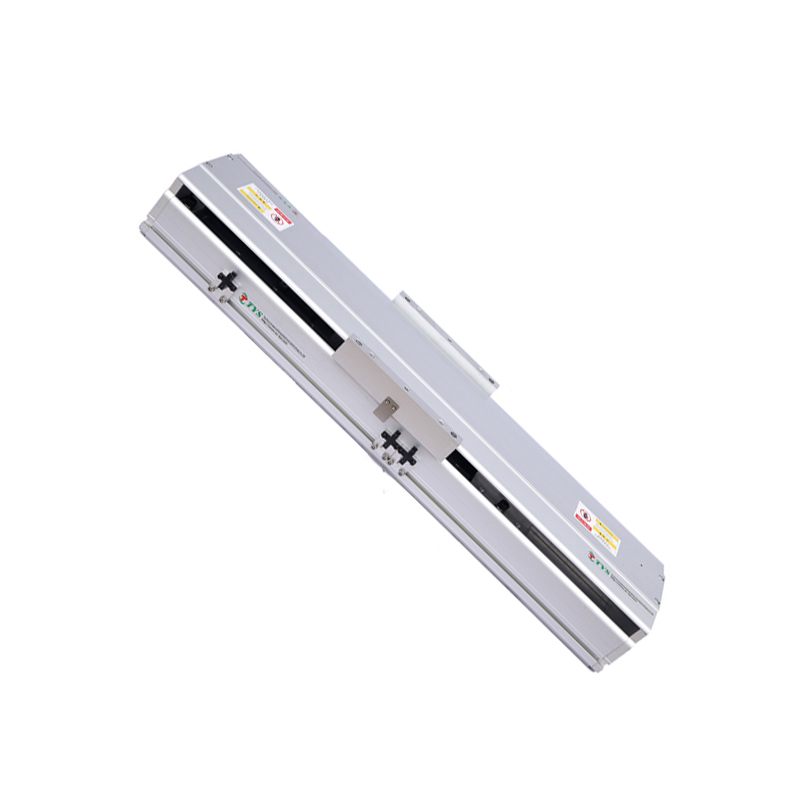

Product Display

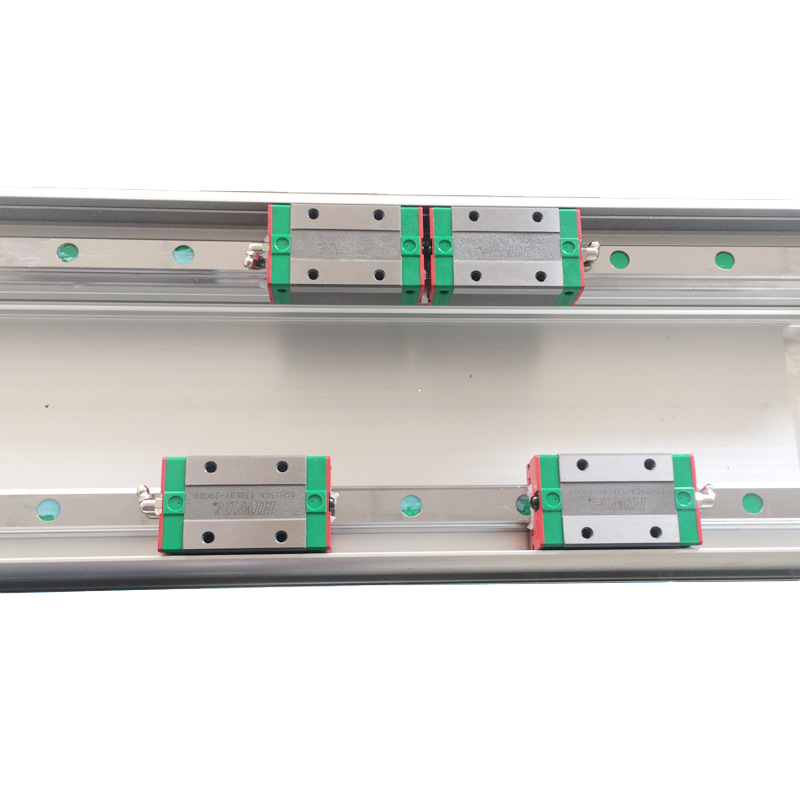

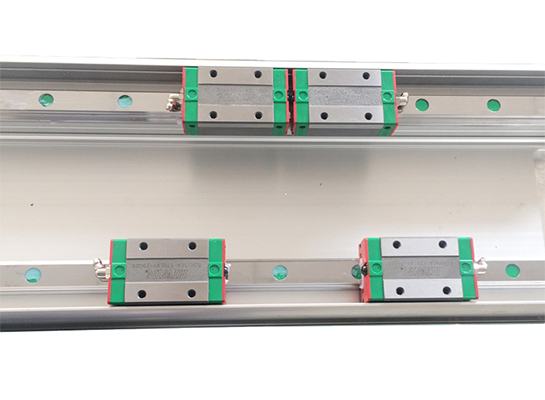

Connection details: slider and screw seal connection fixed, (silver) four slider guide. Smooth sliding, large bearing capacity.
Screw details: TBI ball screw imported from Taiwan, high precision, low noise, stable transmission.
Linear modules are usually used in conjunction with power motors to convert electrical energy into linear motion mechanical energy without the need for any other intermediate conversion mechanism. Other required workpieces can be installed in the slide block to form a complete transport equipment, with the motor positive and negative rotation, to achieve the automatic cycle of the workpiece reciprocating motion. It can achieve mass production of equipment and intensive production of equipment.

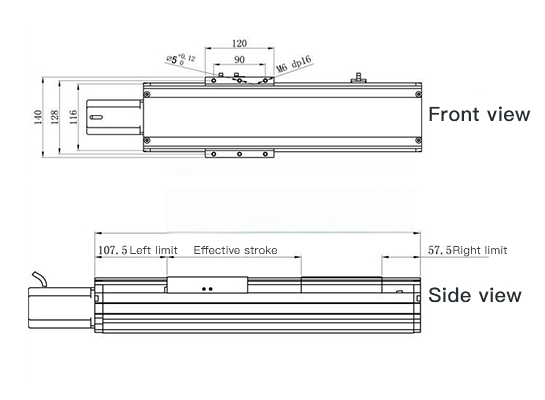

Size & Interface

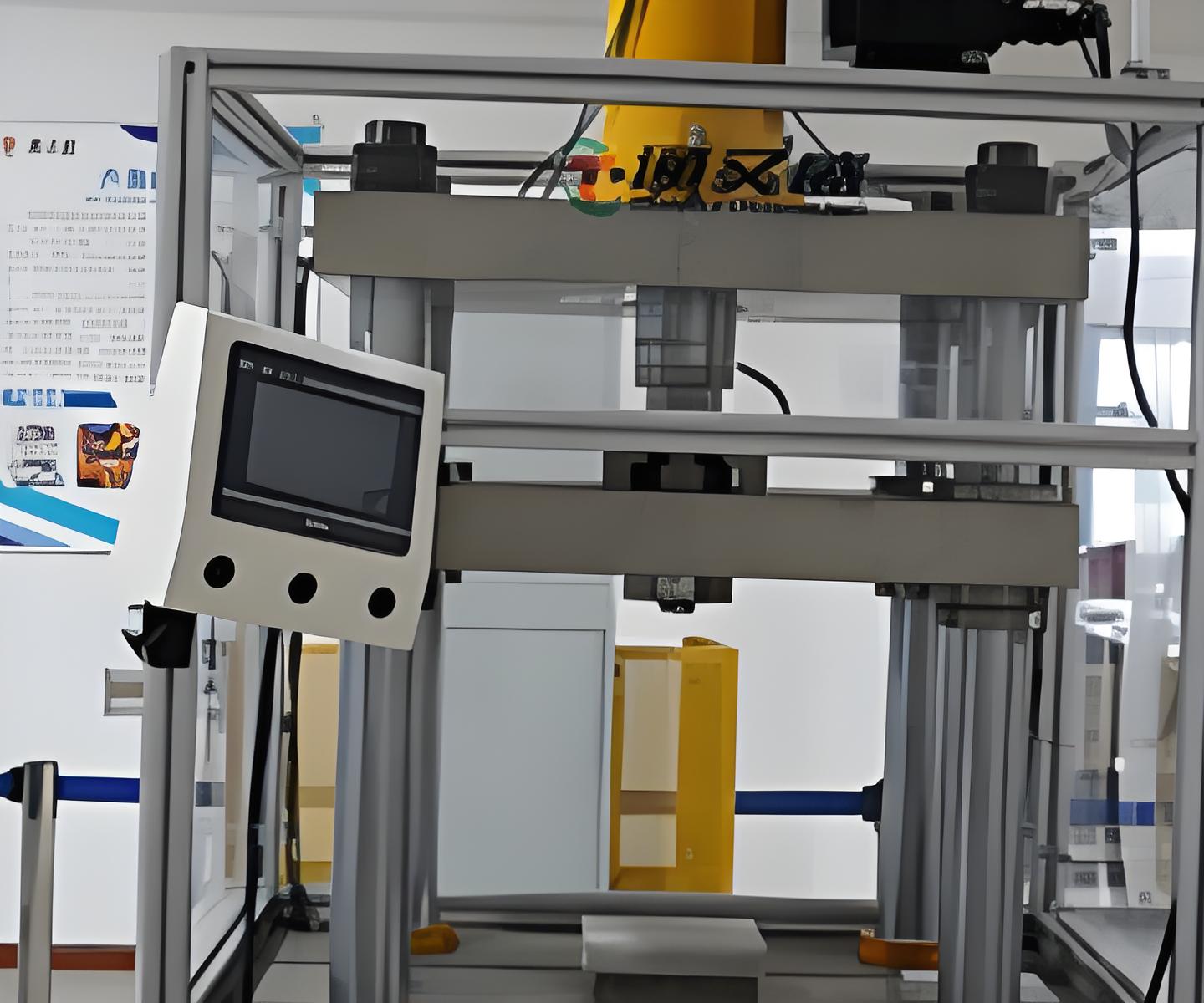

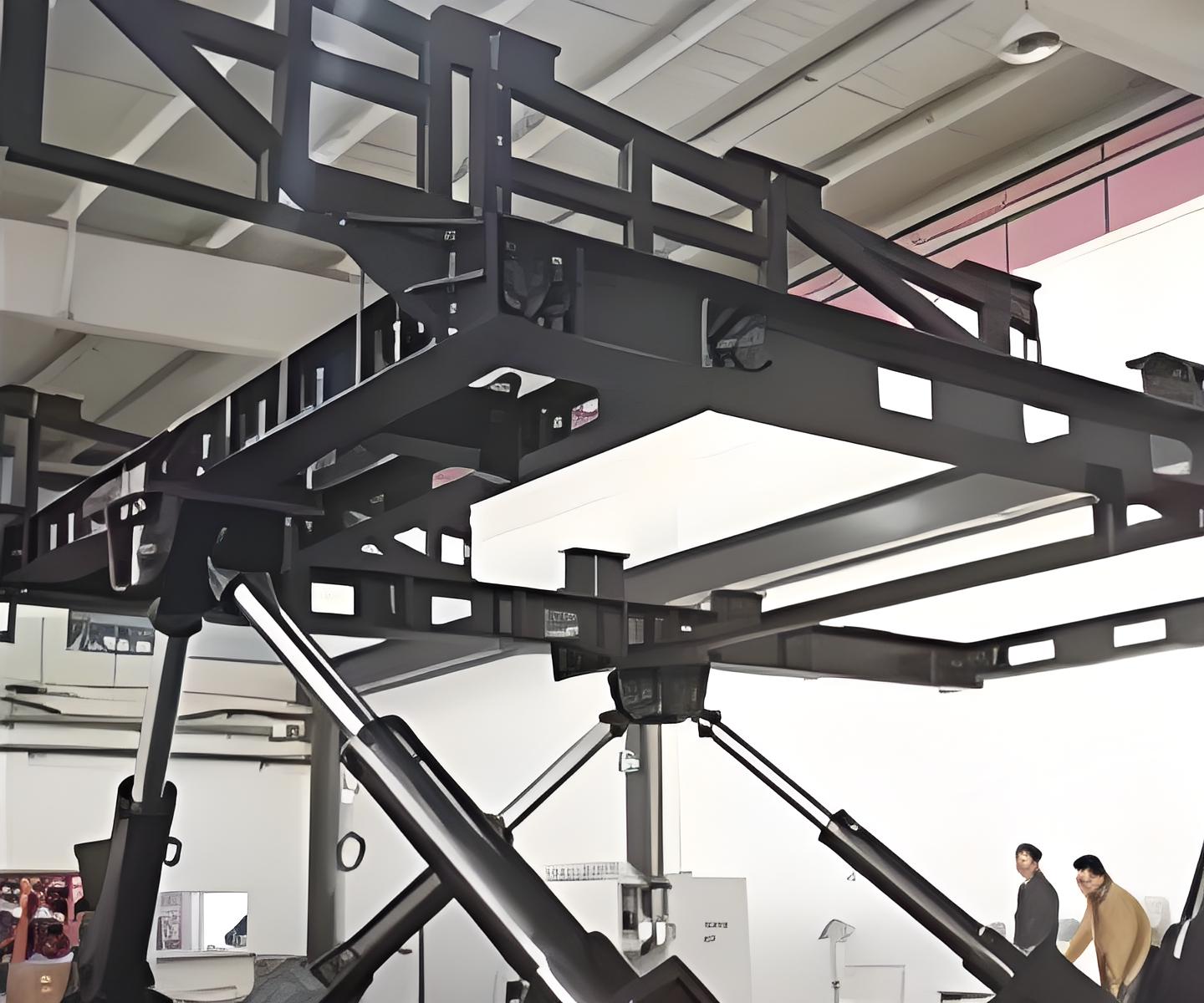

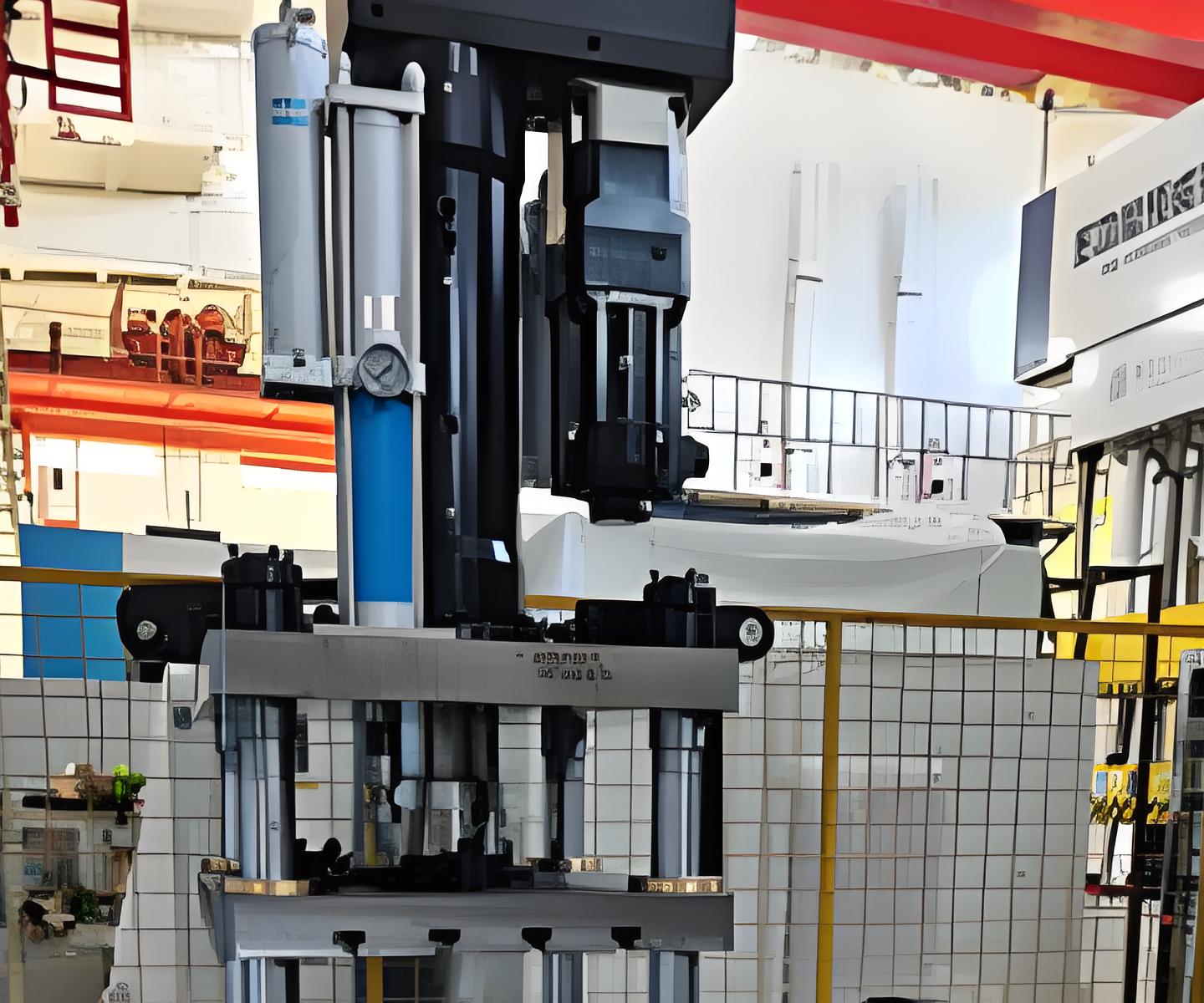

Application Cases
Suzhou Tongyousheng Electronic Technology Co., LTD., specializing in the production of servo electric cylinder, linear slide module, servo press, multi-dimensional free movement platform robot, robot series products. And provide Mitsubishi, Panasonic industrial control products, PLC, servo motor, inverter, touch screen, guide rail, screw, reducer series products.
Company Information
The company introduces foreign advanced technology, has specialized production equipment, advanced CNC processing equipment, high-precision test equipment, and has senior mechanical transmission designers, advanced design software, after years of struggle and struggle, Suzhou Tongyousheng Electronic Technology Co., Ltd. has established a leading advantage of "large scale, high output, stable quality" in the industry. Determined to strive for the development of Industry 4.0, we cooperate with a number of state-owned enterprises, top 500 units and universities. To provide customers with simple operation, excellent efficiency, stable performance, reasonable price of product equipment.
Cooperative partner
Service
- Pre-sales -- Help reasonable selection: project evaluation engineers docking, in-depth communication to understand the use of conditions, to confirm the appropriate selection and specifications, to give customers reasonable suggestions, effectively avoid problems in production
- Sales -- Ensure production delivery: dedicated engineers and business specialists docking, project managers to process control, active communication and interaction, timely detection of problems and timeliness communication, for the production delivery escort
- After-sales -- Timely response processing: after-sales engineering personnel docking, the same day response; And timely to the scene to confirm, discuss, solve and deal with problems, to meet customer production needs, to avoid downtime and production
