Product Description

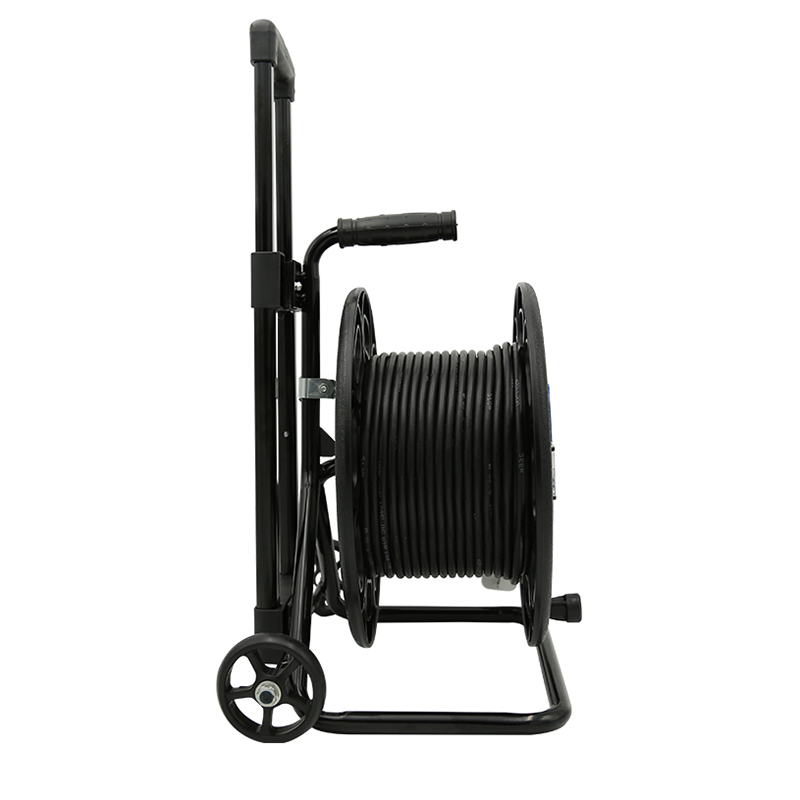

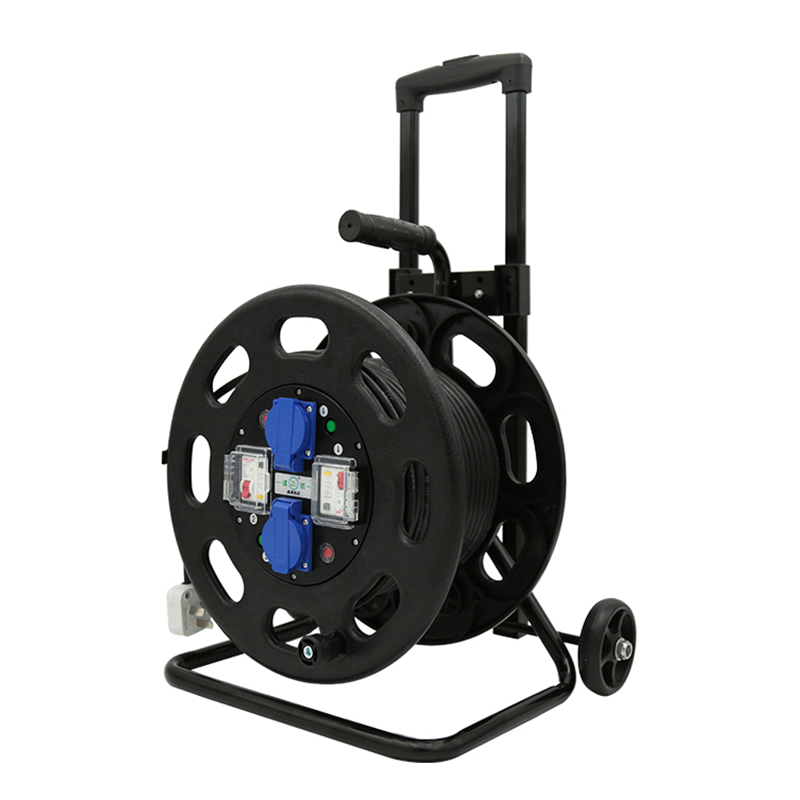

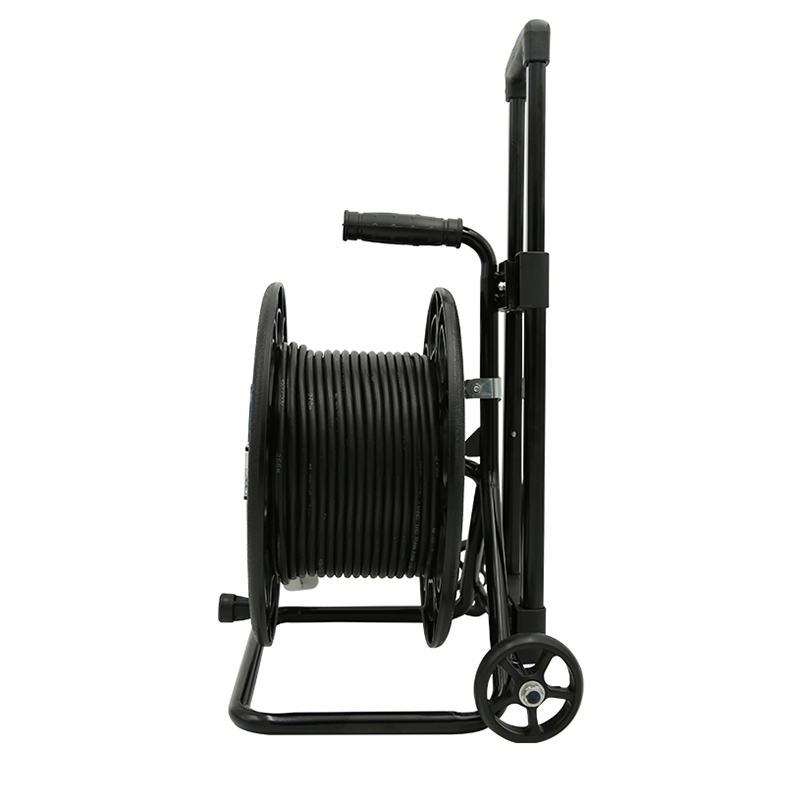

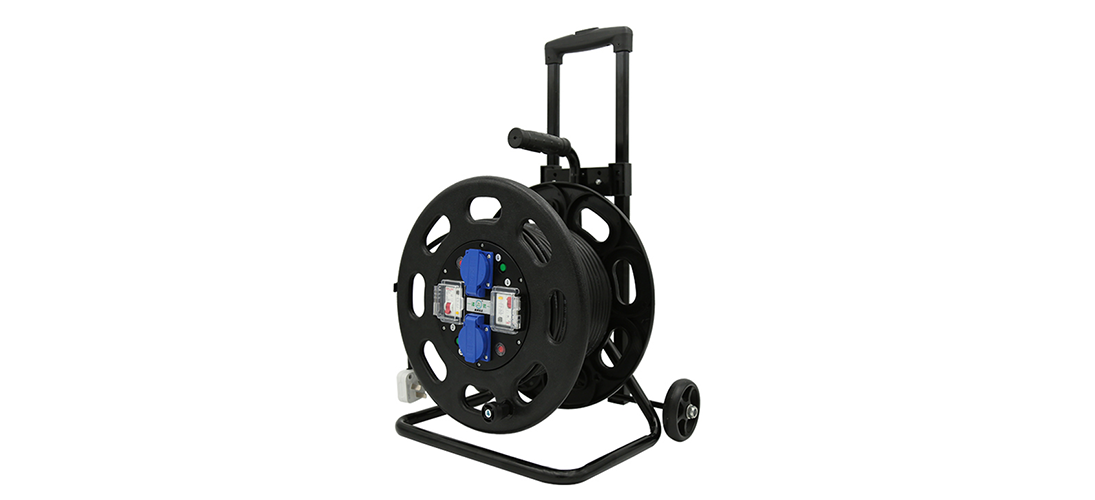

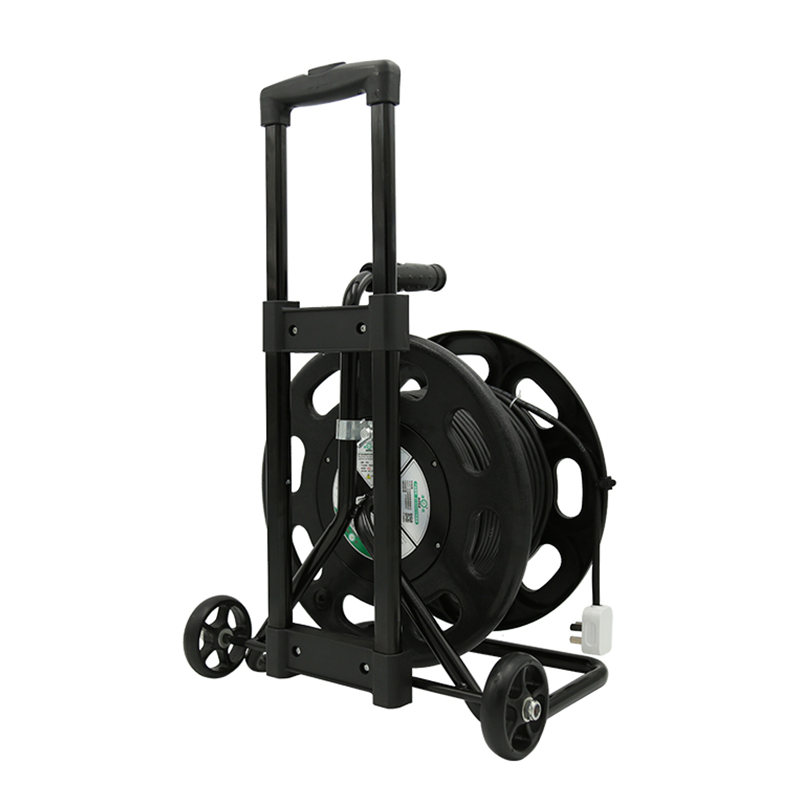

A pull-rod cable reel is a device that facilitates moving and storing cables. It is convenient to use the cable in different engineering environments. These devices can effectively prevent cable entanglement and knotting during use and storage, and protect the cable from physical damage to a certain extent. The telescopic rod enables the cable tray to occupy a smaller space when stored, which is easy to store and manage, and improves the space utilization rate.
Product Features
A tubular mobile cable reel

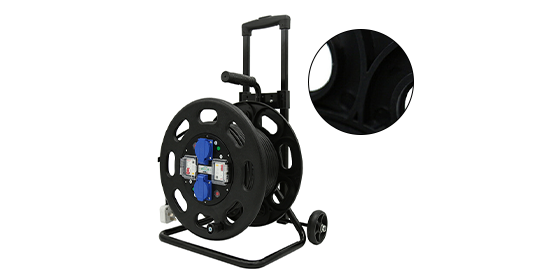

Radial design is adopted
The wear resistance of products has been greatly improved
Use anti-retreat nuts
Design humanization

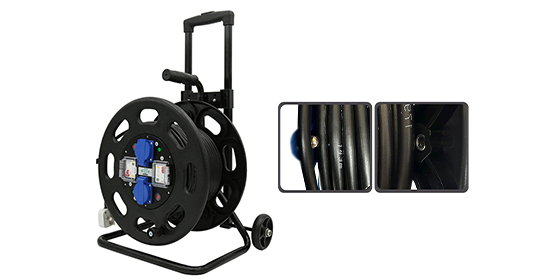

The winding cable does not stick where the details reflect the temperature

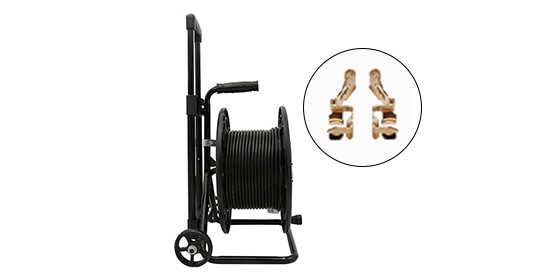

0.6MM phosphor bronze sheet
It can be inserted and removed 6000 times
The load bearing capacity has been greatly improved

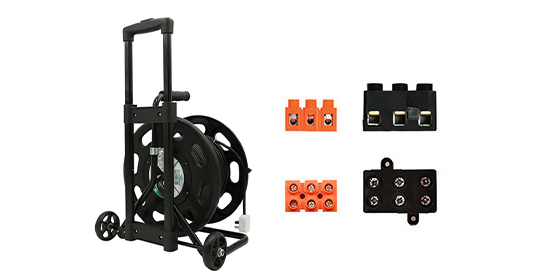

Larger terminals
Can access 10 square lines
Other brands can only access 2.5 square meters
The load bearing capacity has been greatly improved

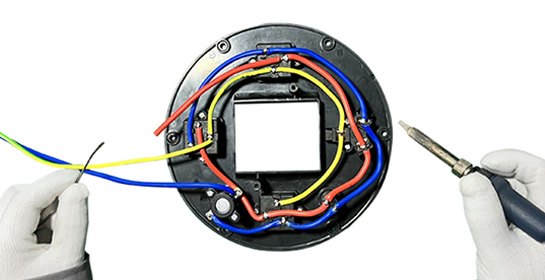

100% manual welding
Higher labor costs than machine welding
The result is a stronger solder joint to ensure efficiency while ensuring quality

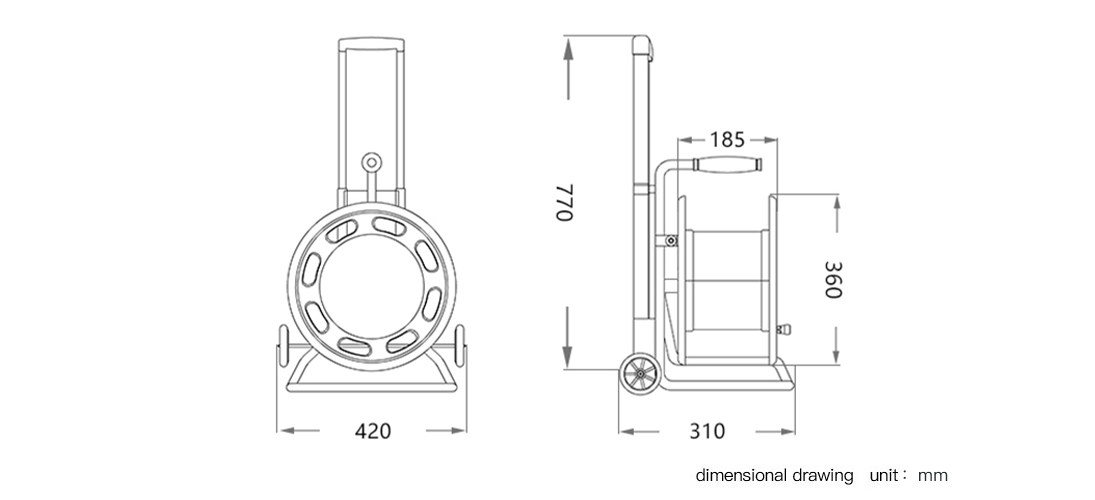

Structure Diagram
Product parameters
| Product model | Line specification * Standard length | Output power when fully rolled | Power output at full stretch |
|---|---|---|---|
| ZY-2SL36010 | Blank panel | / | / |
| ZY-2SL36010-B13 | 2*1.5mm²x30m | 900W | 2600W |
| ZY-2SL36010-B15 | 2*1.5mm²x50m | 900W | 2600W |
| ZY-2SL36010-B23 | 2*2.5mm²x30m | 1500W | 4400W |
| ZY-2SL36010-B25 | 2*2.5mm²x50m | 1500W | 4400W |
| ZY-2SL36010-C13 | 3*1.5mm²x30m | 900W | 2600W |
| ZY-2SL36010-C15 | 3*1.5mm²x50m | 900W | 2600W |
| ZY-2SL36010-C23 | 3*2.5mm²x30m | 1500W | 4400W |
| ZY-2SL36010-C25 | 3*2.5mm²x50m | 1500W | 4400W |
Customer Case
Our Factory
Product Certificate
Service
Manufacturers direct seiko manufacture a tubular cable coil
Good quality Good quality makes good products
Six advantages of strength can not be underestimated 26 years of industry manufacturing experience
Source manufacturers integrity responsible for supporting custom patient service years of experience strict quality control
Pack
Protective material: Wrap a layer of protective material on the surface of the coil, such as plastic film, bubble pad, etc., to prevent scratching and wear during transportation. For electrical coil coils with plugs, sockets and other electrical components, use special protective covers or packaging materials to wrap them well to avoid collision and damage.
Prevent movement and collision: Inside the packaging, use filler such as foam, sponge, etc. to fix the coil coil to prevent movement and collision during transportation. If multiple coils are transported together, place isolation materials between them to avoid friction and collision with each other.
Transport
All modes of transport have measures to ensure the safety of goods, but in practice, the safety performance of different modes of transport is also different. Air transport and railway transport have strict operating norms in the loading and unloading and transportation of goods, and the probability of cargo loss and damage is relatively low. Road transport due to the possibility of complex road conditions, the risk of turbulence and collision of goods is slightly higher, but through reasonable packaging and the choice of reputable transport companies can reduce this risk. Water transport at sea may face risks such as wind and waves, but the safety facilities and cargo fixtures of modern ships can also effectively ensure the safety of goods during transport. Our company will ensure that the product packaging is qualified and firm and choose a strong transportation company to cooperate with the goods safely to the designated place.
