Product Description
The six-degree-of-freedom motion platform is composed of an electric cylinder, an upper and lower universal hinge, and two upper and lower platforms. On the basis of the fixed lower platform, the multi-degree-of-freedom motion of the upper platform is completed in space with the help of the telescopic motion of the electric cylinder, so that various spatial motion poses can be simulated, which can be widely used in various training simulators. Such as flight simulators, car driving simulators, earthquake simulators and dynamic movies, entertainment equipment and other fields.
Product parameters
| Main technical index | 1. Payload :50-160000kg 2. Motion parameters: | |||||
|---|---|---|---|---|---|---|
| Degree of freedom | Angle or displacement | speed | acceleration | Positioning accuracy | Repeated positioning accuracy | |
| Pitch (a) | ±5°~±60° | ≤50°/s | 100°/s² | 0.03° | 0.03° | |
| Roll (β) | ±5°~±60° | ≤50°/s | 100°/s² | 0.03° | 0.03° | |
| Yaw (y) | ±5°~±60° | ≤50°/s | 100°/s² | 0.03° | 0.03° | |
| Lateral displacement (x) | ±10mm~±450mm | ≤1000m/s | ≤2.0g | 0.03mm | 0.01mm | |
| Longitudinal displacement (y) | ±10mm~±450mm | ≤1000m/s | ≤2.0g | 0.03mm | 0.01mm | |
| Vertical lift (z) | ±10mm~±800mm | ≤1000m/s | ≤2.0g | 0.03mm | 0.01mm | |
| Other technical indicators | 1、 the system response frequency of 0Hz-20Hz 2, operating parameters ≤0.02mm 3, drift: platform system continuous operation for more than 12 hours, any electric cylinder position drift will not exceed 0.0025m. | |||||
| Control system | 1、 The motion platform control system is composed of EtherCAT bus control, independent production of core hardware, bus servo motor, platform control software, etc. | |||||
| 2, the movement platform integrates the high dynamic ball screw mechanical concept, perfect simulation design ability, to achieve higher movement reliability of the platform. | ||||||
| 3, the platform control software can be customized, among which the self-developed core algorithm after years of iterative optimization, to achieve high-precision motion performance indicators, in addition to optional motion sensing algorithm, special effects module algorithm, etc., to provide customers with a complete set of solutions close to their needs. | ||||||
| * This parameter is for reference only and can be customized according to customer requirements | ||||||

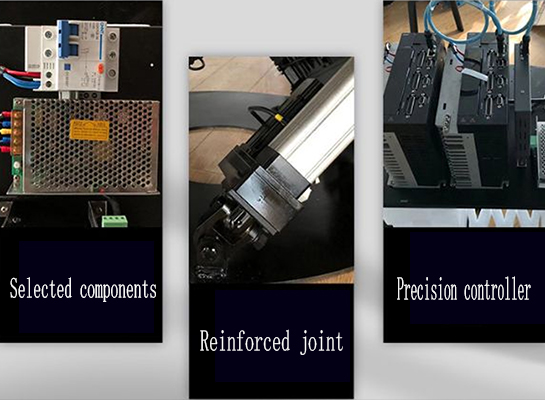

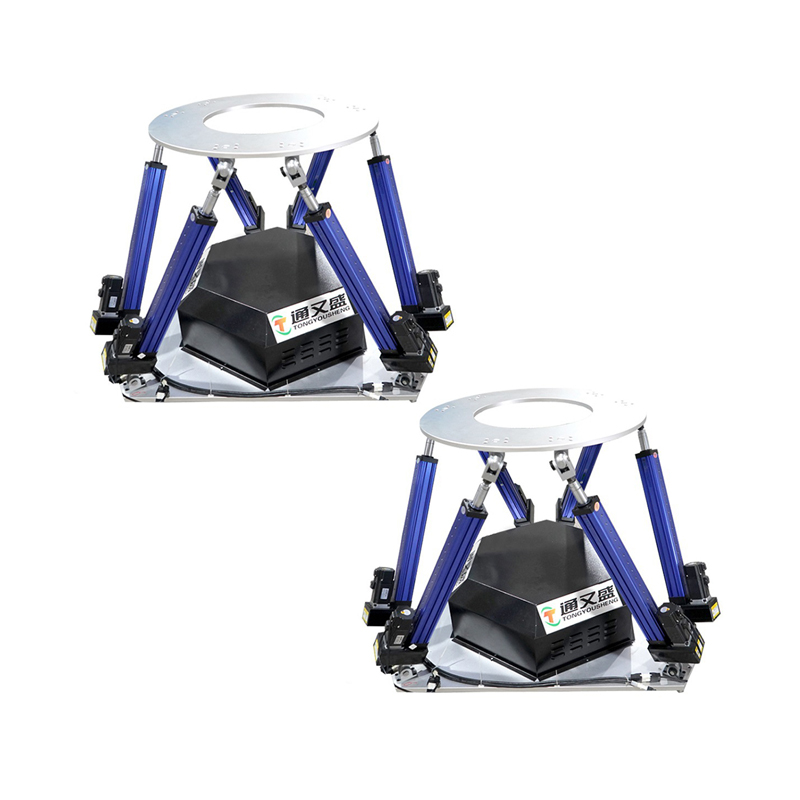

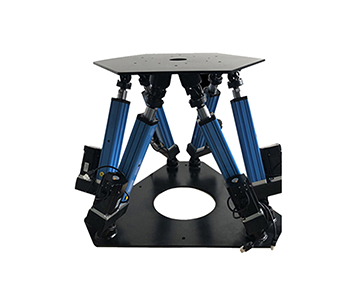

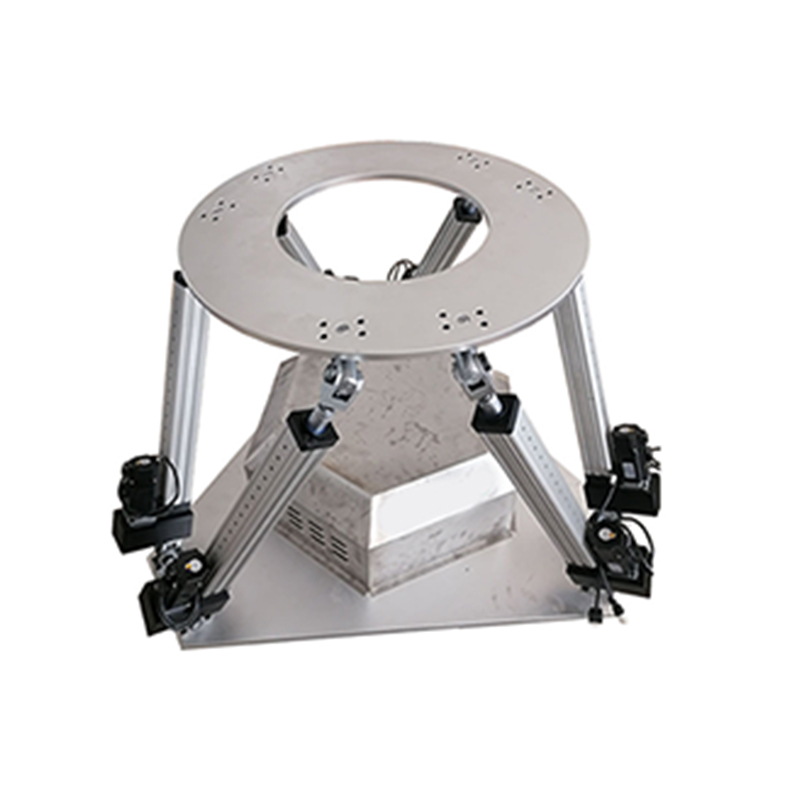

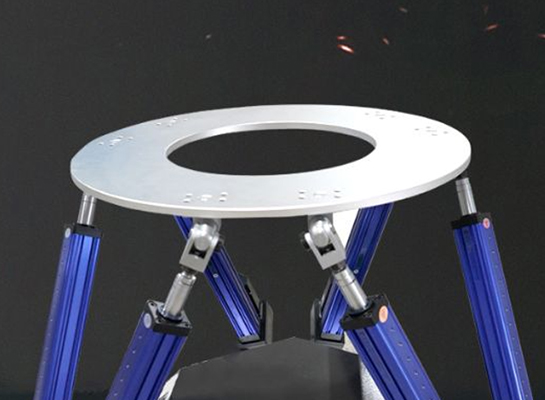

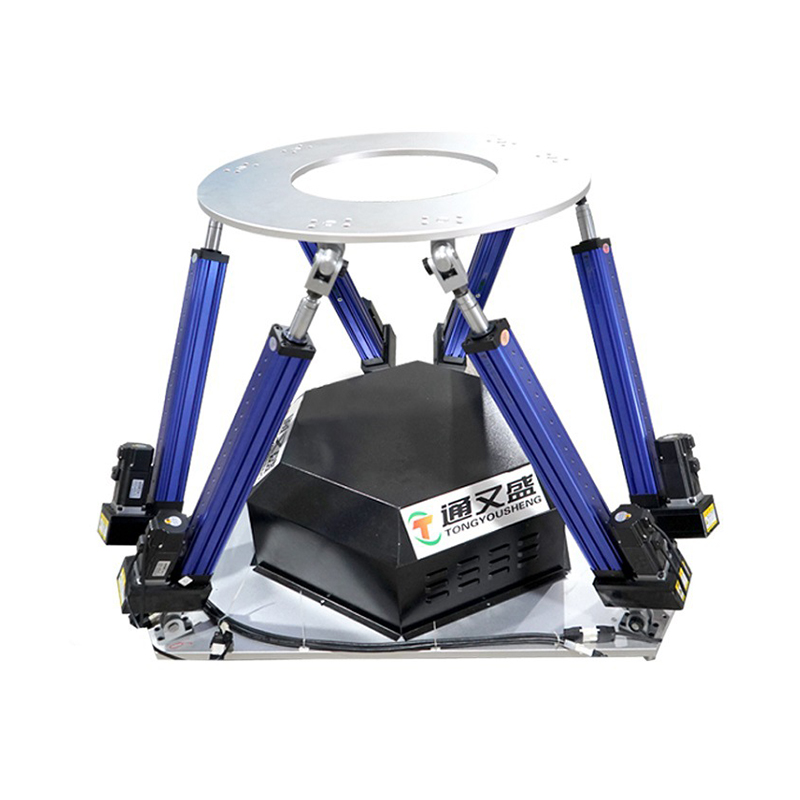

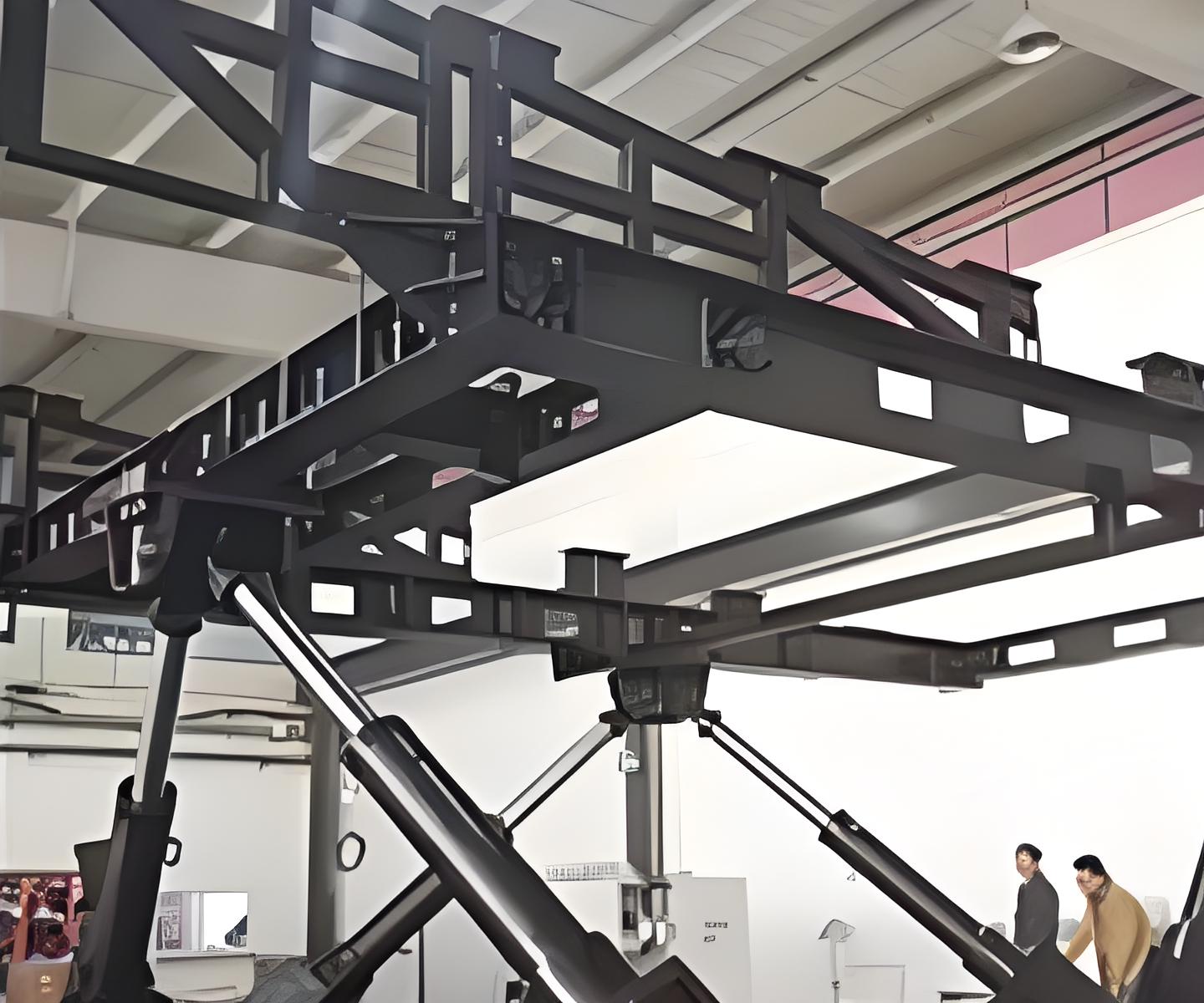

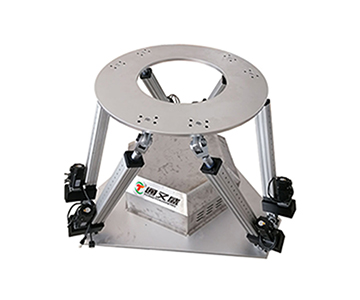

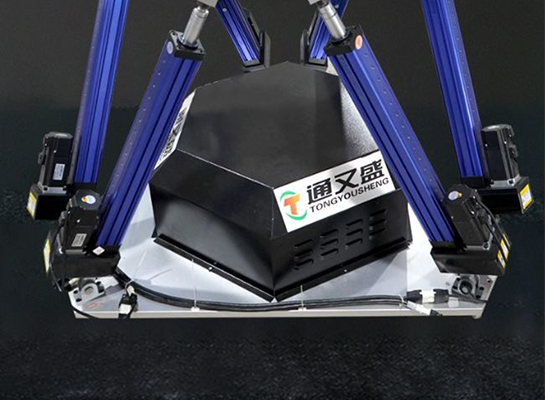

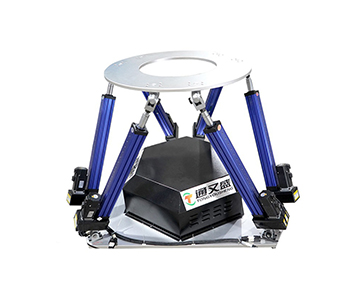

Product Display
Deep customization Support three/six degrees of freedom platform non-standard customization, according to customer needs, to meet the site conditions, content scenes, appearance modeling and other application scenarios.
The full set of products adopts modular design and the core hardware is independently designed and manufactured, so that the composition of key components is simplified, the replacement of main components is simplified, and the time delay and loss caused by equipment failure are reduced as much as possible.
In the face of high-precision and heavy-duty scenarios, we have rich experience in design. We conduct complete reliability analysis through PRO/E, MATLAB simulation software and mechanical analysis, and carry out professional and reliable design on mechanical structure to ensure the accuracy and safety requirements of products.
Easy to operate software docking is easy to use, action acquisition software supports linear compilation to ensure smooth action and provides a variety of communication methods of secondary development interface, support UDP, TCP/ IP, crosstalk, Wifi and other communication methods.
Fast - Using EtherCAT bus communication mode, fast response rate, large amount of data transmission, to ensure stability and low latency.
Precision - The use of domestic leading parallel algorithm, and accurate modeling, with the underlying data of high liquidity, to fully ensure the precise and efficient control.
Stability - The platform software has been repeatedly tested to ensure stability, reliability and continuous use.

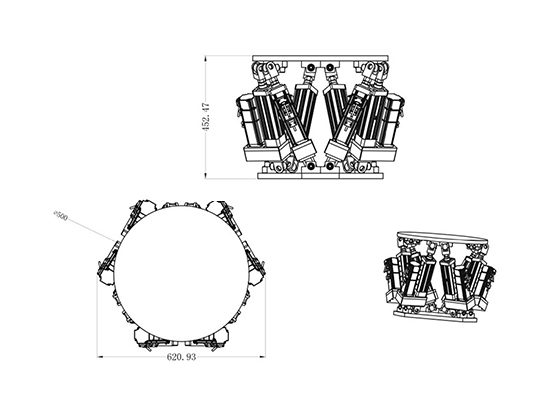

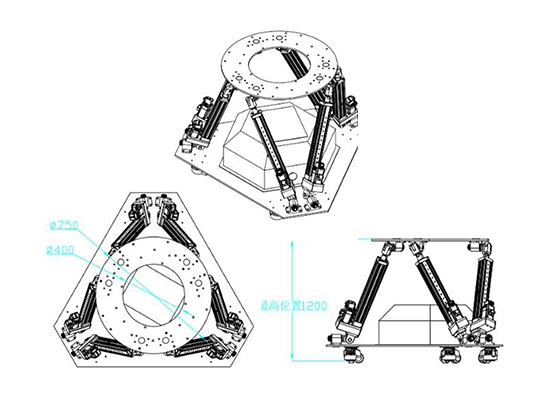

Size & Interface

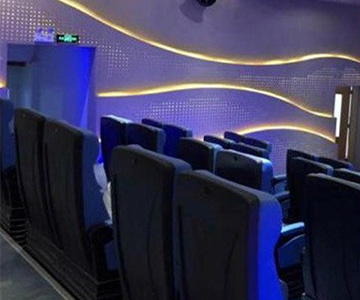

Application Cases
Suzhou Tongyousheng Electronic Technology Co., LTD., specializing in the production of servo electric cylinder, linear slide module, servo press, multi-dimensional free movement platform robot, robot series products. And provide Mitsubishi, Panasonic industrial control products, PLC, servo motor, inverter, touch screen, guide rail, screw, reducer series products.
Company Information
The company introduces foreign advanced technology, has specialized production equipment, advanced CNC processing equipment, high-precision test equipment, and has senior mechanical transmission designers, advanced design software, after years of struggle and struggle, Suzhou Tongyousheng Electronic Technology Co., Ltd. has established a leading advantage of "large scale, high output, stable quality" in the industry. Determined to strive for the development of Industry 4.0, we cooperate with a number of state-owned enterprises, top 500 units and universities. To provide customers with simple operation, excellent efficiency, stable performance, reasonable price of product equipment.
Cooperative partner
Service
- Pre-sales -- Help reasonable selection: project evaluation engineers docking, in-depth communication to understand the use of conditions, to confirm the appropriate selection and specifications, to give customers reasonable suggestions, effectively avoid problems in production
- Sales -- Ensure production delivery: dedicated engineers and business specialists docking, project managers to process control, active communication and interaction, timely detection of problems and timeliness communication, for the production delivery escort
- After-sales -- Timely response processing: after-sales engineering personnel docking, the same day response; And timely to the scene to confirm, discuss, solve and deal with problems, to meet customer production needs, to avoid downtime and production
