Product Description

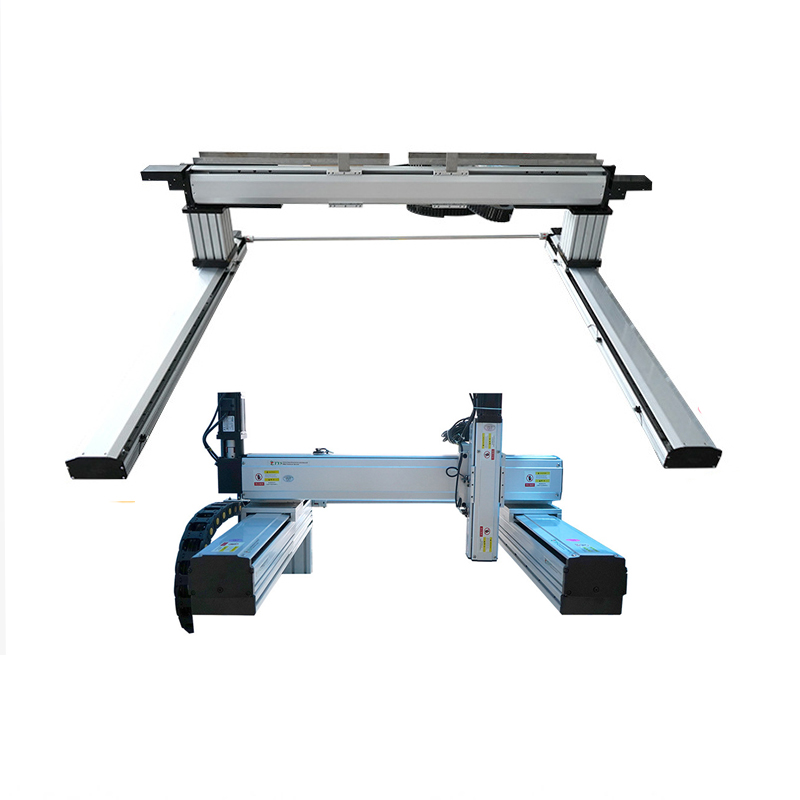

The XYZ multi-axis gantry linear module is usually composed of beams and columns, which are the support structure of the entire module. The beam is made of high-strength aluminum alloy with good rigidity and stability, which can reduce vibration and deformation during movement. The columns are used to support the beams and ensure the overall stability of the gantry frame. The multi-axis gantry linear module is respectively installed in X, Y, Z three directions to achieve linear movement in different directions. Each linear module is mainly composed of guide rail, slide block, ball screw, motor and other components. The guide rail provides accurate linear motion guidance for the slide block to ensure the smoothness and accuracy of the motion; The slider is connected with the working platform or other moving parts, carrying the weight and load of the moving parts; The ball screw converts the rotating motion of the motor into the linear motion of the slider, and greatly improves the transmission efficiency and accuracy through the rolling of the ball between the screw and the nut; As the power source of the linear module, the motor is usually a servo motor or a stepper motor, which can accurately control the speed and Angle of the motor, so as to achieve accurate control of the speed and position of the slider movement.
Product parameters
| name | argument | name | argument |
|---|---|---|---|
| brand | Thong Yau Saeng | name | Gantry XYZ triaxial module |
| precision | ±0.02MM | species | Sliding guide |
| Scope of application | 3D printing, dispensing machine, laser equipment, non-standard automation, etc | accuracy level | H |
| Product material | Special aviation aluminum/aluminum profiles | Glide trajectory | Linear guide |
Product Display
High-precision positioning: The use of precision machining of the guide rail, ball screw and other components, as well as high-precision servo motors and encoders, can achieve high positioning accuracy, up to ±0.02mm or even higher, suitable for the position of the strict requirements of the application scenario, such as semiconductor chip manufacturing, precision instrument assembly, etc.
High load capacity: The gantry structure design makes the module have good rigidity and stability, and can withstand large loads. At the same time, the selected guide rail, slider, ball screw and other components are also carefully designed and selected to ensure that they can meet the requirements of different load conditions, and can be widely used in the automatic loading and unloading of large mechanical equipment, handling and other work.
High speed operation: Equipped with high-performance servo motors and advanced control system, it can achieve fast response and accurate speed control. At the same time, the structural design of the linear module has also been optimized to reduce the inertia and friction of the moving parts, so that the module can achieve a higher operating speed under the premise of ensuring accuracy, and meet the needs of some automated production lines with high production efficiency requirements.
