Product Description
High efficiency brushless gear motor, help automated unmanned equipment
Functional Features
Planetary reducer + brushless motor, widely used
High precision assembly
Strong power output
Energy efficient and durable
Compact and flexibl
Worm gear reducer + brushless motor, widely used
Large transmission ratio with self-locking
Smooth and low noise
Compact energy saving
Adaptive multivariate
Gear reducer + brushless motor, widely used
High efficiency drive
Accurate and stable
Strong and durable
Flexible adaptatio
Product parameters
Gearbox parameters:
Step | Level 1 | Level 2 | Level 3 | Level 4 | Level 5 |
Lenth(mm) | 15.6 | 19.1 | 22.6 | 26.1 | 29.6 |
Efficience | 0.9 | 0.81 | 0.73 | 0.66 | 0.59 |
Reducer Ratio | 3.5,4.75 | 12,14,16,19, 22.5,36 | 49,64,76,90,100,114,126,135,171,216 | 172,256,304,361, | 2418 |
Rated Turque | 0.5~2 kgf.cm | 0.5~3 kgf.cm | 3~6 kgf.cm | 6~10 kgf.cm | 6~10 kgf.cm |
Rated Turque | 3kgf.cm | 5kgf.cm | 8kgf.cm | 12kgf.cm | 12kgf.cm |
Note: 1, can be equipped with 1#, 2# series brush motor /22# series, 24# series brushless motor 2, the use of humidity: -40℃~+80℃ 3, the output shaft can be customized according to requirements | |||||
Single motor parameters:
mode | Voltage (V) | No-load speed (rpm) | No-load current (mA) | Load torque (gf.cm) | Load speed (rpm) | Load current (A) |
BL2238 | 12 | 4500 | 60 | 46 | 3650 | 0.26 |
Motor + gearbox parameters:
Gear motor type | Reducer Ratio | 4.75 | 36 | 100 | 216 | 361 |
22PG-BL2238 | No-load speed (rpm) | 947 | 125 | 45 | 21 | 12 |
Rated torque (kgf.cm) | 0.2 | 1.24 | 3.13 | 6.76 | 9.6 | |
Rated speed (rpm) | 768 | 101 | 37 | 17 | 10 |
Gearbox parameters:
Step | Level 2 | Level 3 |
Lenth(mm) | 40.5 | 46.5 |
Efficience | 0.81 | 0.75 |
Reducer Ratio | 14,19,27 | 53,71,100,139 |
Note: 1, can be equipped with 5# series brush motor /36# series brushless motor 2, use temperature: -10℃~+80℃ 3, output shaft can be customized according to requirements | ||
Single motor parameters:
mode | Voltage (V) | No-load speed (rpm) | No-load current (mA) | Load torque (gf.cm) | Load speed (rpm) | Load current (A) |
BL4332DO | 24 | 6500 | 0.14 | 172.338 | 4650 | 1.33 |
Motor + gearbox parameters:
Gear motor type | Reducer Ratio | 100 |
32PG-BL4332 | No-load speed (rpm) | 50 |
Rated torque (kgf.cm) | 20 | |
Rated speed (rpm) | 40 |
Gearbox parameters:
Step | Level 1 | Level 2 | Level 3 |
Lenth(mm) | 24.9 | 30.9 | 37.1 |
Efficience | 0.9 | 0.81 | 0.73 |
Reducer Ratio | 3.75,5.18 | 14,19, 27 | 53, 73,100,139 |
Rated Turque | 0.5~3.5 kgf.cm | 3~12 kgf.cm | 12~50 kgf.cm |
Rated Turque | 7 kgf.cm | 20 kgf.cm | 80 kgf.cm |
Note: 1, can be equipped with 5# series brush motor /36# series brushless motor 2, use temperature: -40℃~+80℃ 3, output shaft can be customized according to requirements | |||
Single motor parameters:
mode | Voltage (V) | No-load speed (rpm) | No-load current (mA) | Load torque (gf.cm) | Load speed (rpm) | Load current (A) |
BL3640 | 12 | 6200 | 0.25 | 200 | 5100 | 1.5 |
Motor + gearbox parameters:
Gear motor type | Reducer Ratio | 5.18 | 27 | 53 | 139 |
36PG-BL3640 | No-load speed (rpm) | 1197 | 230 | 117 | 45 |
Rated torque (kgf.cm) | 0.93 | 4.05 | 7.21 | 18.9 | |
Rated speed (rpm) | 985 | 189 | 96 | 37 |
Gearbox parameters:
Step | Level 1 | Level 2 | Level 3 |
Lenth(mm) | 33.5 | 43.5 | 53.5 |
Efficience | 90% | 81% | 73% |
Reducer Ratio | 3.75,5.18 | 14,19,27, | 53,73, 100, 139 |
Rated Turque | 0.5~5 kgf.cm | 3~20 kgf.cm | 20~80 kgf.cm |
Rated Turque | 8kgf.cm | 40kgf.cm | 100kgf.cm |
Note: 1, can be equipped with 7# series brush motor /42# series brushless motor 2, use temperature: -40℃~+80℃ 3, output shaft can be customized according to requirements | |||
Single motor parameters:
mode | Voltage (V) | No-load speed (rpm) | No-load current (mA) | Load torque (gf.cm) | Load speed (rpm) | Load current (A) |
BL4260 | 24 | 7000 | 500 | 620 | 5900 | 2 |
Gear motor type | Reducer Ratio | 5.18 | 27 | 53 | 139 |
42PG-BL4260 | No-load speed (rpm) | 1351 | 259 | 132 | 50 |
Rated torque (kgf.cm) | 2.89 | 12.56 | 22.34 | 58.6 | |
Rated speed (rpm) | 1139 | 219 | 111 | 42 |
Gearbox parameters:
Step | Level 1 | Level 2 | Level 3 |
Lenth(mm) | 34.5 | 44.5 | 54 |
Efficience | 90% | 81% | 75% |
Reducer Ratio | 5 | 13,21,25 | 49,67,125 |
Note: 1, can be equipped with 5# series brush motor /36# series brushless motor 2, use temperature: -10℃~+80℃ 3, output shaft can be customized according to requirements | |||
Single motor parameters:
mode | Voltage (V) | No-load speed (rpm) | No-load current (mA) | Load torque (gf.cm) | Load speed (rpm) | Load current (A) |
BL4384 | 24 | 7000 | 0.6 | 1.8 | 5600 | 5.6 |
Motor + gearbox parameters:
Gear motor type | Reducer Ratio | 14 | 67 |
42PG-BL4384 | No-load speed (rpm) | 660 | 100 |
Rated torque (kgf.cm) | 25 | 90 | |
Rated speed (rpm) | 500 | 80 |
Gearbox parameters:
Step | Level 3 | Level 3 |
Lenth(mm) | 46 | 46 |
Efficience | 35% | 53% |
Reducer Ratio | 123,224,324,163 | 148 |
Note: 1, can be equipped with 5# series brush motor /36# series brushless motor 2, use temperature: -10℃~+80℃ 3, output shaft can be customized according to requirements | ||
Single motor parameters:
mode | Voltage (V) | No-load speed (rpm) | No-load current (mA) | Load torque (gf.cm) | Load speed (rpm) | Load current (A) |
BL2838 | 12 | 5295 | 0.16 | 74.286 | 4106 | 0.916 |
Motor + gearbox parameters:
Gear motor type | Reducer Ratio | 123 | 224 | 324 | 163 | 148 |
32GZ-BL2838 | No-load speed (rpm) | 47 | 15 | 16 | 37 | 32 |
Rated torque (kgf.cm) | 10.00 | 2.00 | 13.00 | 35.00 | 10.00 | |
Rated speed (rpm) | 35 | 12 | 13 | 28 | 25 |
Motor performance parameter：
No. | Motor type | Operating voltage (V) | unloaded | Maximum efficiency point | Maximum power point | locked-rotor | swerve | |||||||||
Current (A) | Speed (RPM) | Torque (mN.M) | Current (A) | Speed (RPM) | Power (W) | efficiency | Torque (mN.M) | Current (A) | Speed (RPM) | Power (W) | Torque (mN.M) | Current (A) | ||||

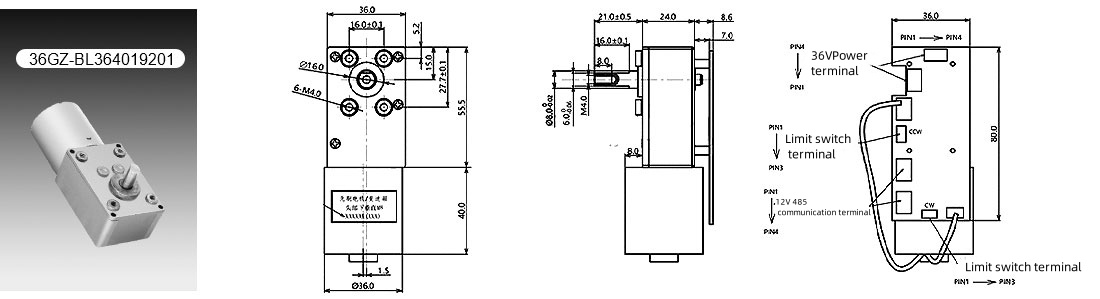

1# | 36GZ-BL364019201 | 36 | 0.35 | 52 | 3285 | 1.73 | 43 | 14.9 | 24% | 9777 | 4.46 | 26 | 26.6 | 19554 | 8.58 | CW/CCW |
Motor performance parameter：
No. | Motor type | Operating voltage (V) | unloaded | Maximum efficiency point | Maximum power point | locked-rotor | swerve | |||||||||
Current (A) | Speed (RPM) | Torque (mN.M) | Current (A) | Speed (RPM) | Power (W) | efficiency | Torque (mN.M) | Current (A) | Speed (RPM) | Power (W) | Torque (mN.M) | Current (A) | ||||

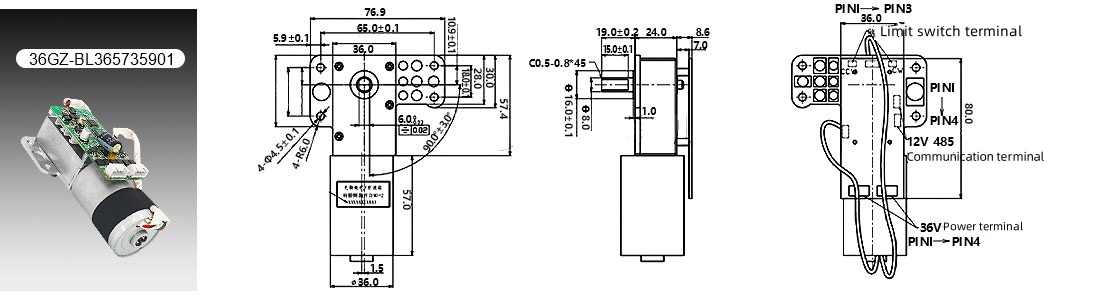

1# | 36GZB-L365735901 | 36 | 0.12 | 23 | 11023 | 1.119 | 21 | 24.18 | 60% | 56898 | 5.276 | 12 | 69.12 | 113796 | 10.43 | CW/CCW |
Gearbox parameters:
Step | Level 3 | Level 4 | Level 5 | Level 6 | Level 7 |
Lenth(mm) | 23.7 | 26.2 | 28.7 | 31.2 | 33.7 |
Efficience | 0.68 | 0.6 | 0.53 | 0.46 | / |
Reducer Ratio | 13,18,23,30 | 50,60,70,90,100 | 120,150,180,210,300 | 350,405,420,540 | / |
Note: 1, can be equipped with 5# series brush motor /36# series brushless motor 2, use temperature: -40℃~+80℃ 3, output shaft can be customized according to requirements | |||||
Single motor parameters:
mode | Voltage (V) | No-load speed (rpm) | No-load current (mA) | Load torque (gf.cm) | Load speed (rpm) | Load current (A) |
BL3626 | 12 | 6400 | 0.18 | 80 | 5400 | 0.6 |
Motor + gearbox parameters:
Gear motor type | Reducer Ratio | 13 | 30 | 50 | 100 | 120 | 300 | 350 | 630 |
37GB-BL3626 | No-load speed (rpm) | 492 | 213 | 128 | 64 | 53 | 21 | 18 | 10 |
Rated torque (kgf.cm) | 0.71 | 1.63 | 2.4 | 4.8 | 5.09 | 12.7 | 12.88 | 23.18 | |
Rated speed (rpm) | 415 | 180 | 108 | 54 | 45 | 18 | 15 | 9 |
