Product Description

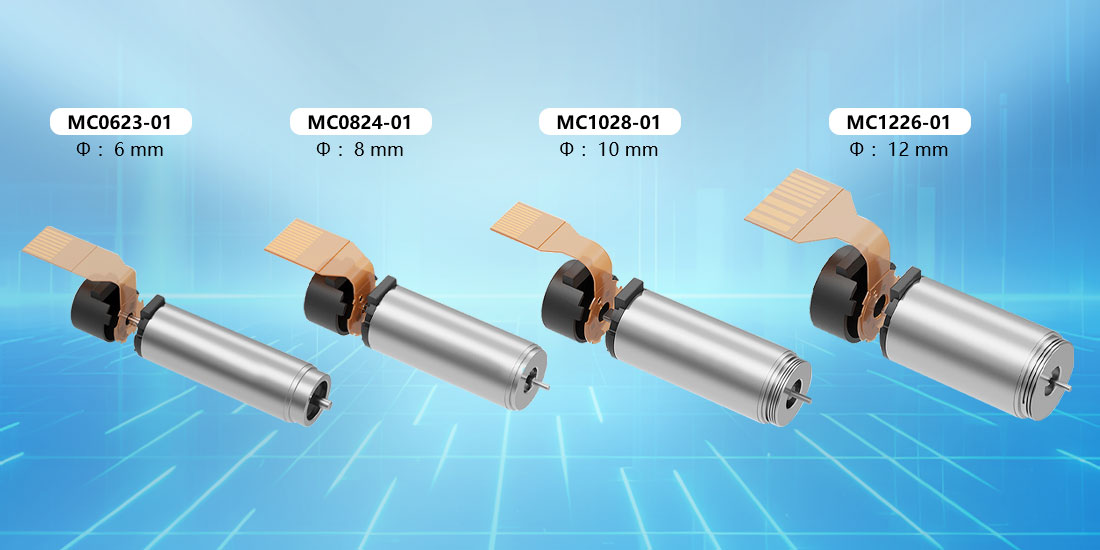

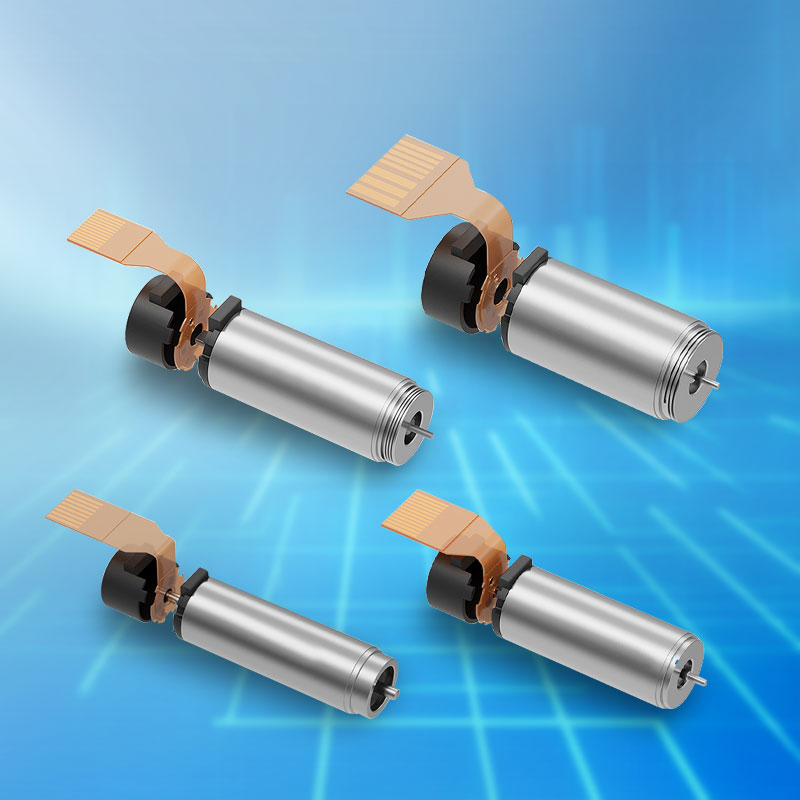

MC series DC brushless hollow cup motor releases powerful power in small size
Functional Features

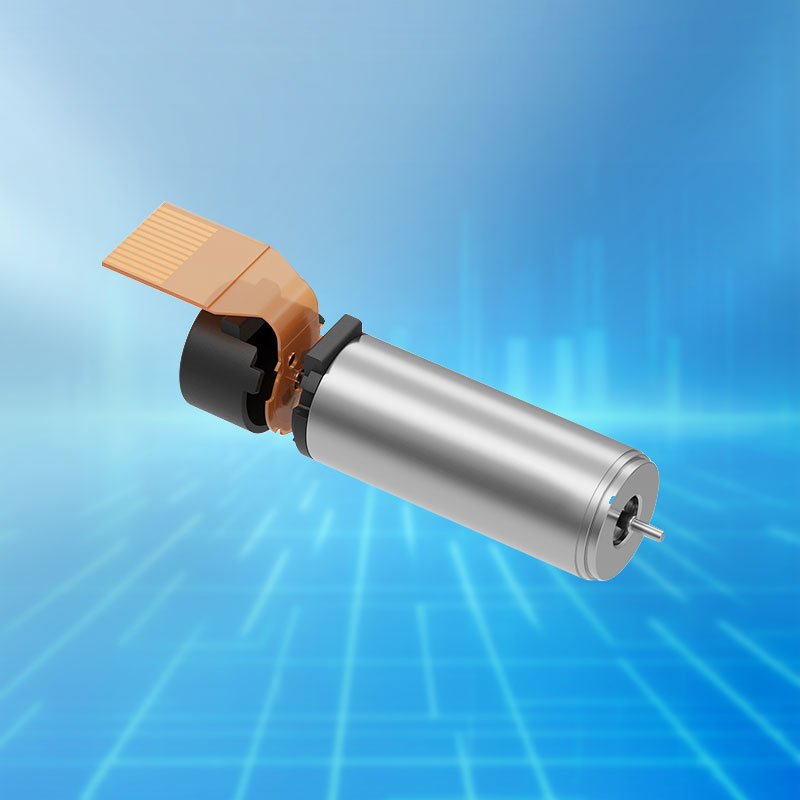

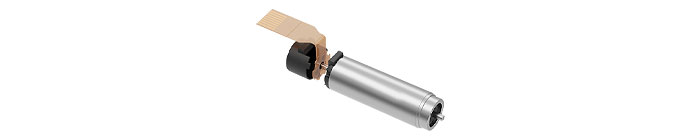

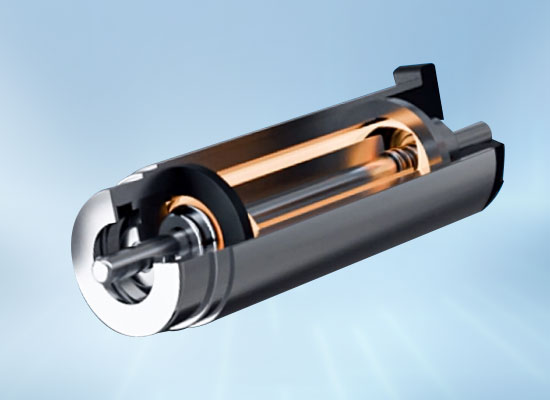

MC brushless hollow cup motor
MC brushless hollow cup motor, compared with traditional motors,
Can achieve rapid acceleration, run with less noise,
Less resonance.
Product parameters

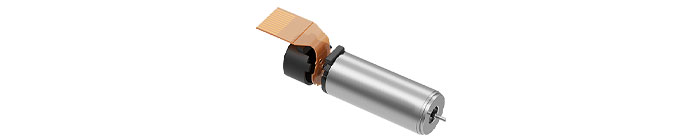

MC0623-01
Φ6mm Coreless brushless motor
Main parameter |
|
bipole | |
2W | |
46800rpm | |
0.4mNm |

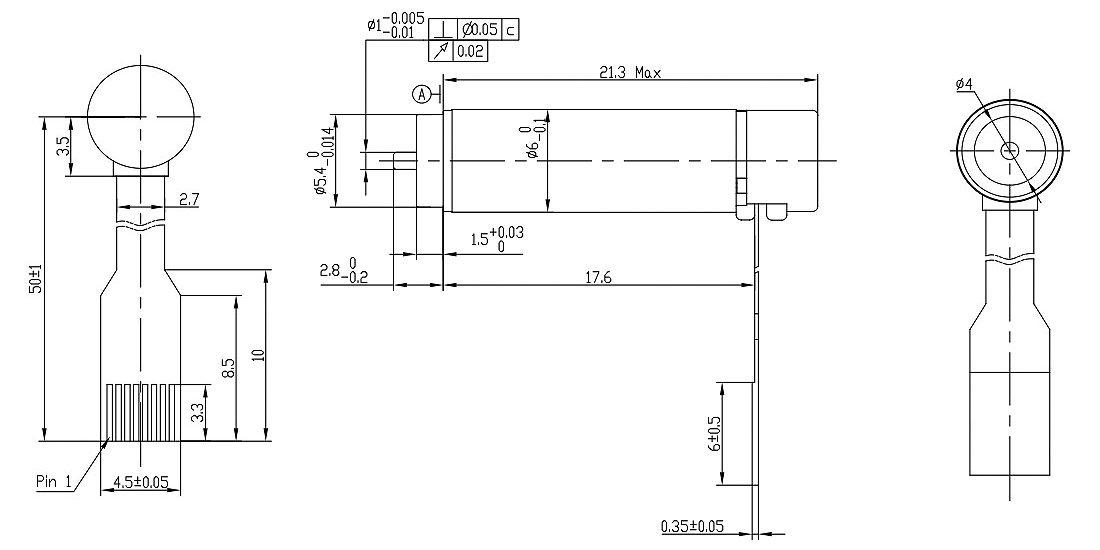

Technical illustration:
Motor data (rating) | Mechanical parameters (ball bearings) | |||||
Rated voltage | V | 12 | Maximum allowable speed (rpm) | 100 000 | ||
No-load speed | rpm | 63400±10% | Maximum axial clearance (mm) | < 0.15 N 0 | ||
No-load current | A | 37±50% | > 0.15 N 0.06（max） | |||
Rated speed | rpm | 46800±10% | Radial clearance | preloaded | ||
Rated torque | mNm | 0.4 | Maximum axial dynamic load (N) | 0.1 | ||
Rated current | A | 0.256±50% | Maximum allowable static loading force (N) | 10 | ||
Locked-rotor moment | mNm | 1.5±7% | Maximum radial load, 2mm from flange (N) | 2 | ||
Locked-rotor current | A | 0.85±20% | ||||
Maximum efficiency | % | 63±7% | Note: Can be customized according to customer requirements | |||
Motor constant (rated) | ||||||
Interphase resistance | Ω | 14.4±10% | Terminal type | |||
Interphase inductance | mH | 0.1±10% | Molex 52745-0897 52207-0460 | |||
Torque constant | mNm/A | 1.73±20% | FCI SFV8R-2STBE1HLF SFW4R-2STGE1LF | |||
Velocity constant | rpm/V | 5523±20% | Note: Can be customized according to customer requirements | |||
Speed/torque slope | rpm/mNm | 45972±20% | ||||
Mechanical time constant | ms | 2.84±20% | Terminal definition | |||
Rotor inertia | gcm² | 0.007±20% |
| pin1 | Motor windings 1 | |
Thermal parameter | pin2 | Motor windings 2 | ||||
Housing - ambient thermal resistance | K/W | 67.9 | pin3 | Motor windings 3 | ||
Windings - housing thermal resistance | K/W | 15.2 | pin4 | VHall (3.3-24 VDC) | ||
Winding thermal time constant | s | 1.54 | pin5 | Ground connection | ||
Thermal time constant of motor | s | 71.5 | pin6 | Hall sensor 1 | ||
Ambient temperature | ℃ | -20~+100 | pin7 | Hall Sensor 2 | ||
Maximum winding temperature | ℃ | 125 | pin8 | Hall Sensor 3 | ||

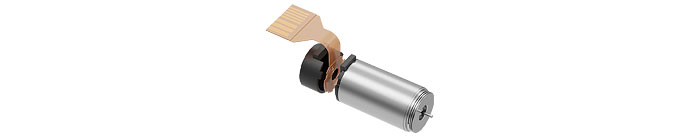

MC0824-01
Φ8mm Coreless brushless motor
Main parameter |
|
bipole | |
5.8W | |
25500rpm | |
0.85mNm |

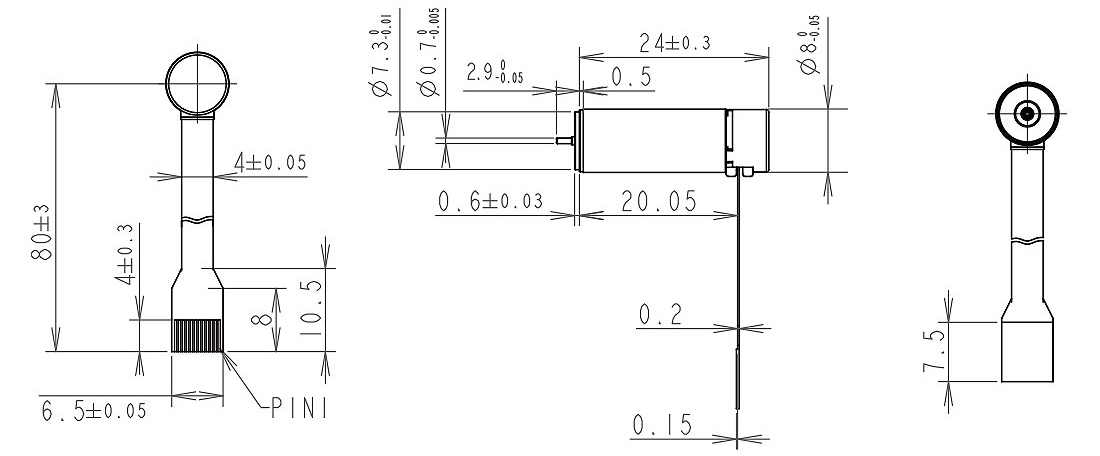

Technical illustration:
Motor data (rating) | Mechanical parameters (ball bearings) | |||||
Rated voltage | V | 12 | Maximum allowable speed (rpm) | 40 000 | ||
No-load speed | rpm | 38500±10% | Maximum axial clearance (mm) | < 0.15 N 0 | ||
No-load current | A | 70±50% | > 0.15 N 0.06（max） | |||
Rated speed | rpm | 25500±10% | Radial clearance | preloaded | ||
Rated torque | mNm | 0.85 | Maximum axial dynamic load (N) | 2 | ||
Rated current | A | 0.5±50% | Maximum allowable static loading force (N) | 10 | ||
Locked-rotor moment | mNm | 3.5±7% | Maximum radial load, 2mm from flange (N) | 5 | ||
Locked-rotor current | A | 1.65±20% | Note: Can be customized according to customer requirements | |||
Maximum efficiency | % | 67±7% | Terminal type | |||
Motor constant (rated) | Molex 52745-1297 | |||||
Interphase resistance | Ω | 8.4±10% | Note: Can be customized according to customer requirements | |||

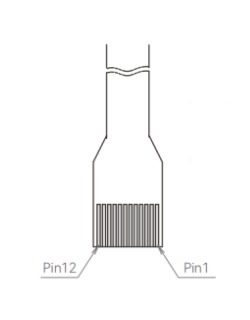

Interphase inductance | mH | 0.05±10% | Terminal definition | |||
Torque constant | mNm/A | 2.22±20% |
| pin1 | Motor windings 3 | |
Velocity constant | rpm/V | 3155±20% | pin2 | Motor windings 2 | ||
Speed/torque slope | rpm/mNm | 11000±20% | pin3 | Motor windings 1 | ||
Mechanical time constant | ms | 2.87±20% | pin4 | Ground connection | ||
Rotor inertia | gcm² | 0.024±20% | pin5 | (3.3-24 VDC) | ||
Thermal parameter | pin6 | Hall Sensor 3 | ||||
Housing - ambient thermal resistance | K/W | 56.6 | pin7 | Hall Sensor 2 | ||
Windings - housing thermal resistance | K/W | 11.5 | pin8 | Hall sensor 1 | ||
Winding thermal time constant | s | 3.7 | pin9 | empty | ||
Thermal time constant of motor | s | 120 | pin10 | empty | ||
Ambient temperature | ℃ | -20~+100 | pin11 | empty | ||
Maximum winding temperature | ℃ | 125 | pin12 | empty | ||

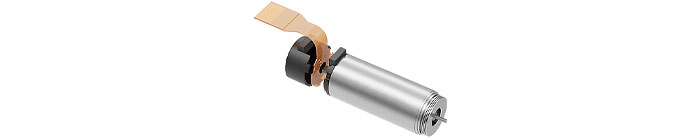

MC1028-01
Φ10mm Coreless brushless motor
Main parameter |
|
bipole | |
8.7W | |
26500rpm | |
1.5mNm |

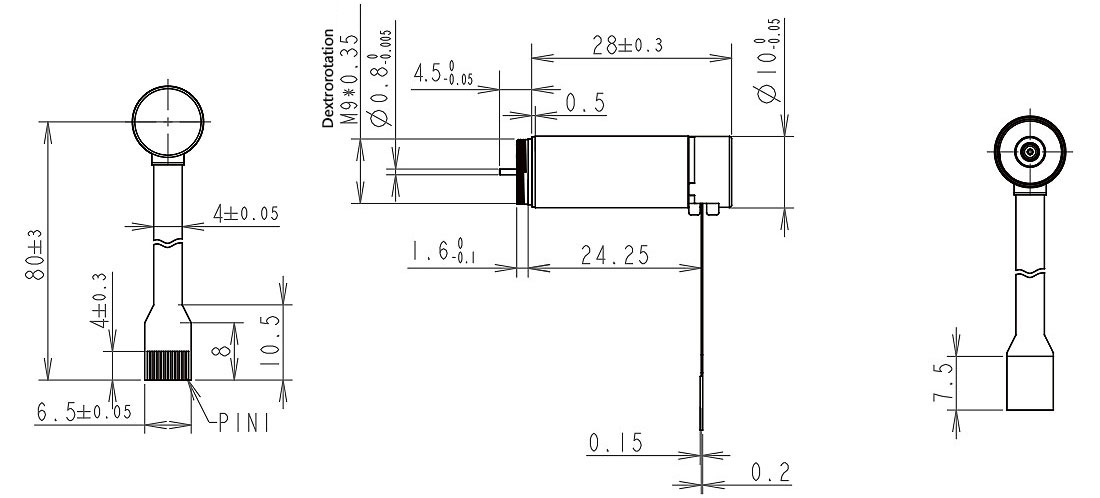

Technical illustration:
Motor data (rating) | Mechanical parameters (ball bearings) | |||||
Rated voltage | V | 12 | Maximum allowable speed (rpm) | 40 000 | ||
No-load speed | rpm | 33000±10% | Maximum axial clearance (mm) | < 0.15 N 0 | ||
No-load current | A | 80±50% | > 0.15 N 0.06（max） | |||
Rated speed | rpm | 26500±10% | Radial clearance | preloaded | ||
Rated torque | mNm | 1.5 | Maximum axial dynamic load (N) | 2 | ||
Rated current | A | 0.7±50% | Maximum allowable static loading force (N) | 10 | ||
Locked-rotor moment | mNm | 9±7% | Maximum radial load, 2mm from flange (N) | 5 | ||
Locked-rotor current | A | 2.75±20% | Note: Can be customized according to customer requirements | |||
Maximum efficiency | % | 71±7% | Terminal type | |||
Motor constant (rated) | Molex 52745-1297 | |||||
Interphase resistance | Ω | 4.75±10% | Note: Can be customized according to customer requirements | |||

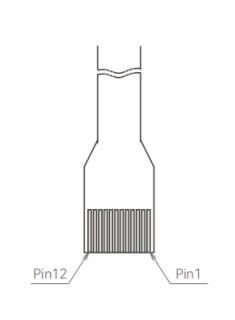

Interphase inductance | mH | 0.026±10% | Terminal definition | |||
Torque constant | mNm/A | 3.37±20% |
| pin1 | Motor windings 3 | |
Velocity constant | rpm/V | 3747±20% | pin2 | Motor windings 2 | ||
Speed/torque slope | rpm/mNm | 3667±20% | pin3 | Motor windings 1 | ||
Mechanical time constant | ms | 3.56±20% | pin4 | Ground connection | ||
Rotor inertia | gcm² | 0.092±20% | pin5 | (3.3-24 VDC) | ||
Thermal parameter | pin6 | Hall Sensor 3 | ||||
Housing - ambient thermal resistance | K/W | 42.6 | pin7 | Hall Sensor 2 | ||
Windings - housing thermal resistance | K/W | 7.2 | pin8 | Hall sensor 1 | ||
Winding thermal time constant | s | 4.2 | pin9 | empty | ||
Thermal time constant of motor | s | 156 | pin10 | empty | ||
Ambient temperature | ℃ | -20~+100 | pin11 | empty | ||
Maximum winding temperature | ℃ | 125 | pin12 | empty | ||
MC1226-01

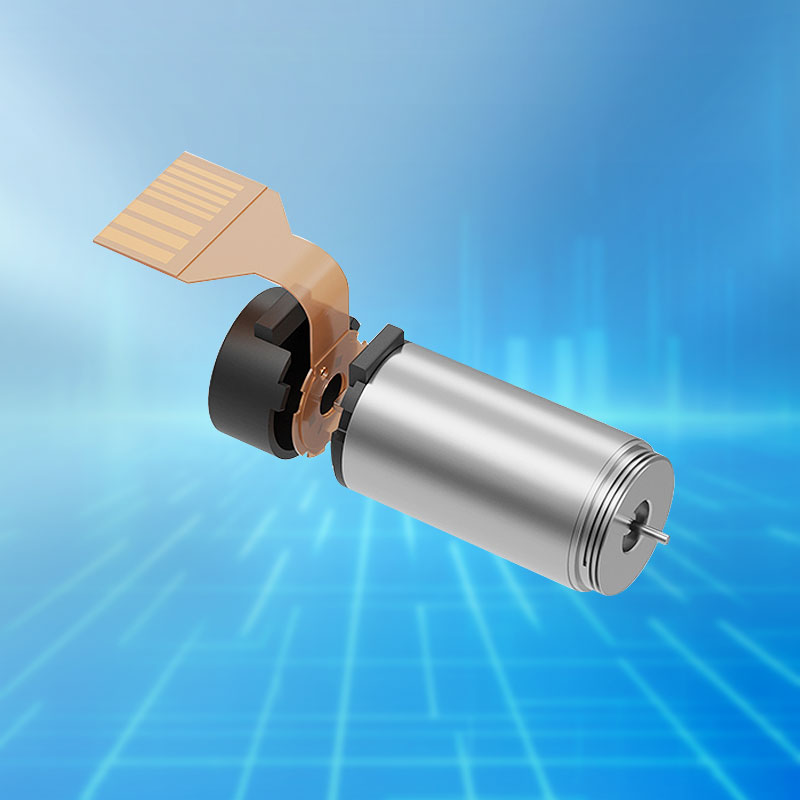

Φ12mm Coreless brushless motor
Main parameter |
|
bipole | |
9.9W | |
20970rpm | |
2.38mNm |

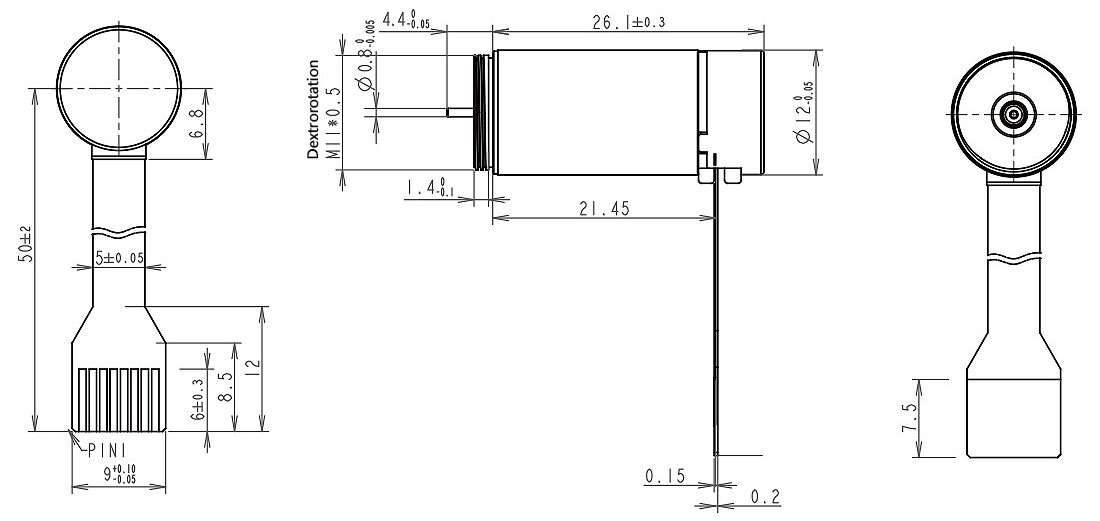

Technical illustration:
Motor data (rating) | Mechanical parameters (ball bearings) | |||||
Rated voltage | V | 12 | Maximum allowable speed (rpm) | 40 000 | ||
No-load speed | rpm | 28600±10% | Maximum axial clearance (mm) | < 0.15 N 0 | ||
No-load current | A | 78±50% | > 0.15 N 0.06（max） | |||
Rated speed | rpm | 20970±10% | Radial clearance | preloaded | ||
Rated torque | mNm | 2.38 | Maximum axial dynamic load (N) | 0.1 | ||
Rated current | A | 0.69±50% | Maximum allowable static loading force (N) | 10 | ||
Locked-rotor moment | mNm | 8.9±7% | Maximum radial load, 2mm from flange (N) | 5 | ||
Locked-rotor current | A | 2.38±20% | ||||
Maximum efficiency | % | 67±7% | Note: Can be customized according to customer requirements | |||
Motor constant (rated) | ||||||
Interphase resistance | Ω | 5.3±10% | Terminal type | |||
Interphase inductance | mH | 0.042±10% | Molex 52745-1297 | |||
Torque constant | mNm/A | 3.87±20% | ||||
Velocity constant | rpm/V | 2383±20% | Note: Can be customized according to customer requirements | |||
Speed/torque slope | rpm/mNm | 3213±20% | ||||
Mechanical time constant | ms | 4.5±20% | Terminal definition | |||
Rotor inertia | gcm² | 0.138±20% |
| pin1 | Motor windings 1 | |
Thermal parameter | pin2 | Motor windings 2 | ||||
Housing - ambient thermal resistance | K/W | 38.6 | pin3 | Motor windings 3 | ||
Windings - housing thermal resistance | K/W | 7.5 | pin4 | VHall (3.3-24 VDC) | ||
Winding thermal time constant | s | 3.2 | pin5 | Ground connection | ||
Thermal time constant of motor | s | 210 | pin6 | Hall sensor 1 | ||
Ambient temperature | ℃ | -20~+100 | pin7 | Hall Sensor 2 | ||
Maximum winding temperature | ℃ | 125 | pin8 | Hall Sensor 3 | ||
Application
Application scenario display: Widely used in industrial production, robotics, consumer electronics, smart medical, mobile travel and other intelligent fields
