F-series 2D laser scanning radar
Newly developed compact and economical two-dimensional laser scanning radar for obstacle avoidance and navigation of industrial/commercial robots
- Measure distance：6m/10m/40m
- Angle range：280°
- Scanning frequency：10Hz ~ 25Hz连续可调，出厂15Hz
- Measurement accuracy ：±3cm
- External dimensions：62×62×82mm
- Work environment illumination：Below 80000lx
- Working environment temperature and humidity：-10 ℃ -+50 ℃ below 85% RH, conditions: no condensation, no icing
- Store ambient temperature and humidity：-20 ℃ -+70 ℃ below 85% RH, conditions: no condensation, no icing
- Protection level：IP65
- Weight：210g
- Shell material：Optical window cover: polycarbonate, housing: aluminum alloy
USD： 660-1290
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

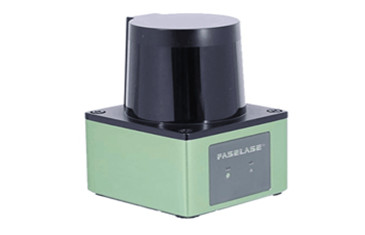

F-series 2D LiDAR (F6/F10/F20)
The F series laser scanning radar is a compact and economical two-dimensional laser scanning radar newly developed by FaseLaser. The main characteristics of the product are fast speed measurement, small size, light weight, low power consumption, and low cost. Mainly used in industrial/commercial robot obstacle avoidance and navigation, screen projection interaction, safety doors, pedestrian flow detection and other fields

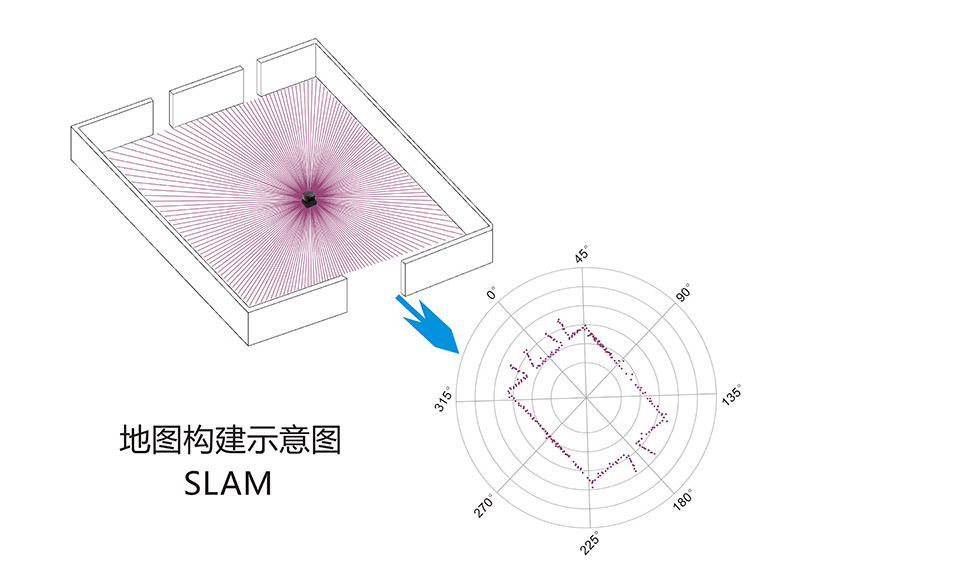

Map construction diagram
Characteristics
● Zero position and angle accuracy
● Support ROS robot operating system
● External timing control for ultra dense installation, forming 3D scanning through CAN connection
● Adopting human eye safety protection laser, in compliance with standards

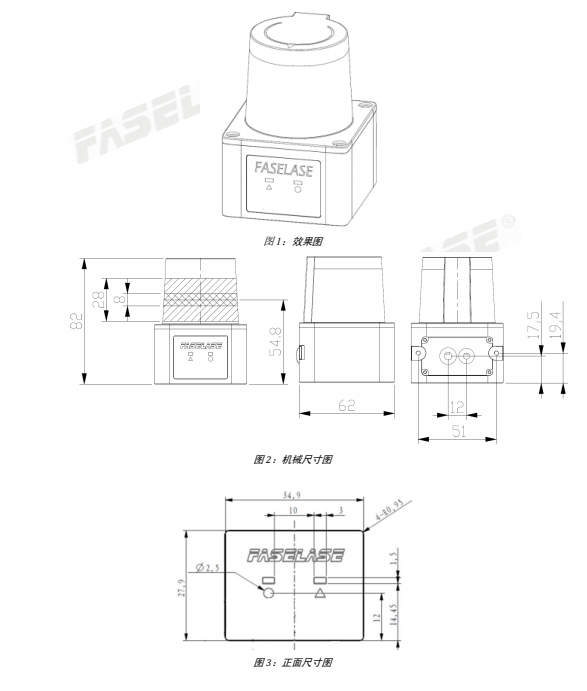

Product Size

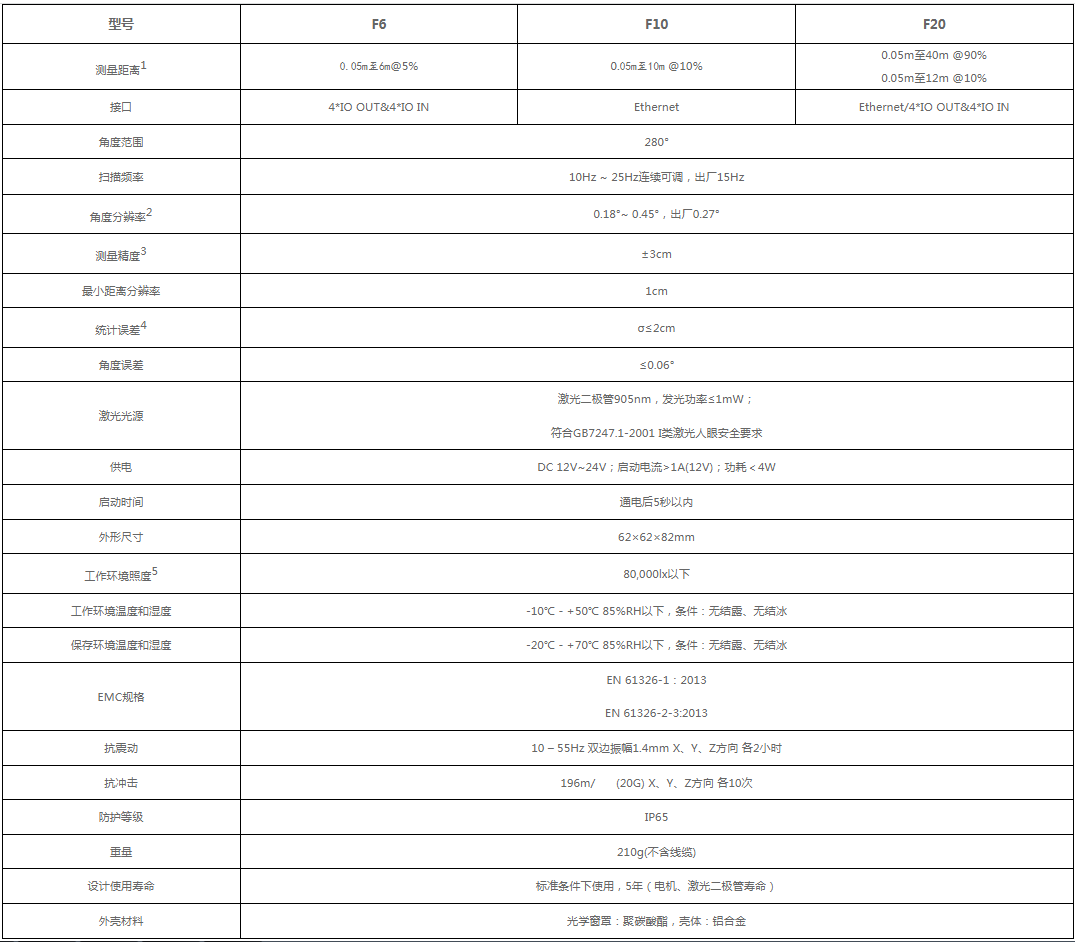

Product parameters
Applications
Indoor and outdoor service robots, industrial mobile robots, indoor and outdoor screen projection interaction, AGV/RGV/forklift laser navigation obstacle avoidance.
