Product Description
TVDR series precision planetary reducers have significant advantages. Helical gear design, low noise and quiet operation. Flange output, with span-type double-support angular contact ball bearings, strong rigidity and high load. Single-stage efficiency is over 93%, double-stage efficiency is over 90%, high efficiency and energy saving. Low grease loss, lifelong lubrication, maintenance-free. IP65 protection level, good sealing and leakage prevention. Integrated corner housing design saves installation space. Can adapt to any servo motor to provide reliable power support for stable operation of equipment.
Functional Features
Low Noise: The use of helical gear design, to achieve a smooth, quiet operation of the reducer.
High Rigidity, High Load: Flange - type output, and the use of large span double support angular contact ball bearings design, which improves the rigidity and load capacity of the reducer.
High Efficiency: 1 - Stage up to 93% or more, 2 - Stage up to 90% or more.
Maintenance - Free: Low grease wear, can be lifetime lubrication.
Sealing Effect is Good: Lubricating grease with high viscosity, not easy to separate the characteristics, IP65 protection class to ensure that no grease leakage.
Space Saving: Right angle housing with integrated design, both to ensure the accuracy of the reducer operation can save space.
Wide Applicability: Applicable to any type of servo motor.

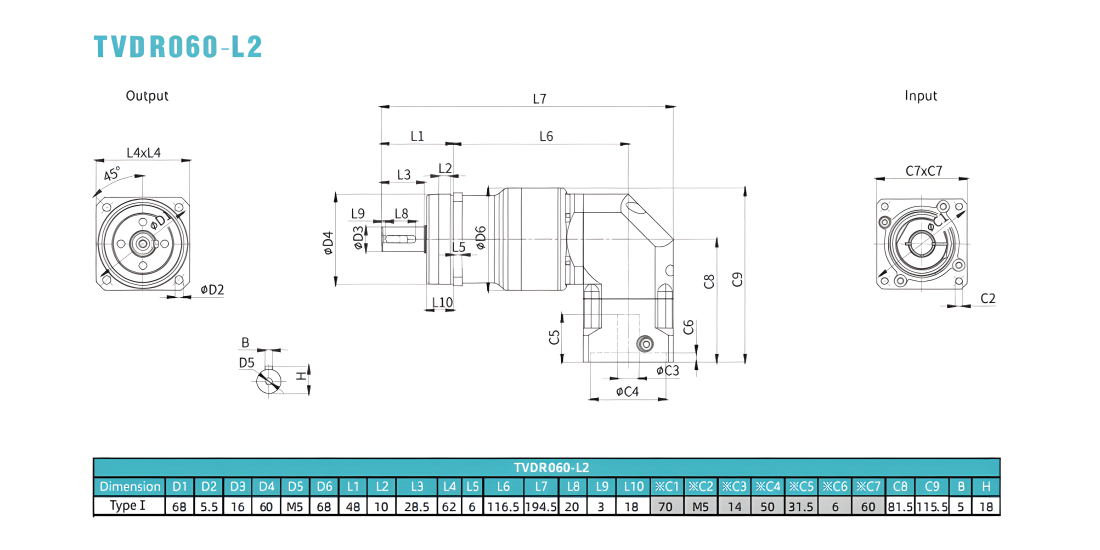

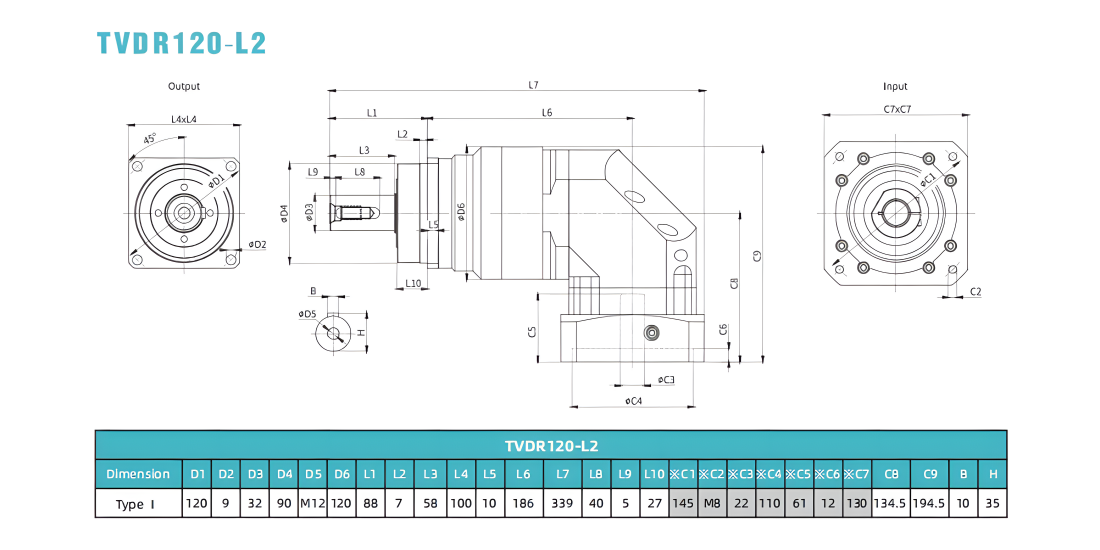

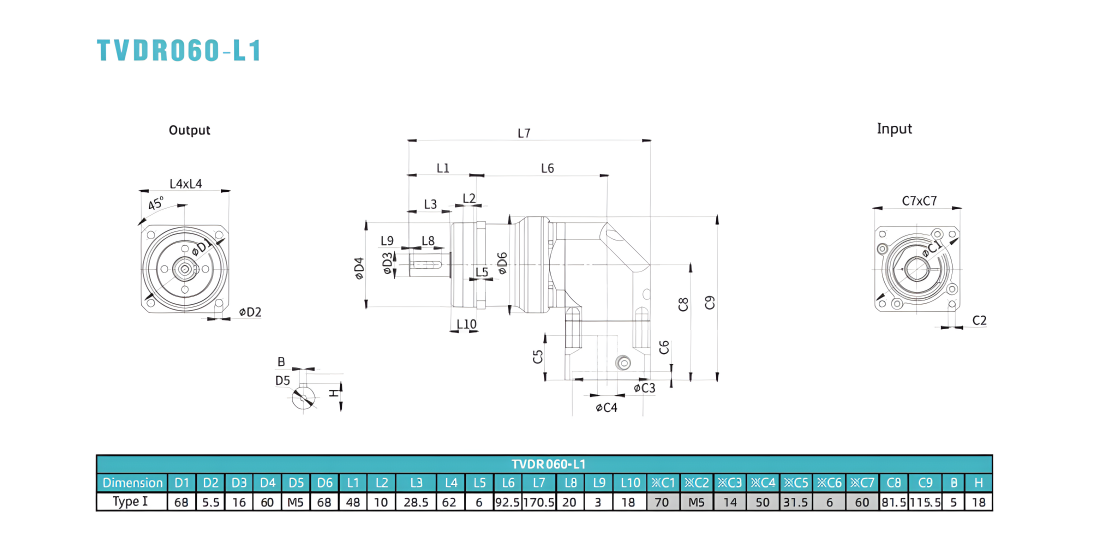

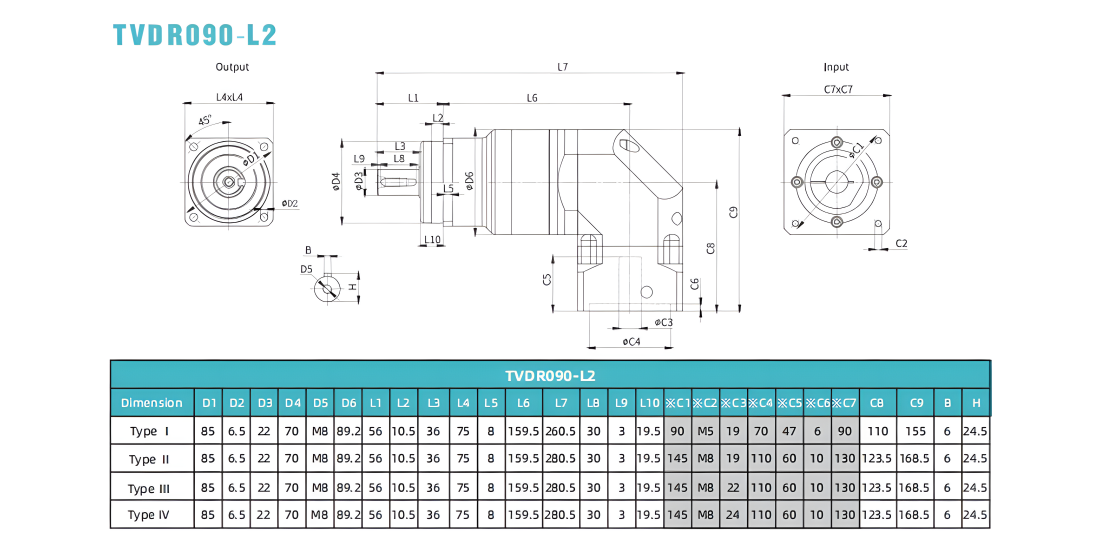

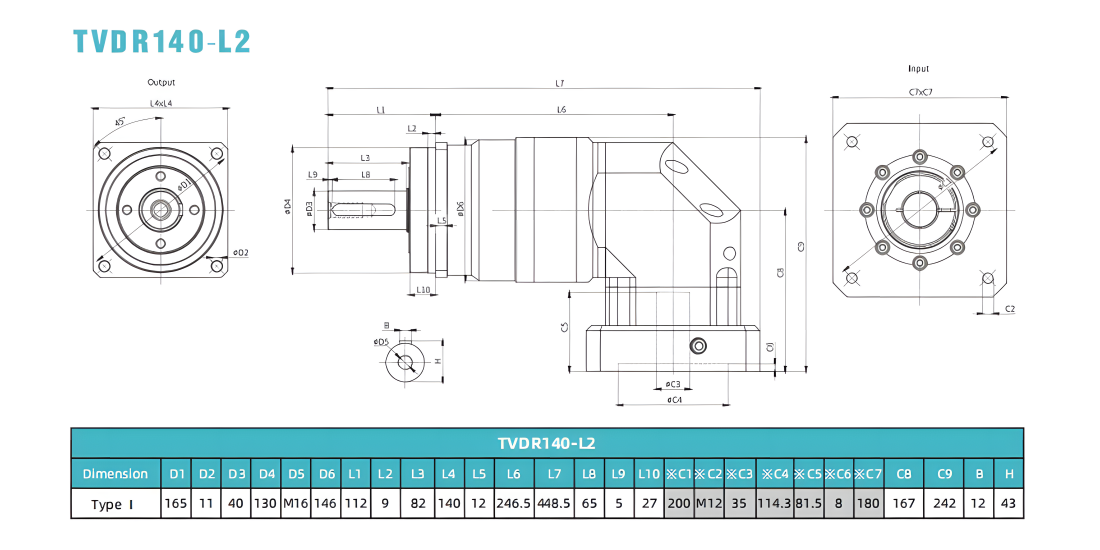

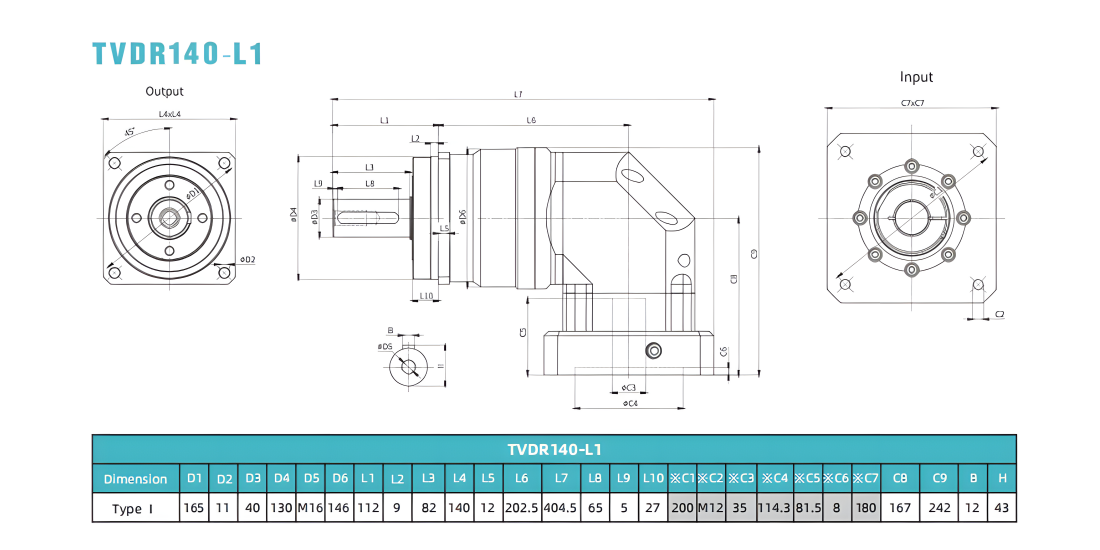

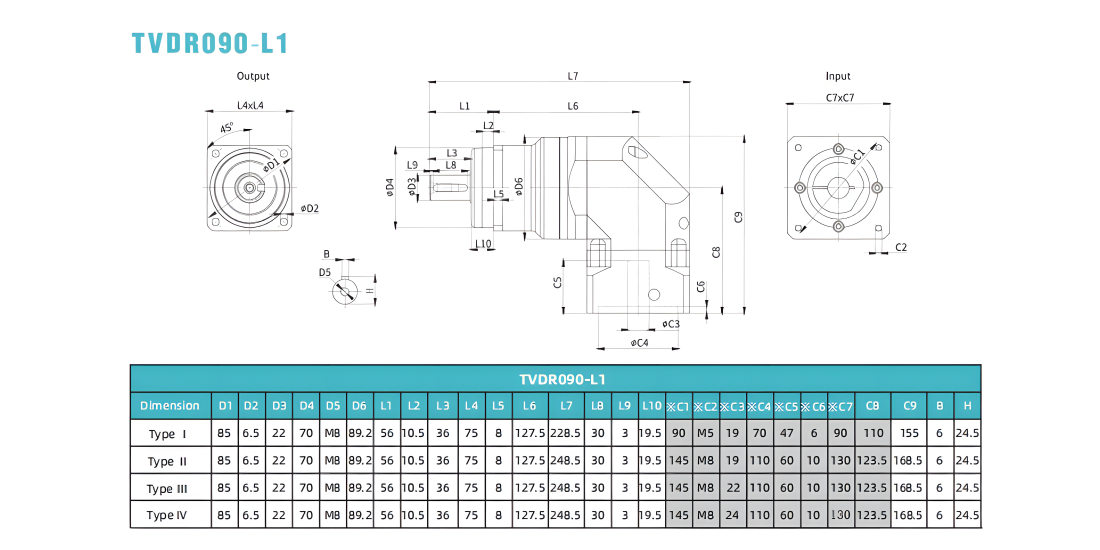

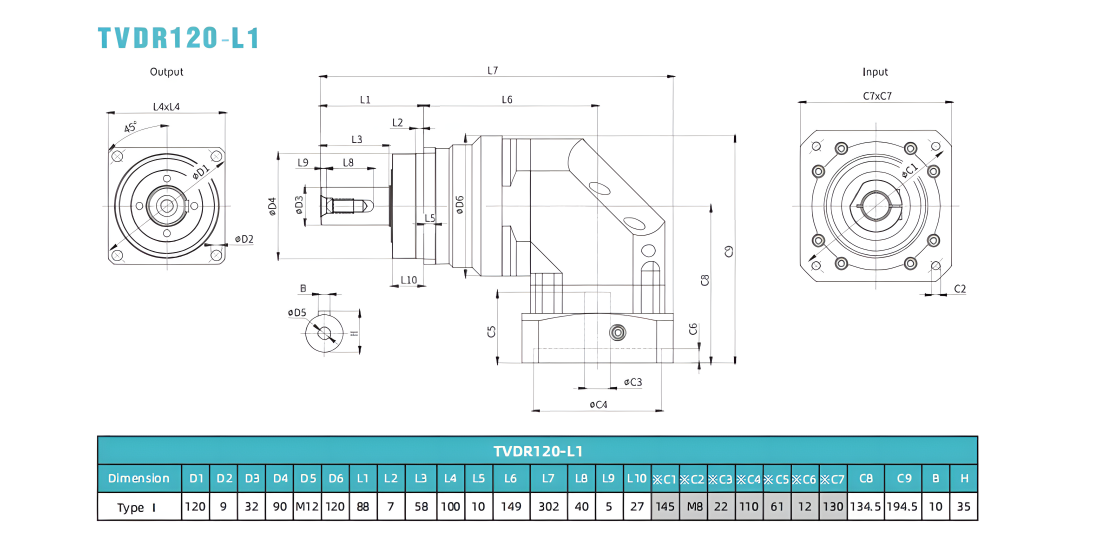

Dimensional drawing
※Dimension can be customized according to the motor,if necessary,please contact us!
Product parameters
TVDR60 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 30 | 40 | 55 | 45 | 35 | 28 | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 30 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 5000 | |||||||||||||
Max. Input Speed n1B | rpm | 10000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 7 | |||||||||||||
Max. Bending moment M2XB | Nm | 1200 | |||||||||||||
Max. Axial Load F2aB | N | 1050 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤70(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
Standard Backlash P2 | arcmin | ≤10 | ≤12 | ||||||||||||
Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TVDR90 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 80 | 120 | 125 | 125 | 80 | 75 | 80 | 120 | 125 | 125 | 120 | 125 | 125 | 80 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
Max. Input Speed n1B | rpm | 6000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 14 | |||||||||||||
Max. Bending moment M2XB | Nm | 4200 | |||||||||||||
Max. Axial Load F2aB | N | 3900 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤72(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
Standard Backlash P2 | arcmin | ≤10 | ≤12 | ||||||||||||
Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TVDR120 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 150 | 260 | 300 | 240 | 200 | 210 | 300 | 350 | 310 | 300 | 230 | 330 | 330 | 230 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 4000 | |||||||||||||
Max. Input Speed n1B | rpm | 8000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 25 | |||||||||||||
Max. Bending moment M2XB | Nm | 6500 | |||||||||||||
Max. Axial Load F2aB | N | 5650 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤70Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 6.84 | 6.84 | 6.84 | 6.84 | 6.84 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
Standard Backlash P2 | arcmin | ≤10 | ≤12 | ||||||||||||
Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TVDR140 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 320 | 500 | 630 | 530 | 430 | 580 | 480 | 630 | 600 | 530 | 480 | 630 | 530 | 430 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
Max. Input Speed n1B | rpm | 5000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 50 | |||||||||||||
Max. Bending moment M2XB | Nm | 12500 | |||||||||||||
Max. Axial Load F2aB | N | 10800 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤76(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 23.4 | 23.4 | 23.4 | 23.4 | 23.4 | 6.84 | 6.84 | 6.84 | 6.84 | 6.84 | 6.84 | 6.84 | 6.84 | 6.84 |
Standard Backlash P2 | arcmin | ≤10 | ≤12 | ||||||||||||
Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
Precautions For Use
1.Select the reasonable reducer, damage of reducer may happen if choosen a reducer beyond the right power.
2.During the set up of reducer, please do not use the hammer hitting the reducer body, in case of impacting the accuracy during running.
3.Under the running status of reducer, do not put the hands or other objects on the rotary shaft, in case of injury.
4.Any uncommon sound /nosie or uncommon vibration, please stop the reducer running and contact us, we will provide the best solution.
5.Do not disassemble the reducer, no guarantee on performance after reassemblying.
6.Start the reducer step by step, do not lift the loader to the upper limit.
7.To extend the life of reducer, please do not put the reducer in bad environment.
Mounting lnstruction
Table I Motor Lock Sleeve Screw Tightening Torque
|
|
|
| |
mm | Nm | In-lbs | ||
040-Series | M4 | 3 | 4.9 | 44 |
060 Series | M5 | 4 | 9.8 | 87 |
090 Series | M6 | 5 | 17 | 151 |
120/140 Series | M8 | 6 | 41 | 364 |
180 Series | M10 | 8 | 80 | 709 |
220 Series | M12 | 10 | 139 | 1232 |
TableII Motor Mounting Screw Tightening Torque
|
|
| |
mm | Nm | In-lbs | |
M3 | 2.5 | 2.1 | 19 |
M4 | 3 | 4.9 | 44 |
M5 | 4 | 9.8 | 87 |
M6 | 5 | 17 | 151 |
M8 | 6 | 41 | 364 |
M10 | 8 | 80 | 709 |
M12 | 10 | 139 | 1232 |
M16 | 14 | 343 | 3038 |
Application
The TVDR series is suitable for a variety of scenarios. In automated production lines, low noise and high rigidity ensure stable production and improve efficiency; in the field of industrial robots, its high precision and high load capacity allow robots to move accurately and flexibly; in CNC machine tool applications, its high efficiency and maintenance-free characteristics ensure processing accuracy and long-term stable operation of the equipment; in electronic manufacturing equipment and medical equipment with strict space requirements, the space-saving advantage is highlighted, while the stable and reliable performance meets the power transmission needs of the equipment.
