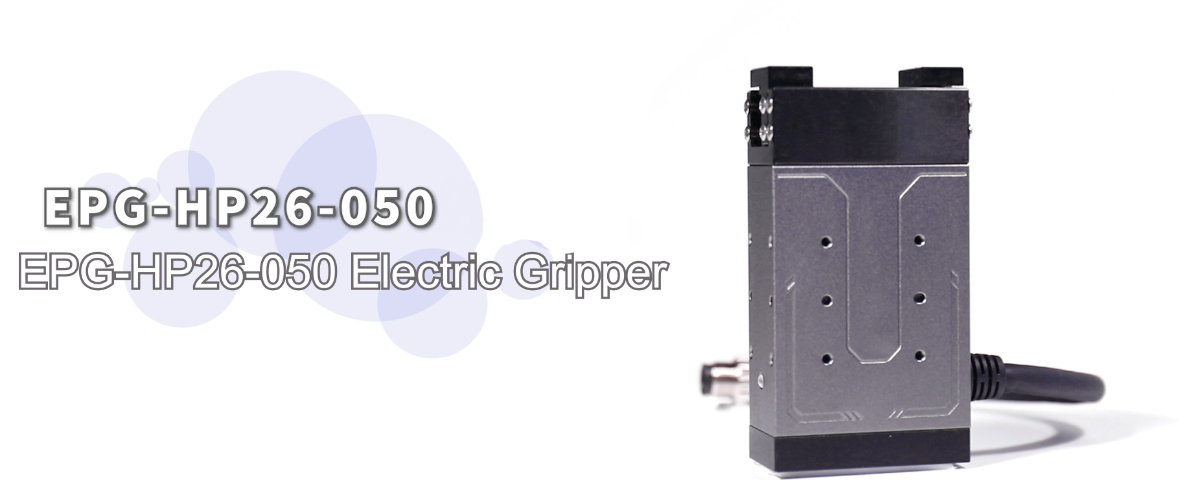

Product Description
High Precision High Stiffness Five Sided Installation Grab Feedback Networking Applications
Based on the EPG series of electric grippers, we independently developed a series of high-precision products, which can meet the needs of "high density, high stiffness and high precision"
l This product has a high-precision, high-rigidity structural design, which can provide stable and accurate performance in high-demand scenarios.
l Equipped with a power-off retention function and a built-in mechanical self-locking mechanism, it can maintain a stable position in the event of a power outage or abnormal situation, ensuring safe operation.
l Supports multi-faceted installation and can flexibly adapt to a variety of installation spaces to achieve efficient deployment.

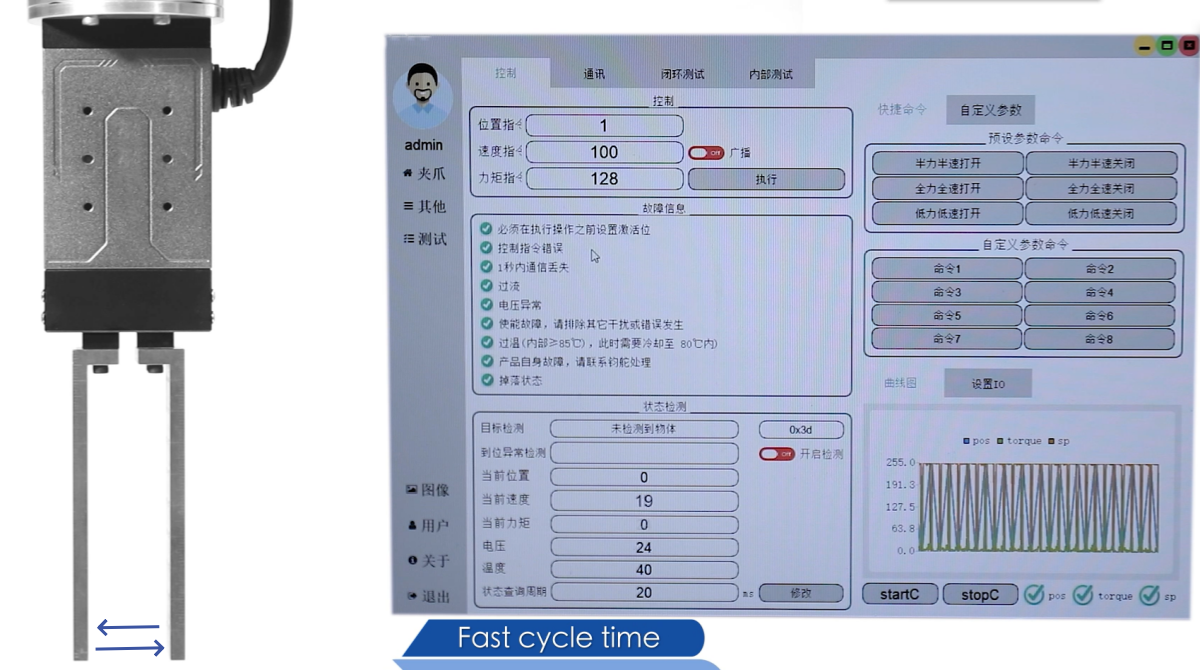

l By optimizing the speed control algorithm, it is particularly suitable for high-beat and fast-paced production conditions, meeting the strict efficiency requirements of modern manufacturing.
l The product has a maximum single-sided clamping force of 50N, which is suitable for a variety of clamping application scenarios, especially in industries such as Life Sciences, 3C electronics and New Energy.

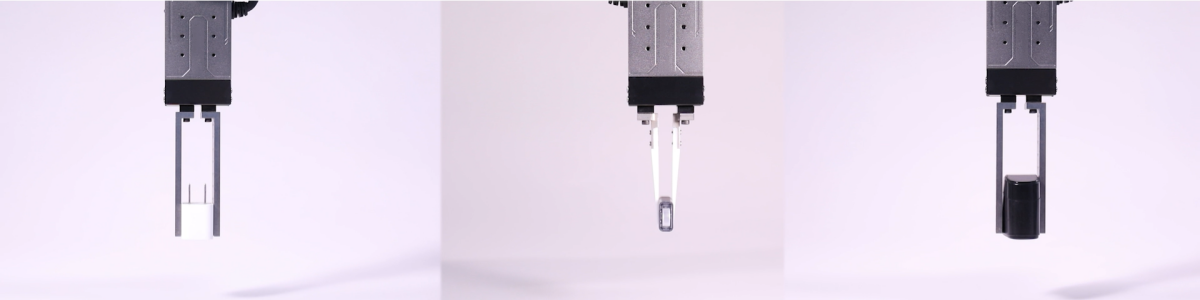

Application
Medical Automation Equipment Field

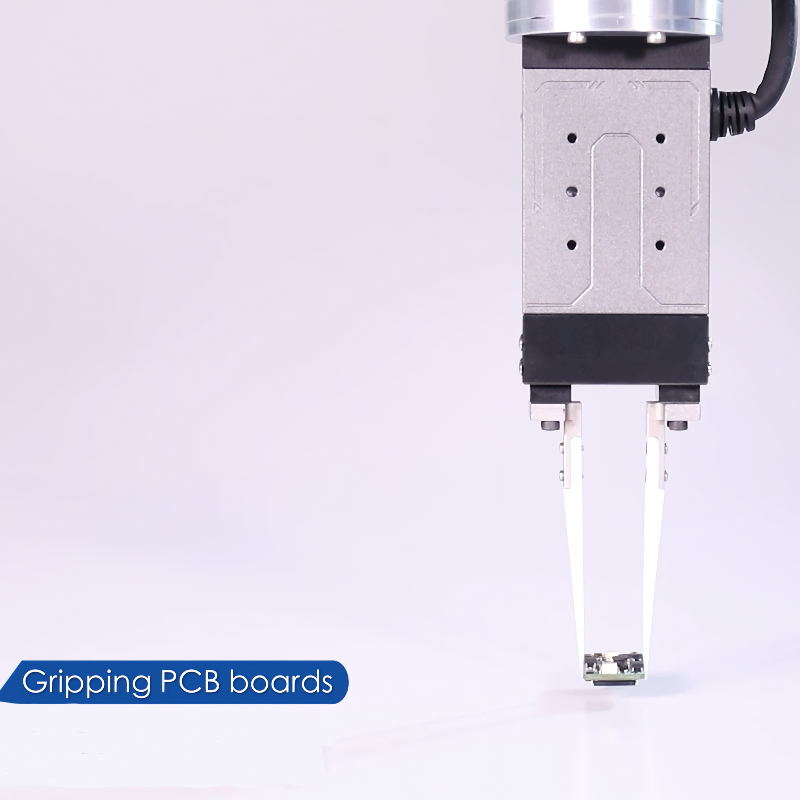

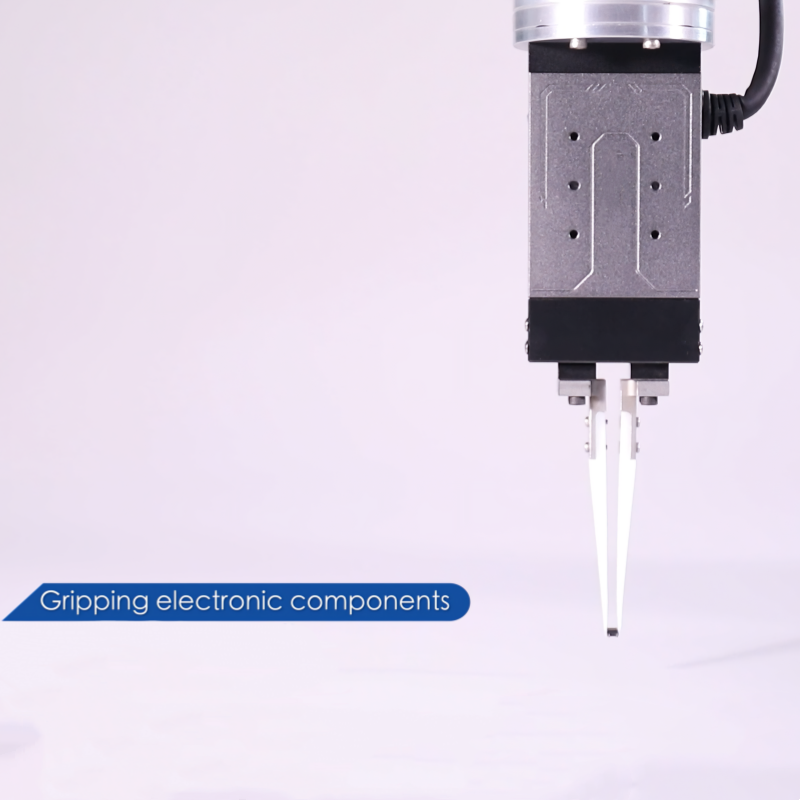

3C Compoment Assembly Testing Field
Packaging Automation Equipment Field

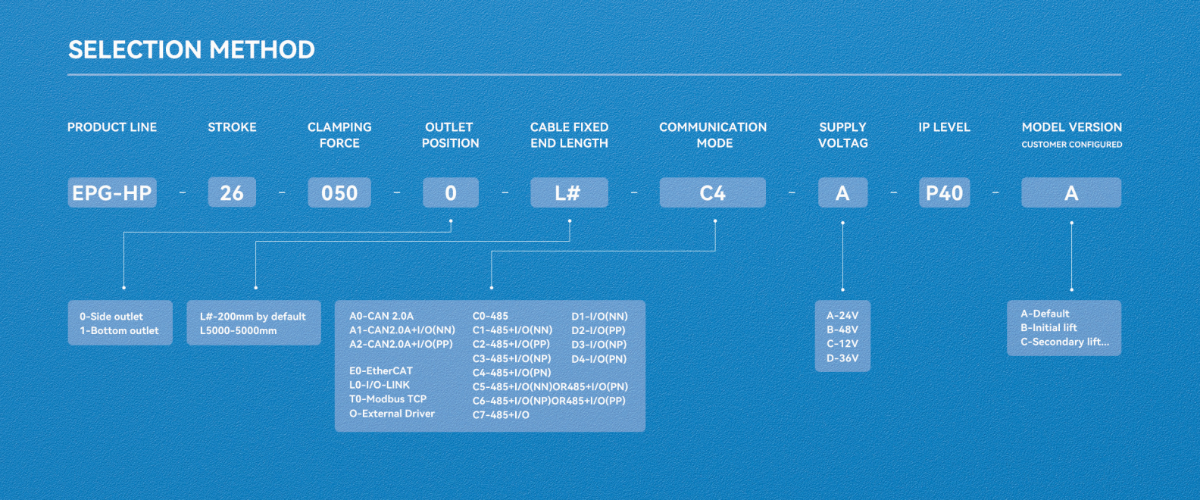

Selection Method
Product parameters
Model | EPG-HP26-050 | EPG-HP50-050 |
Adjustable stroke | 0-26mm | 0-50mm |
Single finger gripping force | 5-50N | 5-50N |
Opening/closing time | 0.35s | 0.5s |
Position repetition accuracy | ±0.02mm | ±0.02mm |
*Maximum recommended load | 1kg | 1kg |
Drop detection | support | support |
Usage environment | 5-40 ℃, below 85% RH | 5-40 ℃, below 85% RH |
Running noise | ＜40dB | ＜40dB |
Body weight | 0.45kg | 0.45kg |
IP level | IP40 | IP40 |
Rated voltage | DC 24V±10% | DC 24V±10% |
Maximum current | 0.6A | 0.6A |
Rated current | 0.25A | 0.25A |
communication protocol | Modbus RTU(RS 485) Digital I/O optional | Modbus RTU(RS 485) Digital I/O optional |
Compliant with international standards | CE、RoHS | CE、RoHS |
Vertical allowable static load Fz | 200N | 200N |
Permissible static moment of slider Mx | 3N·m | 3N·m |
The allowable static moment of the slider My | 2.5N·m | 2.5N·m |
The allowable static moment Mz of the slider | 3.5N·m | 3.5N·m |
Note: This product does not include finger clips

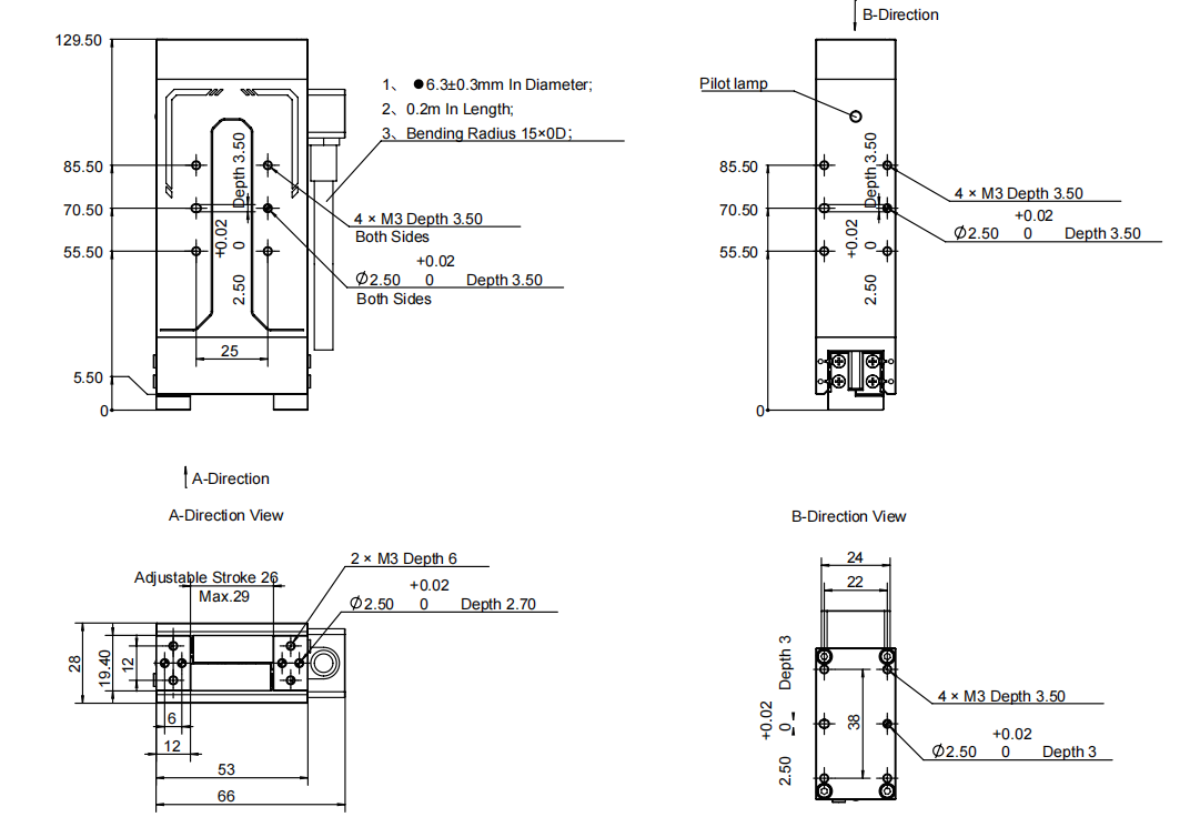

Installation Dimensions Drawing
EHP-HP26-050
Model：EHP-HP26-050-0L#-C4A-P40-A
