Product Description
The EPG26-06 electric parallel gripper
has made a name for itself in the automation field with its exquisite design and excellent performance. It has an adjustable stroke of 0-26mm and can flexibly adapt to objects of different sizes.
The mini/maximum gripping force of a single finger is 1-6N, the opening and closing time is only 0.25 s, the response is extremely fast, the recommended load is 0.1 kg, and it is lightweight and efficient.
Adjustable force and position
The position of capture, the force of capture, and the speed can all be adjusted, and it can be used in In a unified environment, one device can be used for multiple purposes to accomplish different tasks, therefore，The ability to adapt to manufacturing plants, including equipment standardization and parameter adjustment. Integration, agile manufacturing, rapid line changeover, low-noise operation, etc. the internal requirements.
Install in four directions
There are four installation surfaces available, and the holes have already been drilled. It supports various installation methods. It can be installed in multiple directions through the installation holes on the body to meet various requirements of the automated production line design.
Specification Parameter
Model | EPG26-006 | EPG26-015 | EPG30-150 | EPG40-050 | EPG40-100 | EPG50-060 | EPG50-100 |
Adjustable stroke | 0-26mm | 0-26 mm | 0-30mm | 0-40mm | 0-40mm | 0-50mm | 0-50mm |
Single finger gripping force | 1-6N | 1-15N | 50-150N | 2-50N | 40-100N | 2-60N | 40-100N |
Opening/closing time | 0.25s | 0.3s | 0.3s | 0.5s | 0.9s | 0.6s | 1.10s |
Position repetition accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
*Maximum recommended load | 0.1kg | 0.3kg | 3Kg | 0.8kg | 2kg | 1kg | 2kg |
Drop detection | support | support | support | support | support | support | support |
Usage environment | 5-40 ℃, below 85% RH | 5-40 ℃, below 85% RH | 5~45 ℃, below 85% RH | 5-40 ℃, below 85% RH | 5-40 ℃, below 85% RH | 5-40 ℃, below 85% RH | 5-40 ℃, below 85% RH |
Running noise | ＜40dB | ＜40dB | ＜40dB | ＜40dB | ＜40dB | ＜40dB | ＜40dB |
Body weight | 0.20Kg | 0.25Kg | 0.9Kg | 0.36Kg | 0.37Kg | 0.57Kg | 0.53Kg |
IP level | IP40 | IP40 | IP40 | IP40、IP65 optional | IP40、IP65 optional | IP40、IP65 optional | IP40、IP65 optional |
Rated voltage | DC 24V±10% | DC 24V±10% | DC 24V±10% | DC 24V±10% | DC 24V±10% | DC 24V±10% | DC 24V±10% |
Maximum current | 0.85A | 0.85A | 0.85A | 0.85A | 0.85A | 0.85A | 0.6A |
Rated current | 0.4A | 0.4A | 0.4A | 0.4A | 0.4A | 0.4A | 0.25A |
communication protocol | Modbus RTU(RS 485) | Modbus RTU(RS 485) | Modbus RTU(RS 485) | Modbus RTU(RS 485),Digital I/O optional | Modbus RTU(RS 485),Digital I/O optional | Modbus RTU(RS 485),Digital I/O optional | Modbus RTU(RS 485),Digital I/O optional |
Compliant with international standards | CE、RoHS | CE、RoHS | CE、RoHS | CE、RoHS | CE、RoHS | CE、RoHS | CE、RoHS |
Vertical allowable static load Fz | 100N | 150N | 150N | 200N | 200N | 200N | 200N |
*Permissible static moment of slider Mx | 0.8N·m | 1.2N·m | 1.2N·m | 2N·m | 2N·m | 2N·m | 2.5N·m |
*The allowable static moment of the slider My | 0.6N·m | 0.9N·m | 0.9N·m | 1.5N·m | 1.5N·m | 1.5N·m | 2N·m |
*The allowable static moment Mz of the slider | 0.5N·m | 0.55N·m | 0.55N·m | 2N·m | 2N·m | 2N·m | 2.8N·m |
Dimensional drawing
EPG 26-006
EPG 50-060
Case

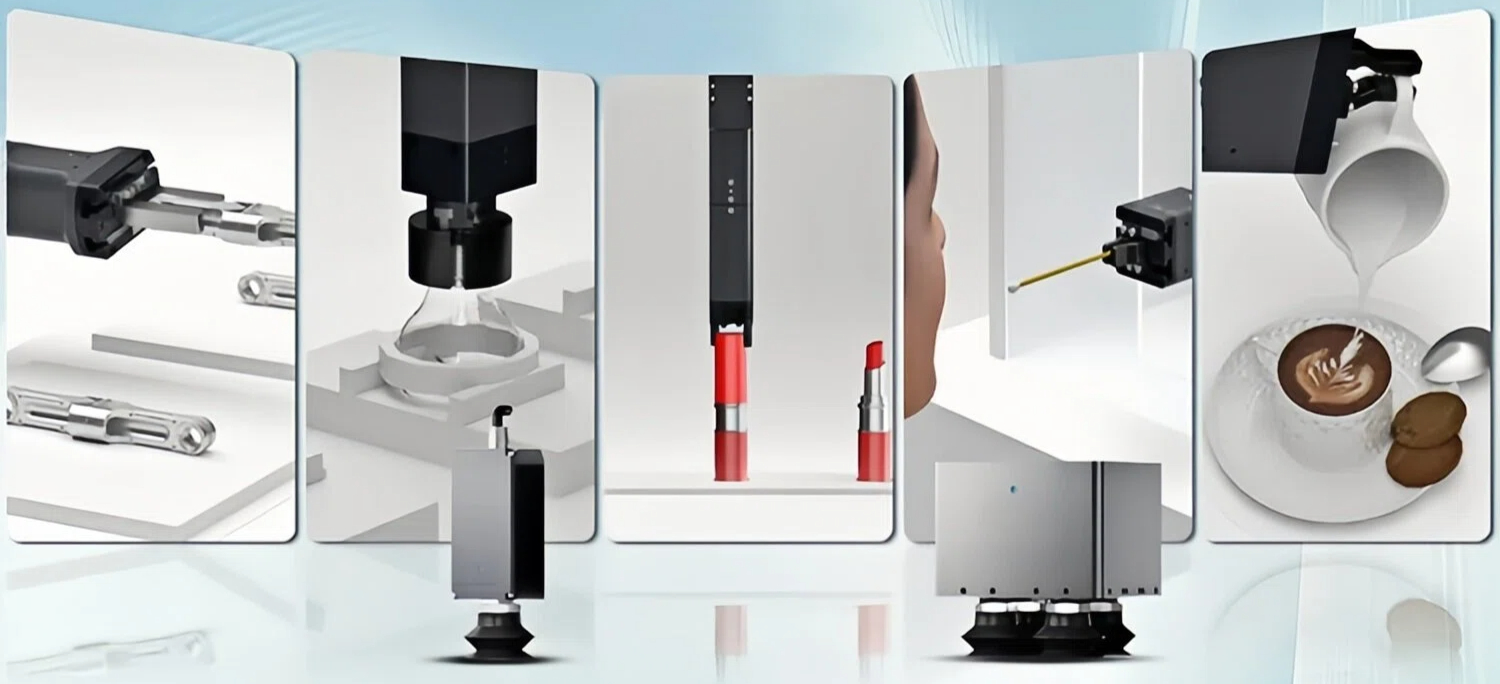

The electric gripper series integrates grasping, rotating, clamping and handling functions, and has a wide range of applications.It can be used in life sciences, 3C, semiconductors, new energy, robotics and various other life scenarios.
