Multi-Crate AGV
High Quality AGV Robot Intelligent Warehouse Handling Multi-Crate AGVs
- Basic dimension：1700*750*4007mm
- Maximum load：30 (KG)
- Maximum speed：0-60(m/min)
- Stopping accuracy：±10(mm)
USD： 10000-30000
ablity：Monthly Output500
- Product Description
- Product Params
Product Description

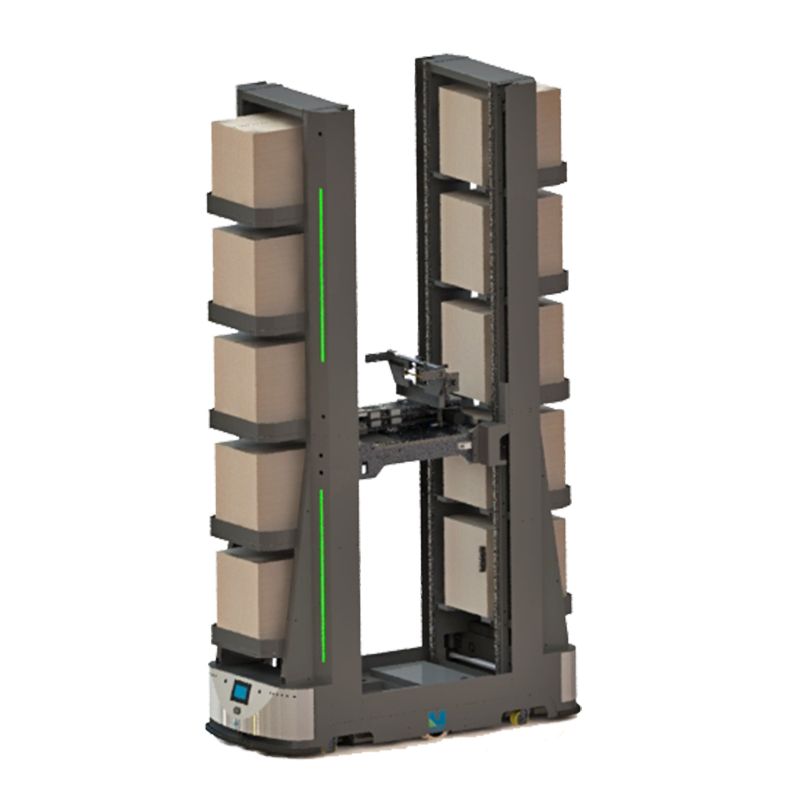

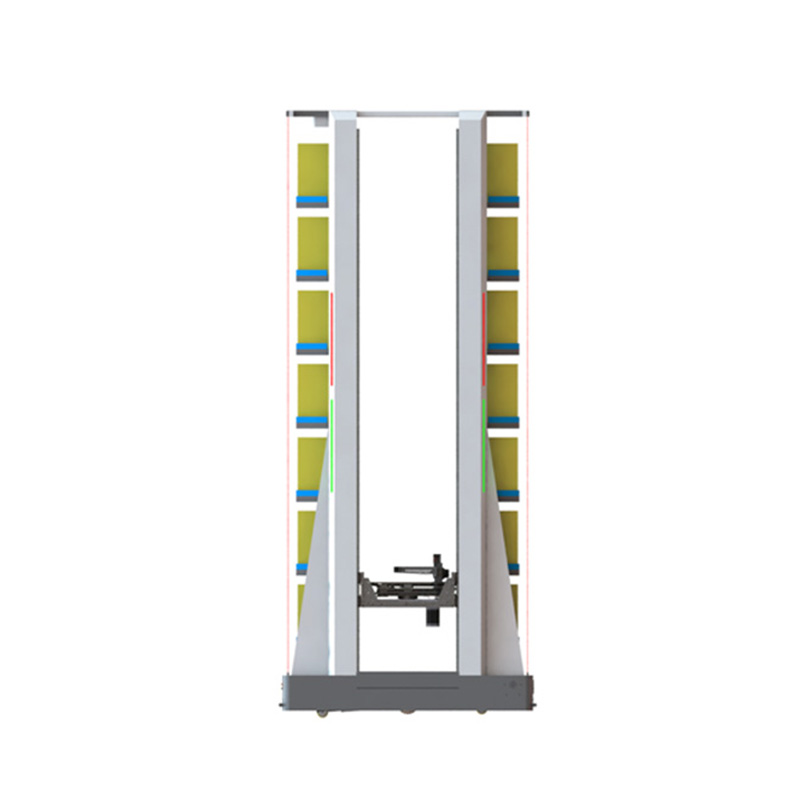

Multi-Crate AGV
1. lt is applied to the handling of intelligent warehouse, the sorting of three-dimensional warehouse, the loading and unloading of three-dimensional warehouse, etc.
2. Cooperate with the dispatching system and call system to realize fully automated transportation.
3. Highlight function: up to 12 upper storage positions, which can carry 12 bins at the same time, and automatically complete sorting, loading and unloading.
Product Features
Features 90-degree turns and arc turns With in-situ 90-degree turn and arc turn function, can also be forward and backward, can be applied to a variety of narrow space environment. | Applicable to a variety of scenes Applicable to a variety of industry application scenarios, a variety of environmental factors, a variety of driving surfaces, strong adaptability. | Adjustable speed of movement Adopting two-wheel differential drive, speed adjustable, speed (0-45m/min) |
Synchronized autonomous operation of multiple equipment With multiple AGVs running synchronously, autonomous operation according to the scheduling instructions, set control procedures, no manual intervention in the production process. | Fault self-test recovery function With perfect fault self-test function, and with remote fault diagnosis and recovery function. | Equipped with radar detection sensor Equipped with radar obstacle detection sensor, mechanical collision avoidance device and sound and light alarm system to ensure safe operation. |
Product Parameters
| Product Sequence | Multi-Crate AGV | |
| Basic dimension | 1700*750*4007mm | |
| Navigation Methods | Magnetic stripe navigation | Ground laying |
| Control method | All-in-one controller | Customization |
| Drive motor | Brushless motor (W) | 200*2 |
| Driving method | Two-wheel differential | |
| Load method | Upper and lower storage | 12 storage compartments |
| Maximum load | 30 (KG) | |
| Running direction | Bidirectional operation | Forward + Backward + Arc Turn |
| Maximum speed | 0-60(m/min) | |
| Lifting Stroke | 385-3385(mm) | |
| Safety protection | Front and rear laser obstacle avoidance | Mechanical collision avoidance + emergency stop |
| Nodal recognition | RFID | |
| Communication method | WIFI(2.4G、5G) | Optional |
| Stopping accuracy | ±10(mm) |
Application scenario
· Applied to intelligent warehouse handling, picking in three-dimensional warehouse, loading and unloading in three-dimensional warehouse.
· Combined with dispatching system and call system, it realizes fully automated transportation.
