38mm outer diameter single turn dual output encoder

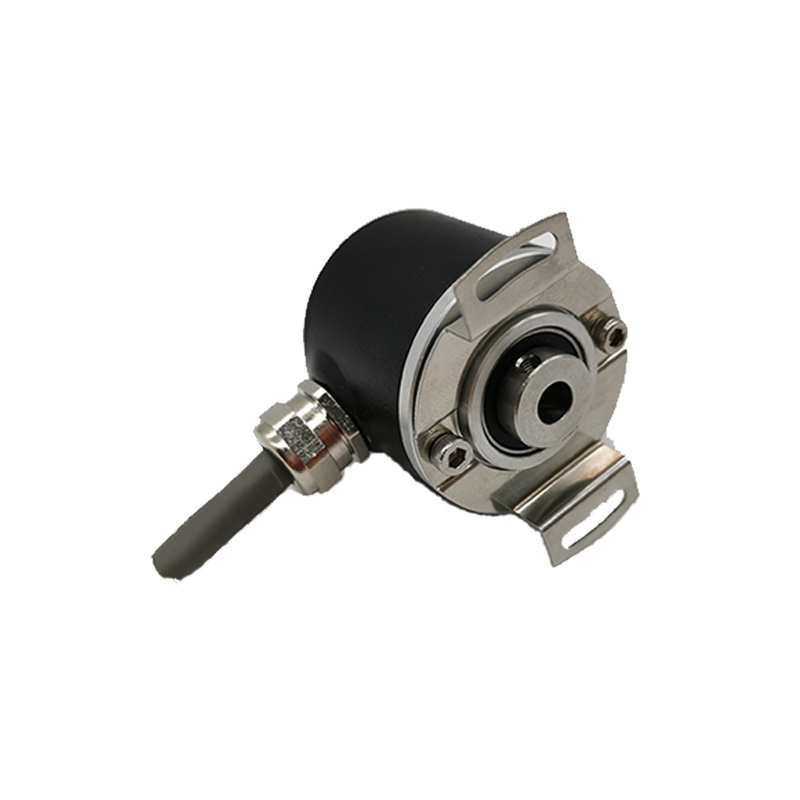

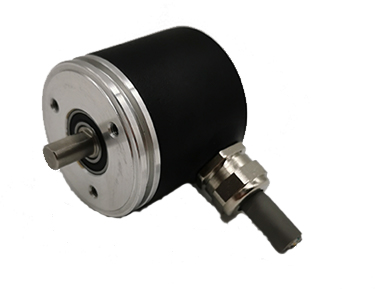

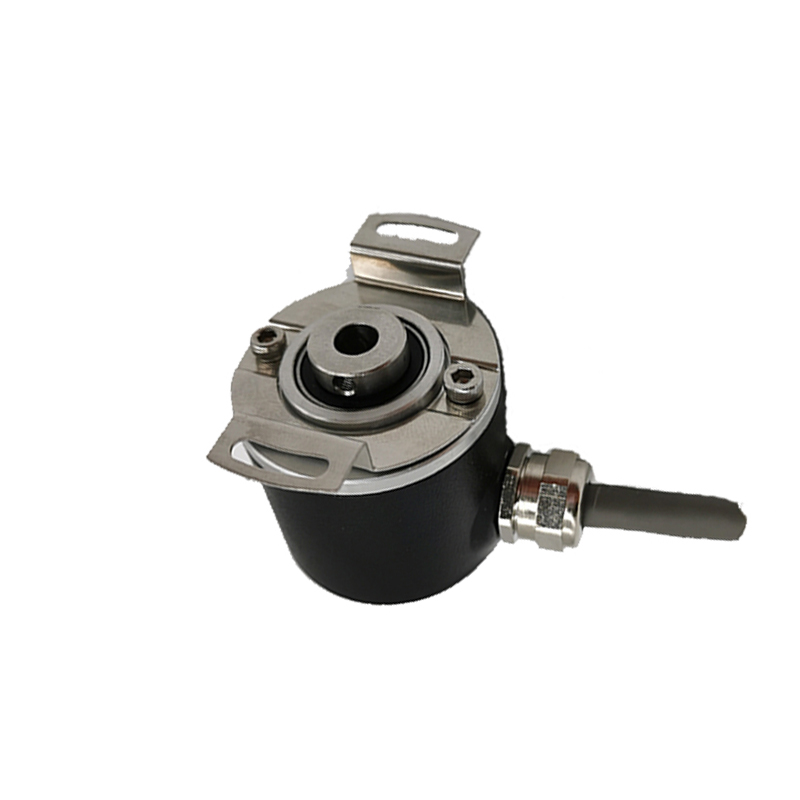

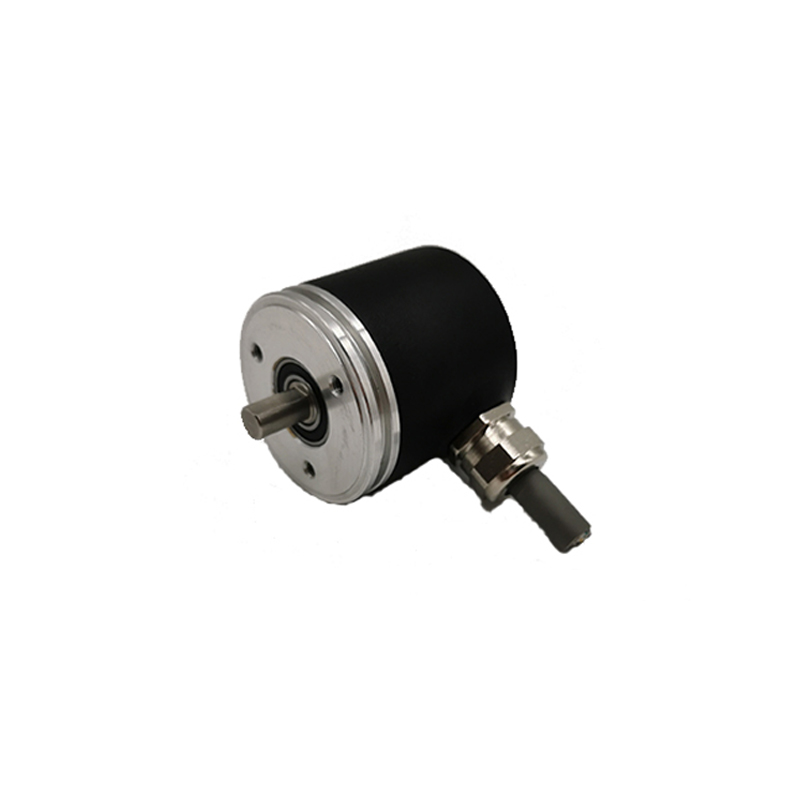

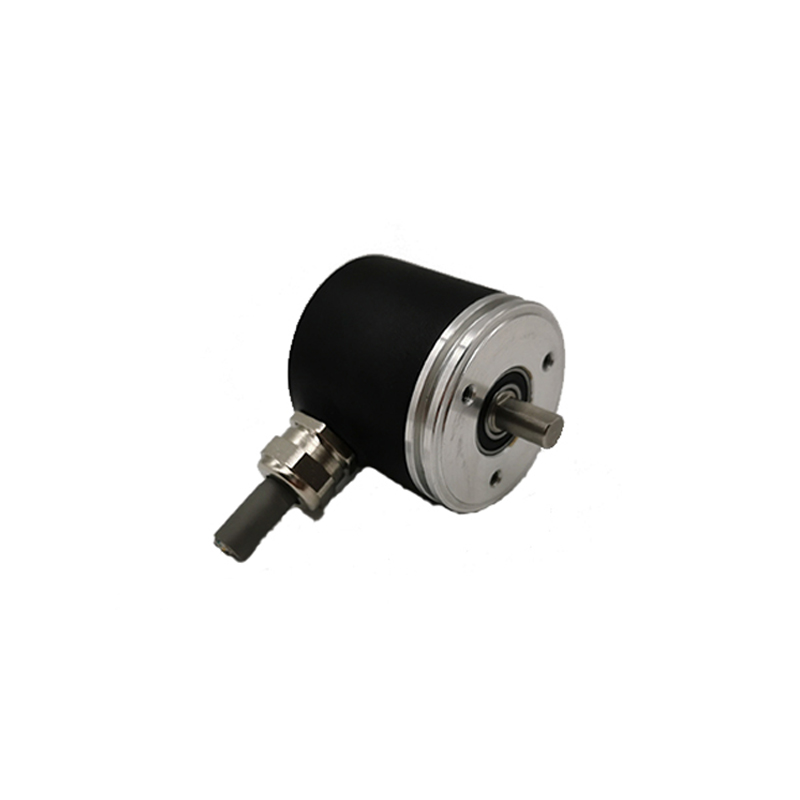

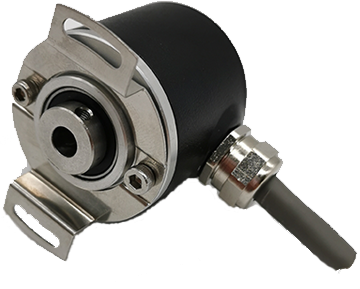

Magnetoelectric single turn absolute encoder 6/8 mm hole solid shaft blind hole

  • Repeatability：Less than 2 bits
  • Maximum speed：6000 rpm
  • Current consumption：<50mA (24Vdc) no load
  • IP Rating：IP65 (IP68 can be customized)
  • Operating temperature：-40°C~85°C
  • Maximum speed：6000 rpm

USD： 229-688

ablity：Monthly Output1000

contact shop
  • Product Description
  • Product Params

Product Description

Magnetoelectric single-turn absolute encoder






Product Parameters


Mechanical parameters
Electrical parameters
Maximum speed
6000 rpm
Operating Voltage
10-30Vdc (5Vdc can be customized)
Spindle load
Axial force 40N, radial force 100N
Current consumption
<50mA (24Vdc) no load
Shock resistance
1000m/s2(6ms), equal to 100g
Output signal
RS485 free protocol + 0-20mA dual output
Vibration resistance
200m/s2(10-2000Hz), equal to 20g
Linear resolution
1/4096 FS or 1/65536 FS
Allowable axial movement
±1.5mm
IP Rating
IP65 (IP68 can be customized)
Allowable radial runout
±0.2mmRepeatability
Less than 2 bits
External structure
38mm OD, solid shaft, blind hollow shaft
Operating temperature
-40°C~85°C
Connection Type
8-core shielded cable or aviation plug
Storage temperature
-40°C~85°C


Wiring parameters


Function
VccGND
RS485 A
RS485 B
0-20mA+
0-20mA-
Position
Setting Allow
Shield
Color
Brown
White
Green
Yellow
Pink
Black
Grey
Blue
Net (thick red)

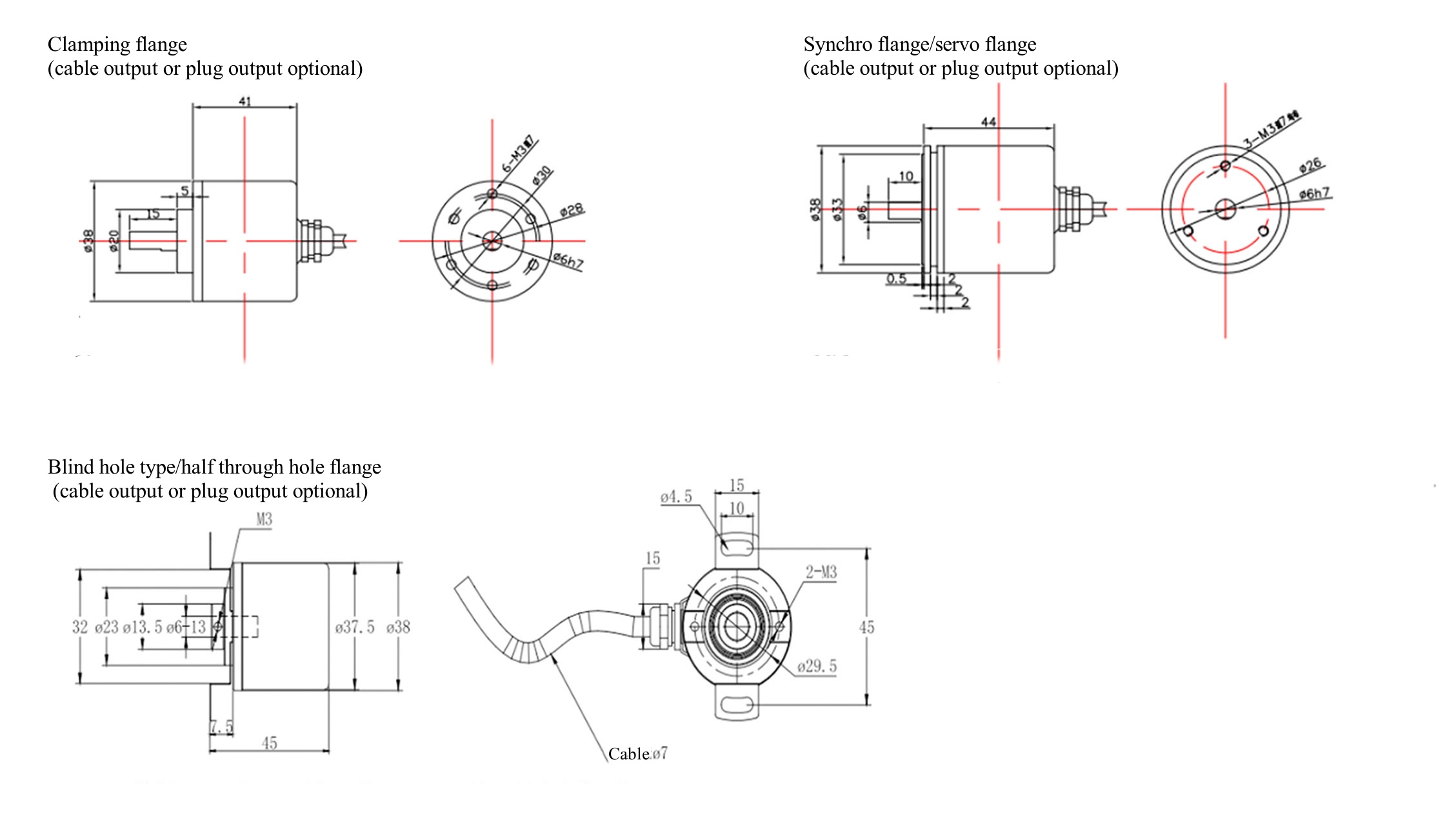

Mechanical Dimensions
