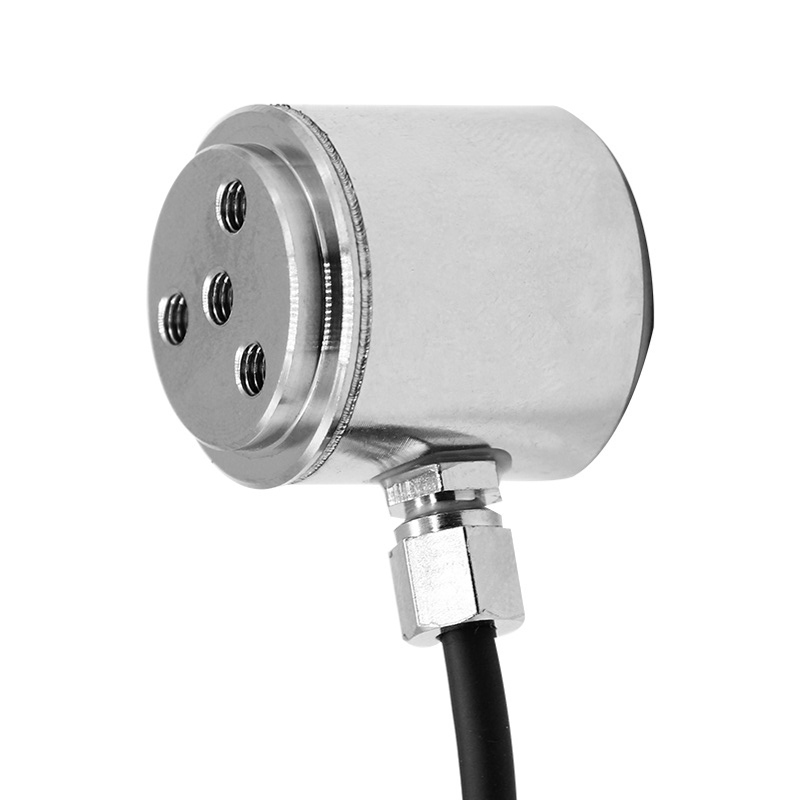

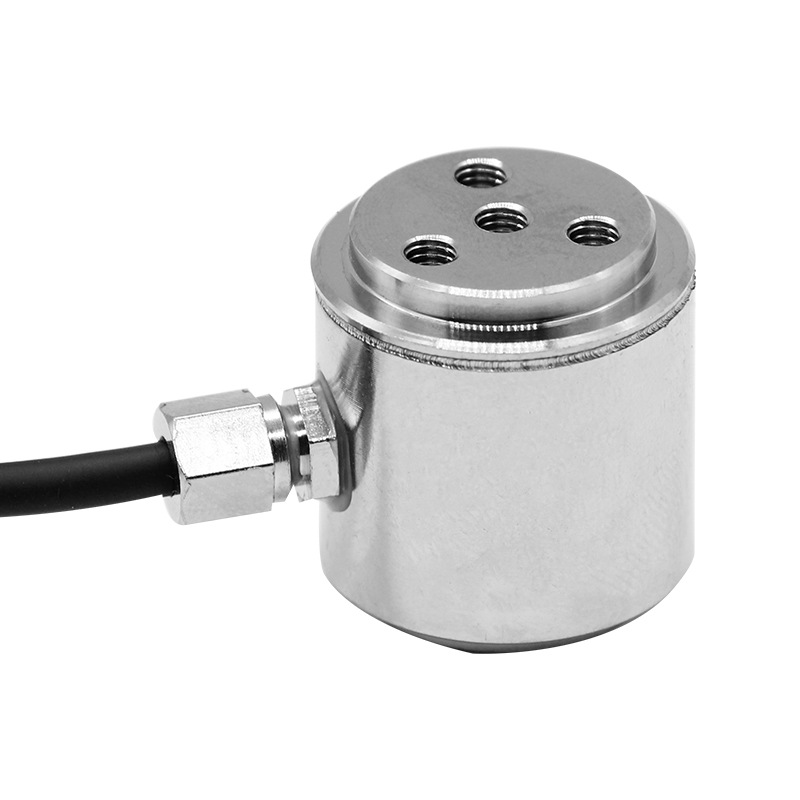

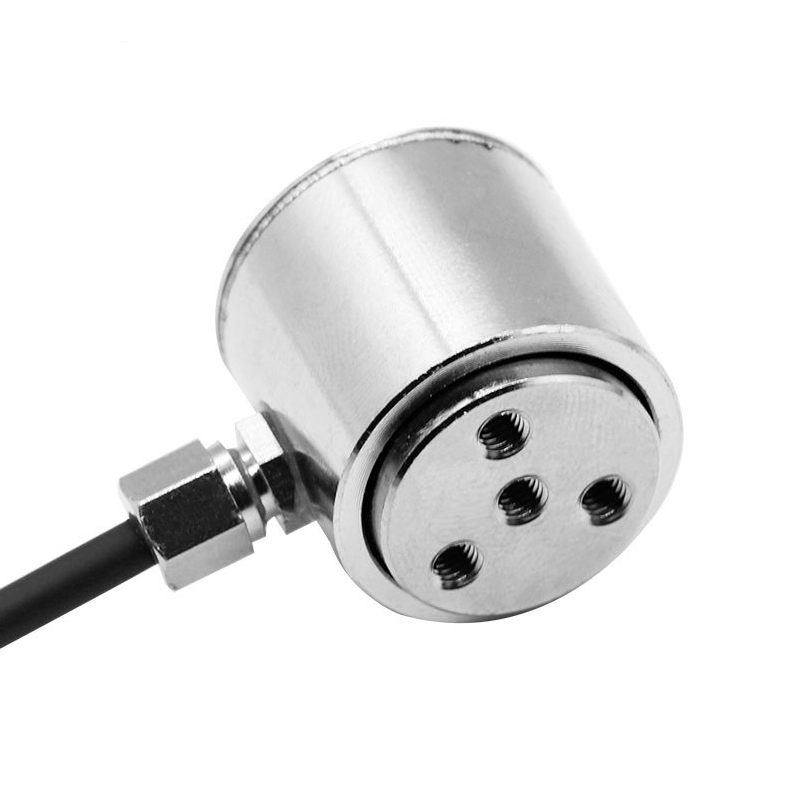

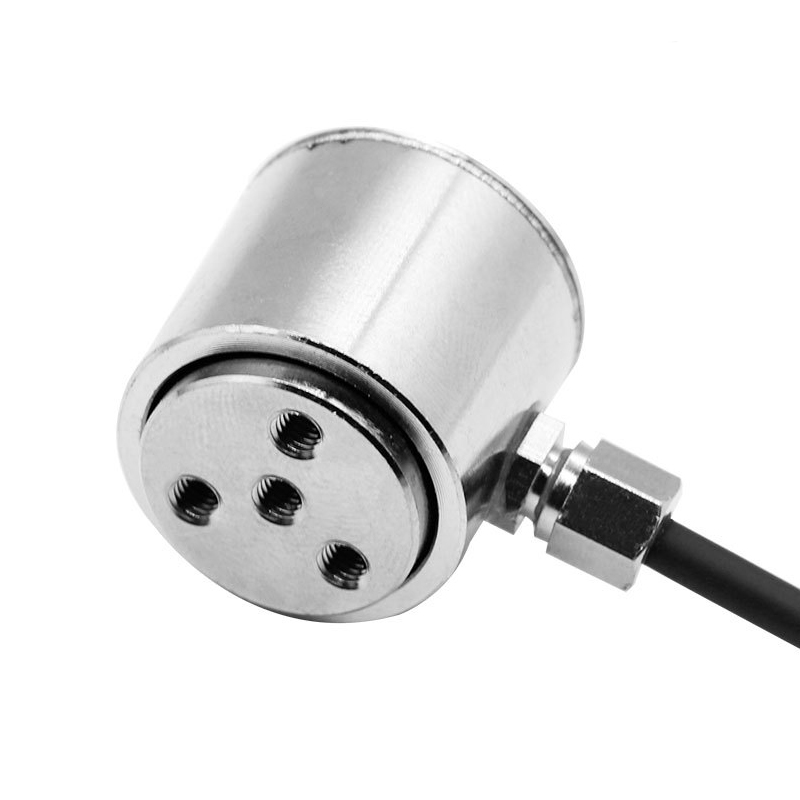

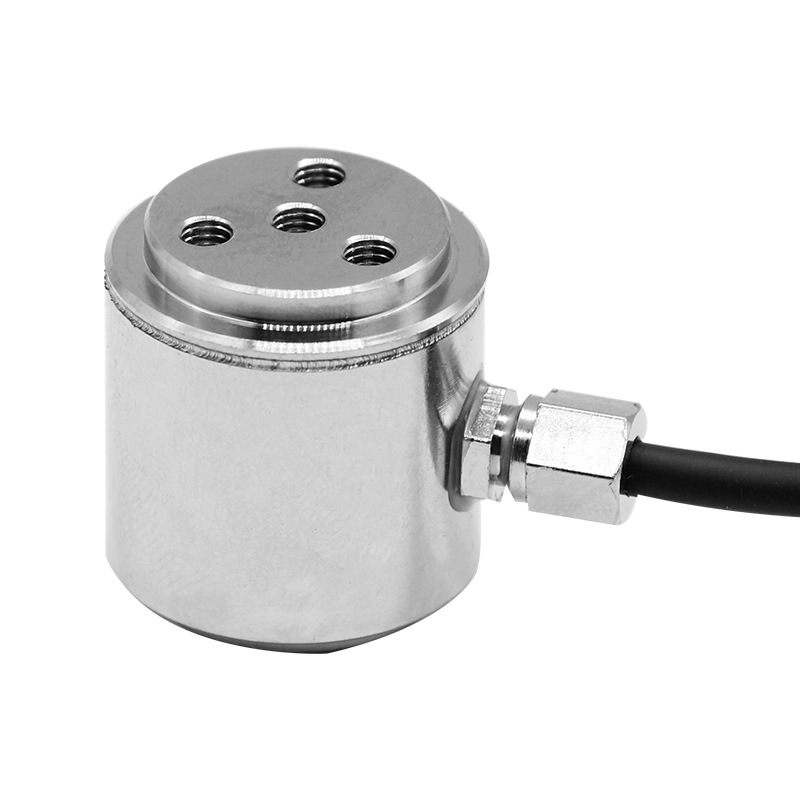

LCZ-202K Load Cell
Longlv LCZ-202K weighing sensor high-precision column tension and pressure sensor prestressed sensor module
- Rated load：0~200KG
- Sensitivity：2.0±0.05mV/V
- Response frequency：10kHz
- Material quality：Aluminium alloy
- Impedance：350/700Ω
- Insulation resistance：≥5000MΩ/100VDC
USD： 76
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description

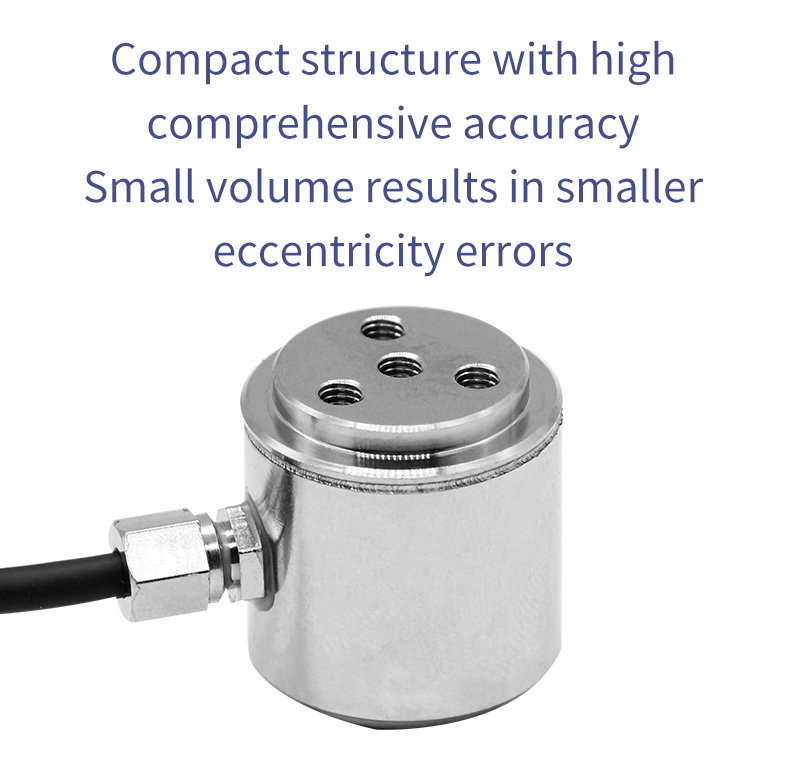

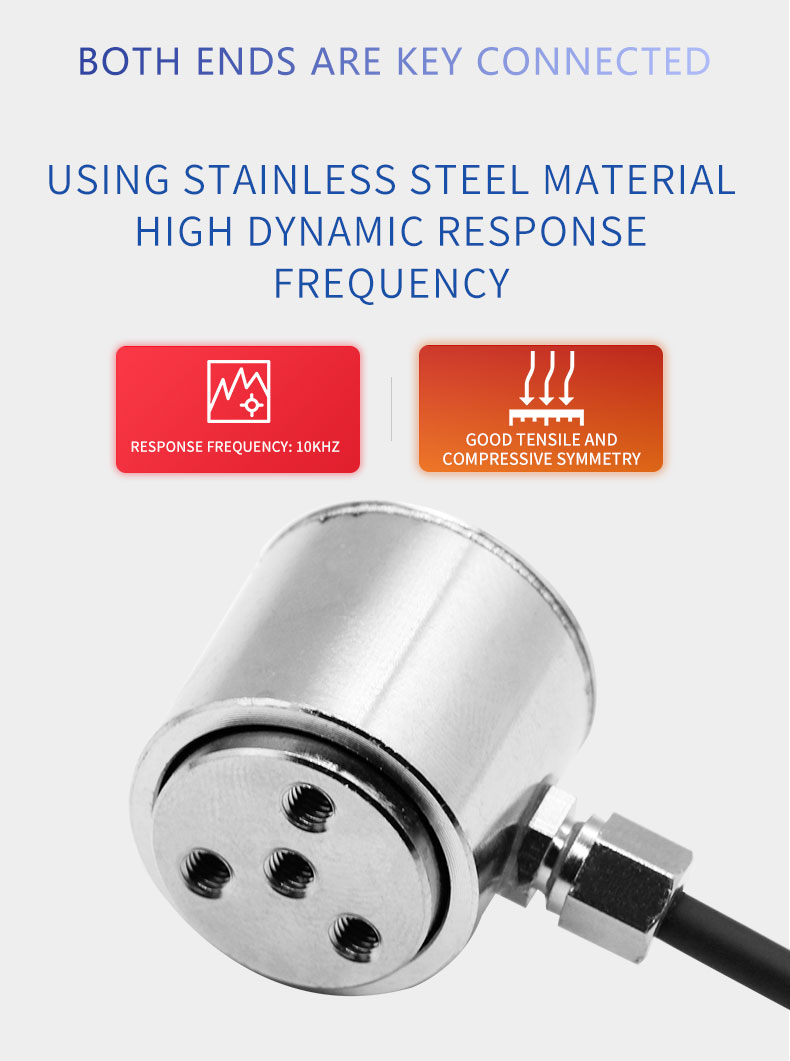

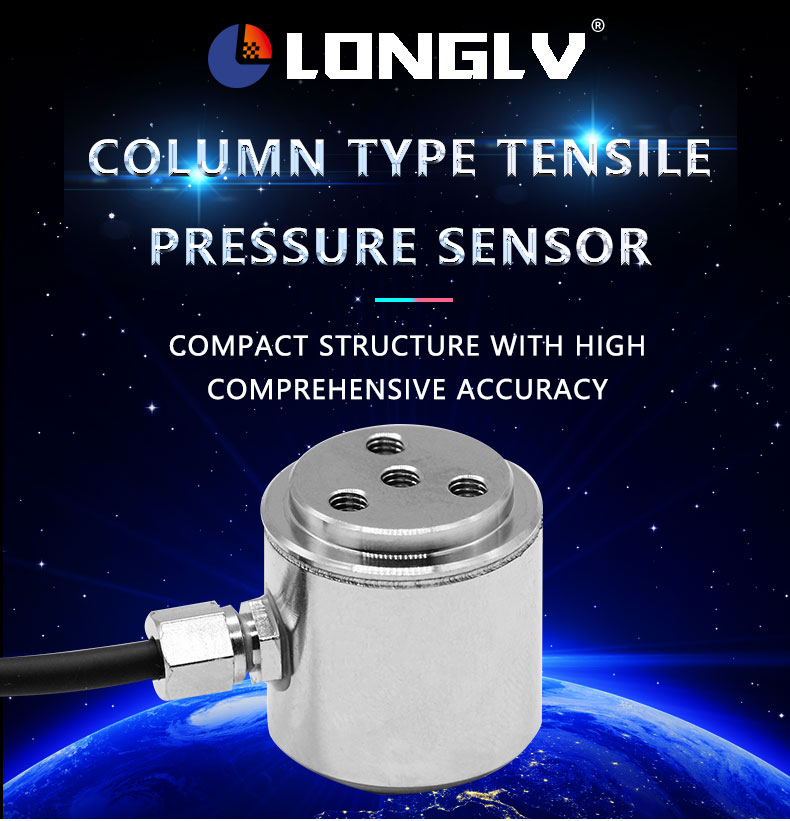

LCZ-202K column sensor has compact structure, high comprehensive accuracy, good long-term stability, high dynamic response frequency, and high-quality stainless steel material. It is widely used in automotive press-fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, automation equipment and testing fields.
Product Overview
—— -

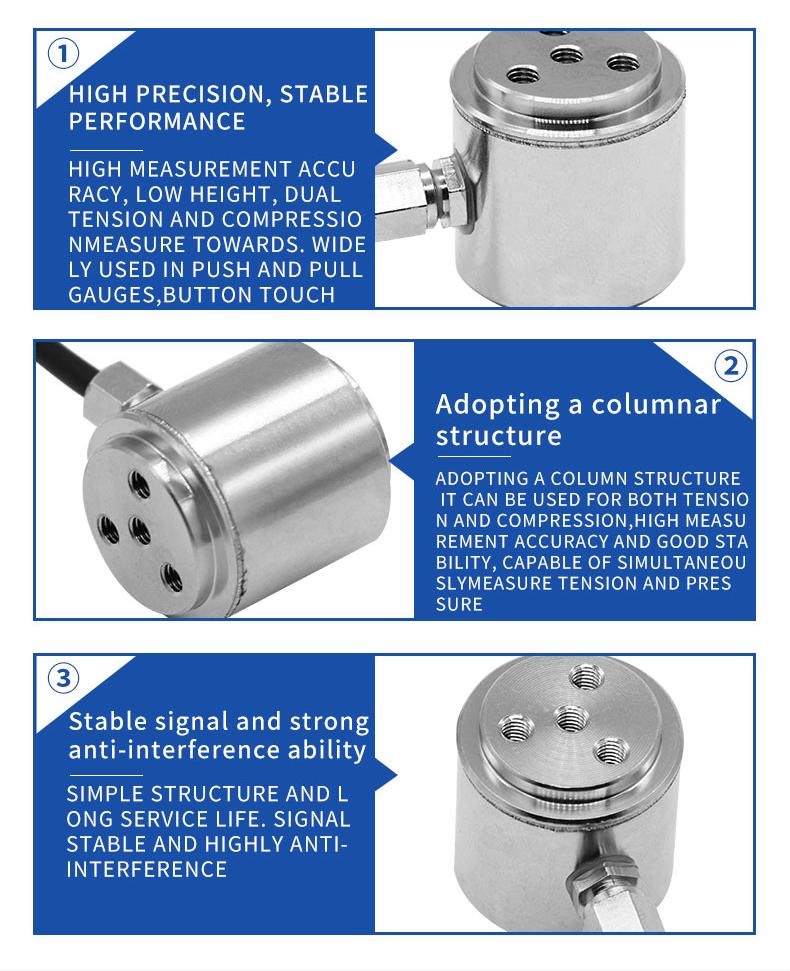

 | LCZ-202K Column tension and pressure sensor Column structure High precision, sensitive response Stable performance, good shock resistance |
Product Details
—— -
Parameter Specification
—— -
| Rated load | 0~200KG |
| Sensitivity | 2.0±0.05mV/V |
| Zero point output | ±2%F·S |
| Nonlinear | 0.1%F·S |
| Hysteresis error | 0.1%F·S |
| Repetitive error | 0.1%F·S |
| Creep | 0.1%F·S |
| Zero temperature | 0.1%F·S/10°C |
| Sensitivity temperature coefficient | 0.1%F·S/10°C |
| Response frequency | 10kHz |
| Material quality | Aluminium alloy |
| Impedance | 350/700Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Using voltage | 10~15V |
| Working temperature range | -20~80°C |
| Safety overload | 120%F·S |
| Ultimate Overload | 150% |
| Cable specifications | ф3x2m |

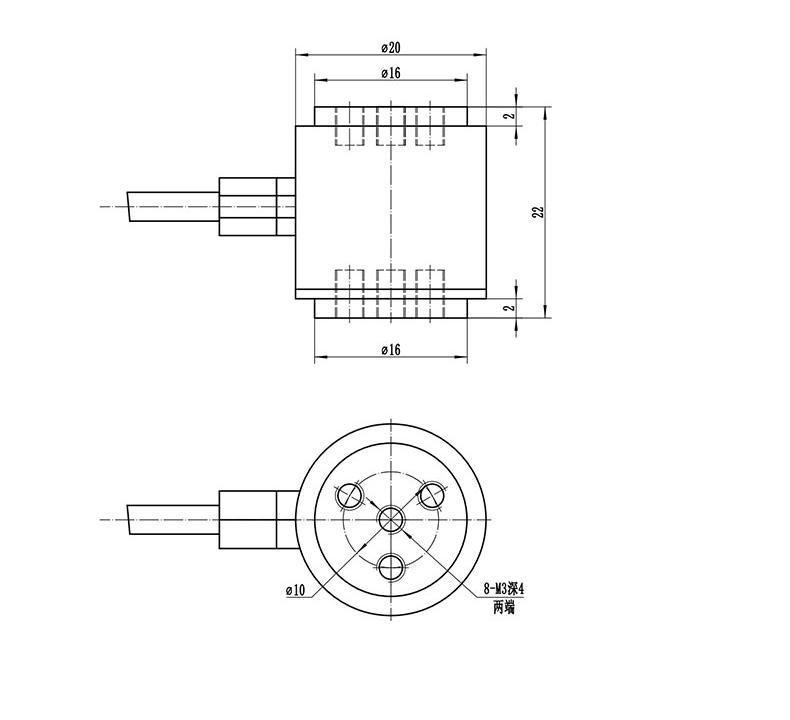

Product dimensions
—— -
Application Areas
—— -
Supplier Information
Company Name：Shanghai Longlv Electronic Technology Co., Ltd.
Contact Email：lonlvtech@ttbridge.com
