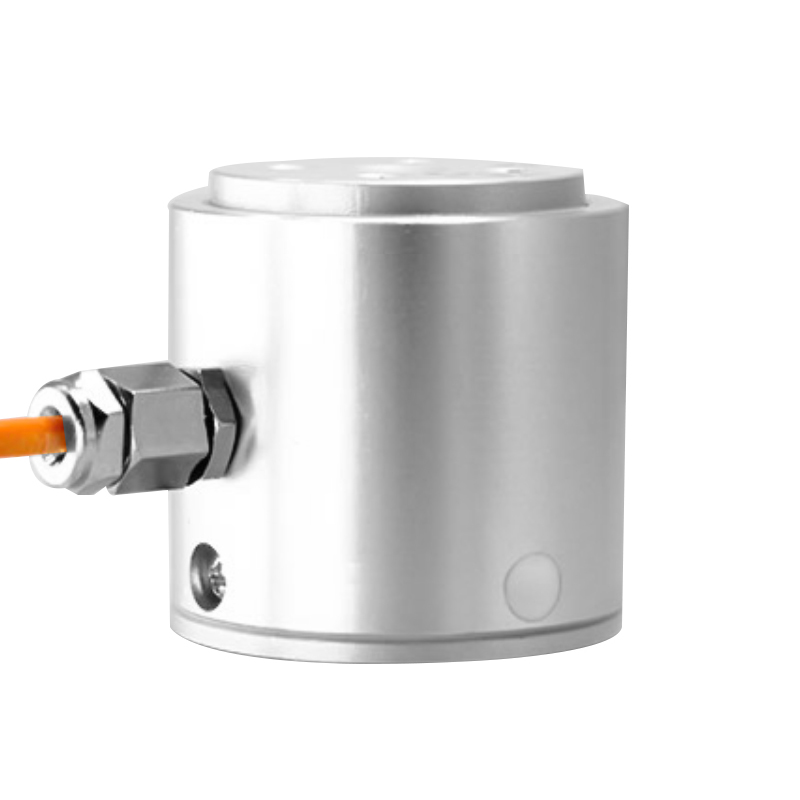

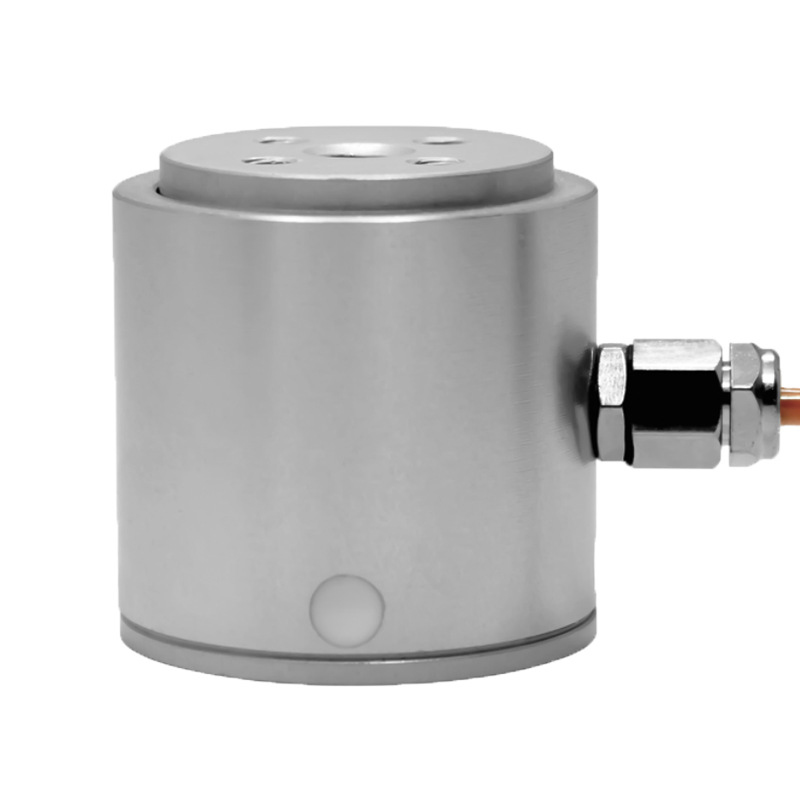

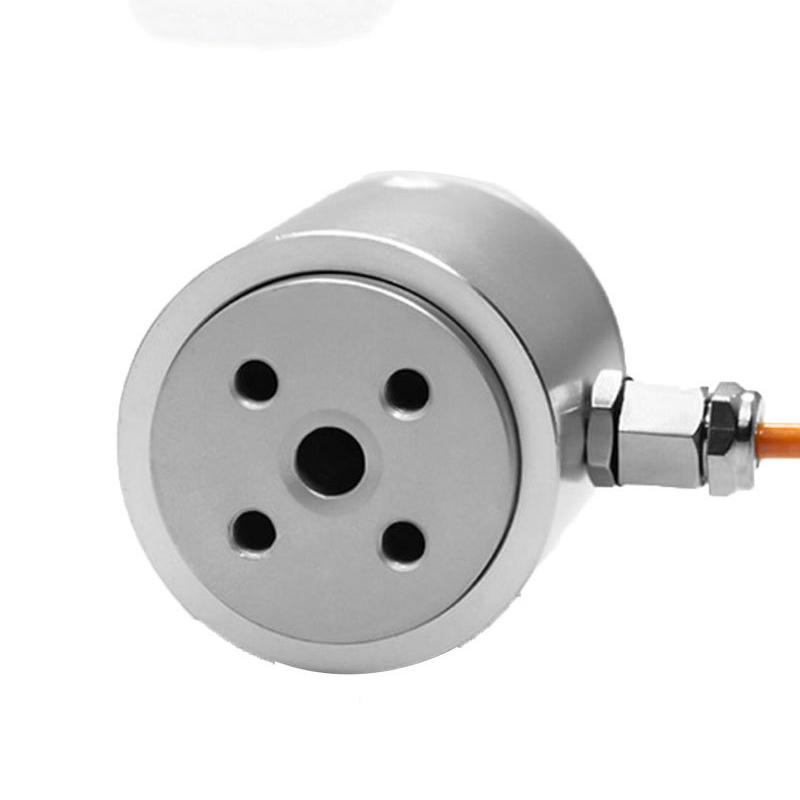

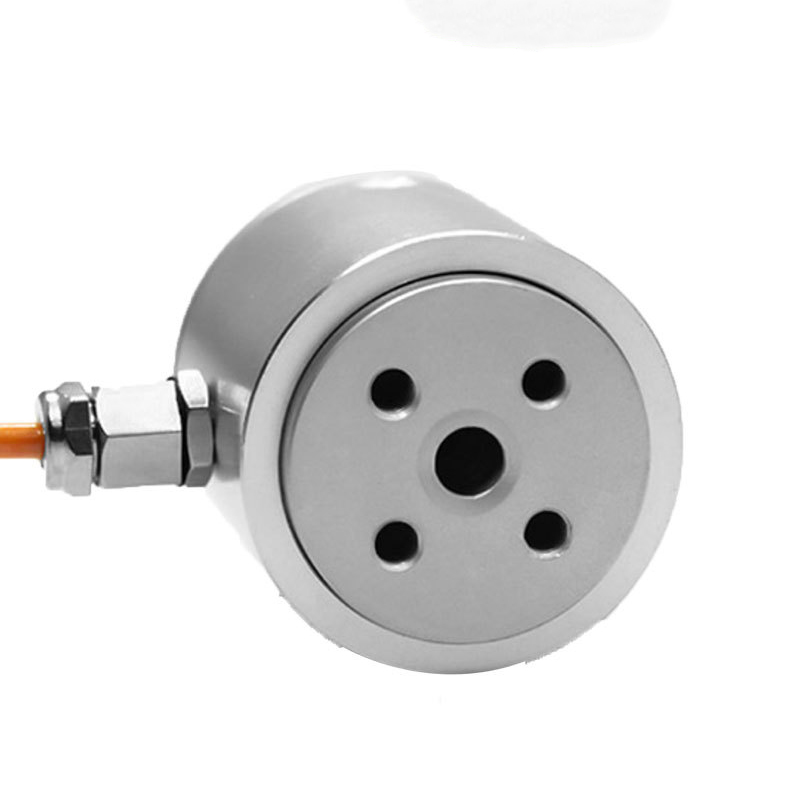

LCZ-202C Load Cell

Longlv LCZ-202C weighing sensor high-precision micro column tension and pressure sensor prestressed sensor

Rated load：0~50KN
Sensitivity：2.0±10%mV/V
Response frequency：10kHz
Material quality：Aluminium alloy
Impedance：350/700Ω
Using voltage：10~15V

USD： 105

ablity：Monthly Output1000

contact shop

Product Description
Product Params

Product Description

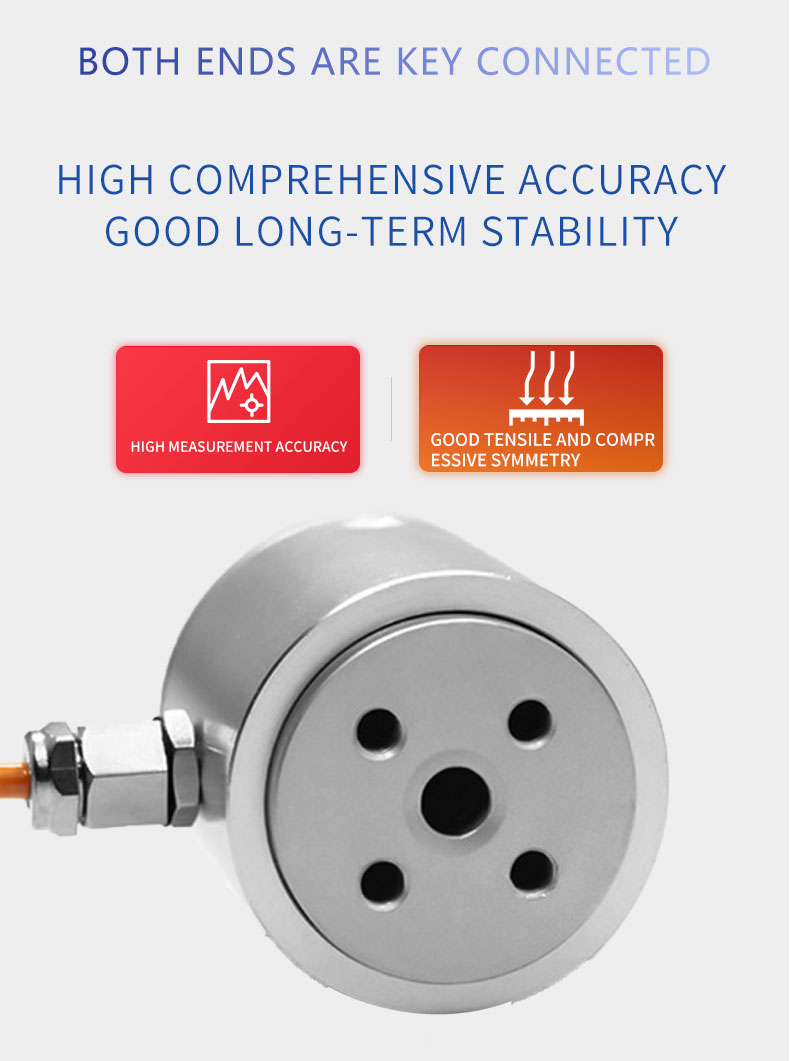

The column sensor has compact structure, high comprehensive accuracy, good long-term stability, high dynamic response frequency, and high-quality stainless steel material. It is widely used in auto pressure assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial test automation equipment and testing fields.

Product Overview

—— -

Column type tension and pressure sensor

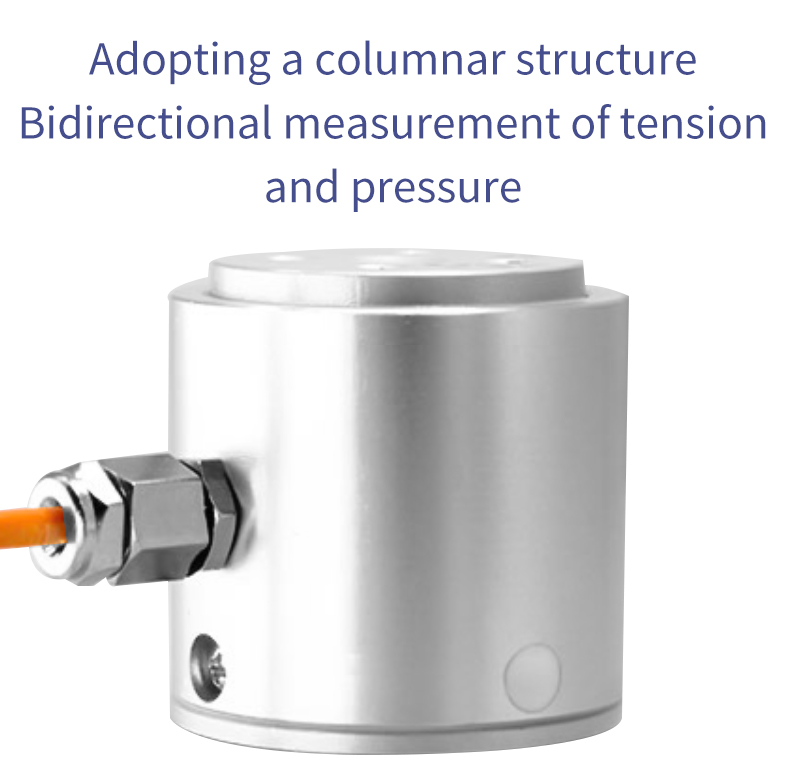

Column structure

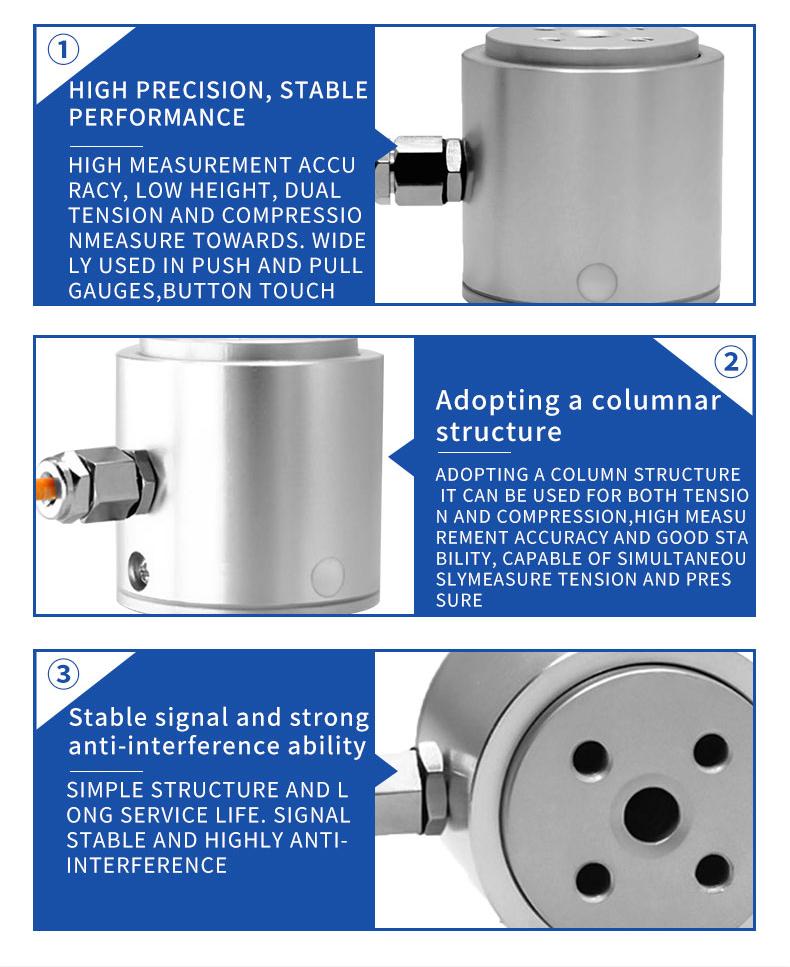

High precision, sensitive response

Stable performance, good shock resistance

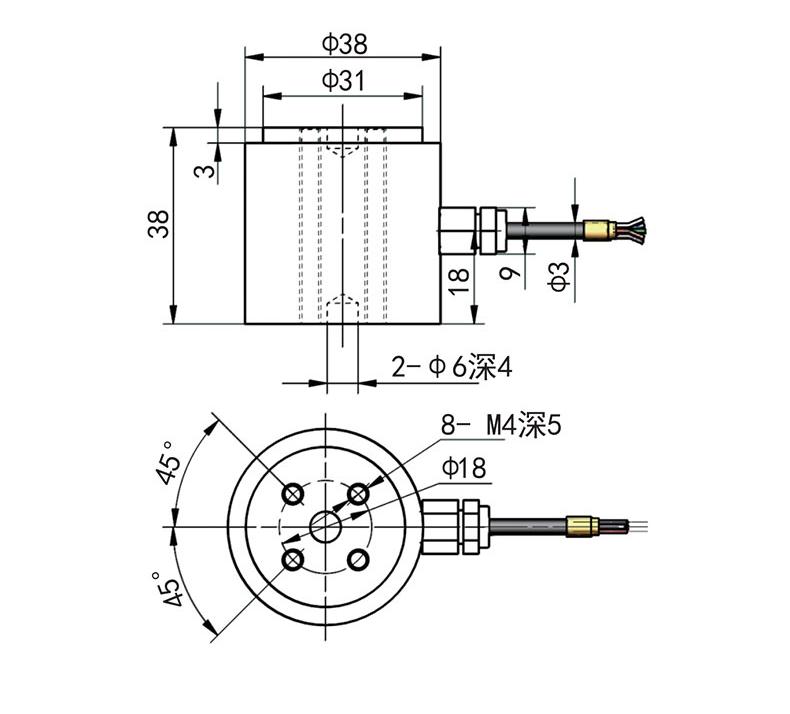

Product Details

—— -

Specifications

—— -

Rated load	0~50KN
Sensitivity	2.0±10%mV/V
Zero point output	±2%F·S
Nonlinear	0.5%F·S
Hysteresis error	0.1%F·S
Repetitive error	0.1%F·S
Creep	0.1%F·S
Zero temperature	0.1%F·S/10°C
Sensitivity temperature coefficient	0.1%F·S/10°C
Response frequency	10kHz
Material quality	Aluminium alloy
Impedance	350/700Ω
Insulation resistance	≥5000MΩ/100VDC
Using voltage	10~15V
Working temperature range	-20~80°C
Safety overload	120%F·S
Ultimate Overload	150%
Cable specifications	Ф3x2m
Cable ultimate tension	10kg
