E-100 Underwater Robot

Small and flexible underwater inspection robot High-definition underwater camera Remote control underwater drone

  • Size：437 x 356 x 273 mm
  • Weight in air：20kg
  • Load Capacity：8kg
  • Working depth：300m

USD： 20073

ablity：Monthly Output500

contact shop
  • Product Description
  • Product Params

Product Description

E-100 Underwater Robot

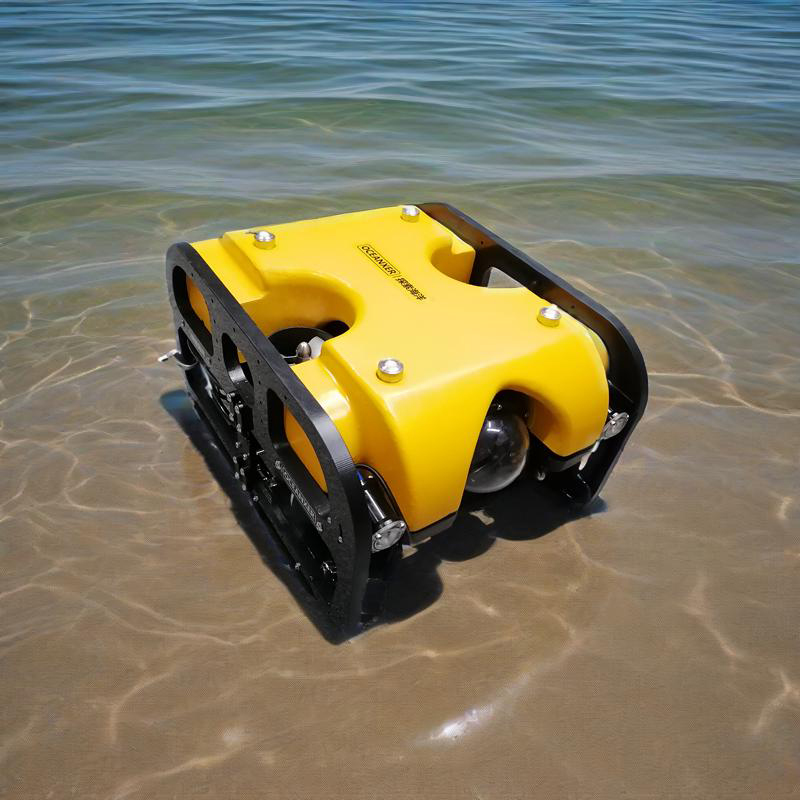

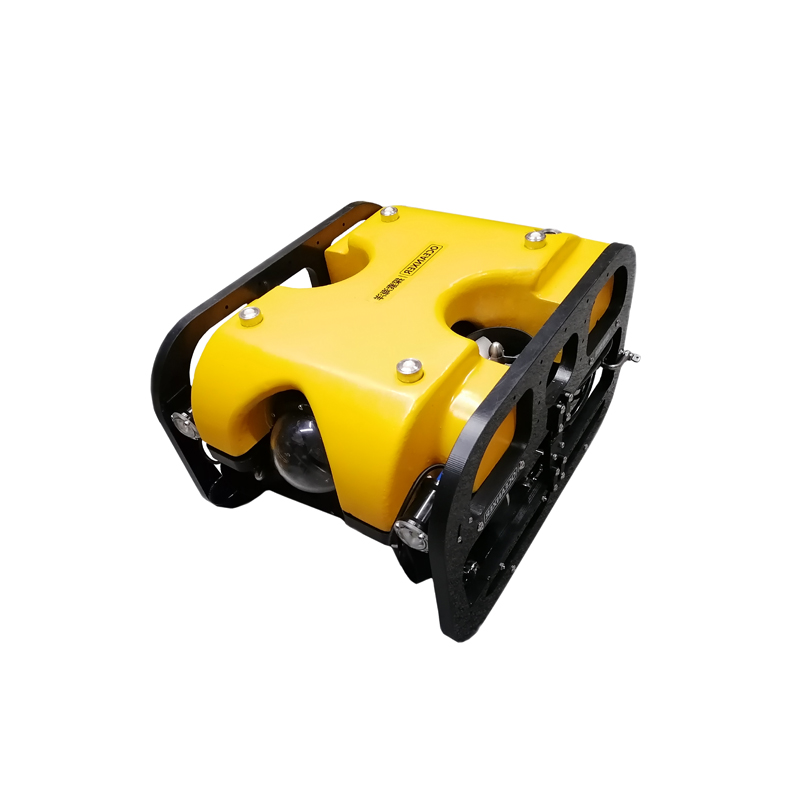

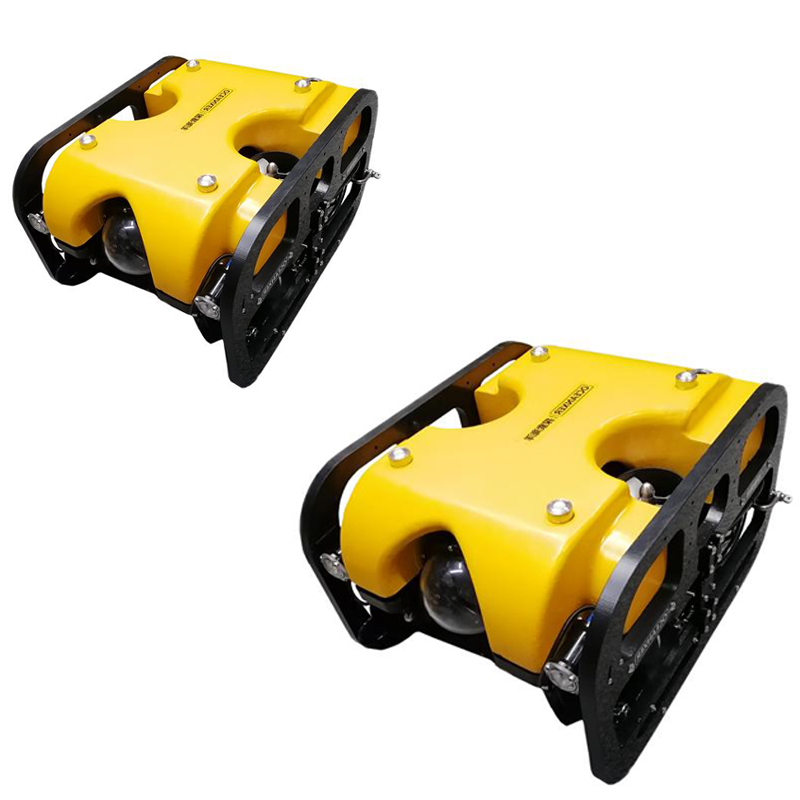

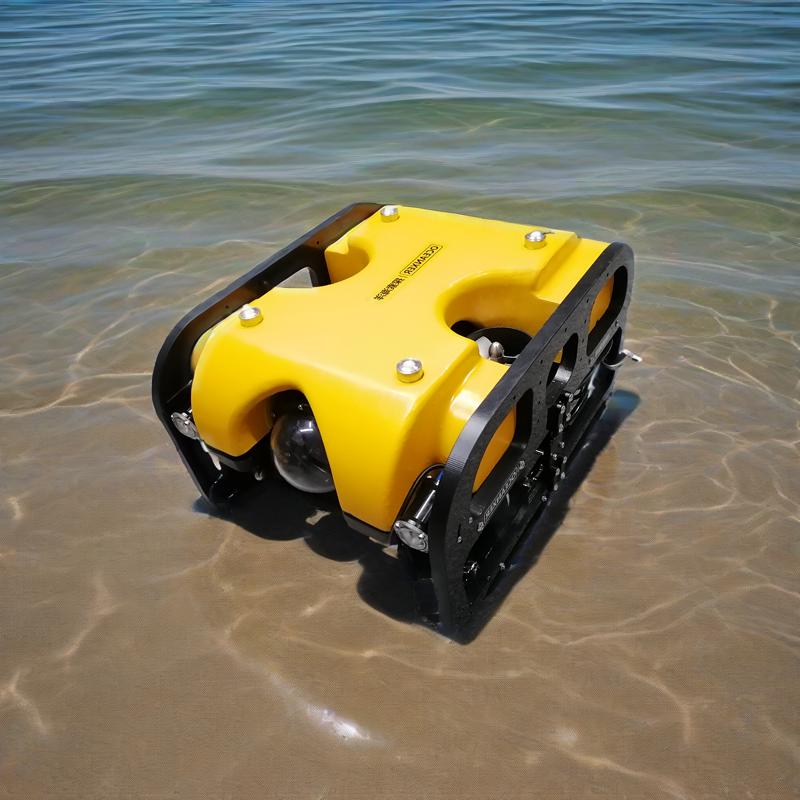

The E100 underwater robot is a small and flexible underwater inspection robot. It can be used for ocean observation, offshore oil and gas pipeline inspection, hull plate inspection and other operations by carrying different sensors. The extended version of the underwater robot can be used at a maximum depth of 1,000 meters. The standard version system includes a robot body, an umbilical winch and a deck control unit.


Product Parameters

ROV-E100 (Standard Edition) Underwater Robot


ROV body



———6 high-thrust thrusters
———1 1080P PTZ camera
———2 1500 lumen high-brightness LED lights

———1 battery power system (replaceable)


Size
437 x 356 x 273 mm
Weight in air
20kg
Load Capacity
8kg
Working depth
300m
Thruster thrust (single)
6.8kgf@max
Operating voltage
24V
Ground Station
Operating voltage
12V
Operating system
Win10
Storage capacity
516G(SSD)

Umbilical cable


Length
100m
Breaking strength
200kgf
Buoyancy in seawater
Slightly neutral

Optional accessories


———Multi-beam imaging sonar

———Multi-degree-of-freedom robotic arm

———Battery-powered system


Application Areas
