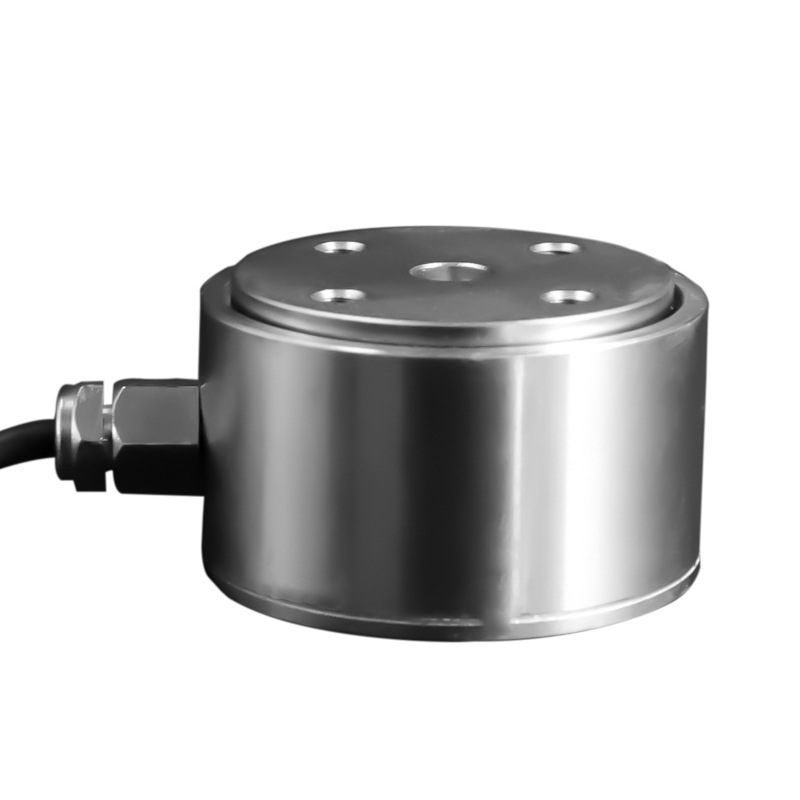

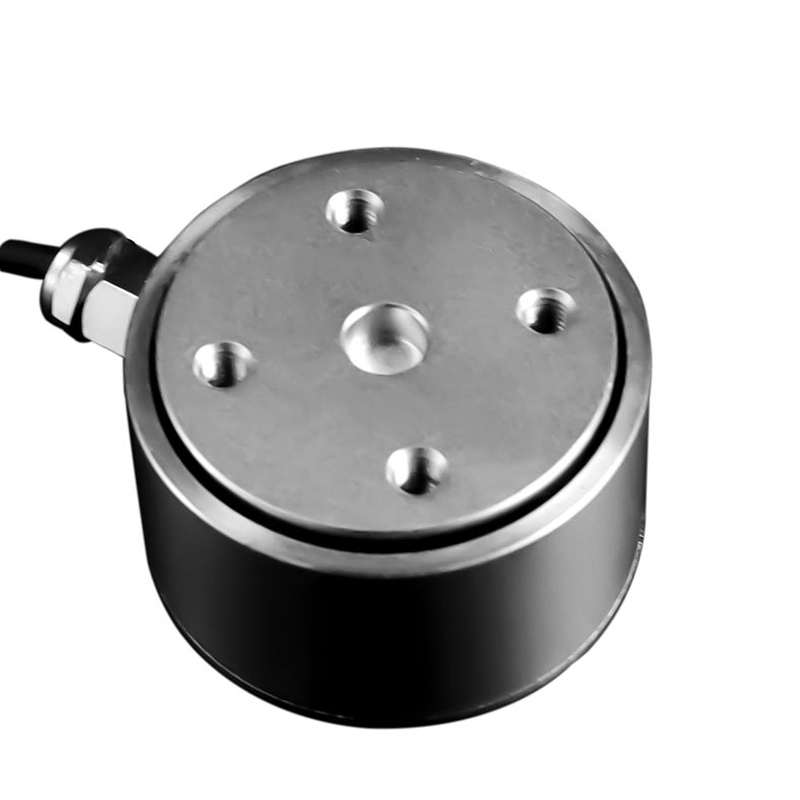

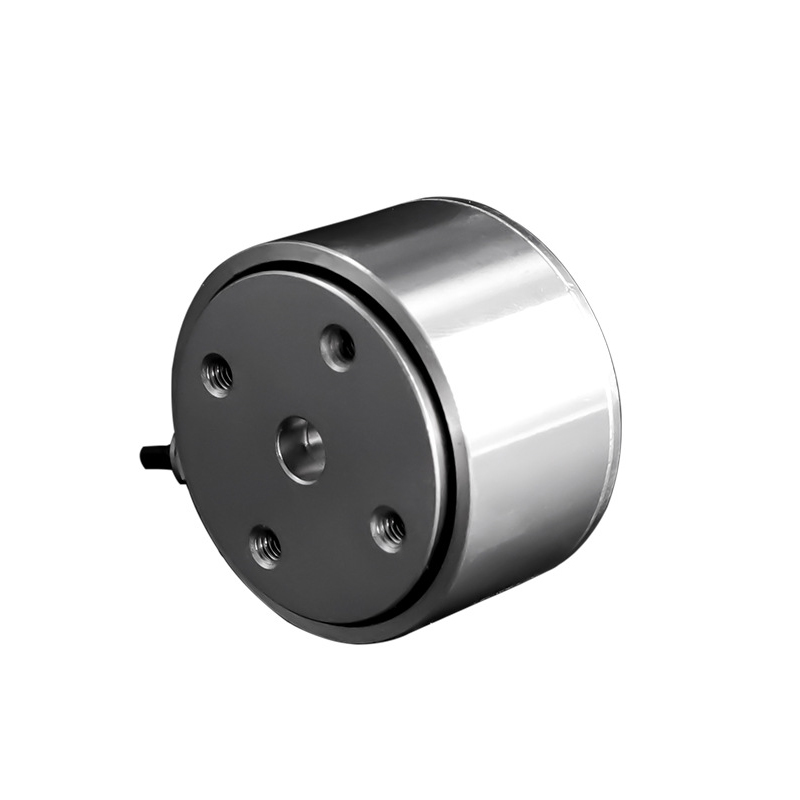

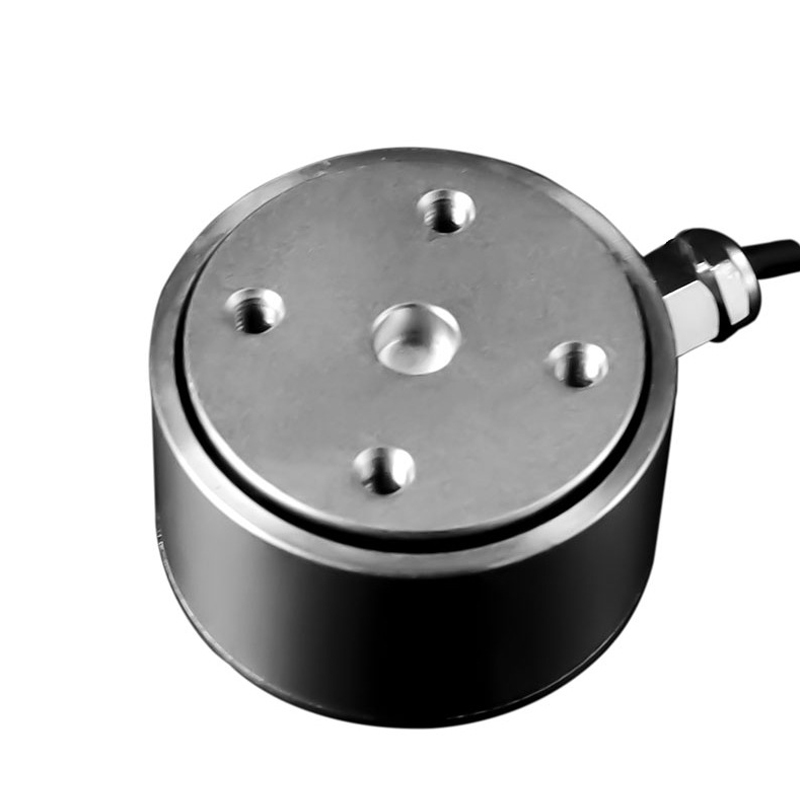

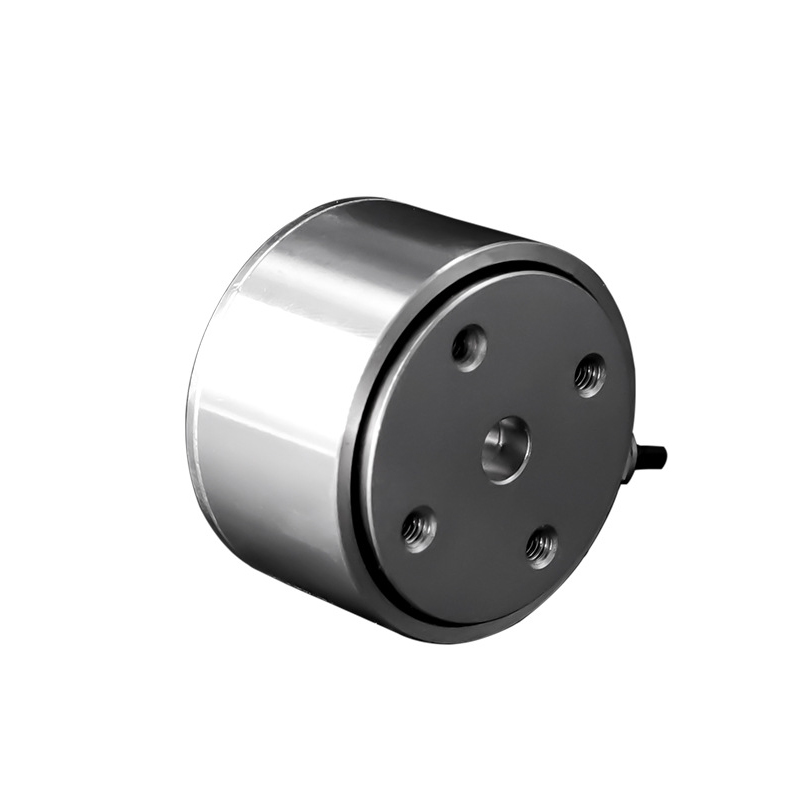

LCZ-202H Load Cell
Longlv LCZ-202H weighing sensor high-precision column tension and pressure sensor impact force measurement sensor
- Rated load：0~5000kg
- Sensitivity：2.0±0.05mV/V
- Zero point output：±2%F·S
- Impedance：350Ω
- Using voltage：5~10V
- Working temperature range：-20~80°C
USD： 57-99
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
The column type tension and pressure sensor has the characteristics of high precision, high dynamic response and small size. It is made of stainless steel and has a small eccentricity error. It is used in automotive press-fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, automation equipment and testing fields.
Product Overview
—— -

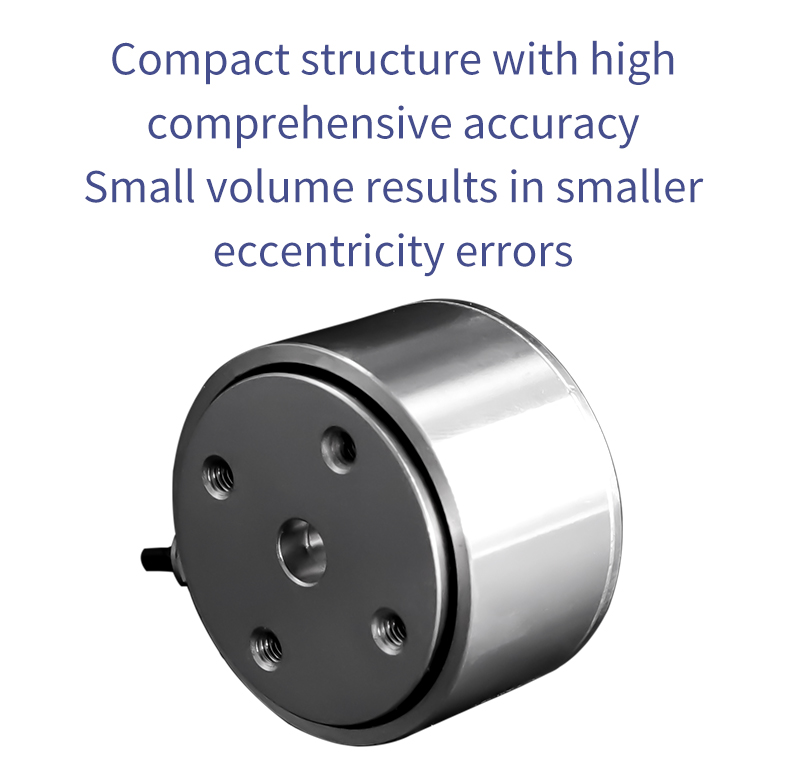

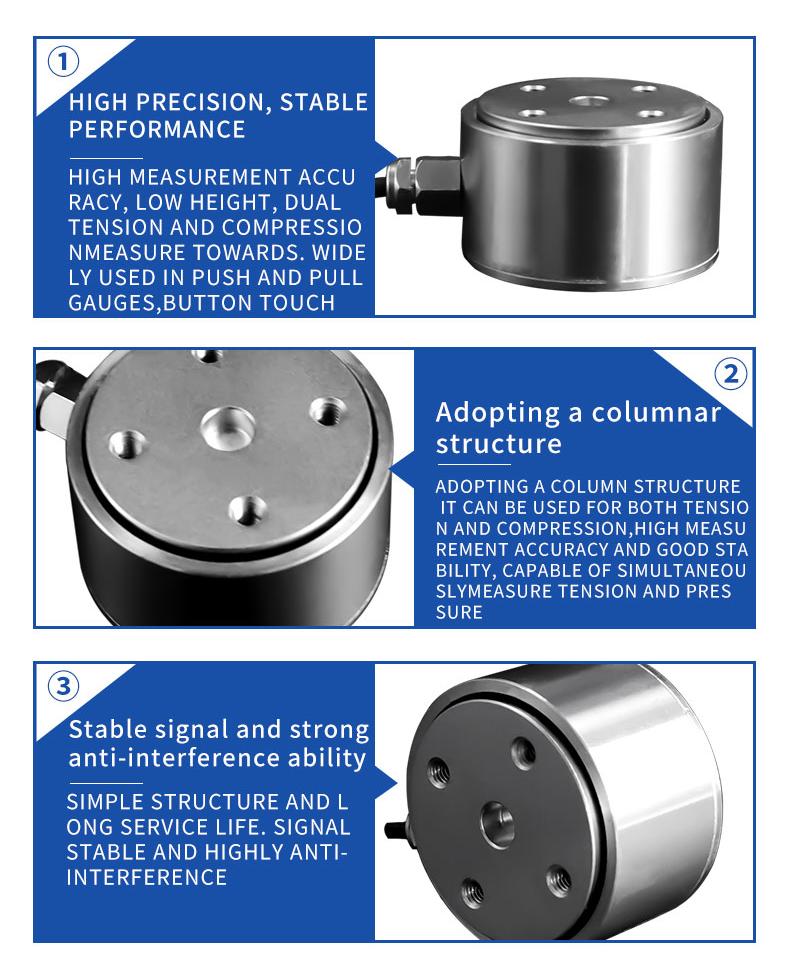

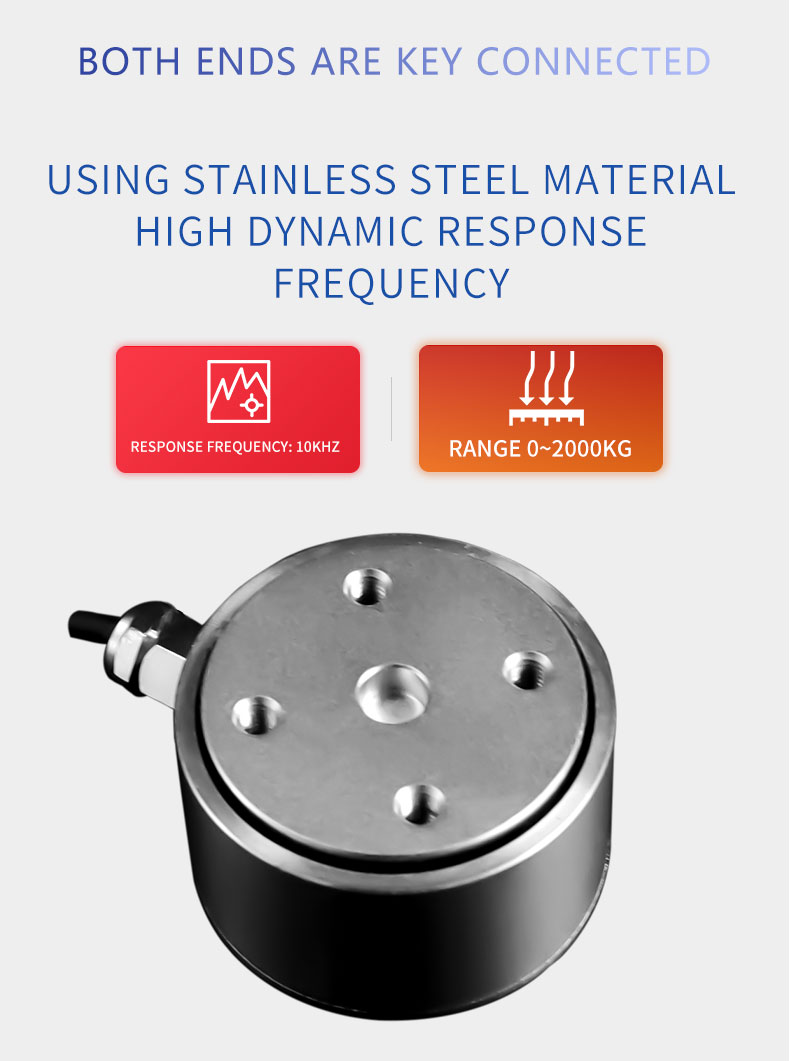

 | Column type tension and pressure sensor Column structure High precision, sensitive response Stable performance, good shock resistance |
Product Details
—— -
Parameter Specification
—— -
| Rated load | 0~5000kg |
| Sensitivity | 2.0±0.05mV/V |
| Zero point output | ±2%F·S |
| Nonlinear | 0.5%F·S |
| Hysteresis error | 0.03%F.S. |
| Repetitive error | 0.03%F.S. |
| Creep | 0.03%F.S. |
| Zero temperature | 0.03%F.S./10°C |
| Sensitivity temperature coefficient | 0.03%F.S./10°C |
| Response frequency | 10kHz |
| Material quality | Aluminium alloy |
| Impedance | 350Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Using voltage | 5~10V |
| Working temperature range | -20~80°C |
| Safety overload | 150%F·S |
| Ultimate Overload | 200% |
| Cable specifications | Ф3x2m |

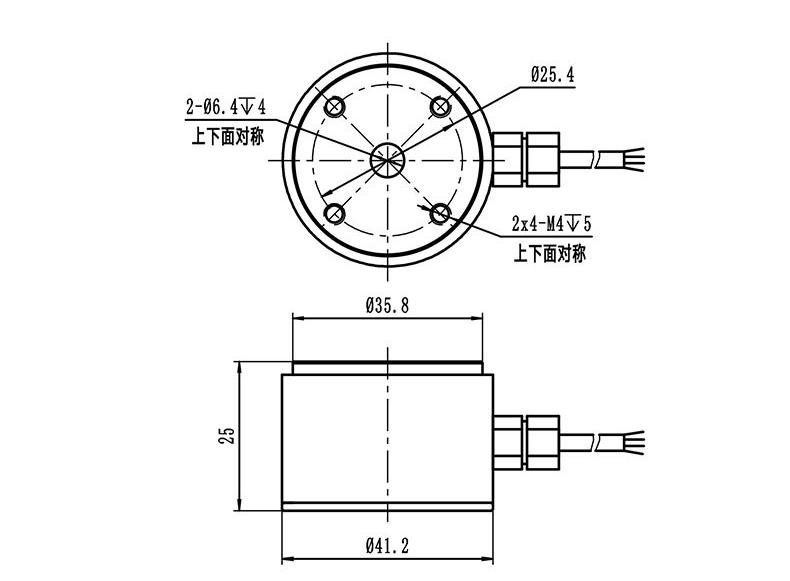

Product size
—— -

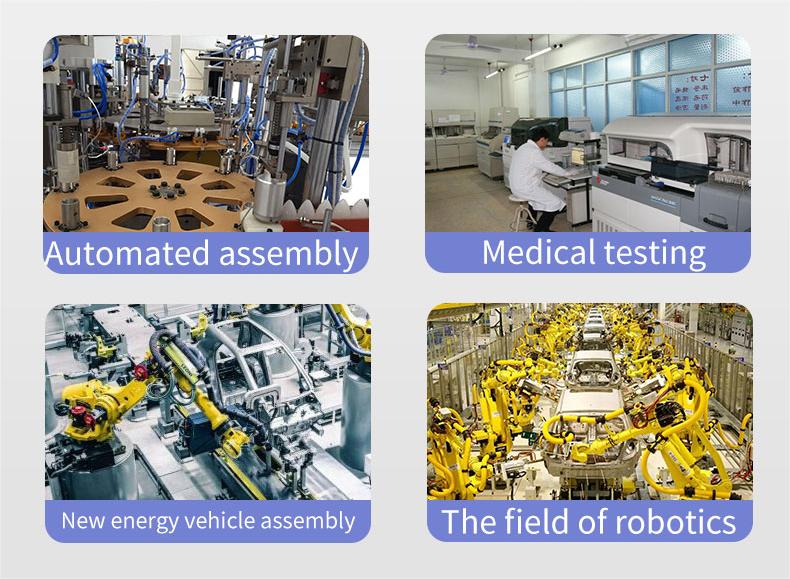

Application Areas
—— -
